How Do I Choose the Right Rubber Diaphragm for a Membrane Filter Press?

Choose a rubber diaphragm by matching four things to your actual operating conditions: rubber material compatibility with the slurry, exact dimensions against the filter plate drawing, pressure and temperature ratings against the squeeze cycle, and fatigue plus abrasion resistance against the expected number of cycles. Thickness alone is not a selection criterion.

Rubber diaphragm materials for membrane filter press

Key Takeaways

• Material selection starts with slurry chemistry and abrasiveness, not price.

• Dimensions must match the filter plate drawing, not the nominal press capacity.

• Most membrane filter presses squeeze around 0.8–1.2 MPa, but confirm from equipment design.

• Air versus water inflation affects material and design selection.

• Fatigue resistance matters as much as initial tensile strength.

• Abrasion resistance is a primary failure driver in mining and tailings.

• Total cost of ownership matters more than unit price.

Summary Table

Definition

A rubber diaphragm is a flexible elastomeric membrane installed on a membrane filter press plate. After the initial filtration stage, it expands under pressure to compress the filter cake and drive out additional moisture. It is a replaceable wear component that directly affects cake dryness, cycle time, and maintenance cost.

Working Principle

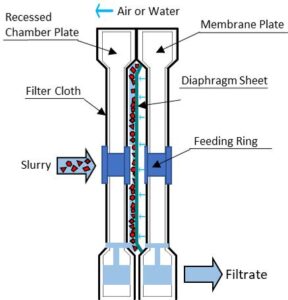

The diaphragm sits behind the filter cloth on a membrane filter press plate. During the squeeze cycle, compressed air or water inflates the diaphragm. The diaphragm presses against the filter cake, mechanically compressing it to reduce moisture content.

After the squeeze cycle, the diaphragm deflates and returns to its original position, allowing the plate to open and the cake to discharge. This expand-and-contract action repeats every filtration cycle, which is why fatigue resistance is a critical property.

The working principle can be summarized as:

Initial filtration → Diaphragm inflation → Cake compression → Diaphragm deflation → Cake discharge → Next cycle

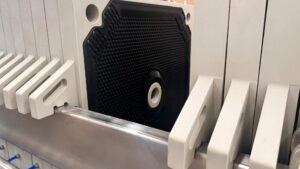

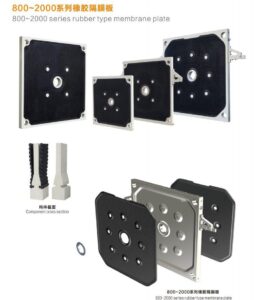

Rubber diaphragm installed on filter plate

Benefits

• Improved cake dryness, reducing downstream drying cost

• Stable filtration performance across cycles

• Shorter cycle time compared with chamber filter presses

• Lower moisture content in tailings, improving handling and transport

• Replaceable wear component, reducing long-term maintenance cost

• Adaptable to different slurries through material selection

Applications

• Mining and mineral processing

• Tailings filtration and dry discharge

• Chemical sludge dewatering

• Municipal wastewater treatment

• Dye and pigment sludge

• Food and pharmaceutical filtration

For mining operations, the diaphragm works alongside FILTER PRESSES and FILTER PLATES & CLOTHS to complete the dewatering circuit. Upstream, THICKENERS and DEWATERING HYDROCYCLONES are often used to increase feed solids concentration before filtration.

Material Comparison

Material selection should always be verified against the actual slurry chemistry, pH, temperature, and abrasive content. A rubber compound that performs well in municipal sludge may fail prematurely in a mining application.

Application Comparison

Industry Application Matrix

Selection Guide

Follow this sequence when selecting a rubber diaphragm:

1. Identify slurry chemistry, pH, and abrasiveness.

2. Confirm filter plate model and dimensions.

3. Confirm squeeze pressure and inflation medium.

4. Confirm operating temperature range.

5. Estimate cycle frequency per day.

6. Match material to all above conditions.

7. Verify dimensional accuracy against the filter plate drawing.

8. Review previous diaphragm failure mode if replacing.

9. Confirm supplier can provide material reports and dimensional verification.

10. Compare total cost of ownership, not unit price.

A practical selection chain for mining and tailings is:

Slurry characteristics → Rubber material → Diaphragm dimensions → Pressure → Temperature → Inflation medium → Cycle frequency → Abrasion resistance → Expected service life

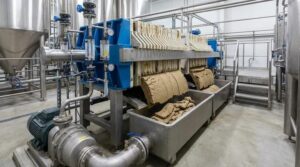

Membrane filter press in mining environment

Procurement Guide

Required Information

• Filter press model

• Filter plate dimensions

• Diaphragm drawing or photos

• Operating squeeze pressure

• Operating temperature

• Slurry chemical composition and pH

• Solid particle characteristics

• Previous diaphragm failure mode

Drawings Needed

• Filter plate drawing

• Diaphragm dimensional drawing

• Mounting hole layout

• Center opening dimensions

• Sealing area detail

OEM Part Numbers

Provide OEM part numbers when available. A qualified supplier can manufacture to match OEM dimensions even without part numbers, provided drawings or samples are supplied.

Material Selection

Confirm material with the supplier based on slurry chemistry and abrasiveness. Request material reports for NR, EPDM, or NBR compounds.

MOQ, Lead Time, Packaging, Shipping

• MOQ: depends on supplier and diaphragm size

• Lead Time: typically 15–30 days for custom diaphragms

• Packaging: protected from UV, heat, and deformation during transport

• Shipping: confirm method based on size and quantity

Inspection Standards

• Dimensional verification against drawing

• Material composition report

• Visual inspection for surface defects

• Hardness and elasticity check

Supplier Evaluation Checklist

• Can the supplier manufacture according to drawings?

• Can the supplier provide material reports?

• Can the supplier support OEM replacement?

• Does the supplier have export experience?

• Can the supplier provide wear-life recommendations?

Failure Analysis

Maintenance Guide

Daily Inspection

• Check for visible damage, leakage, or abnormal noise

• Confirm squeeze pressure is within specification

Weekly Inspection

• Inspect sealing area and mounting holes

• Check diaphragm surface for early wear signs

Monthly Inspection

• Check wear pattern and elasticity

• Compare cycle count against expected service life

Wear Pattern Monitoring

Record wear pattern and location. Edge wear often indicates installation or plate issues. Center wear may indicate material incompatibility or abrasive slurry.

Replacement Timing

Replace based on condition and cycle count, not calendar time. Replace before failure to avoid unplanned downtime.

Spare Parts Inventory

Keep at least one spare diaphragm in inventory for critical filtration circuits. Confirm spare dimensions match the installed plate.

Downtime Reduction

• Standardize diaphragm specifications across similar presses

• Train operators on correct installation

• Track cycle count and wear pattern

Preventive Maintenance

• Follow daily, weekly, and monthly inspection schedules

• Replace diaphragms before failure

• Review slurry chemistry changes that may affect material selection

Case Study

Customer Type: Copper tailings filtration plant

Ore Type: Copper flotation tailings

Operating Conditions: 1.0 MPa squeeze pressure, water inflation, 45°C, 12 cycles per day

Problem: Diaphragm failed after approximately 3 months due to edge cracking and abrasion

Solution: Switched to abrasion-resistant NR compound with reinforced edge design. Verified dimensions against the filter plate drawing. Adjusted installation procedure to avoid edge stress.

Result: Service life extended to approximately 9–10 months. Reduced unplanned downtime and improved cake dryness consistency.

This case reflects typical mining tailings conditions. Actual results vary with slurry chemistry, operating pressure, temperature, and cycle frequency.

Tailings filtration circuit with filter press

FAQ

Q1: How much does a rubber diaphragm cost?
Price depends on material, size, and quantity. NR is generally lower cost, while EPDM and NBR are higher. For mining applications, total cost of ownership matters more than unit price because premature failure causes downtime and production loss.

Q2: Which rubber material is best for mining tailings?
NR or reinforced NR compounds are common for abrasive tailings. EPDM is better for chemical resistance, and NBR for oil-containing slurry. Always verify against actual slurry chemistry and abrasiveness before selecting.

Q3: How do I install a rubber diaphragm?
Install according to the filter plate drawing. Do not grind, cut, or force-fit. Check mounting holes, center opening, and sealing area before tightening. Incorrect installation is a common cause of premature failure.

Q4: What is the typical service life?
Service life depends on slurry abrasiveness, pressure, temperature, and cycle frequency. In mining applications, 6–12 months is common, but this varies widely. Monitor wear pattern and replace before failure rather than relying on a fixed schedule.

Q5: How do I maintain a rubber diaphragm?
Inspect daily for damage, weekly for sealing and mounting, and monthly for wear pattern. Track cycle count. Keep spares in inventory. Replace based on condition, not just calendar time.

Q6: Is the diaphragm compatible with my OEM filter press?
Compatibility depends on plate dimensions and mounting configuration. Provide the filter press model, plate drawing, and diaphragm drawing to the supplier. A qualified supplier can manufacture to match OEM dimensions even without OEM part numbers.

Q7: How do I procure a replacement diaphragm?
Provide filter press model, plate dimensions, diaphragm drawing or photos, operating pressure, temperature, slurry data, and previous failure mode. Request material reports and dimensional verification before ordering.

Q8: Can I reduce cost by using a thinner diaphragm?
Not necessarily. A thinner diaphragm may reduce initial cost but can fail faster under abrasive or high-pressure conditions. Compare total cost of ownership, including downtime and replacement labor, not unit price alone.

Conclusion

Choosing the right rubber diaphragm for a membrane filter press requires matching material, dimensions, pressure, temperature, inflation medium, cycle frequency, and abrasion resistance to the actual application. For mining and tailings, abrasion and chemical compatibility are usually the primary drivers. Provide complete technical information to your supplier to get an accurate recommendation.

The diaphragm is a small component relative to the filter press, but it directly affects cake dryness, cycle time, and maintenance cost. A well-selected diaphragm reduces downtime and improves the overall dewatering performance of the circuit.
