Rod Mill

Mining Rod Mill | Heavy-Duty Grinding Equipment for Mineral Processing

Product Overview

A Rod Mill is a critical piece of grinding equipment used in mineral processing plants for coarse grinding and primary grinding applications. Designed for continuous operation in demanding mining environments, the Mining Rod Mill uses high-quality steel grinding rods as the grinding media to achieve controlled size reduction with excellent particle size distribution.

Compared with traditional ball mills, Rod Mills are particularly suitable for applications requiring uniform coarse grinding and reduced over-grinding. The linear contact between grinding rods creates a selective grinding action, producing fewer fine particles and minimizing unwanted slime generation.

Our Heavy-Duty Rod Mills are engineered for iron ore, copper ore, gold ore, lithium ore, quartz sand, silica sand, coal, coke, and other industrial mineral processing applications. They can be integrated into open circuit or closed circuit grinding systems and are widely used as primary grinding equipment before flotation, magnetic separation, gravity separation, and other beneficiation processes.

As a professional Grinding Mill Manufacturer, we provide customized industrial Rod Mill solutions according to different ore characteristics, processing capacity, and plant requirements.

Applications of Mining Rod Mills

Mineral Processing and Ore Grinding

Rod Mills are widely applied in mining operations where controlled grinding and narrow particle size distribution are required.

Iron Ore Processing

In iron ore beneficiation plants, Iron Ore Rod Mills are commonly used for primary grinding before magnetic separation. The controlled grinding process helps liberate iron minerals while reducing excessive fines generation.

Copper Ore Grinding

For copper mining operations, Copper Ore Rod Mills provide efficient coarse grinding performance before flotation circuits. Their ability to produce a more uniform particle size improves downstream mineral recovery efficiency.

Gold Mining Operations

Gold Mining Rod Mills are used for grinding gold-bearing ores, especially in combination with ball mills or flotation systems. The reduced over-grinding characteristics help maintain suitable particle size for gold liberation.

Quartz Sand and Silica Sand Processing

For industrial minerals, Silica Sand Rod Mills and Quartz Sand Rod Mills provide controlled grinding performance to produce high-quality sand products with consistent particle distribution.

Coal and Coke Grinding

Dry grinding rod mills are also available for coal, coke, and other materials requiring controlled size reduction.

Rod Mill Working Principle

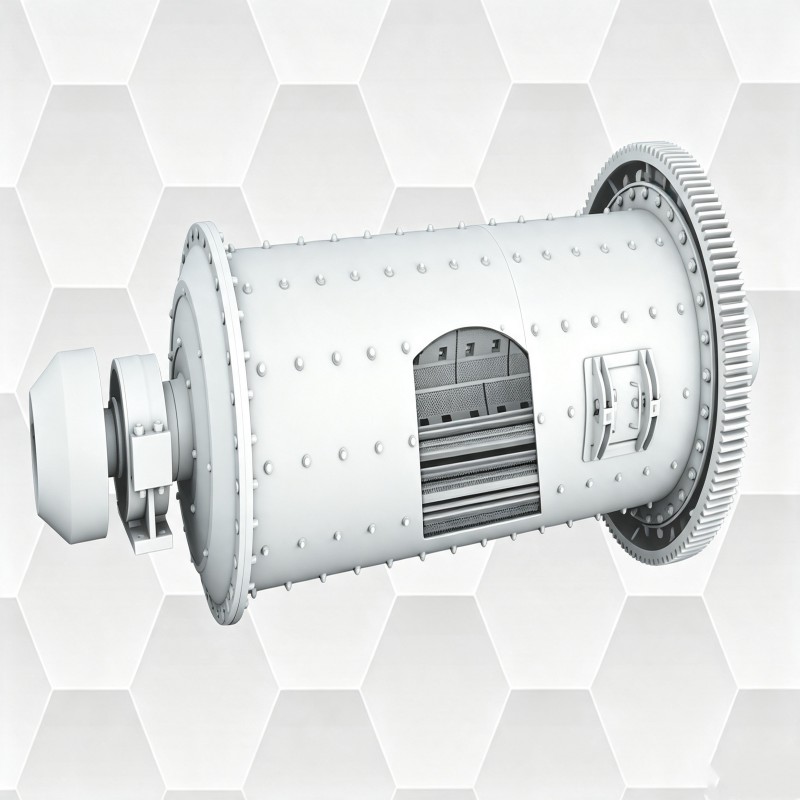

A Rod Mill operates by rotating a cylindrical shell filled with high-carbon steel grinding rods. As the mill rotates, the rods are lifted and dropped, creating impact and abrasion forces that gradually reduce the material size.

The long cylindrical grinding rods create a preferential grinding action from coarse particles to smaller particles, helping achieve:

• Uniform particle size distribution
• Reduced over-grinding
• Lower generation of unwanted fines
• Improved downstream mineral recovery
• Stable grinding performance

Depending on the process requirements, our Rod Mills can be configured for wet grinding or dry grinding applications.

Rod Mill Types Available

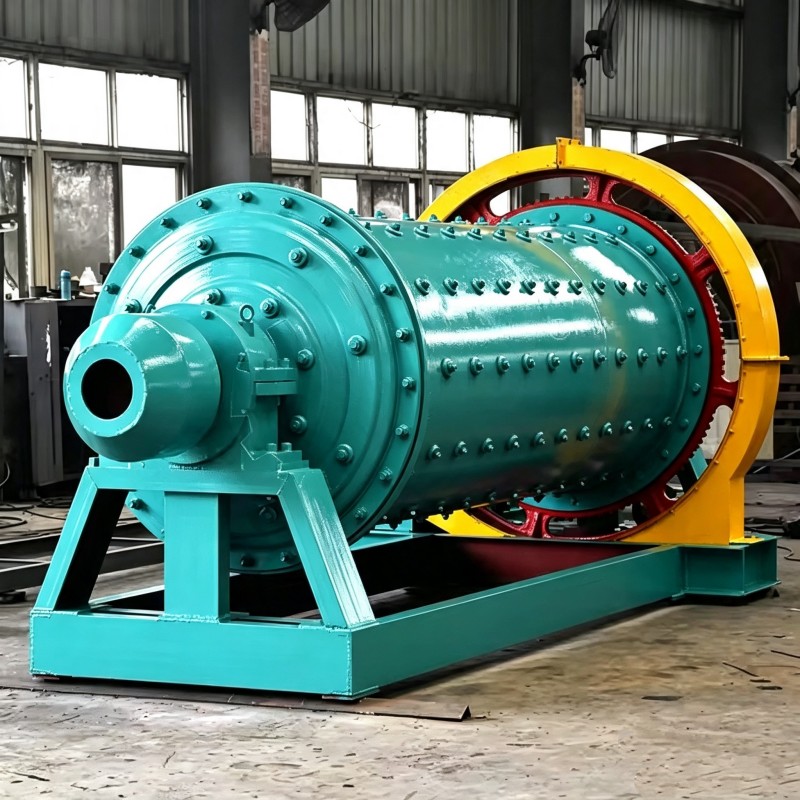

Overflow Rod Mill

The Overflow Rod Mill is the most common configuration used in mineral processing plants.

Material discharge occurs through the trunnion overflow system, providing stable operation and suitable grinding performance for wet grinding circuits.

Applications:

• Copper ore processing
• Gold ore grinding
• Iron ore beneficiation
• Mineral flotation plants

End Peripheral Discharge Rod Mill (EPD Rod Mill)

The End Peripheral Discharge Rod Mill is designed for applications requiring faster material discharge and limited fine particle production.

Features:

• Efficient coarse grinding
• Lower over-grinding tendency
• Suitable for special mineral processing applications

Center Peripheral Discharge Rod Mill (CPD Rod Mill)

The Center Peripheral Discharge Rod Mill allows material feeding from both ends and discharge through the center section.

Advantages:

• More uniform product size
• High grinding efficiency
• Suitable for specialized grinding circuits

Wet Grinding Rod Mill

Wet grinding Rod Mills are widely used in mining operations due to their excellent grinding efficiency and adaptability.

Typical applications:

• Copper mining
• Gold mining
• Iron ore processing
• Lithium ore beneficiation

Dry Grinding Rod Mill

Dry Rod Mills are suitable for materials sensitive to moisture, including:

• Quartz
• Silica sand
• Coal
• Coke

Key Advantages of Our Mining Rod Mill

1. Excellent Particle Size Control

The use of steel rods creates a selective grinding effect, producing a narrower particle size distribution compared with conventional grinding methods.

This makes Rod Mills ideal for applications where excessive fine generation must be avoided.

2. Reduced Over-Grinding and Energy Waste

The rod grinding mechanism minimizes unnecessary particle breakage, reducing energy consumption and improving overall grinding efficiency.

3. Heavy-Duty Structure for Mining Conditions

Designed for continuous operation, the mill features:

• High-strength steel shell
• Reinforced end plates
• Reliable drive system
• Durable bearings
• Wear-resistant liners

The robust construction ensures long service life in harsh mining environments.

4. Customized Grinding Solutions

We provide customized Rod Mill designs according to:

• Ore hardness
• Feed size
• Required product size
• Processing capacity
• Grinding circuit design

Available solutions include complete grinding systems and individual replacement components.

5. Compatible Wear Parts and Spare Components

To reduce maintenance downtime, we supply complete wear and replacement solutions including:

• Rod Mill Liners
• Rubber Liners
• Poly-Met Liners
• Grinding Rods
• Trunnion Components
• Bearings
• Drive Components

Our replacement parts are designed for compatibility with various international grinding equipment standards.

Technical Specifications

Integrated Comminution Solutions for Mining Industry

Our Rod Mills are designed as part of complete comminution solutions for modern mineral processing plants.

They can be combined with:

• Jaw Crushers
• Cone Crushers
• Ball Mills
• Hydrocyclones
• Flotation Machines
• Magnetic Separation Equipment
• Screening Equipment

From primary grinding to final mineral recovery, we help mining companies improve production efficiency, reduce operating costs, and achieve stable process performance.

Why Choose Our Rod Mill?

• Professional mining equipment manufacturing experience
• Customized design for different mineral applications
• Reliable performance under continuous operation
• Competitive total ownership cost (TCO)
• Engineering support for grinding circuit optimization
• Global export experience and after-sales service

Whether replacing existing equipment or building a new processing plant, our Mining Rod Mills provide a cost-effective alternative for reliable mineral grinding operations.

Request a Quote (RFQ)

Please contact us for a customized Rod Mill quotation.

To recommend the most suitable grinding solution, please provide:

• Material type
• Processing capacity (TPH)
• Feed size
• Required product size
• Grinding method (wet or dry)
• Existing equipment information
• Application requirements

Our engineering team will provide a customized Rod Mill selection and technical proposal according to your mining project.
