SAG Mill Liners

Product Introduction

Ball Mill Liners are critical wear components installed inside grinding mills to protect the mill shell, improve grinding efficiency, and optimize mineral processing performance. As one of the most important mining wear parts, high-quality mill liners directly influence mill availability, energy consumption, maintenance frequency, and overall cost per ton ground.

As a professional mill liner manufacturer and supplier, we provide customized ball mill liners, grinding mill wear liners, rubber mill liners, metallic mill liners, and composite mill liners for global mining and mineral processing industries.

Our engineered mill liner solutions are designed for demanding applications including gold processing, copper concentrators, iron ore beneficiation, lithium ore processing, and other hard rock mining operations.

According to different grinding conditions, ore characteristics, mill types, and operating requirements, we supply optimized liner systems including:

• Rubber Mill Liners
• Metallic Mill Liners
• High Chromium White Iron Liners
• Chrome-Moly Steel Liners
• Steel-Rubber Composite Liners
• Polyurethane Mill Liners
• Custom-designed Lifter Bars and Shell Liners

With advanced material selection, optimized liner profiles, and precise manufacturing processes, our mill liners help mining companies achieve:

• Extended wear life
• Reduced relining downtime
• Improved grinding efficiency
• Safer and easier installation
• Lower maintenance cost per ton of processed material

Why Ball Mill Liners Are Important in Mining Operations

During grinding operations, the mill shell is continuously exposed to severe impact, abrasion, and corrosion caused by ore particles and grinding media.

Without proper protection, excessive wear can damage the mill structure and increase operational costs.

High-performance ball mill liners provide multiple functions:

Mill Protection

Mill liners create a protective barrier between the grinding media and the mill shell, preventing structural damage and extending equipment service life.

Grinding Optimization

The liner profile controls the movement of grinding media inside the mill, affecting impact energy, grinding efficiency, and final product size.

Wear Management

Proper material selection ensures longer replacement intervals and reduces unexpected shutdowns.

Maintenance Cost Reduction

Optimized liner design reduces relining frequency and improves mill availability.

Ball Mill Liner Types & Materials

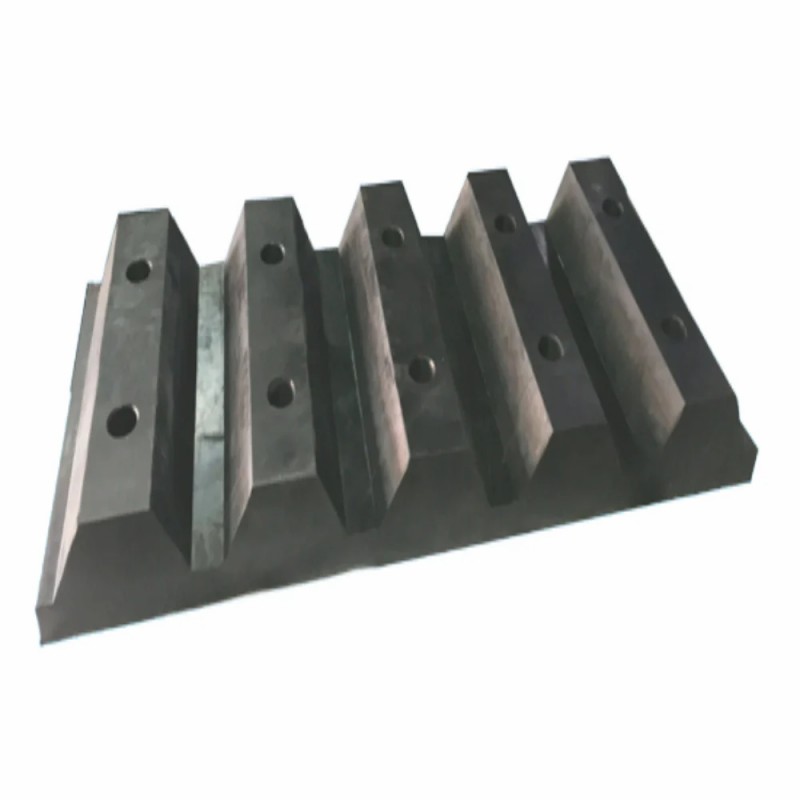

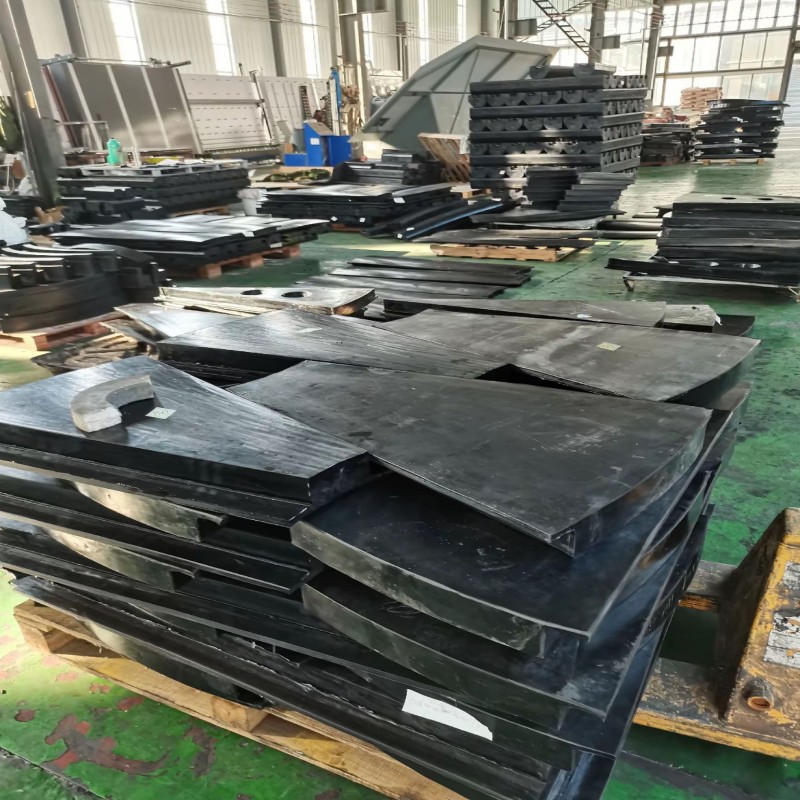

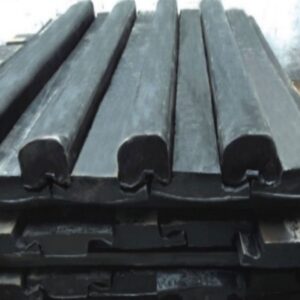

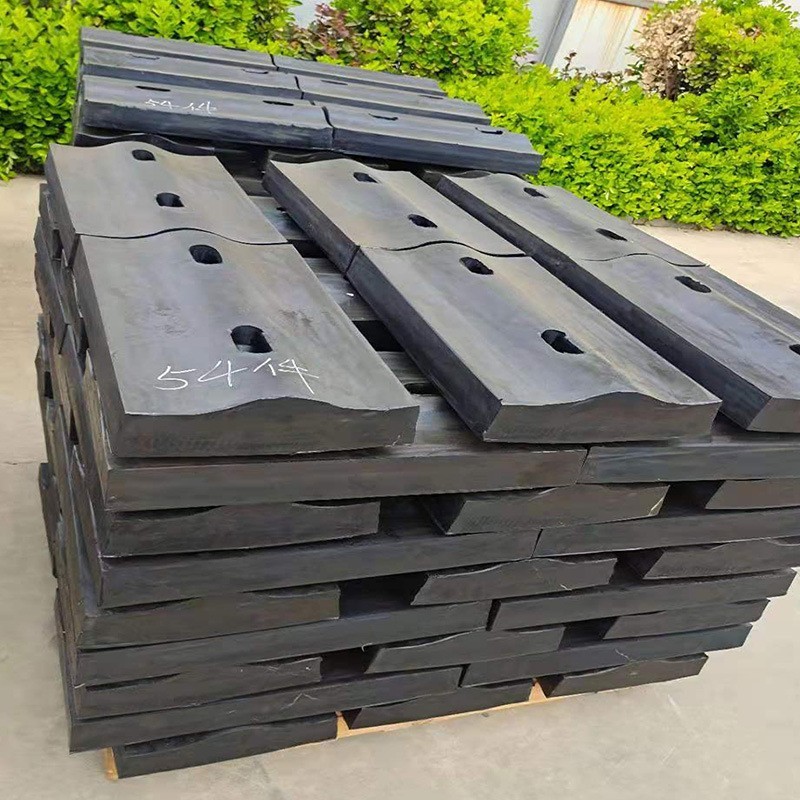

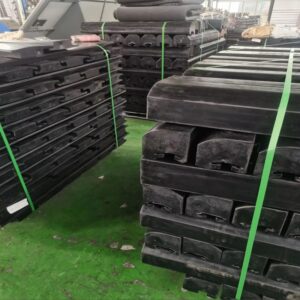

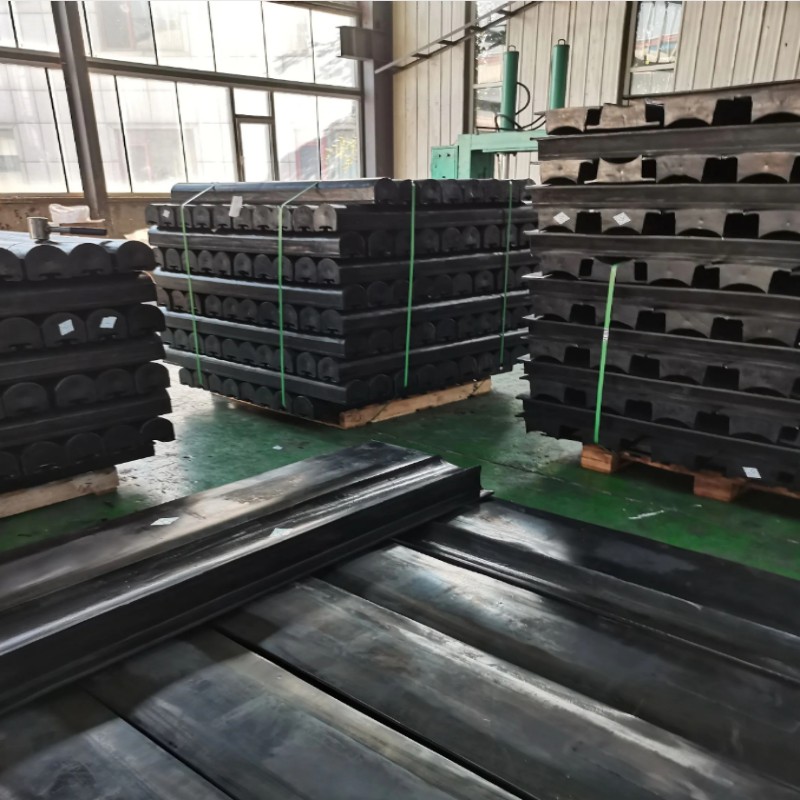

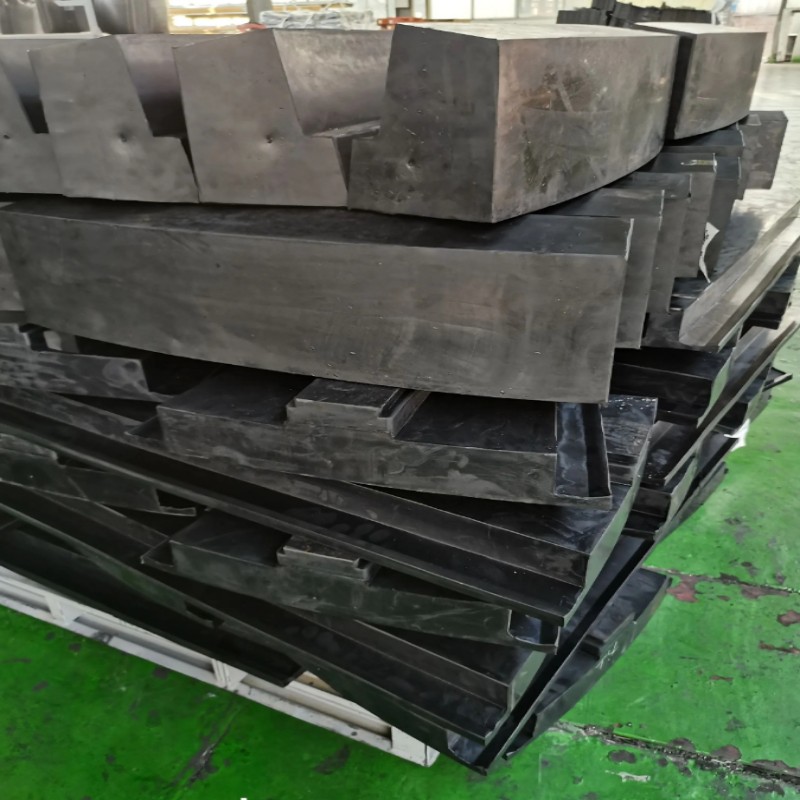

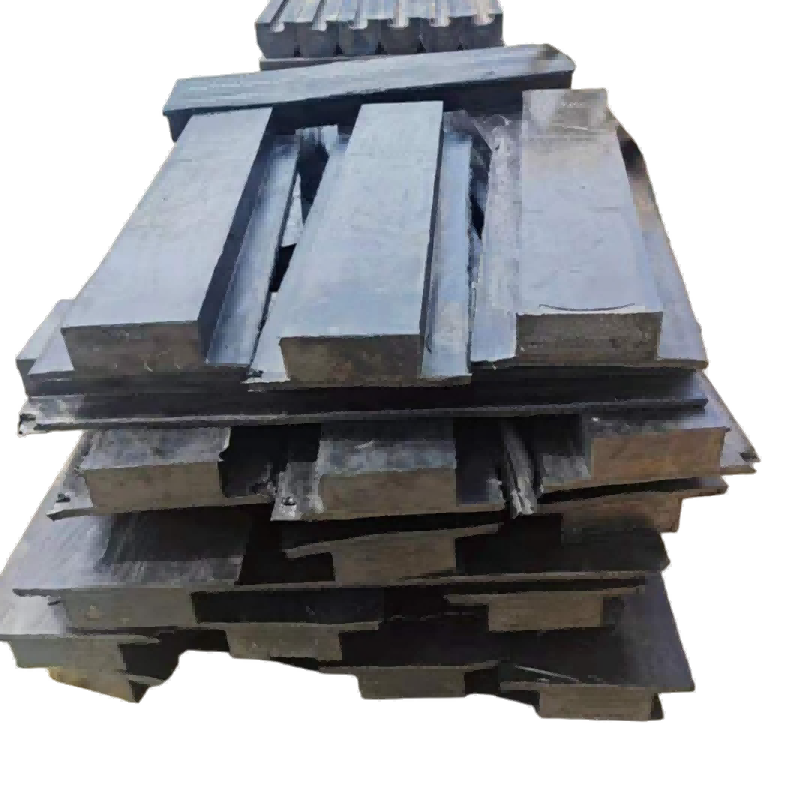

Rubber Mill Liners

Rubber mill liners are widely used in wet grinding applications due to their excellent wear resistance, corrosion resistance, and lightweight characteristics.

Compared with traditional steel liners, rubber liners offer:

• Lower installation weight
• Reduced noise during operation
• Better corrosion resistance
• Easier handling and replacement
• Lower impact stress on mill components

Rubber mill liners are commonly applied in:

• Gold ore ball mills
• Copper processing plants
• Nickel mining operations
• Wet grinding circuits

Metallic Mill Liners / Steel Mill Liners

Metallic mill liners are designed for heavy-duty grinding environments where high impact resistance is required.

Available materials include:

High Chromium White Iron Liners

High chrome liners provide excellent abrasion resistance and are suitable for applications requiring long wear life.

Typical applications:

• Fine grinding mills
• Cement grinding mills
• High abrasion ore processing

Chrome-Moly Steel Liners (Cr-Mo Steel)

Chrome-moly steel liners combine high toughness and wear resistance, making them suitable for large mining mills.

Advantages:

• High impact resistance
• Strong mechanical strength
• Suitable for large diameter mills

Austenitic Manganese Steel Liners

Manganese steel liners provide excellent impact resistance and work-hardening characteristics.

They are commonly used in:

• Primary grinding applications
• Large feed size operations
• High impact environments

Composite Mill Liners / Hybrid Mill Liners

Composite mill liners, also known as steel-rubber composite liners or hybrid liners, combine the advantages of rubber and steel materials.

The design provides:

• High wear resistance
• Reduced liner weight
• Improved safety during installation
• Longer service intervals

Composite liners are widely used for modern mining operations requiring optimized performance and lower operating costs.

Mill Liner Components & Wear Parts

We provide complete mill protection solutions covering all major liner components.

Shell Liners / Shell Plates

Shell liners protect the cylindrical section of the mill body.

Customized designs are available according to:

• Mill diameter
• Grinding conditions
• Ore hardness
• Required lifting action

Lifter Bars / Raising Bars

Ball mill lifter bars are key components controlling grinding media movement.

Proper lifter bar design improves:

• Grinding efficiency
• Media lifting performance
• Energy utilization
• Wear distribution

Available designs:

• Rubber lifter bars
• Steel lifter bars
• Composite lifter bars

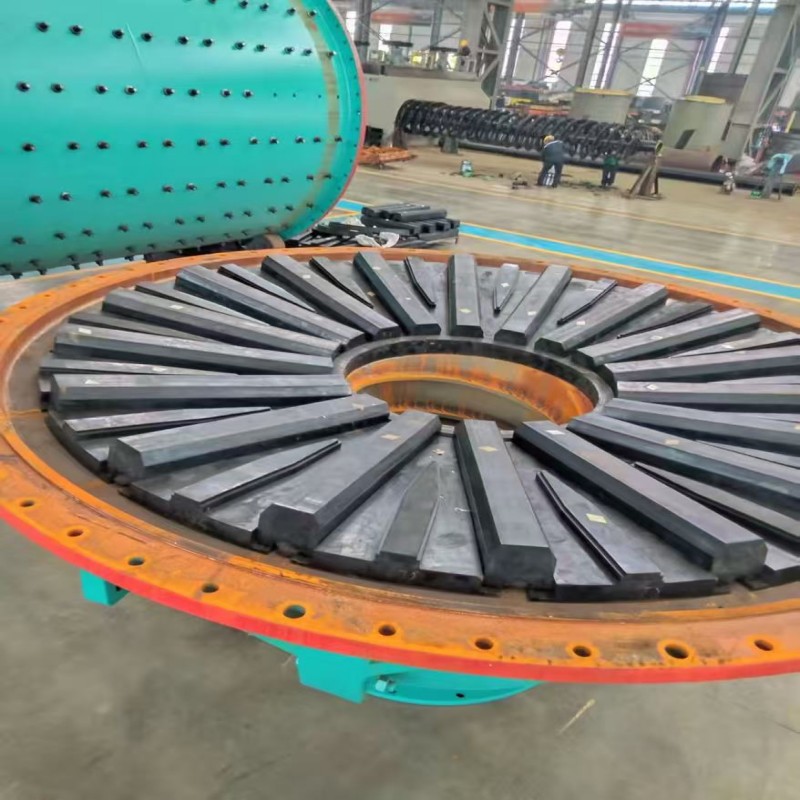

Head Liners / End Liners

Head liners protect the feed and discharge ends of the mill.

Products include:

• Feed Head Liners
• Discharge Head Liners
• End Liners

Grate Plates / Grate Liners

For grate discharge ball mills, grate plates control slurry discharge and improve mill throughput.

Benefits:

• Efficient pulp discharge
• Reduced slurry retention
• Improved mill capacity

Pulp Lifters

Pulp lifters transfer slurry from the grate area to the discharge system, ensuring smooth material flow.

Applications

Gold Mining

Gold mill liners are designed for continuous grinding operations in gold processing plants.

They improve mill availability and maintain stable grinding performance before flotation or leaching processes.

Copper Processing

Copper ore ball mill liner systems help optimize grinding circuits by improving mineral liberation efficiency and reducing downtime.

Iron Ore Beneficiation

Iron ore grinding requires durable liners capable of handling abrasive materials and long operating cycles.

Lithium Ore Processing

With increasing demand for battery minerals, reliable mill liners are essential for efficient lithium ore grinding and beneficiation.

SAG and Ball Mill Applications

We provide wear solutions for:

• SAG mill liners
• Ball mill liners
• Secondary grinding mills
• Regrind mills
•

Advantages of Our Ball Mill Liners

Customized Engineering Design

Each liner system is designed according to mill parameters, ore characteristics, and operating conditions.

Extended Wear Life

Optimized materials and liner profiles help maximize service life and reduce replacement frequency.

Improved Grinding Efficiency

Scientific lifter design improves grinding media trajectory and enhances mineral liberation.

Reduced Relining Downtime

Lightweight and modular liner designs simplify installation and replacement.

Lower Cost Per Ton Ground

Longer wear life and improved mill performance reduce total operating costs.

Technical Specifications

Customized Mill Liner Solutions

Different mines have different requirements depending on:

• Ore hardness
• Abrasion level
• Mill speed
• Grinding media size
• Processing capacity
• Operating environment

Our engineering team provides customized solutions including:

• Liner material recommendation
• Wear pattern analysis
• Liner profile optimization
• Replacement parts supply
• Technical support

Whether you require rubber mill liners for wet grinding, heavy-duty steel liners for large mining mills, or composite mill liners for improved efficiency, we provide reliable solutions for global mining operations.

Request for Quote (RFQ)

Looking for a reliable ball mill liners supplier?

Please provide the following information:

• Mill type and model
• Mill diameter and length
• Liner drawing or existing liner specification
• Material requirement
• Application (Gold, Copper, Iron Ore, Lithium, etc.)
• Expected service life
• Annual consumption quantity

Our engineering team will recommend the most suitable liner solution and provide a competitive quotation.

Product Summary

Ball Mill Liners are essential mining wear components designed to protect grinding mills, optimize grinding performance, and reduce operating costs. We supply customized rubber, steel, and composite mill liners for SAG mills, ball mills, and mineral processing plants worldwide.
