Grinding Mill

Product Introduction

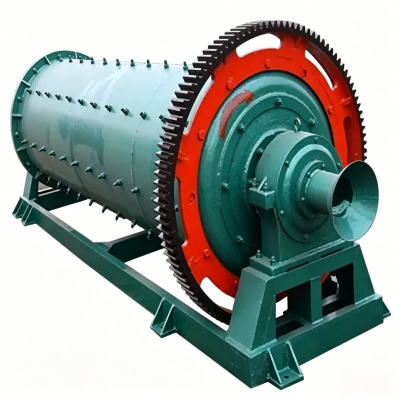

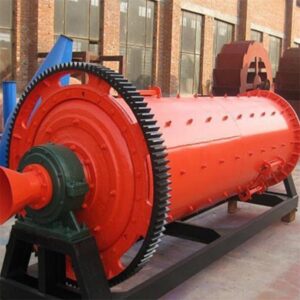

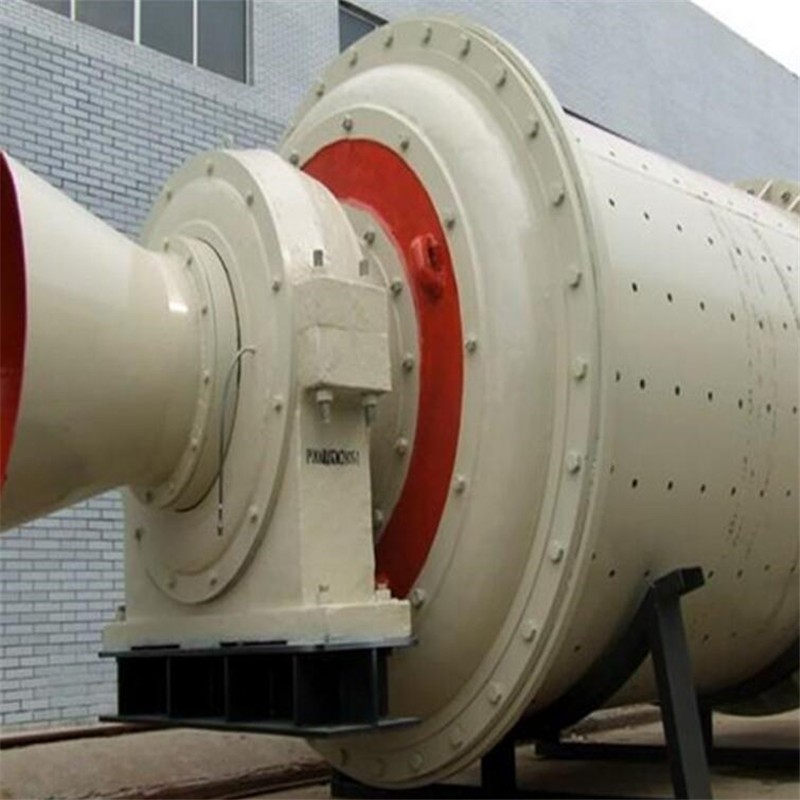

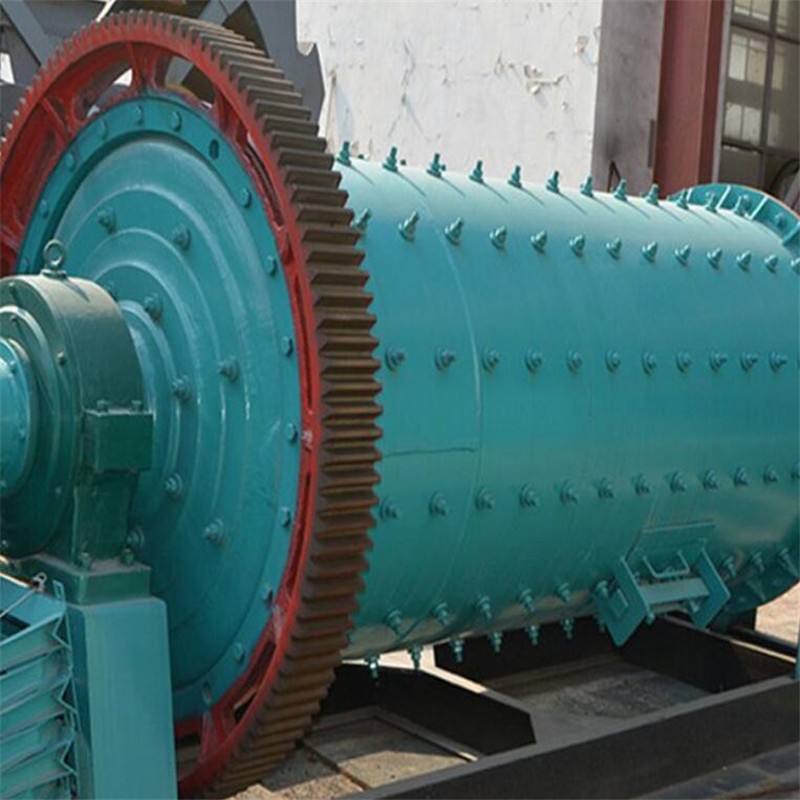

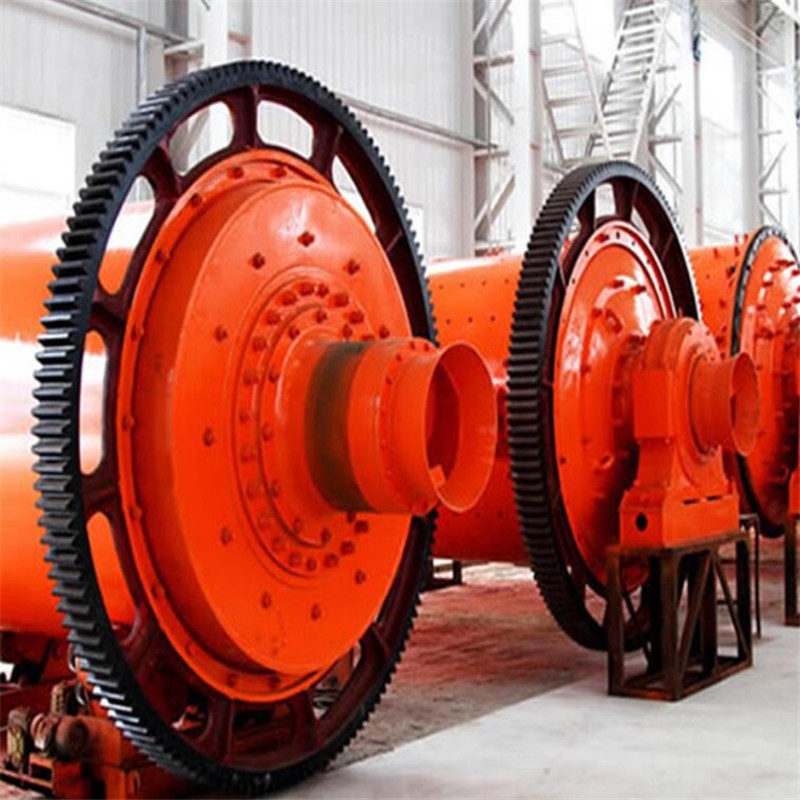

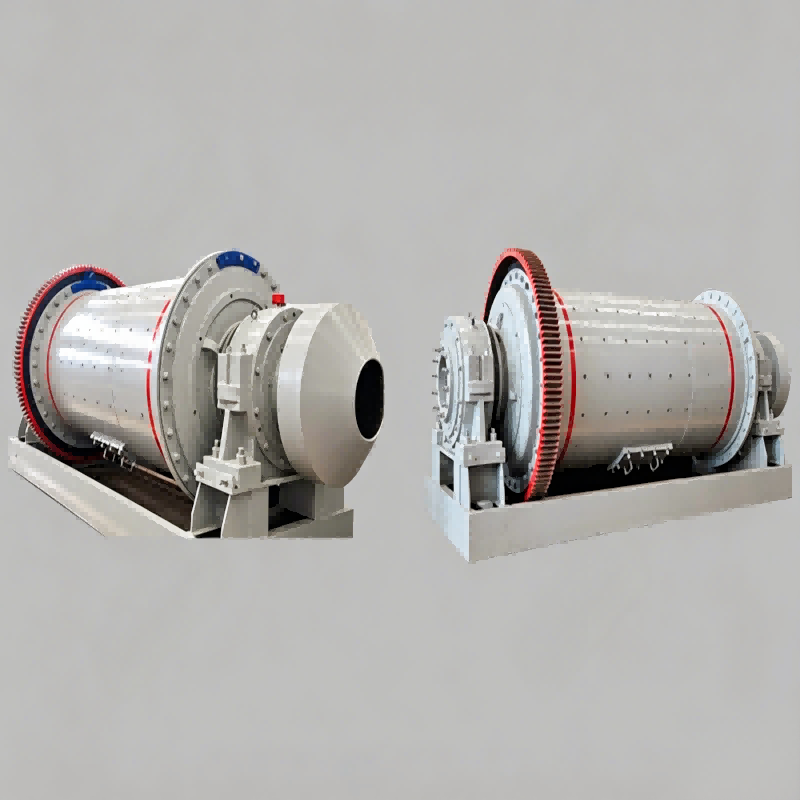

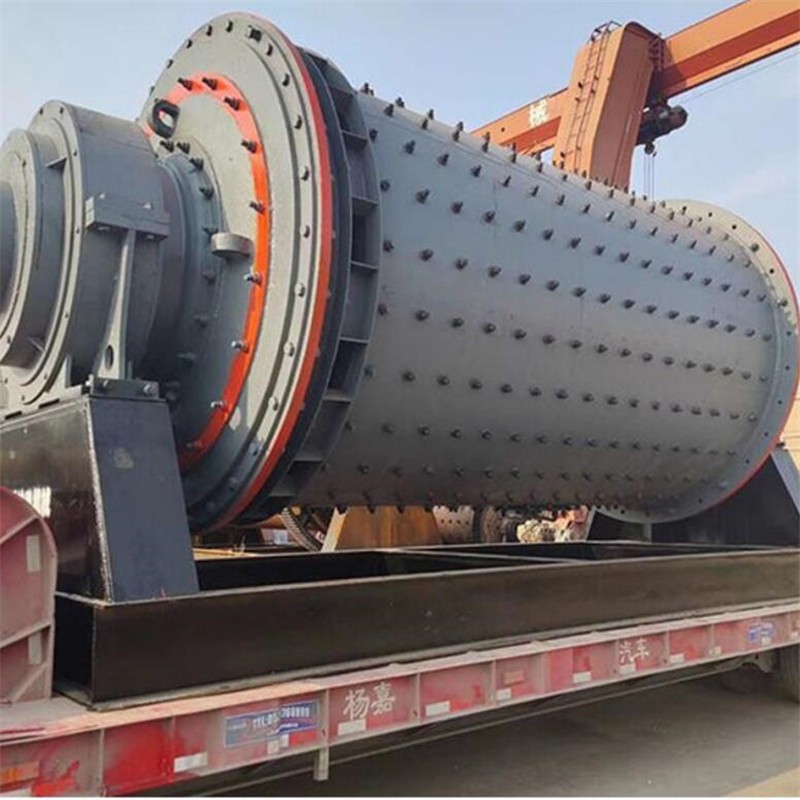

Mining Ball Mill is one of the most important comminution equipment used in modern mineral processing plants. It is designed for grinding crushed ores into fine particles through continuous impact and abrasion between grinding media and ore materials.

As a professional ball mill manufacturer and supplier, we provide heavy-duty industrial ball mills for applications including gold ore processing, copper beneficiation, iron ore concentration, lithium ore processing, quartz and silica sand grinding, and other mining industries.

Our ore grinding mills are engineered according to different process requirements, including wet grinding ball mills, dry grinding ball mills, overflow ball mills, and grate discharge ball mills. The equipment can be customized based on ore characteristics, capacity requirements, grinding fineness, and plant layout.

Mining ball mills are widely applied as primary grinding equipment or secondary grinding equipment after crushing. They are suitable for open circuit and closed circuit grinding systems combined with classifiers, hydrocyclones, flotation equipment, magnetic separators, and other mineral processing equipment.

With robust mechanical structure, optimized energy consumption, and long service life, our ball mills provide reliable grinding performance and lower total operating costs for mining operations worldwide.

Working Principle of Mining Ball Mill

The industrial ball mill consists mainly of the rotating cylinder, feeding system, discharge system, transmission device, lubrication system, and supporting structure.

During operation, the motor drives the cylinder through the transmission system. Grinding media such as steel balls rotate together with the mill shell and are lifted to a certain height before falling down. The impact force and friction force generated during this process continuously crush and grind the ore particles.

According to different discharge methods, ball mills can be divided into:

Overflow Ball Mill

The overflow type ball mill discharges slurry through the overflow outlet. It is commonly used for fine grinding and secondary grinding applications where high grinding fineness is required.

Typical applications:

• Gold ore grinding
• Copper concentrate regrinding
• Fine mineral processing
• Closed-circuit grinding systems

Grate Discharge Ball Mill

The grate discharge ball mill adopts a grid plate structure at the discharge end, allowing faster material discharge and higher processing capacity.

Advantages:

• Higher throughput capacity
• Lower slurry retention
• Suitable for coarse grinding
• Ideal for first-stage grinding circuits

It is widely used in large-scale mining operations requiring high productivity.

Product Types

Wet Grinding Ball Mill

The wet grinding ball mill is the most commonly used grinding equipment in mineral processing plants.

During wet grinding, water or other liquid is added into the mill to form slurry, improving grinding efficiency and reducing dust generation.

Applications:

• Gold processing plants
• Copper mines
• Iron ore beneficiation
• Lithium ore processing
• Polymetallic ore separation

Dry Grinding Ball Mill

The dry ball mill is designed for applications where moisture must be avoided during grinding.

Typical industries:

• Cement production
• Ceramic materials
• Refractory materials
• Quartz and silica sand processing
• Industrial minerals

Primary and Secondary Grinding Ball Mill

According to grinding circuit design, ball mills can operate as:

Primary Ball Mill

• First grinding stage after crushing
• Handles larger feed particles
• Provides high capacity grinding

Secondary Ball Mill

• Further reduces particle size after primary grinding
• Improves liberation efficiency before flotation or separation

Regrind Ball Mill

The regrind ball mill is designed for fine grinding applications, especially in mineral concentrate processing.

Typical applications:

• Copper concentrate regrinding
• Gold flotation concentrate treatment
• Tailings recovery
• Fine mineral liberation

Applications in Mineral Processing Industries

Gold Ore Grinding

Gold ore ball mills are widely used in gold beneficiation plants to achieve efficient mineral liberation before gravity separation, flotation, or cyanide leaching.

The optimized grinding process improves gold recovery rate by ensuring valuable minerals are fully released from gangue materials.

Copper Ore Grinding

Copper ore grinding ball mills are essential equipment in copper concentrators.

They provide stable particle size control before flotation, helping improve copper mineral recovery and concentrate quality.

Iron Ore Processing

For iron ore beneficiation, ball mills are used for fine grinding before magnetic separation or flotation.

The equipment helps increase iron mineral liberation and improve downstream separation efficiency.

Lithium Ore Processing

With the rapid development of lithium battery industries, lithium ore grinding has become increasingly important.

Mining ball mills provide reliable grinding solutions for spodumene and other lithium-bearing minerals, supporting efficient beneficiation processes.

Quartz and Silica Sand Grinding

Industrial ball mills are also used for quartz powder and silica sand production.

Applications include:

• Glass industry
• Foundry sand
• Ceramic materials
• Silicon material processing

Key Advantages of Our Mining Ball Mill

Heavy-Duty Structure Design

The mill shell is manufactured with high-strength steel plates and reinforced components to withstand continuous operation under harsh mining conditions.

High Grinding Efficiency

Optimized cylinder design, suitable grinding media selection, and improved internal liner arrangement help achieve efficient ore grinding with reduced energy consumption.

Multiple Configuration Options

We offer customized solutions including:

• Overflow type ball mill
• Grate discharge ball mill
• Wet grinding mill
• Dry grinding mill
• Trunnion mounted ball mill
• Shell supported ball mill
• Girth gear driven ball mill

Reliable Transmission System

The drive system can be configured with:

• Girth gear and pinion drive
• Gearless mill drive (GMD) for large-scale applications
• Customized motor and reducer systems

Long Service Life & Easy Maintenance

Wear-resistant liners, optimized lubrication systems, and replaceable components reduce maintenance frequency and improve equipment availability.

Available spare parts include:

• Ball mill liners
• Rubber liners
• Poly-Met liners
• Steel liners
• Grinding media
• Trunnion bearings
• Girth gears and pinions

Technical Specifications

Customized Ball Mill Solutions

Every mining project has different requirements regarding ore hardness, feed size, capacity, and final product size.

Our engineering team provides customized ball mill grinding solutions including:

• Process design
• Equipment selection
• Grinding circuit optimization
• Mill dimension customization
• Liner material selection
• Installation guidance
• Technical support

Whether you need a single ore grinding mill or a complete grinding plant solution, we can provide reliable equipment for your mineral processing operation.

Request for Quote (RFQ)

Looking for a reliable mining ball mill supplier?

Please contact us with the following information:

• Ore type and mineral characteristics
• Required processing capacity (TPH)
• Feed size
• Final grinding size
• Wet or dry grinding requirement
• Grinding circuit information
• Power supply conditions

Our engineers will provide a customized quotation and technical proposal according to your project requirements.

Product Summary

Mining Ball Mill is a high-performance grinding solution designed for mineral processing applications including gold, copper, iron ore, lithium and industrial minerals. Available in wet, dry, overflow and grate discharge configurations, it delivers reliable operation, high grinding efficiency and customized solutions for global mining projects.
