Heavy Duty Primary Conveyor Belt Cleaner

Polyurethane Conveyor Belt Cleaner Blades

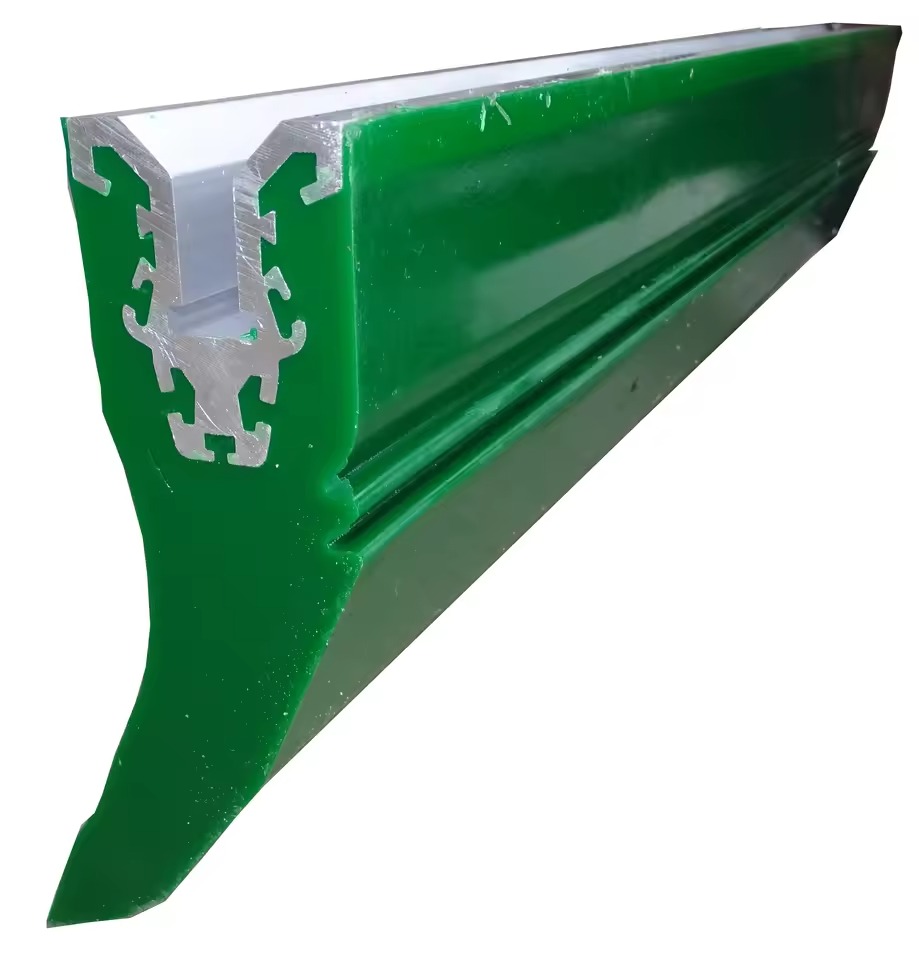

TUFFLEX Polyurethane Belt Cleaner Blades are heavy-duty replacement wear components designed to remove material carryback from conveyor belts operating in mining, quarrying, coal handling, cement production, aggregate processing and bulk material handling plants.

Manufactured from wear-resistant polyurethane compounds, the scraper blades combine abrasion resistance, elasticity and reliable belt contact. They are suitable for continuous-duty conveyors carrying iron ore, coal, copper ore, limestone, crushed stone, sand and other abrasive or sticky bulk materials.

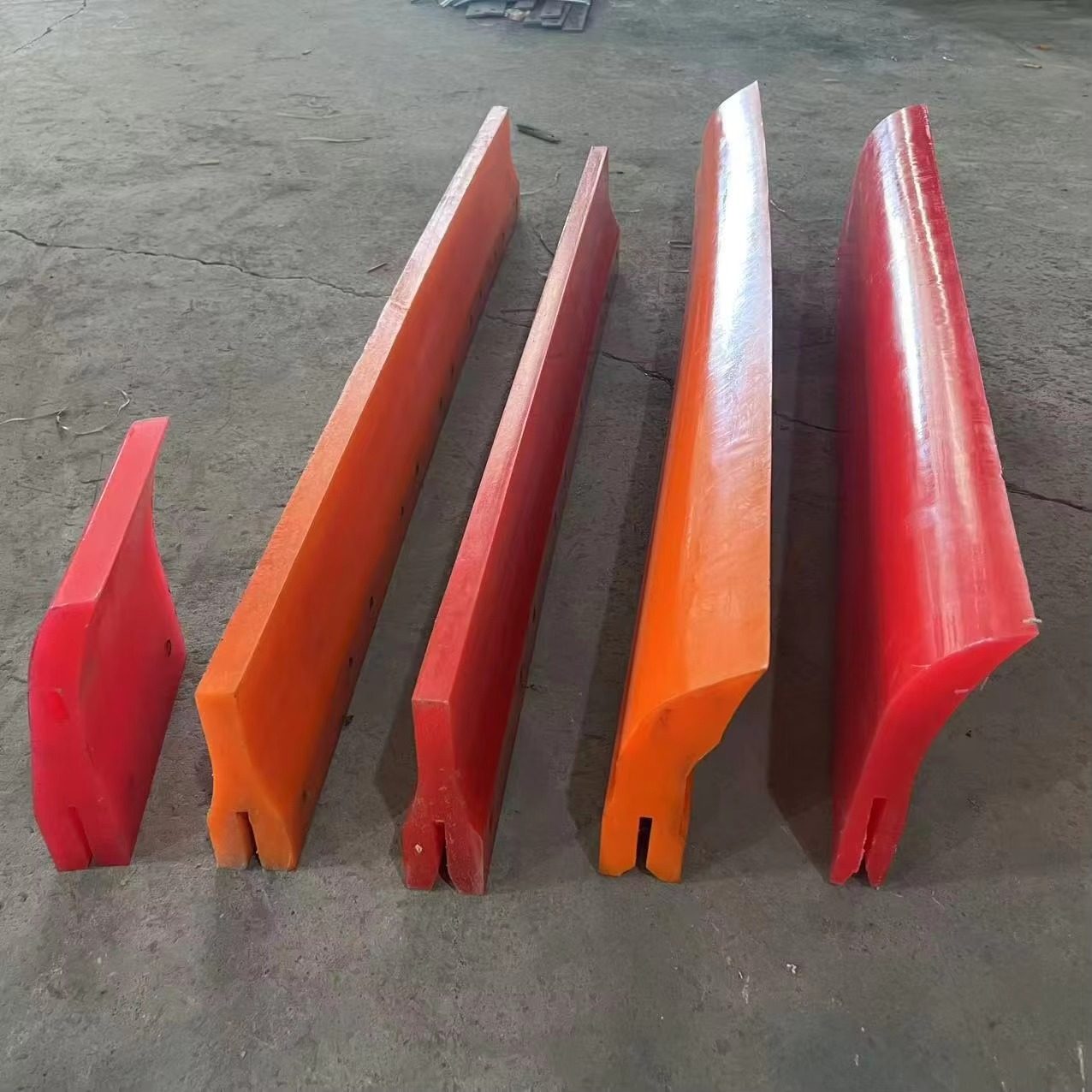

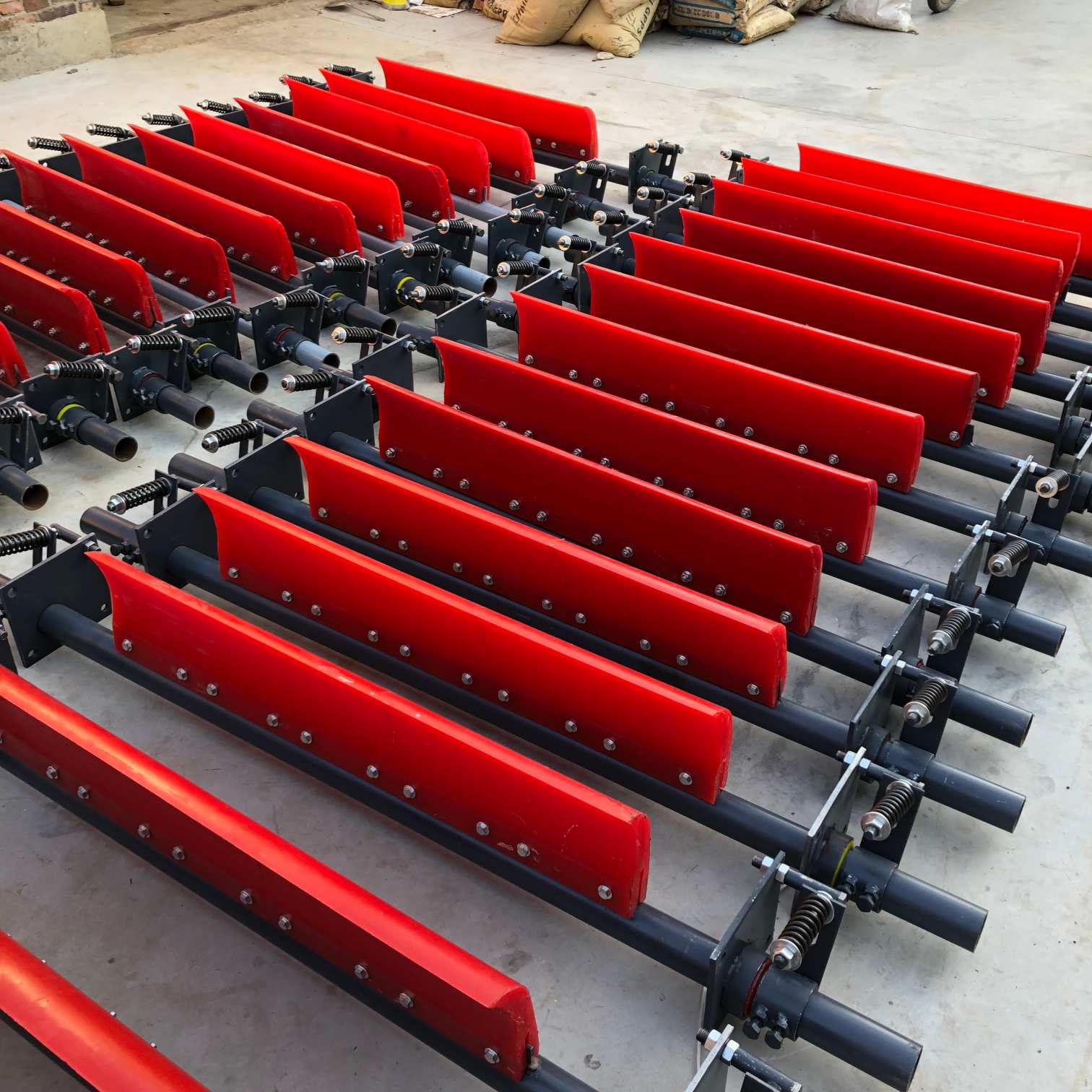

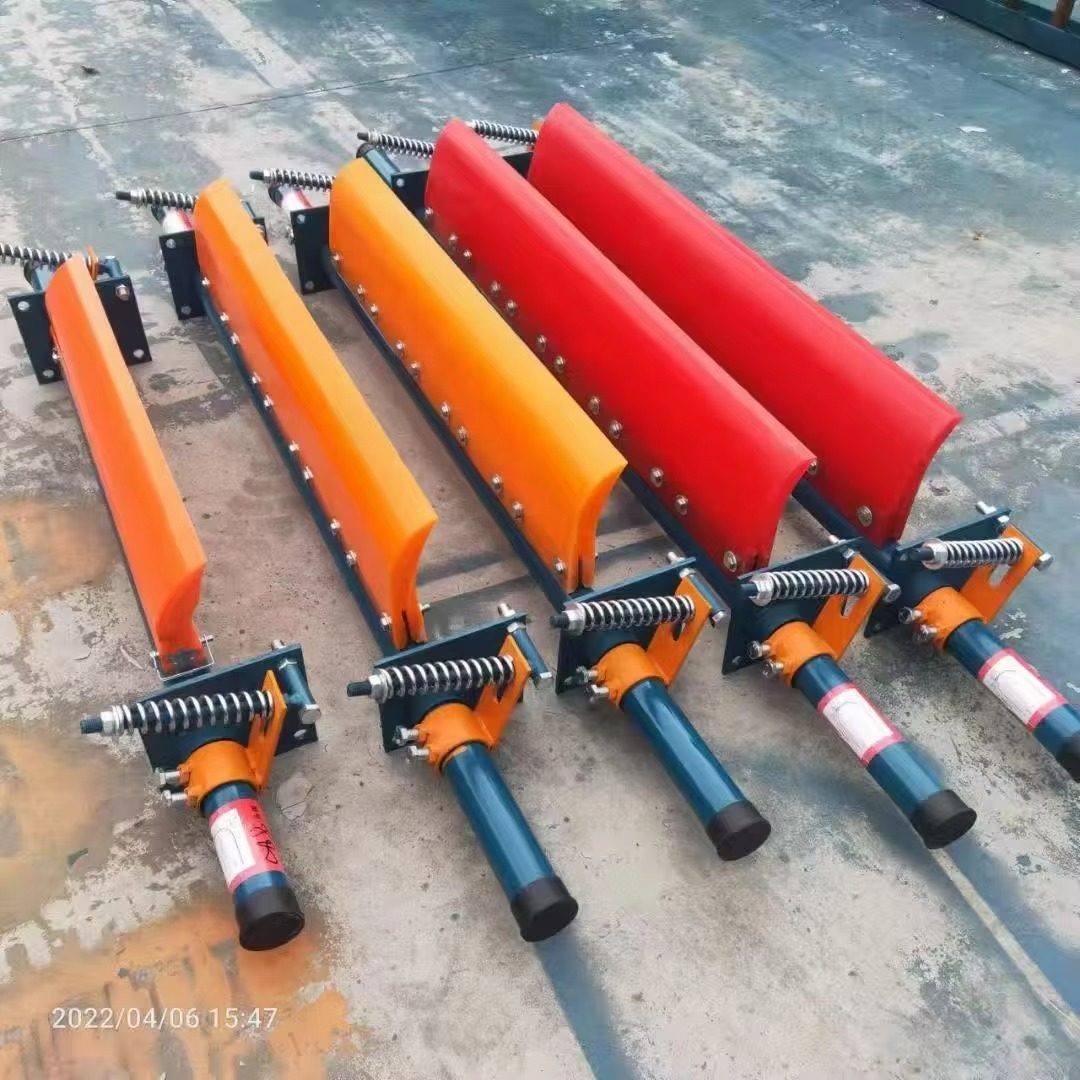

We manufacture standard and customized Replacement Polyurethane Cleaner Blades, including one-piece blades, segmented scraper blades and replacement elements for different primary and secondary belt cleaner systems.

Designed to Reduce Conveyor Carryback

After bulk material passes over the head pulley, fine particles, moisture and sticky material can remain attached to the belt surface. This carryback travels along the return belt and can accumulate around idlers, pulleys, conveyor structures and walkways.

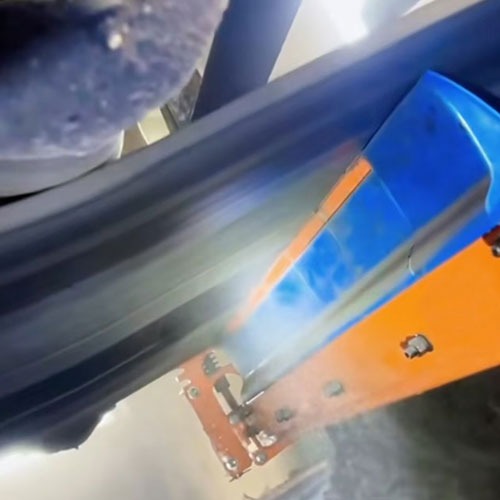

An effective Conveyor Belt Scraper Blade removes adhering material close to the discharge point, helping reduce material buildup, housekeeping work and premature contamination of conveyor components.

For mining applications with severe carryback, polyurethane blades can be combined with secondary cleaning systems for multi-stage belt cleaning.

Why Polyurethane for Belt Cleaner Blades?

Polyurethane is widely used for Primary Belt Cleaner / Pre-Cleaner applications because it provides an effective balance between wear resistance and flexibility.

Compared with rigid metallic cleaning edges, PU blades can absorb vibration and accommodate minor variations in the belt surface while maintaining cleaning pressure.

Key characteristics include:

• Excellent abrasion and tear resistance
• Flexible contact with the conveyor belt
• Good impact and vibration absorption
• Suitable for wet and abrasive materials
• Different hardness grades available
• One-piece and segmented designs
• Customized profiles and mounting interfaces

The polyurethane formulation can be selected according to belt speed, conveyed material, temperature and abrasion conditions.

Primary & Secondary Cleaning Applications

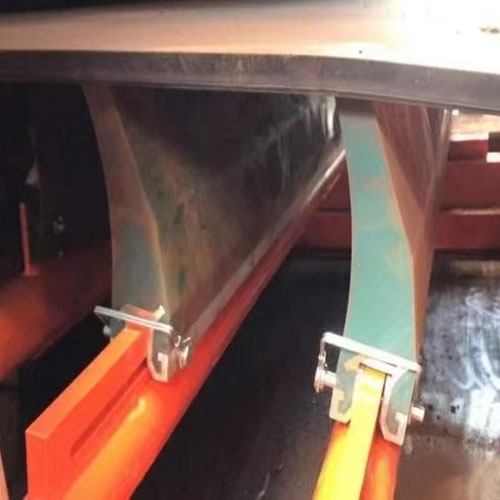

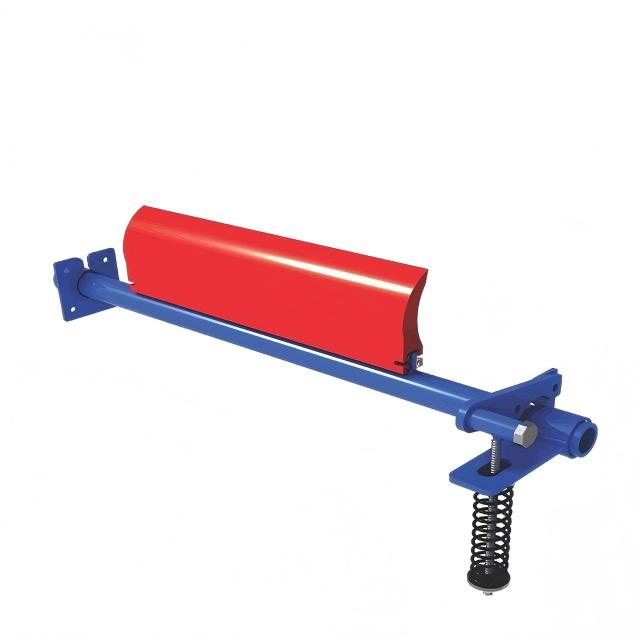

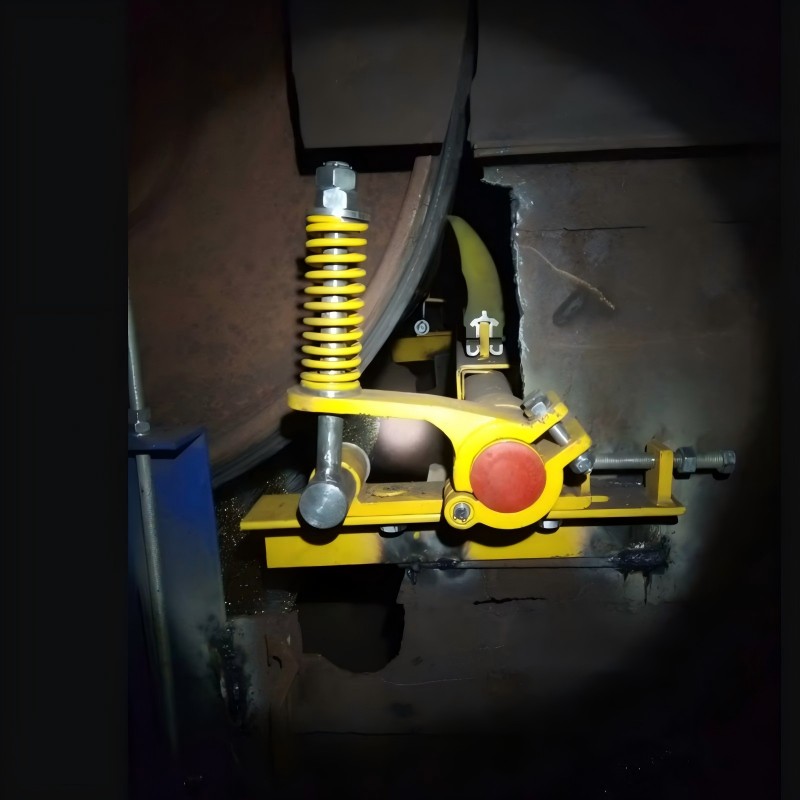

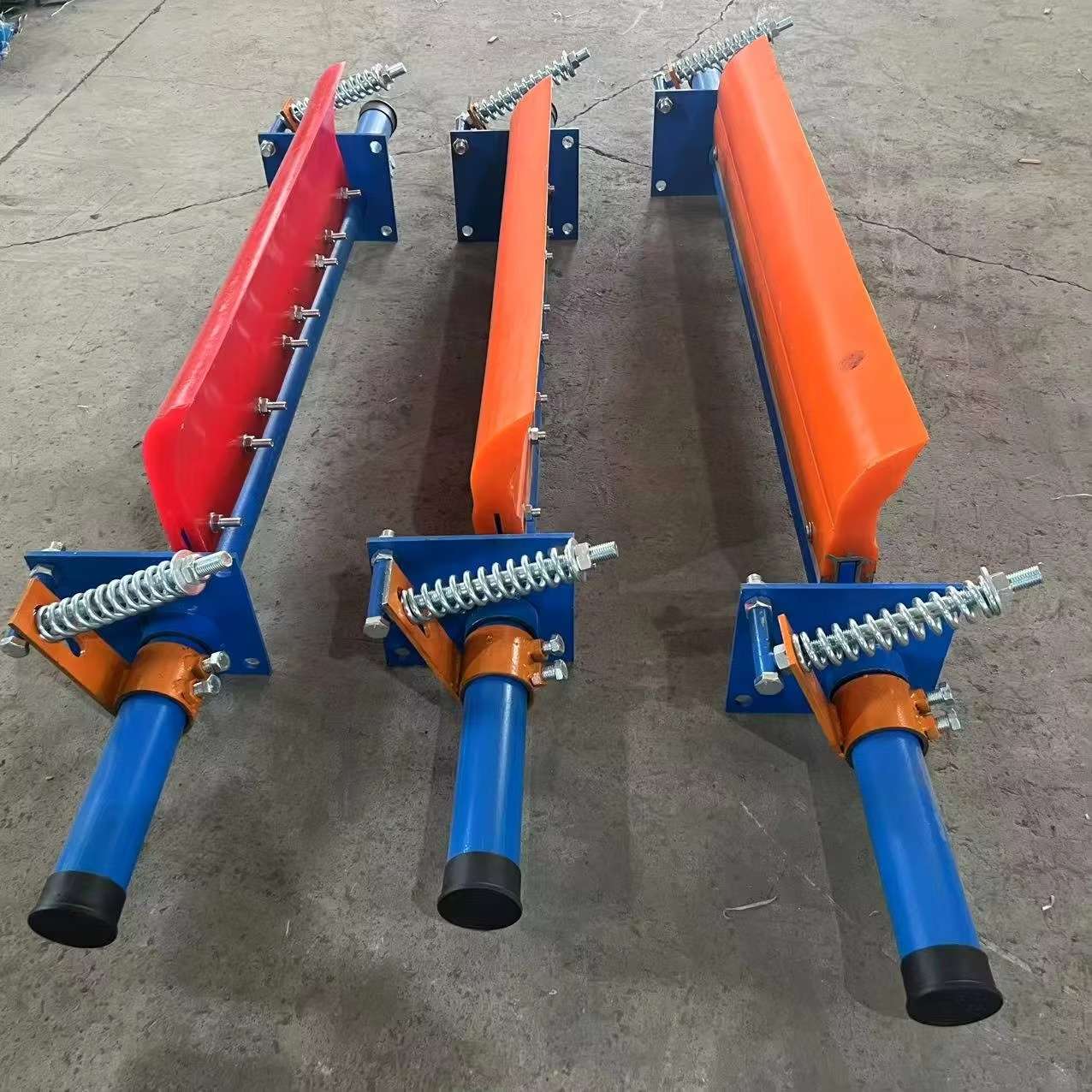

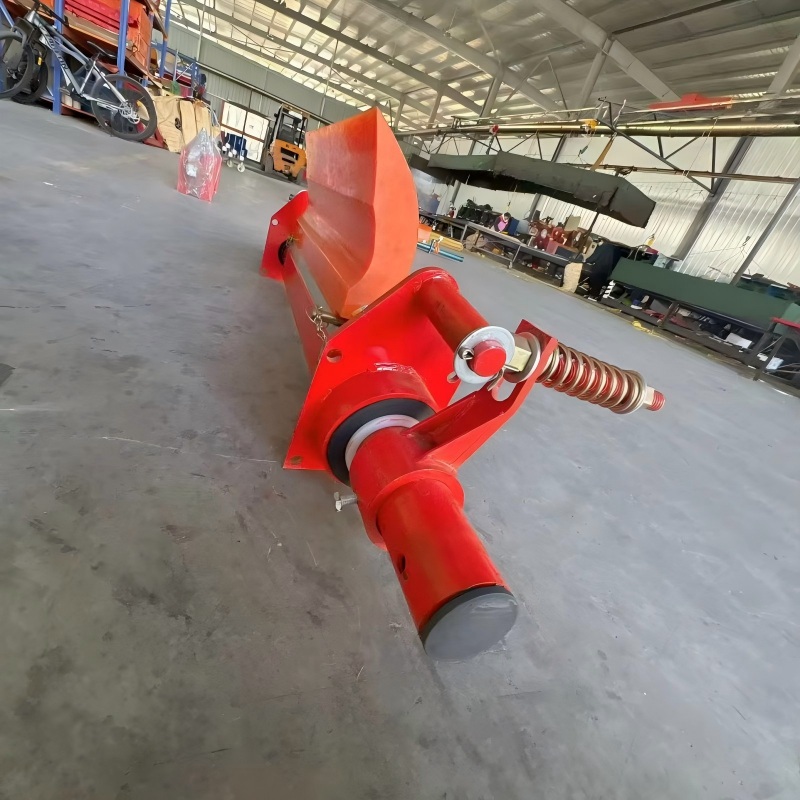

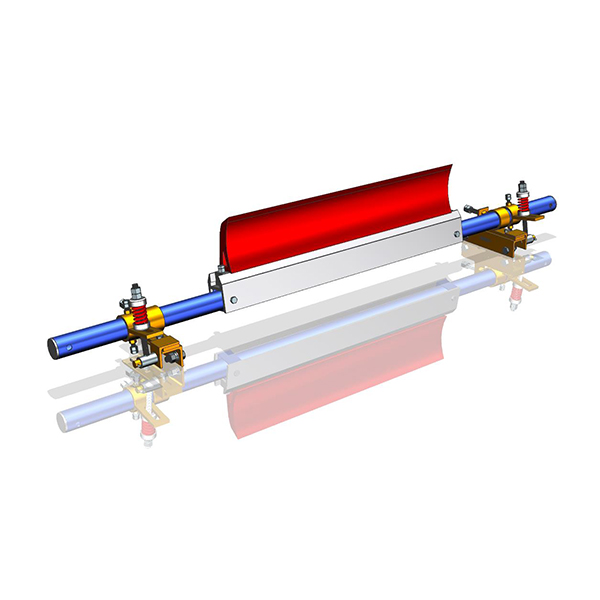

Primary Belt Cleaner Blades are normally positioned around the head pulley and remove the majority of material immediately after discharge.

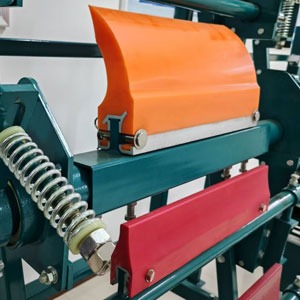

Where additional cleaning is required, a Secondary Belt Cleaner can remove finer carryback remaining after the primary cleaning stage.

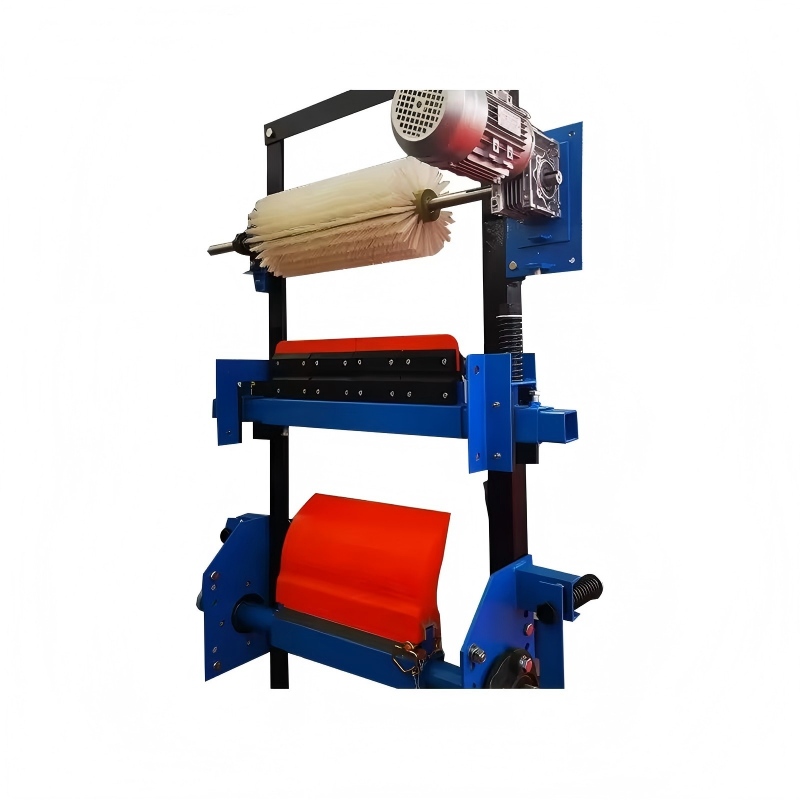

For particularly difficult applications, primary, secondary and tertiary cleaning stages can be combined to achieve improved return-belt cleanliness.

TUFFLEX supplies polyurethane blades for primary cleaning as well as polyurethane-supported Tungsten Carbide Belt Cleaner Blades for secondary cleaning applications.

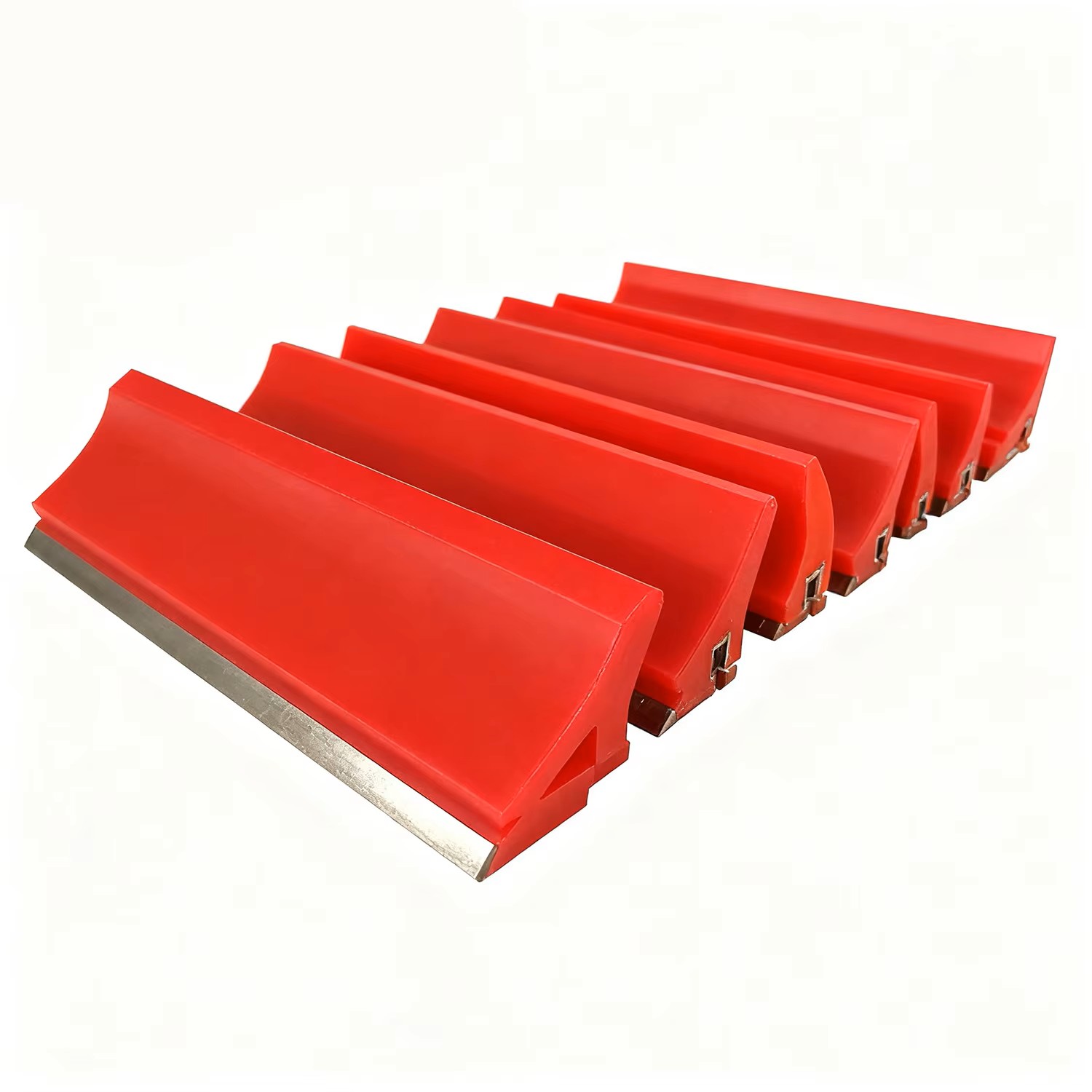

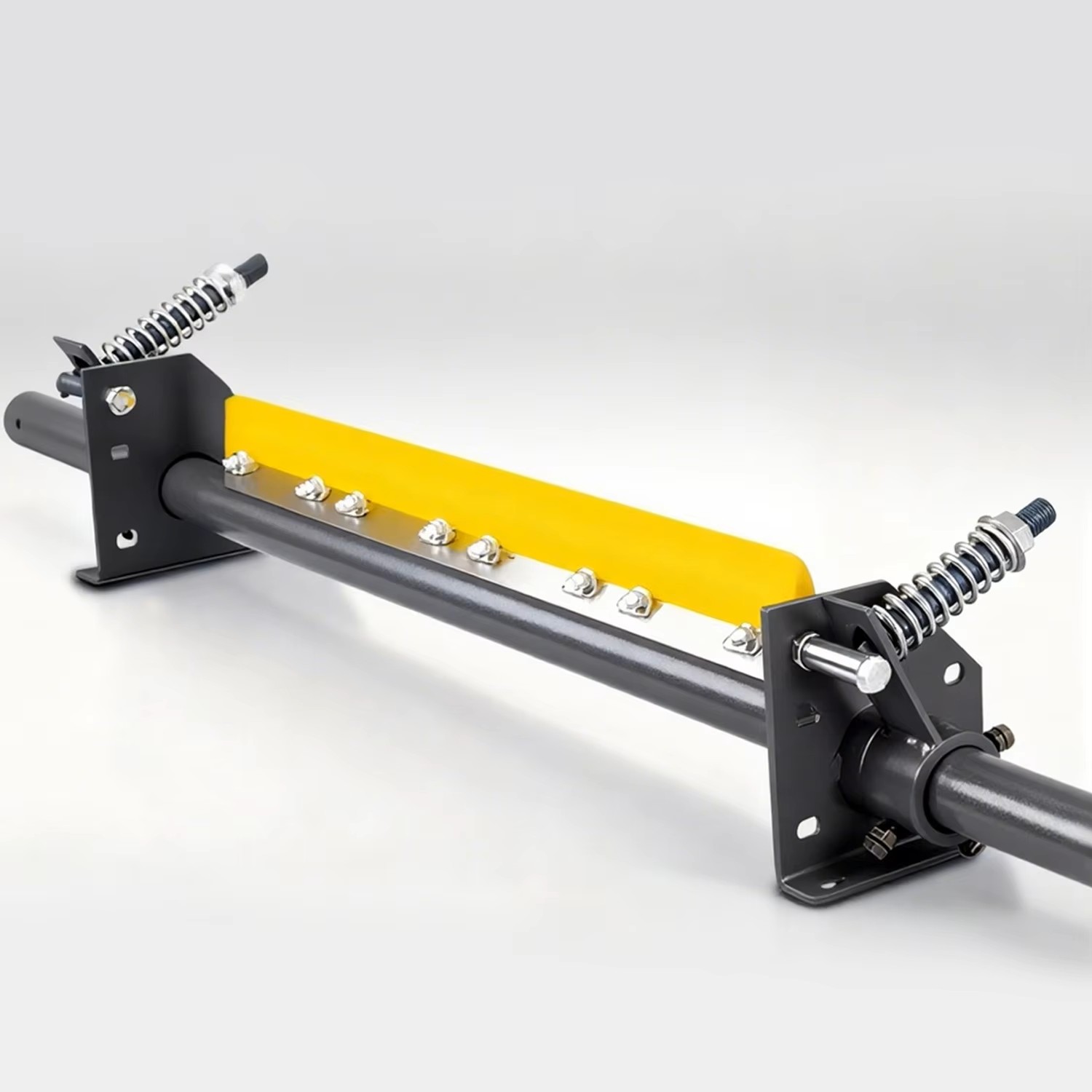

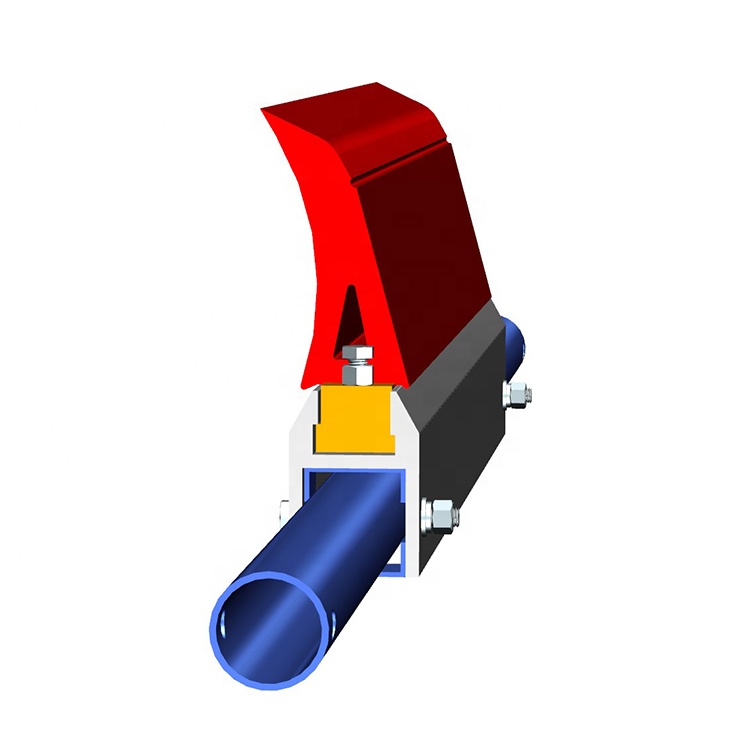

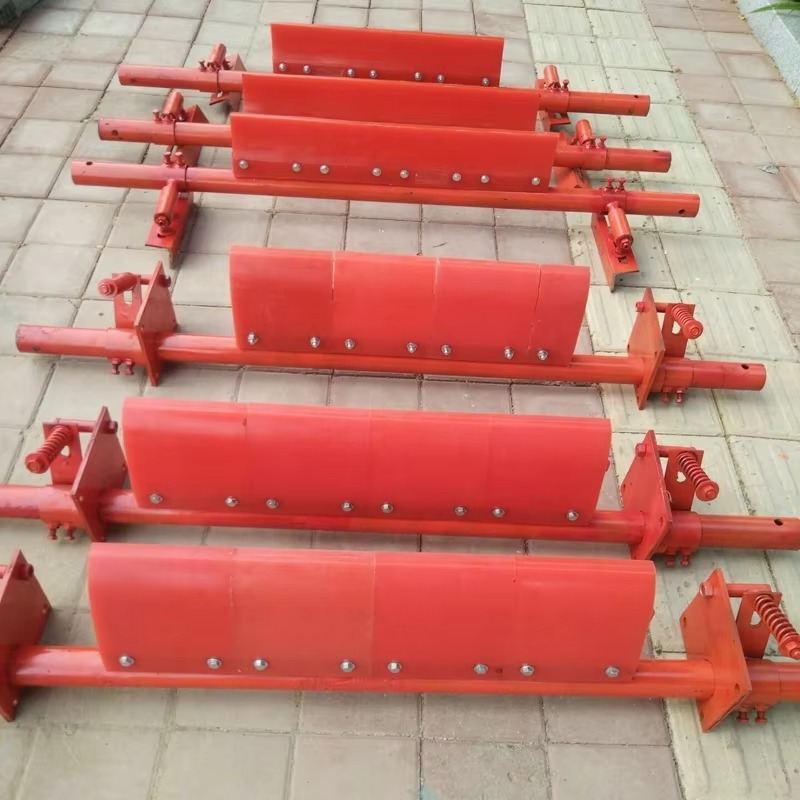

Segmented Polyurethane Scraper Blades

Our Segmented Scraper Blades are designed to provide independent movement across the belt width.

Individual blade segments can respond to belt irregularities and localized wear, helping maintain more consistent cleaning contact. Worn segments can also be replaced separately, reducing maintenance time and unnecessary replacement of usable components.

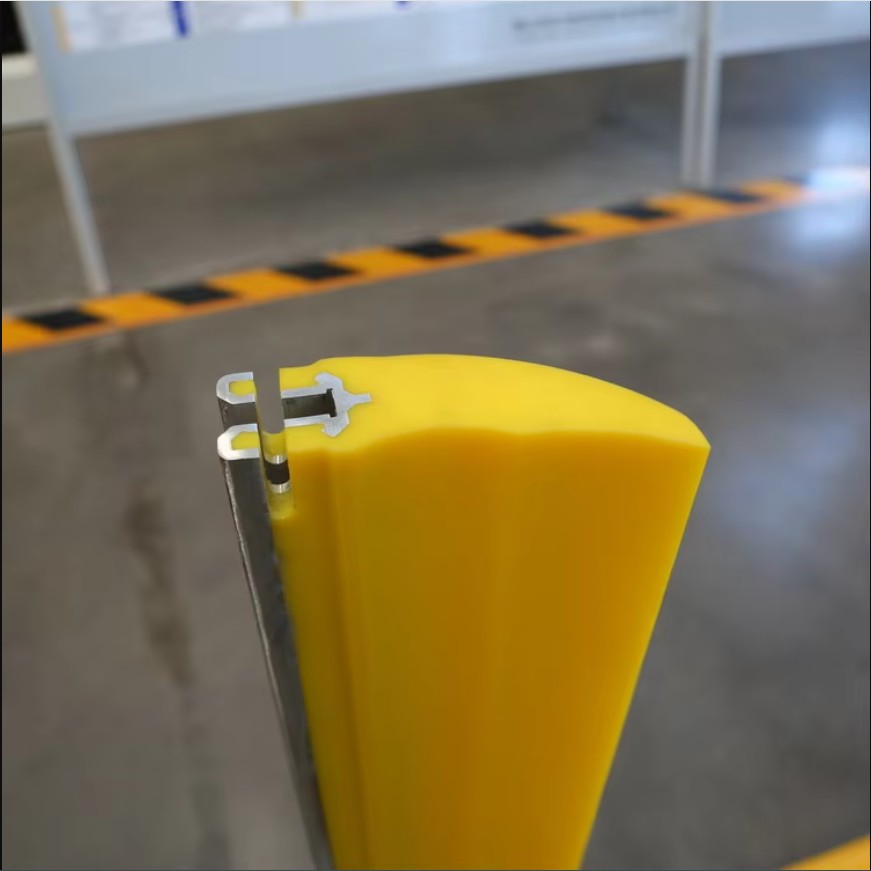

Segment dimensions, hardness, mounting slots and profiles can be customized according to existing cleaner assemblies.

Typical Technical Specifications

Final specifications are selected according to the conveyor operating conditions.

Mining & Bulk Material Applications

TUFFLEX Polyurethane Scraper Blades are suitable for conveyors handling:

Iron Ore: Heavy-duty abrasion-resistant blades for mine and beneficiation plant conveyors.

Coal: Flexible cleaning solutions for coal mines, preparation plants and stockyards.

Aggregates: Wear-resistant scraper blades for sand, gravel and crushed-stone conveyors.

Cement & Limestone: Continuous cleaning of conveyors transporting limestone, clinker and raw materials.

Copper & Gold Mining: Belt cleaning solutions for ore handling, crushing and mineral processing circuits.

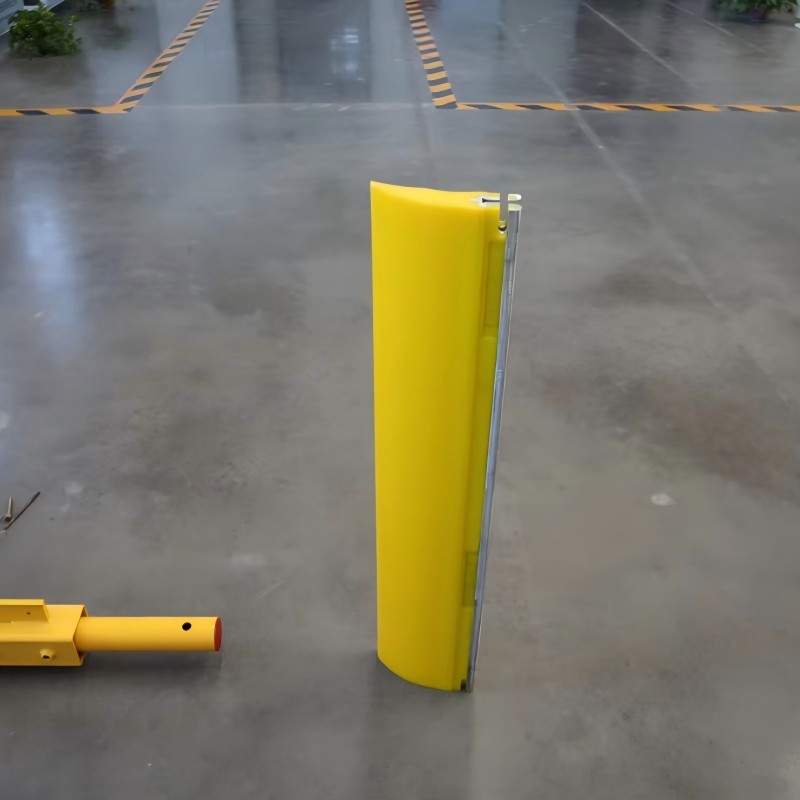

Customized Replacement Belt Cleaner Blades

Replacement blades are frequently required long before the complete cleaner assembly reaches the end of its service life.

TUFFLEX therefore provides customized Replacement Belt Cleaner Blades according to existing blade dimensions, drawings, samples and cleaner configurations.

For replacement projects, customers can send:

1. Belt cleaner model or existing cleaner photos
2. Blade overall dimensions
3. Blade cross-section/profile
4. Mounting dimensions
5. Belt width and speed
6. Head pulley diameter
7. Conveyed material
8. Operating temperature
9. Existing blade material
10. Required quantity

Our technical team can evaluate these parameters and recommend an appropriate polyurethane grade and blade structure.

Why Choose TUFFLEX?

TUFFLEX focuses on wear-resistant components for mining screening and conveying systems. Our conveyor wear-parts range includes Polyurethane Belt Cleaner Blades, Conveyor Belt Scrapers, Conveyor Skirting, Conveyor Idlers and other replacement wear components.

We support OEM production, customized dimensions and replacement solutions for international mining companies, conveyor maintenance contractors, distributors and equipment manufacturers.

Send us your blade drawing, dimensions or existing scraper photos for a customized Polyurethane Conveyor Belt Cleaner Blade solution.
