What Size Hydrocyclone Do I Need for My Mineral Processing Plant? Complete Hydrocyclone Sizing Guide for Mining Operations

Definition: What Is a Hydrocyclone?

A hydrocyclone is a classification device that uses centrifugal force to separate particles based on size and density. It is one of the most widely used pieces of equipment in mineral processing plants due to its simple structure, low operating cost, and high processing capacity.

Hydrocyclones are commonly installed in:

• Gold Ore Processing Plants
• Iron Ore Beneficiation Plants
• Copper Ore Concentrators
• Coal Preparation Facilities
• Lithium Processing Operations
• Silica Sand Plants
• Lead Zinc Processing Plants
• Nickel Ore Projects
• Tailings Management Systems

They are often integrated with equipment such as:

• Ball Mill
• SAG Mill
• Rod Mill
• Jaw Crusher
• Cone Crusher
• Impact Crusher
• Vibrating Screen
• Dewatering Screen
• Flotation Cell
• Spiral Classifier
• Filter Press
• Conveyor Belt

[Hydrocyclone Internal Link]

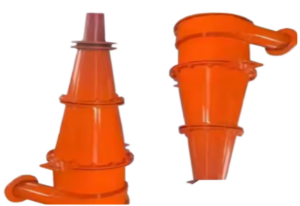

Working Principle of a Hydrocyclone

How Does a Hydrocyclone Work?

Hydrocyclones operate by converting incoming slurry pressure into centrifugal force.

Step 1: Slurry Enters the Feed Chamber

The slurry enters tangentially through the feed inlet, creating a high-speed vortex inside the cyclone body.

Step 2: Centrifugal Force Separates Particles

As the slurry rotates, heavier and coarser particles move toward the cyclone wall due to centrifugal force.

Lighter and finer particles migrate toward the center of the vortex.

Step 3: Coarse Particles Exit Through the Apex

The coarse fraction leaves through the underflow opening, commonly called the apex or spigot.

Step 4: Fine Particles Exit Through the Overflow

Fine particles move upward through the vortex finder and leave through the overflow outlet.

Why Hydrocyclone Size Matters

The hydrocyclone diameter directly influences:

• Throughput Capacity
• Cut Size (d50)
• Classification Efficiency
• Energy Consumption
• Wear Rate
• Maintenance Frequency

This is why hydrocyclone sizing is one of the most important engineering decisions in a mineral processing plant.

What Information Do You Need Before Selecting a Hydrocyclone Size?

Many procurement teams ask suppliers for quotations based only on throughput requirements.

However, experienced mineral processing engineers know that throughput alone is not enough.

The following information should always be collected before selecting a hydrocyclone.

1. Throughput Requirements

This is usually expressed as:

• Tons Per Hour (TPH)
• Cubic Meters Per Hour (m³/h)

Higher capacities generally require larger hydrocyclones or hydrocyclone clusters.

2. Target Cut Size

The desired particle separation size determines classification requirements.

For example:

Smaller cut sizes typically require smaller hydrocyclones.

3. Particle Size Distribution

Feed particle size strongly influences cyclone performance.

A hydrocyclone designed for coarse feed may perform poorly when processing ultrafine material.

4. Slurry Density

Slurry density affects:

• Classification Efficiency
• Pressure Drop
• Wear Rate
• Throughput

Higher densities generally require more careful sizing calculations.

5. Solids Concentration

High solids concentration can:

• Reduce separation efficiency
• Increase wear
• Affect cut size consistency

6. Operating Pressure

Stable feed pressure is essential.

Many field performance issues originate from pressure fluctuations rather than hydrocyclone design itself.

How Is Hydrocyclone Size Related to Throughput and Cut Size?

This is one of the most misunderstood aspects of hydrocyclone operation.

Larger Hydrocyclones

Typical Advantages:

• Higher Throughput
• Lower Pressure Requirements
• Reduced Risk of Blockage

Typical Disadvantages:

• Coarser Separation
• Lower Classification Precision

Common Sizes:

• 500 mm
• 660 mm
• 840 mm

Applications:

• Iron Ore
• Coal
• Tailings Management

Smaller Hydrocyclones

Typical Advantages:

• Finer Classification
• Better Cut Size Control
• Higher Separation Efficiency

Typical Disadvantages:

• Lower Throughput
• Increased Pressure Requirements

Common Sizes:

• 100 mm
• 150 mm
• 250 mm

Applications:

• Gold Ore
• Copper Ore
• Lithium Ore

Why Hydrocyclone Clusters Are Often Preferred

Instead of using one large hydrocyclone, many modern plants use multiple smaller hydrocyclones in a cluster arrangement.

Benefits include:

• Better Process Control
• Easier Maintenance
• Higher Classification Efficiency
• Operational Flexibility
• Future Expansion Capability

Hydrocyclone clusters are now common in large gold and iron ore concentrators worldwide.

Most Common Hydrocyclone Sizes Used in Mining Operations

However, hydrocyclone diameter alone should never be used as the primary selection criterion.

Actual process data must always be considered.

E. Tufflex Screen Blog（Part 2）

Benefits of Selecting the Correct Hydrocyclone Size

Choosing the right hydrocyclone size can significantly impact the performance of an entire mineral processing plant.

Improved Classification Efficiency

A correctly sized hydrocyclone ensures that coarse particles are directed to the underflow while fine particles report to the overflow. This improves grinding circuit stability and downstream recovery.

Example

In a gold processing plant, improving classification efficiency can increase liberation rates and improve flotation performance.

Increased Mineral Recovery

When hydrocyclones operate within their design parameters, valuable minerals are more effectively separated and recovered.

Example

A copper concentrator may experience improved flotation recovery after optimizing hydrocyclone sizing and feed pressure.

Reduced Energy Consumption

Improved classification reduces circulating loads in grinding circuits, allowing Ball Mills and SAG Mills to operate more efficiently.

Example

Lower recirculating loads can reduce overall grinding energy consumption by 10–20%.

Extended Wear Life

Correct sizing helps reduce excessive turbulence, pressure spikes, and particle impact, extending the service life of:

• Hydrocyclone Liners
• Vortex Finders
• Apexes
• Feed Chambers

This is especially important when processing abrasive materials such as Iron Ore, Silica Sand, and Nickel Ore.

Hydrocyclone vs Spiral Classifier

Many buyers compare hydrocyclones with spiral classifiers when designing classification circuits.

Comparison Table

Conclusion

Most modern mineral processing plants prefer hydrocyclones due to higher efficiency, lower footprint requirements, and easier integration with automated systems.

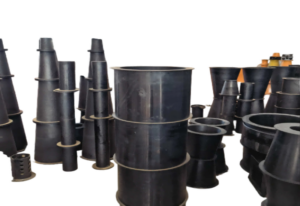

Polyurethane Hydrocyclone vs Rubber Hydrocyclone

Material selection is another important consideration.

Material Comparison Table

Best Applications

Polyurethane Hydrocyclones

Recommended for:

• Gold Ore Processing
• Copper Ore Processing
• Fine Classification
• High-Wear Applications

Rubber Hydrocyclones

Recommended for:

• Coal Preparation
• Coarse Particle Classification
• High Impact Conditions

How to Select the Right Hydrocyclone

Step 1: Define Process Objectives

Ask:

• What is the required throughput?
• What cut size is needed?
• What recovery target must be achieved?

Step 2: Evaluate Ore Characteristics

Important parameters include:

• Ore Type
• Hardness
• Abrasiveness
• Density
• Particle Size Distribution

Step 3: Determine Operating Conditions

Collect:

• Feed Pressure
• Slurry Density
• Solids Concentration
• Available Installation Space

Step 4: Consider Wear Material Options

Material selection affects:

• Service Life
• Downtime
• Maintenance Costs
• Spare Parts Consumption

Step 5: Plan for Future Expansion

Many successful mining projects include additional cyclone positions to accommodate future production increases.

Common Hydrocyclone Problems and Solutions

Failure Analysis Table

Key Observation

Field experience shows that many hydrocyclone problems are caused by unstable operating conditions rather than equipment defects.

Hydrocyclone Maintenance Guide

Regular maintenance improves performance and extends equipment life.

Daily Inspection

Check:

• Feed Pressure
• Overflow Condition
• Underflow Pattern
• Visible Wear

Weekly Inspection

Inspect:

• Apex Wear
• Vortex Finder Condition
• Feed Chamber Erosion

Monthly Inspection

Evaluate:

• Classification Efficiency
• Pressure Stability
• Wear Component Thickness

Recommended Spare Parts

Mining operations should keep the following components in stock:

• Apexes
• Vortex Finders
• Feed Chambers
• Polyurethane Liners
• Rubber Liners

This minimizes downtime during maintenance shutdowns.

Procurement Guide for Hydrocyclones

Required Technical Information

Before requesting a quotation, prepare:

• Ore Type
• Throughput (TPH)
• Particle Size Distribution
• Slurry Density
• Solids Concentration
• Feed Pressure
• Cut Size Requirement

Drawings Needed

Provide:

• Existing Equipment Drawings
• General Arrangement Drawings
• Process Flow Diagram (PFD)
• Piping Layout

OEM Part Numbers

If replacing existing equipment, provide:

• OEM Model Number
• Part Number
• Existing Supplier Information

MOQ

Typical Minimum Order Quantities:

Lead Time

Typical manufacturing lead times:

• Standard Hydrocyclones: 2–4 Weeks
• Customized Hydrocyclones: 4–8 Weeks
• Spare Parts: 1–3 Weeks

Packaging

Recommended packaging:

• Export Wooden Crates
• Steel Frame Packaging
• Moisture Protection

Shipping Methods

Available options:

• Sea Freight
• Air Freight
• Express Courier
• Multimodal Logistics

Supplier Evaluation Checklist

✔ Engineering Support

✔ Custom Design Capability

✔ Mining Industry Experience

✔ Quality Control System

✔ OEM Replacement Capability

✔ Spare Parts Availability

✔ Export Experience

✔ After-Sales Support

Case Study

Customer Type

Iron Ore Concentrator

Operating Conditions

• Throughput: 1,200 TPH
• Abrasive Ore
• High Solids Concentration

Problem

The plant experienced:

• Poor Classification Efficiency
• Excessive Wear
• Frequent Maintenance Shutdowns

Solution

HUATAO supplied:

• Polyurethane Hydrocyclones
• Wear-Resistant Vortex Finders
• Polyurethane Apexes

The hydrocyclone cluster design was optimized based on operating data.

Results

• Classification Efficiency Increased by 25%
• Wear Life Improved by 2×
• Maintenance Downtime Reduced by 30%
• Annual Operating Cost Reduced Significantly

Industry Application Matrix

FAQ

What size hydrocyclone is best for gold processing?

Most gold processing plants use 150 mm to 350 mm hydrocyclones, depending on throughput and target cut size.

How do I calculate hydrocyclone capacity?

Capacity depends on cyclone diameter, feed pressure, slurry density, and solids concentration.

What is the ideal hydrocyclone operating pressure?

Most mining applications operate between 5 and 20 psi, although exact values depend on design requirements.

How long do polyurethane hydrocyclones last?

Service life varies according to ore abrasiveness and operating conditions but is generally longer than standard rubber-lined alternatives in fine classification applications.

What causes hydrocyclone roping?

High solids concentration, oversized apexes, or unstable feed conditions are common causes.

Should I choose a single hydrocyclone or a cluster?

Hydrocyclone clusters typically provide better flexibility, maintenance access, and operational control.

Can hydrocyclones replace spiral classifiers?

In most modern mineral processing plants, hydrocyclones have largely replaced spiral classifiers due to higher efficiency.

What information should I provide when requesting a quotation?

Provide ore type, throughput, slurry density, particle size distribution, feed pressure, and target cut size.

Conclusion

Selecting the correct hydrocyclone size is critical for achieving efficient classification, maximizing mineral recovery, and reducing operating costs. The best hydrocyclone solution balances throughput, cut size, slurry characteristics, wear resistance, and future production requirements.

By combining proper engineering design with high-quality wear-resistant components, mining operations can improve plant performance, extend equipment life, and reduce maintenance costs.

At HUATAO Group, we provide complete hydrocyclone solutions and mining wear parts for mineral processing operations worldwide, including Polyurethane Hydrocyclones, Rubber Hydrocyclones, Polyurethane Screen Panels, Rubber Screen Panels, Crusher Wear Parts, Mill Liners, Flotation Components, Classifier Shoes, and Conveyor Solutions.
