PP Filter Press Cloth

PP Filter Press Cloth, also known as Polypropylene Filter Cloth or Filter Press Cloth, is a high-performance filtration medium designed for efficient solid-liquid separation in chamber filter presses, plate and frame filter presses, and membrane filter presses. Manufactured from selected polypropylene fibers, the cloth combines excellent chemical resistance, mechanical strength, low moisture absorption, and reliable filtration performance.

PP is one of the most widely used filter cloth materials because of its resistance to many acids and alkalis, good flexing strength and favorable cake-release characteristics. Satin and other smooth-surface constructions can further improve cake discharge.

HUATAO supplies woven PP filter cloth, monofilament, multifilament and mono/multifilament constructions according to slurry characteristics and filtration requirements. Plain, twill and satin weave options can be selected to balance particle retention, filtrate clarity, permeability, cake release and cloth service life.

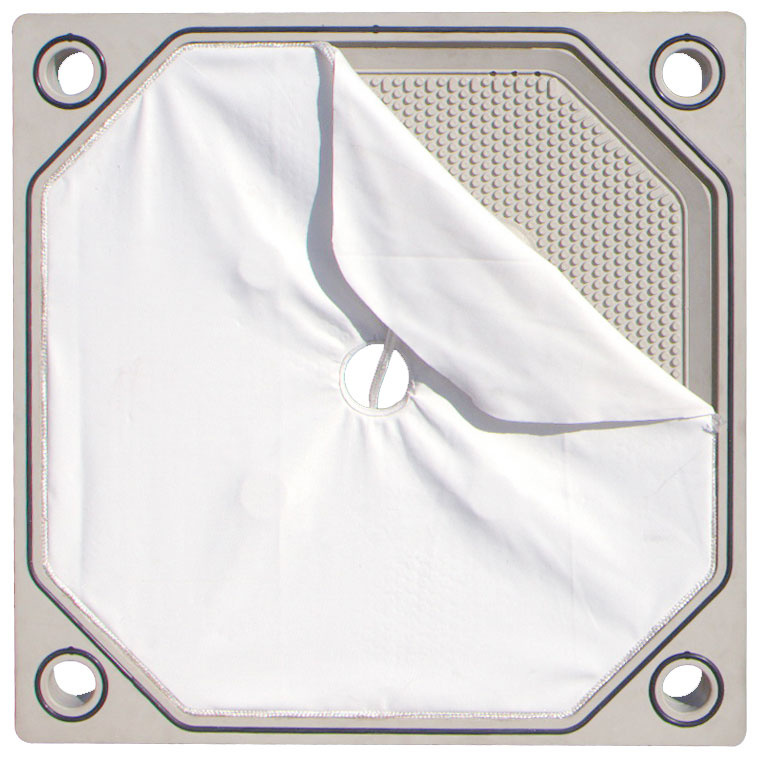

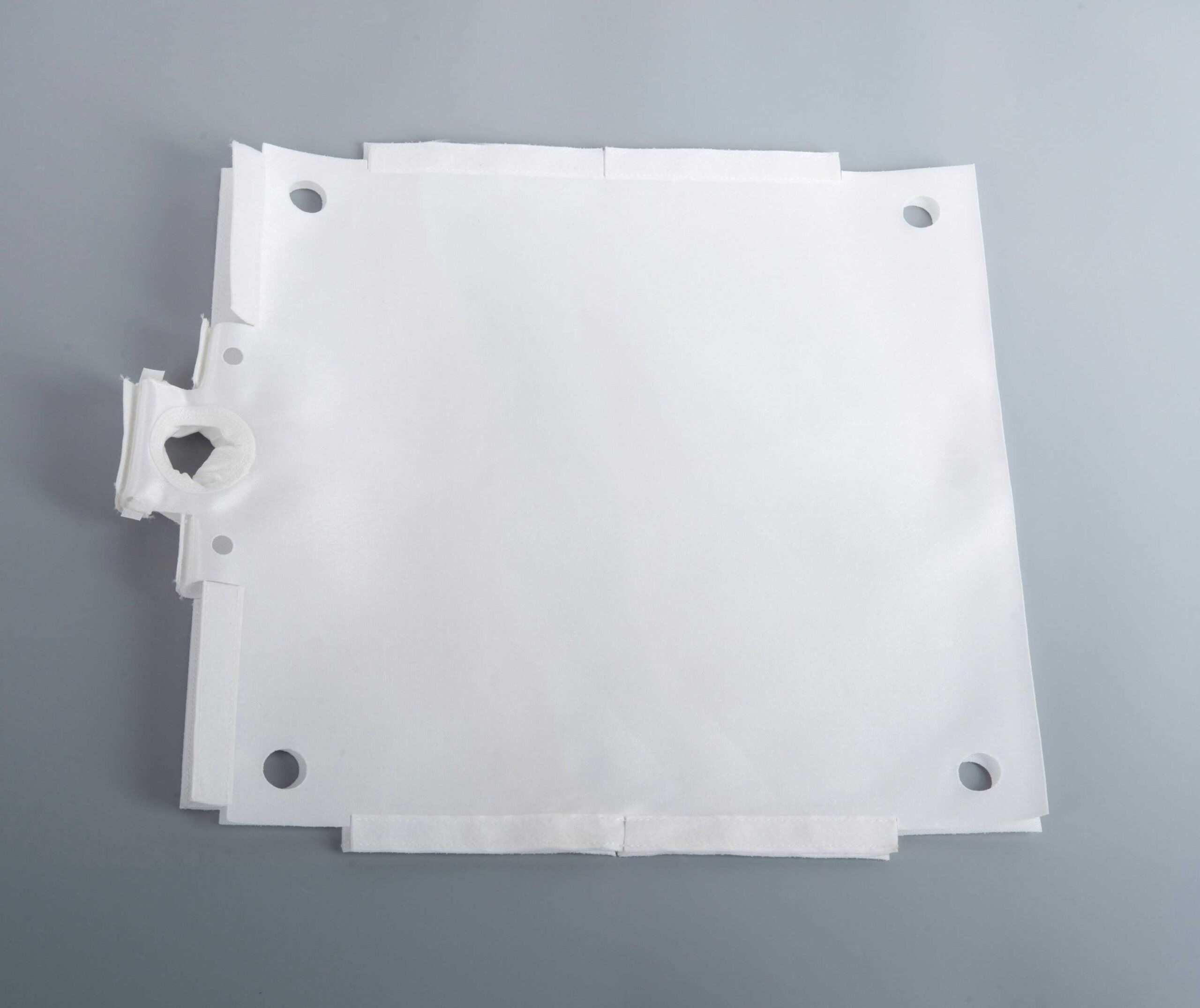

The cloth can be fabricated to match different filter plate designs, including center-feed, corner-feed, single cloth, double cloth, drape-over and barrel-neck/capped filter cloth configurations. Custom dimensions, feed-hole positions, edge finishing, reinforced holes, grommets and sealing arrangements are available for replacement and OEM applications.

Filter Cloth Structure & Selection

Selecting the correct filter press cloth is critical to the performance of the entire filtration system. A cloth that is too open may reduce filtrate clarity, while an excessively tight fabric may increase filtration resistance and extend cycle time. The correct specification should therefore be selected according to particle size distribution, slurry concentration, pH, operating temperature, feed pressure and required cake moisture. These are also among the principal selection variables identified by major filtration equipment manufacturers.

Monofilament PP Filter Cloth provides a relatively smooth surface with good permeability and excellent cake release. Its structure is particularly suitable for applications where cloth cleaning, anti-blinding performance and fast cake discharge are important.

Multifilament PP Filter Cloth provides good particle retention and flexibility and can be selected for finer solids and applications where filtrate clarity is a priority.

Mono-Multifilament Filter Cloth combines characteristics of both yarn structures and can provide a practical balance between filtration accuracy, cake release, strength and permeability. International filter-media suppliers similarly offer mono, multi and mono/multi combinations for pressure filtration.

Applications

HUATAO PP Filter Press Cloths are designed for industrial dewatering and solid-liquid separation applications including:

Mining & Mineral Processing: Suitable for mine tailings dewatering, concentrate filtration, coal preparation, metal ore processing and mineral slurry filtration. In abrasive mining applications, correct cloth selection is particularly important for reducing blinding, improving cake release and minimizing unplanned cloth change-outs.

Wastewater & Sludge Dewatering: Used for municipal sludge, industrial wastewater, metal hydroxide sludge and process-water treatment where stable particle retention and efficient cake formation are required.

Chemical Processing: PP’s resistance to many acids and alkalis makes polypropylene filter cloth suitable for numerous chemical filtration duties, subject to actual chemical concentration and operating temperature.

Metallurgy & Hydrometallurgy: Suitable for concentrate, leaching residue, metal hydroxide and other process slurry filtration.

Other typical applications include pigments and dyes, ceramics, fertilizer processing and various industrial solid-liquid separation processes.

Key Advantages

High Particle Retention

Optimized yarn and weave structures provide stable solids capture and help achieve clear filtrate while maintaining practical filtration rates.

Easy Cake Release

Smooth PP surfaces and suitable weave designs reduce cake adhesion, helping achieve faster discharge and shorter cleaning time. Supercalendered/smooth surfaces are also used commercially to improve cake removal.

Excellent Chemical Resistance

Polypropylene offers strong resistance to many acids and alkalis, making it suitable for demanding mining, wastewater and chemical filtration environments.

High Mechanical Strength

Selected woven structures provide good tensile and flexing performance under repeated filter press cycles.

Anti-Blinding Performance

Correct pore structure and surface finish help reduce solids penetration and cloth clogging, supporting easier washing and more consistent filtration cycles.

Custom-Fit Replacement

Cloths can be manufactured according to the customer’s filter plate dimensions, feed-hole arrangement and sealing structure, making them suitable for both OEM and replacement requirements.

Technical Specifications

Actual permeability, fabric weight, thickness, micron retention and operating temperature should be selected according to the slurry and filtration process rather than presented as one universal specification. ANDRITZ, for example, offers filter cloths across a very broad air-permeability range, illustrating why application-specific selection is important.

Why Choose HUATAO PP Filter Press Cloth?

For mining and industrial filtration, the objective is not simply to find a cloth that fits the plate. The filter medium must achieve the correct balance between filtrate clarity, filtration speed, cake moisture, cake release, resistance to blinding and service life.

HUATAO can manufacture custom filter press cloths according to filter plate drawings, existing cloth samples or operating data. Replacement designs can be developed for different chamber and membrane filter presses, including applications requiring center-feed filter cloth, rubber-neck cloth, reinforced feed holes or customized sealing edges.

For mining and tailings plants in particular, we focus on abrasion resistance, reliable cake discharge and stable performance under repetitive filtration cycles, helping reduce cloth-cleaning frequency and filter press downtime.

RFQ – Information Required for Quotation

For accurate filter cloth selection and quotation, please provide:

1. Filter press manufacturer and model, if available.
2. Filter plate size and plate type: chamber, membrane or plate & frame.
3. Existing filter cloth drawing, photo or sample.
4. Cloth dimensions and feed-hole position/diameter.
5. Slurry/material being filtered and approximate particle size.
6. Slurry solids concentration and required cake moisture.
7. Operating pH and chemical composition.
8. Operating temperature and filtration/feed pressure.
9. Current cloth material, weave or permeability if known.
10. Required quantity and expected service conditions.

For replacement projects where specifications are unavailable, clear photographs and measurements of the existing cloth and filter plate can be used as a starting point for technical evaluation.
