Product Introduction

Ball Mill Liners are critical wear parts used to protect the mill shell and heads from continuous impact, abrasion and erosion caused by ore, slurry and grinding media. More than a protective layer, a properly engineered mill lining system also influences charge movement, grinding efficiency, throughput and maintenance intervals.

HUATAO supplies Ball Mill Liners, Mill Liners & Wear Parts for demanding mining and mineral processing applications. Our product range includes Rubber Mill Liners, Alloy Steel Mill Liners, High Chrome Mill Liners and Rubber-Metal Composite Mill Liners, together with replacement Lifter Bars, Shell Liners, Head Liners, Feed End Liners, Discharge Liners and Grate Plates.

Liner materials, profiles and dimensions can be customized according to mill drawings, operating data, ore characteristics and existing wear conditions. Our mill lining solutions are suitable for wet and dry grinding circuits processing gold, copper, iron ore, nickel, lithium, lead-zinc and other abrasive minerals.

Ball Mill Liner Materials

Rubber Mill Liners

Rubber liners provide excellent resistance to abrasion and corrosion while reducing component weight, vibration and operating noise. Their relatively low weight can also simplify handling during relining operations.

They are commonly used in Ball Mills, SAG Mills, AG Mills, Rod Mills and other grinding mills where impact and abrasion conditions are suitable for elastomeric lining systems.

Alloy Steel & High Chrome Mill Liners

For severe impact and highly abrasive grinding environments, metallic liners can be manufactured from selected wear-resistant alloys such as Chrome-Moly steel and High-Chrome alloys.

Metallic Shell Liners, Head Liners and Lifter Bars provide high structural strength and are particularly suitable for heavy-duty mineral processing circuits where large grinding media, hard ore and intensive impact loads are present.

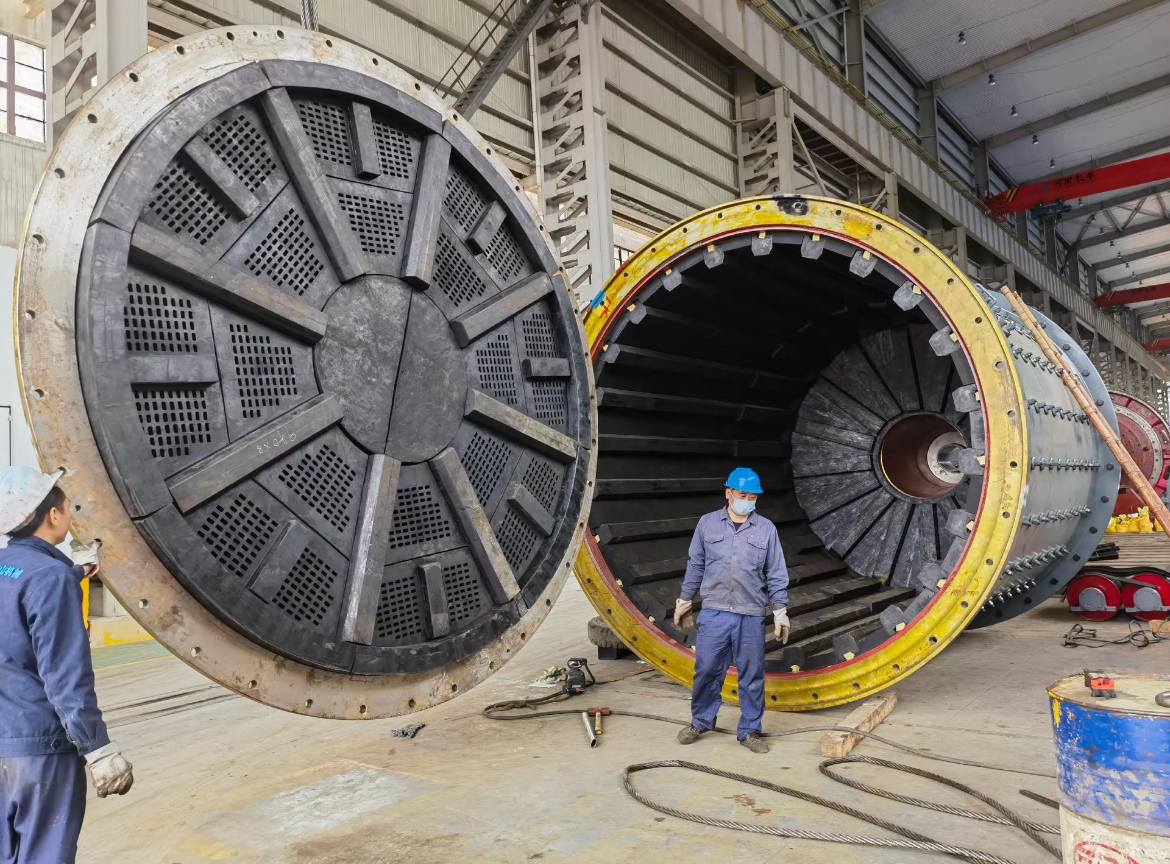

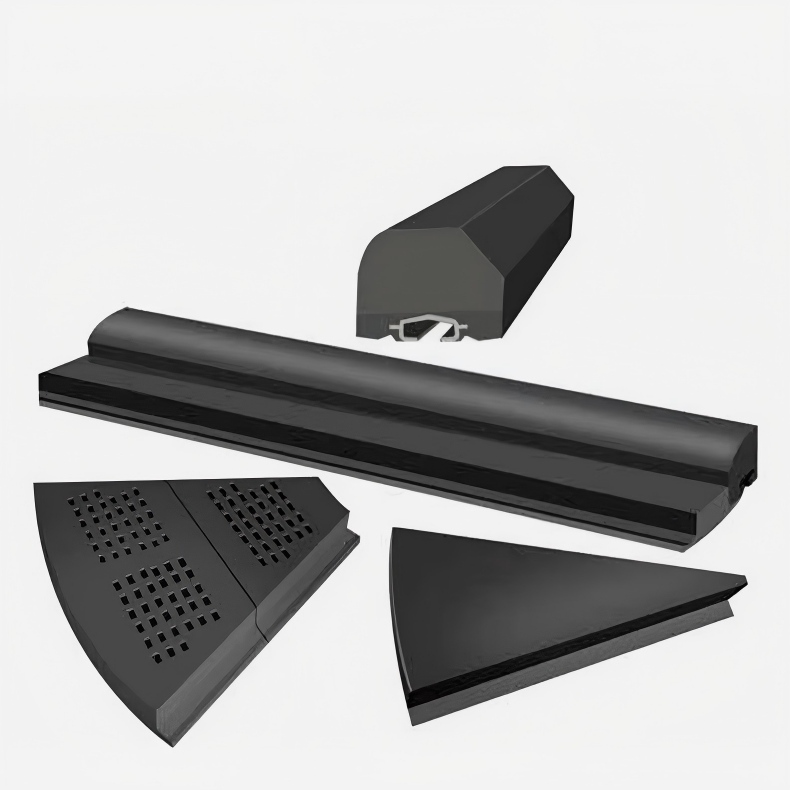

Rubber-Metal Composite Mill Liners

Composite Mill Liners combine elastomeric materials with metallic wear elements to balance impact resistance, wear life and component weight.

This concept follows the same general engineering direction as internationally recognized composite lining systems: applying different materials where their individual properties provide the greatest benefit. Composite solutions can help reduce liner mass while maintaining protection in high-wear areas.

They are particularly suitable for mining operations seeking longer maintenance intervals, easier liner handling and optimized mill availability.

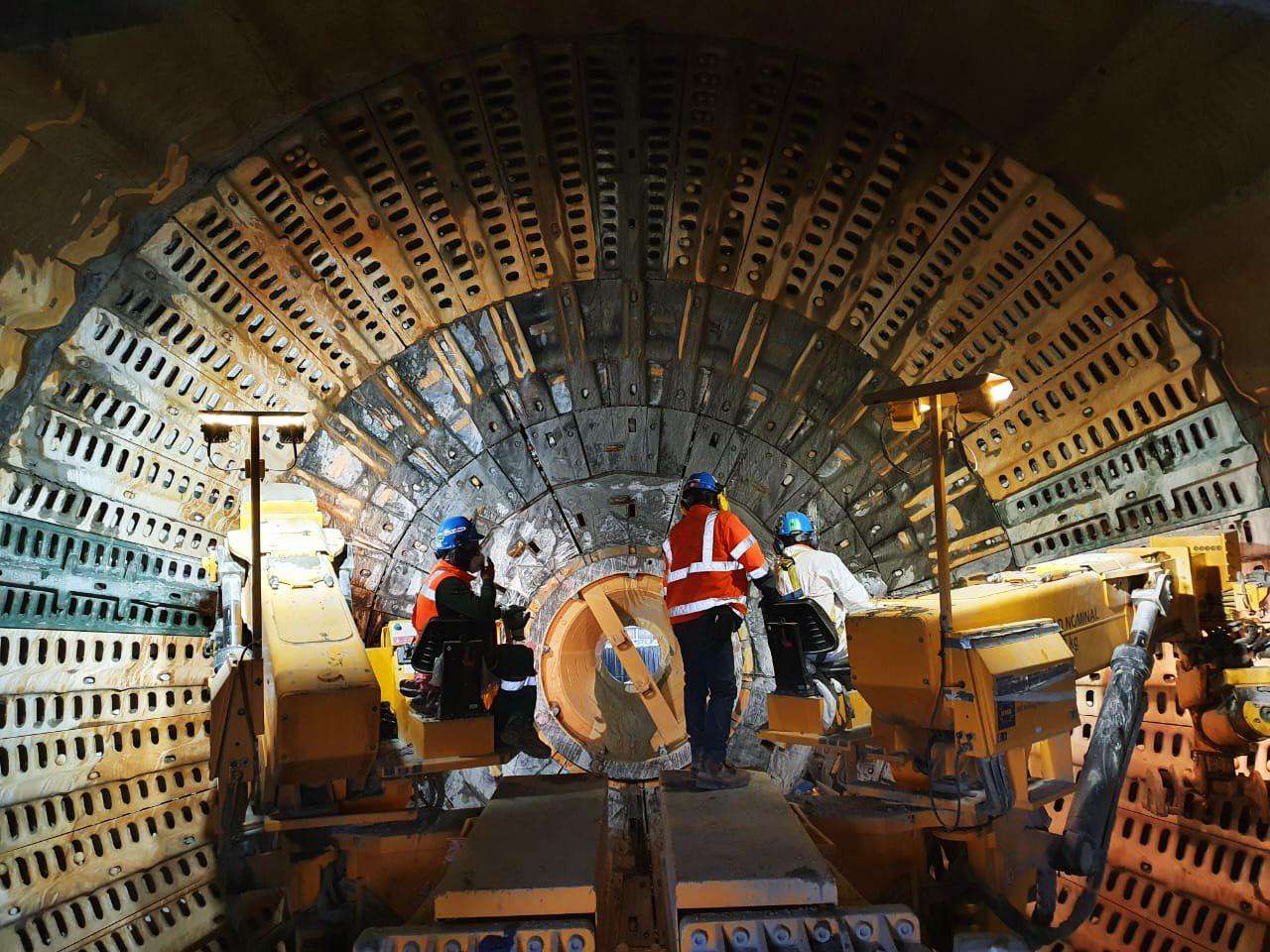

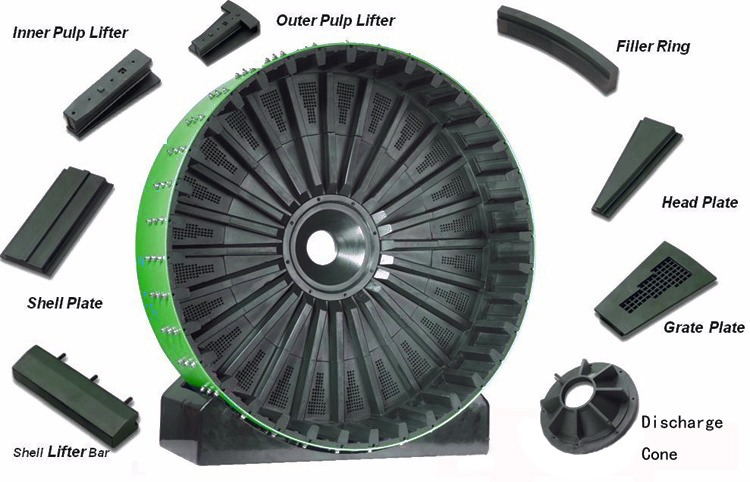

Mill Liner Components

A complete Ball Mill Lining System can include:

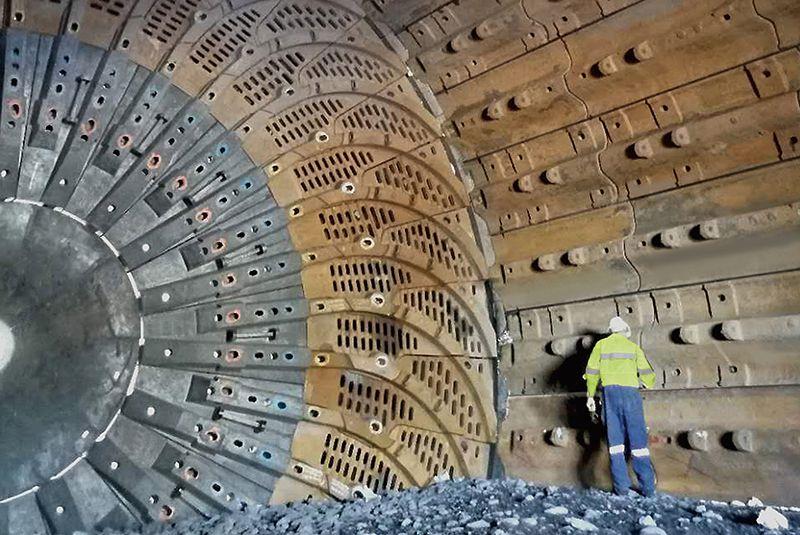

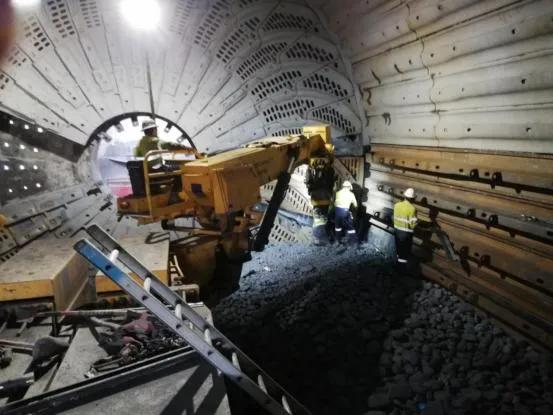

Shell Liners – Protect the cylindrical mill shell against abrasion and impact while helping control grinding media movement.

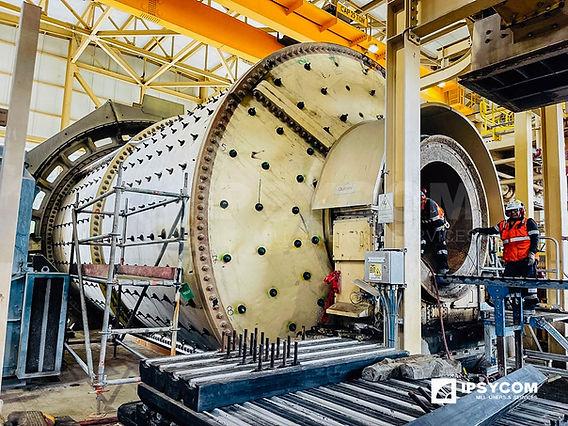

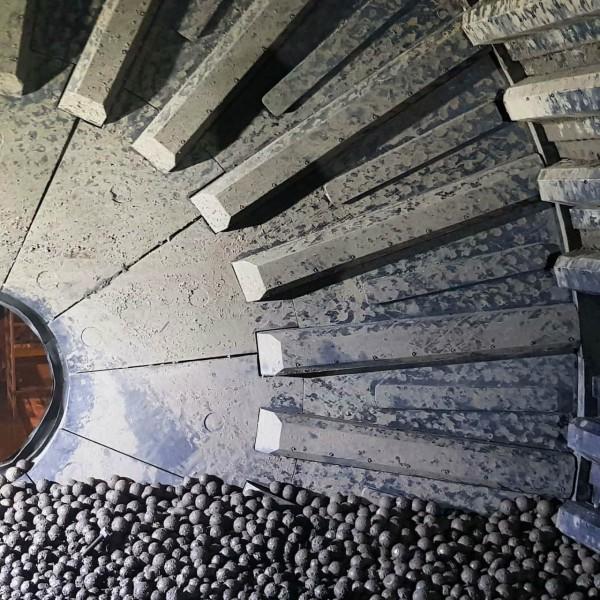

Lifter Bars – Raise the grinding charge during mill rotation and strongly influence charge trajectory and grinding action. Replacement rubber, composite and steel lifter bars can be supplied separately.

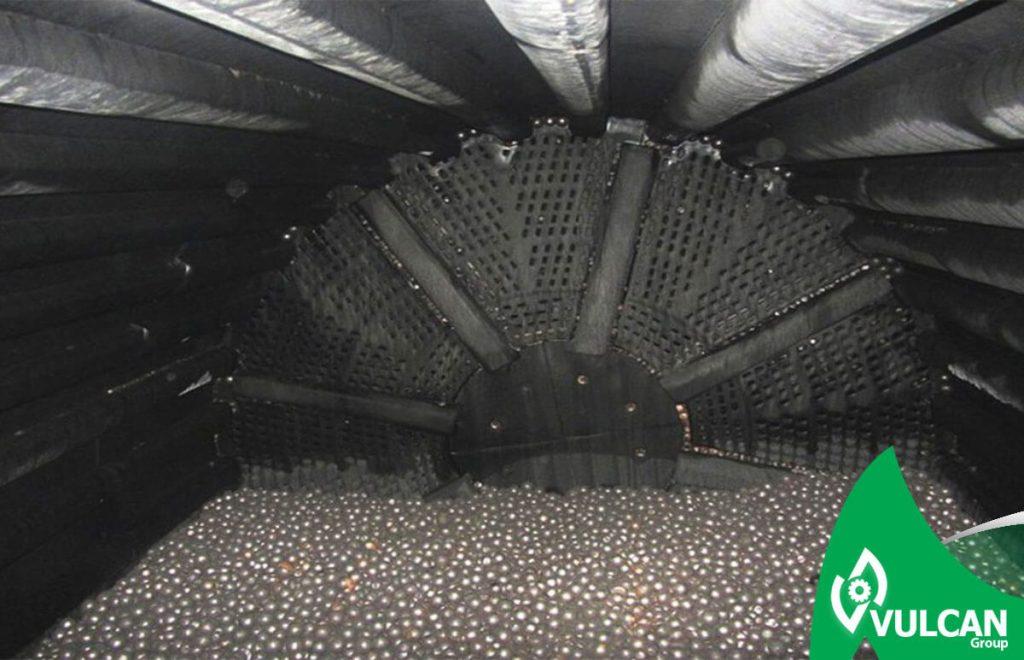

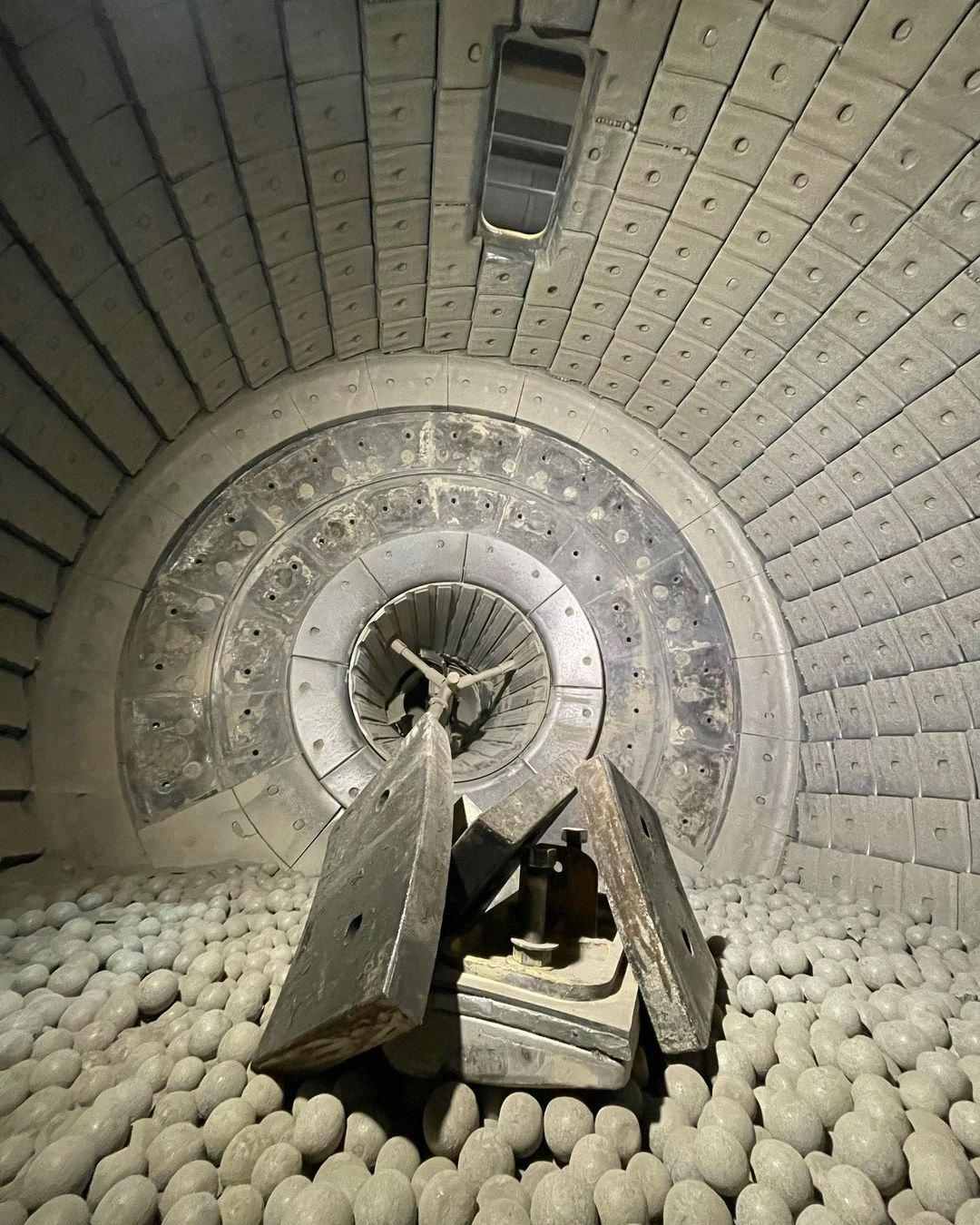

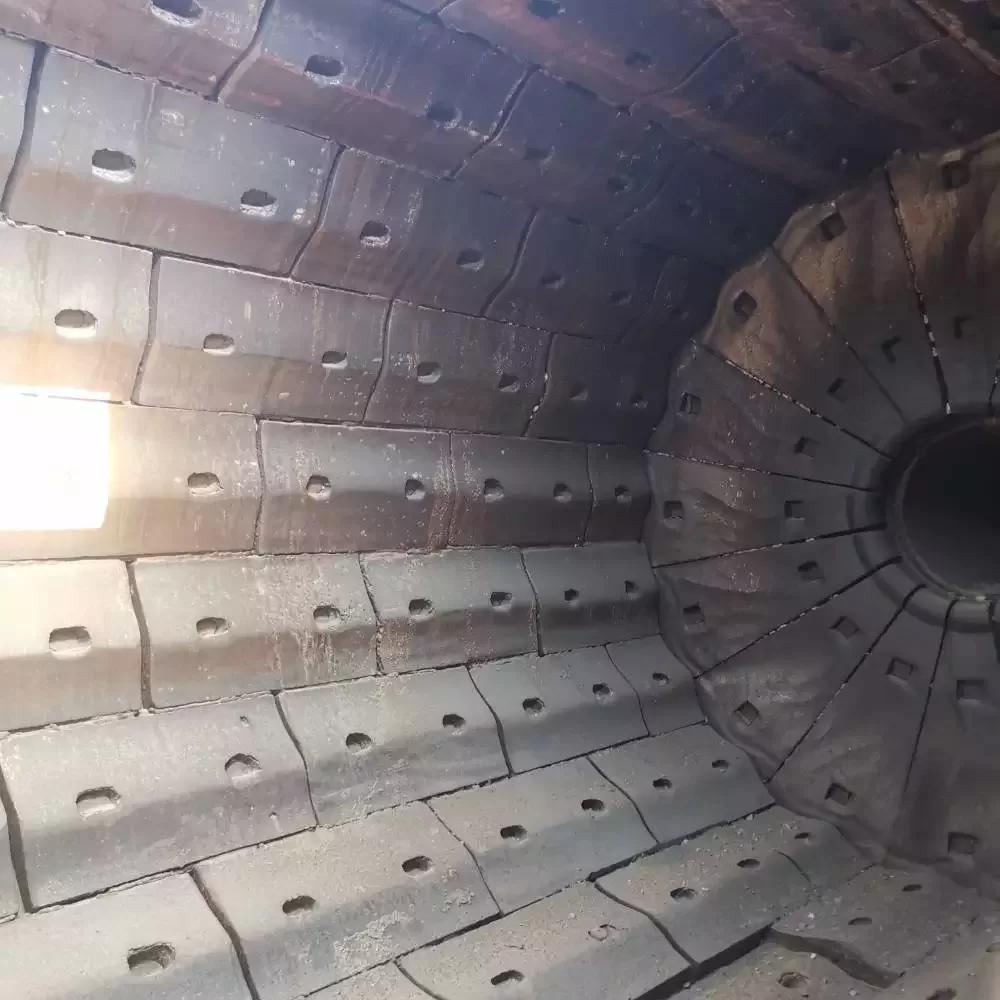

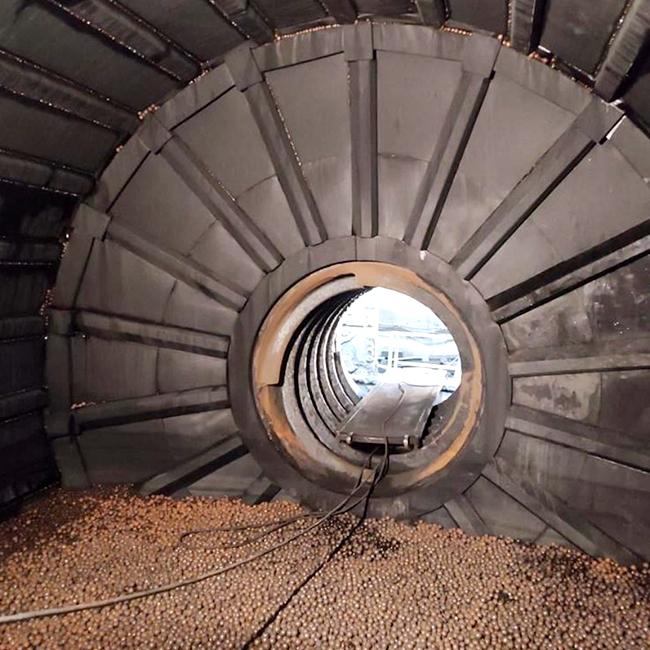

Feed & Discharge Head Liners – Protect the mill heads against wear at the feed and discharge ends.

Grate Plates / Grate Liners – Used in grate-discharge grinding mills to control the passage of ground material while retaining grinding media.

Discharge and Trunnion Liners – Protect critical discharge and trunnion areas exposed to continuous slurry and material flow.

Applications

HUATAO Grinding Mill Wear Liners are designed for mineral processing plants operating primary, secondary and regrinding circuits.

Typical applications include:

• Gold and precious metal processing plants
• Copper and molybdenum concentrators
• Iron ore beneficiation plants
• Nickel and polymetallic ore processing
• Lithium and hard-rock mineral processing
• Lead-zinc and other base-metal concentrators
• Wet and dry grinding circuits
• Ball, SAG, AG and rod mill applications

For highly abrasive ores, liner selection focuses on wear resistance and profile retention. For high-impact grinding, structural strength and impact resistance become more important. Each lining configuration should therefore be selected according to the actual mill duty rather than by material alone.

Engineering & Customization

Mill liner performance depends on the interaction between the liner profile, grinding media and material being processed. HUATAO can manufacture replacement liners based on drawings, samples or detailed mill dimensions.

For accurate selection, we recommend evaluating:

• Mill type, model and internal diameter
• Mill speed and operating conditions
• Wet or dry grinding
• Ore type, hardness and abrasiveness
• Feed and discharge particle size
• Grinding media size and filling level
• Throughput and processing capacity
• Existing liner material and service life
• Wear profile and high-wear positions
• Installation drawings and bolt-hole arrangement

Based on this information, material, thickness and liner geometry can be selected to achieve a practical balance between wear life, impact resistance, grinding efficiency and maintenance cost.

Typical Specifications

Technical specifications vary according to mill design and operating conditions. Final material and dimensions should be confirmed for each project.

Why Choose HUATAO Mill Liners?

Longer Wear Life

Wear-resistant rubber, metallic and composite materials can be selected according to ore abrasiveness, impact load and actual wear mechanisms.

Optimized Grinding Performance

Proper Shell Liner and Lifter Bar profiles help control grinding media movement and charge trajectory, supporting stable grinding performance throughout the liner service cycle.

Reduced Maintenance Downtime

Optimized wear life and replaceable liner components can extend maintenance intervals and reduce the frequency of mill shutdowns.

Multiple Material Solutions

Rubber, alloy steel, high-chrome and rubber-metal composite configurations allow the lining system to be adapted to different sections of the mill.

Customized Replacement Parts

Replacement mill liners can be manufactured according to existing drawings, samples, dimensions and site operating conditions for mining mill maintenance and aftermarket projects.

RFQ – Information Required for Quotation

To recommend the correct Ball Mill Liners and Lifter Bars, please provide as much of the following information as possible:

1. Mill manufacturer, model and mill dimensions
2. Ball Mill / SAG Mill / AG Mill / Rod Mill
3. Existing liner drawings or clear dimensional drawings
4. Required liner components and quantities
5. Current liner material
6. Ore/mineral being processed
7. Feed size and final product size
8. Wet or dry grinding
9. Mill speed and grinding media size
10. Current liner service life and wear problems
11. Photos of existing liners and worn areas
12. Required delivery quantity and destination

For replacement projects, existing mill liner drawings, worn liner samples or detailed site measurements are particularly useful for engineering evaluation.

HUATAO provides customized Ball Mill Liners, Rubber Mill Liners, Steel Mill Liners, Composite Mill Liners, Shell Liners and Replacement Lifter Bars for mining and mineral processing plants worldwide. Contact us with your mill drawings and operating conditions for liner selection and quotation.
