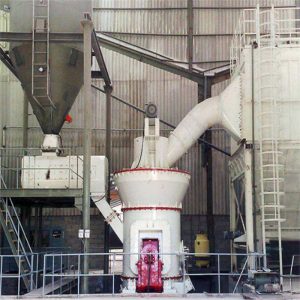

Raymond Mill

Product Introduction

Raymond Roller Mill is a traditional and reliable industrial grinding machine widely used for producing fine powder from non-metallic minerals, chemical materials, and industrial raw materials. It is also known as Raymond Grinding Mill, Pendulum Roller Mill, Air-Swept Roller Mill, or Raymond Pulverizer in international markets.

Designed for continuous and stable operation, the Raymond Roller Mill integrates grinding, powder classification, conveying, and dust collection into a complete mineral powder processing system. It is an ideal solution for customers requiring high-efficiency and cost-effective powder production with adjustable fineness.

Compared with conventional grinding equipment, modern Raymond Roller Mills feature optimized grinding structures, improved air classification systems, energy-saving drive systems, and advanced dust collection technology. The equipment can produce powder with controlled particle size from 80 mesh to 325 mesh, and some customized systems can achieve ultra-fine powder processing.

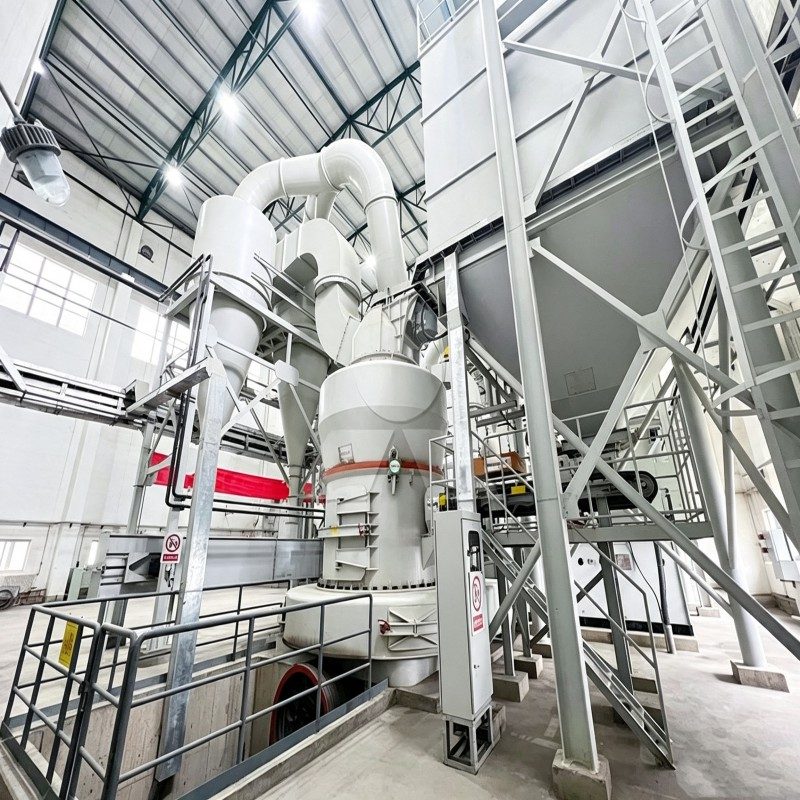

The Raymond Grinding Mill is widely applied in mining, mineral processing, construction materials, chemical industries, and industrial powder manufacturing. It is especially suitable for processing soft to medium-hard non-metallic minerals with Mohs hardness below 7.

Working Principle of Raymond Roller Mill

The Raymond Roller Mill works through the combined action of grinding pressure, centrifugal force, and airflow classification.

Raw materials are evenly fed into the grinding chamber through an Electromagnetic Vibrating Feeder or Rotary Feeder. Under centrifugal force, the grinding rollers rotate around the grinding ring and compress the material between the rollers and ring.

The crushed powder is carried by airflow into the Air Classifier / Whizzer Classifier, where fine particles meeting the required fineness are collected through the cyclone separator, while oversized particles return to the grinding chamber for further processing.

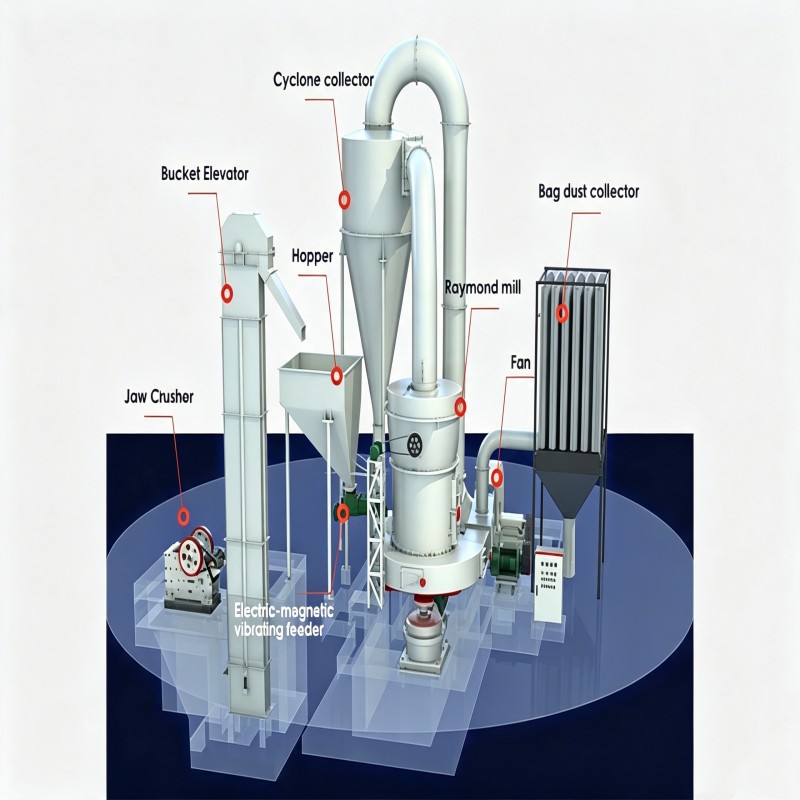

The complete system normally includes:

• Grinding Mill Main Unit
• Grinding Roller Assembly
• Grinding Ring / Bull Ring
• Air Classifier System
• High Pressure Blower
• Cyclone Powder Collector
• Pulse Jet Bag Dust Collector
• Feeding System
• Electrical Control System

This closed-loop air circulation design provides stable operation, reduced dust emission, and improved powder quality.

Applications and Processable Materials

Raymond Roller Mill is widely used for grinding various non-metallic minerals and industrial materials. It provides an economical solution for producing mineral powders used in construction, chemicals, agriculture, and manufacturing industries.

Main Application Materials:

Limestone Grinding Mill

Limestone powder produced by Raymond Mill is widely used in cement additives, construction materials, calcium carbonate production, and industrial fillers.

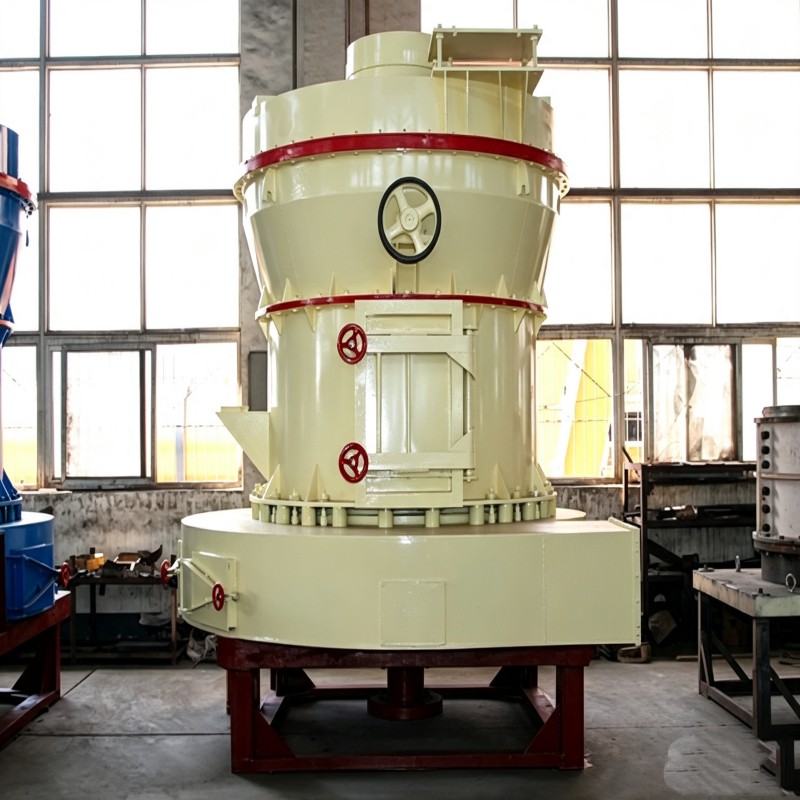

Calcite / Calcium Carbonate Grinding

The equipment is suitable for producing fine calcium carbonate powder with controlled particle size for plastics, coatings, paper, and chemical industries.

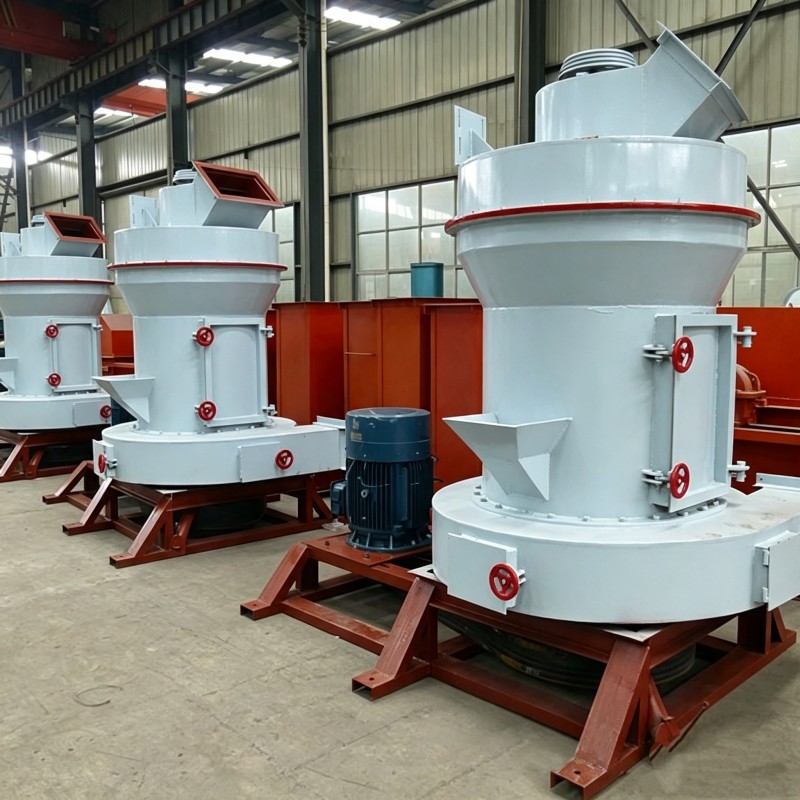

Gypsum Powder Production

Raymond Grinding Mill provides stable gypsum powder processing with uniform fineness and high production efficiency.

Barite / Barytes Grinding Equipment

Suitable for barite powder production used in drilling fluids, chemical processing, and industrial applications.

Talc, Kaolin and Bentonite Pulverizing

The Raymond Pulverizer can process clay minerals for ceramics, coatings, rubber, plastics, and other industries.

Dolomite and Feldspar Grinding Plant

Provides efficient grinding solutions for glass, ceramics, and building material industries.

Coal and Petroleum Coke Grinding

Specially designed air-swept systems can process coal powder and petroleum coke for industrial fuel applications.

Key Advantages of Raymond Roller Mill

1. Integrated Mineral Grinding System

Raymond Roller Mill is designed as a complete grinding plant integrating feeding, grinding, classification, powder collection, and dust removal. Customers can obtain a complete turnkey mineral powder production solution.

2. Adjustable Powder Fineness

The advanced air classifier system allows operators to adjust final powder fineness according to different applications.

Typical fineness range:

• 80 Mesh
• 100 Mesh
• 200 Mesh
• 325 Mesh
• Customized micron powder production

3. Energy Saving and Low Operating Cost

Optimized grinding structure reduces energy consumption while maintaining high grinding efficiency. The closed circulation system minimizes material loss and improves overall production economy.

4. High Wear Resistance and Long Service Life

Grinding rollers and grinding rings are manufactured with wear-resistant alloy materials, providing excellent abrasion resistance when processing mineral materials.

Replaceable wear parts reduce maintenance frequency and improve equipment availability.

5. Environmentally Friendly Dust Control

The Raymond Grinding Plant can be equipped with a Pulse Jet Bag Dust Collector, achieving efficient dust removal and cleaner working conditions.

The sealed grinding system reduces powder leakage and meets modern environmental requirements.

Technical Specifications of Raymond Roller Mill

Technical specifications may vary depending on raw material characteristics, moisture content, required fineness, and production capacity.

Main Technical Parameters

Feed Size: ≤20-35 mm (depending on model)

Finished Product Fineness:
80-325 Mesh / Customized micron size

Production Capacity:
0.5-20 Tons Per Hour

Mohs Hardness:
≤7

Material Moisture:
≤6%

Grinding System Type:
Air-Swept Closed Circuit Grinding System

Classifier Type:
Dynamic Air Classifier / Whizzer Classifier

Dust Collection:
Pulse Jet Bag Filter System

Grinding Components:
Wear-resistant Grinding Roller and Grinding Ring

Why Choose Our Raymond Roller Mill?

We provide customized Raymond Grinding Mill solutions according to customer requirements, including raw material characteristics, powder fineness, production capacity, and installation conditions.

Our engineering team can support:

• Complete Raymond Grinding Plant Design
• Mineral Processing Solution Consultation
• Equipment Selection
• Technical Drawing Supply
• Installation Guidance
• Spare Parts Support

Whether processing limestone, calcite, gypsum, barite, kaolin, bentonite, or other industrial minerals, our Raymond Roller Mill delivers reliable performance, stable output, and competitive operating costs.

RFQ / Inquiry

Looking for a reliable Raymond Roller Mill Manufacturer or Mineral Grinding Equipment Supplier?

Please send us your requirements:

• Raw Material Type
• Required Capacity (t/h)
• Final Powder Fineness (Mesh or μm)
• Material Moisture Content
• Installation Location
• Power Supply Requirements

Our engineers will provide a customized grinding solution and quotation.

Request a Free Quote Today for Your Mineral Powder Production Project.

Product Summary

Raymond Roller Mill is a high-efficiency mineral powder grinding solution designed for limestone, calcite, gypsum, barite, kaolin, and other non-metallic minerals. With integrated grinding, classification, and dust collection systems, it delivers stable production, adjustable fineness, low energy consumption, and reliable performance for global industrial powder processing applications.
