Dewatering Screen with Raised and Flat Surfaces: A Balanced Approach to Efficiency and Precision

1. Introduction

In modern dewatering and classification processes, screen structure plays a decisive role in operational performance. Conventional flat screens often suffer from clogging and poor stratification, while fully raised designs lack precision.

To overcome these limitations, an optimized solution has emerged:
the combined raised and flat surface screen design.

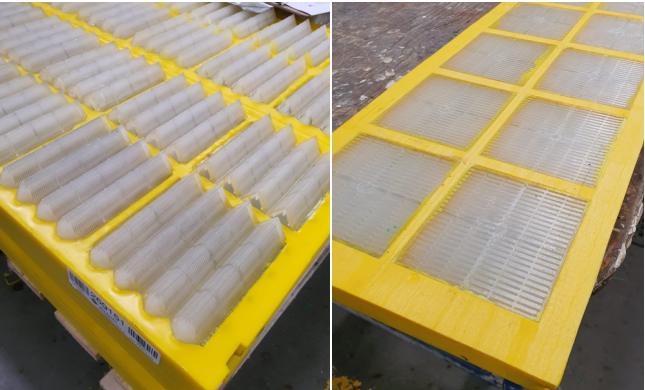

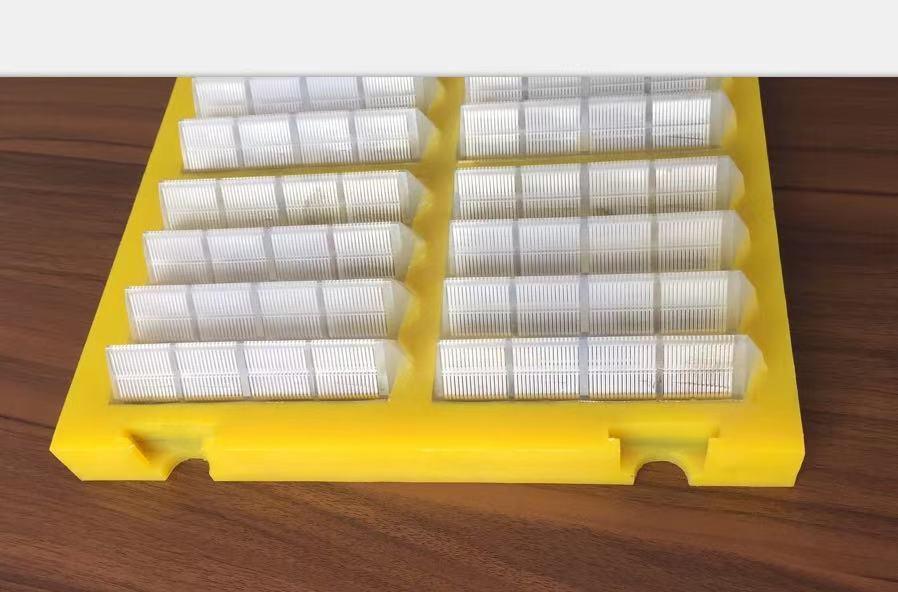

2. Raised Surface: Enhancing Efficiency

2.1 Anti-Clogging Mechanism

The wavy or inverted-V structure forces particles to move dynamically under vibration, effectively breaking moisture-induced surface tension and preventing blockage.

2.2 Increased Screening Probability

The three-dimensional flow path ensures that particles repeatedly contact new openings, significantly improving screening efficiency.

2.3 Rapid Stratification

The raised peaks disperse accumulated material, enabling quick separation of coarse and fine particles.

3. Flat Surface: Ensuring Accuracy and Strength

3.1 Precise Final Classification

The flat section provides uniform apertures for accurate particle sizing, ensuring consistent product quality.

3.2 Structural Stability

With higher rigidity, the flat area serves as the primary load-bearing section, resisting wear and prolonging service life.

4. Combined Design Advantages

This integration allows the system to achieve both high capacity and high accuracy simultaneously.

5. Applications

This design is widely applied in:

• Mining tailings dewatering
• Coal slurry processing
• Sand washing systems
• Mineral classification plants
• Industrial waste treatment

6. Selection and Maintenance

To maximize performance:

• Choose higher raised ratio for wet or sticky materials
• Ensure adequate flat length for strict grading requirements
• Monitor wear on raised sections
• Prefer polyurethane materials for durability

7. Conclusion

The combination of raised and flat surfaces represents a significant advancement in dewatering screen technology. It effectively addresses clogging, improves efficiency, and ensures precise separation, making it an ideal solution for modern industrial applications.
