XCF/KYF Flotation Cell

Product Description

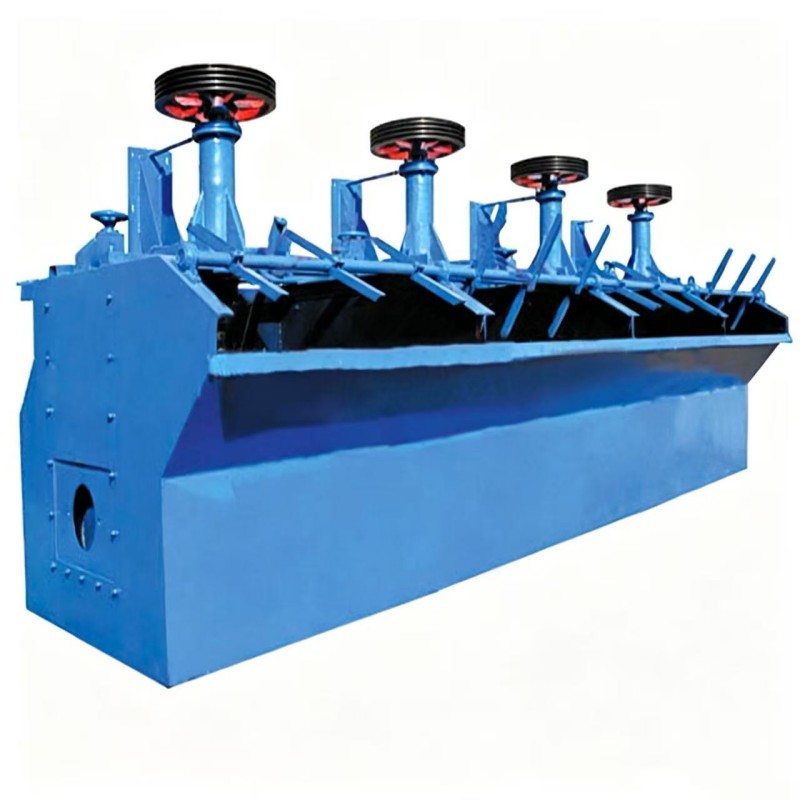

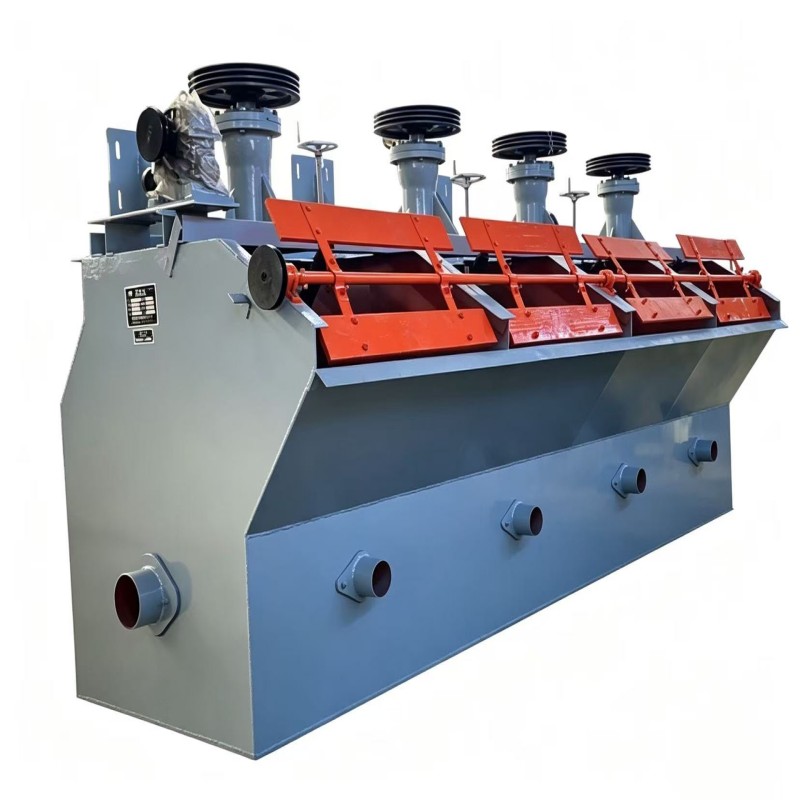

XCF/KYF Series Air-Inflatable Flotation Cell

XCF/KYF Series Flotation Cell is a high-efficiency froth flotation machine widely used in mineral processing plants for the separation of valuable minerals from ores. Designed with advanced mechanical agitation and forced-air flotation technology, this equipment provides excellent slurry mixing, stable air dispersion, and high recovery performance for various mineral beneficiation applications.

As one of the most commonly applied mineral flotation separators, XCF and KYF flotation cells are extensively used for processing copper ore, gold ore, lithium ore, lead-zinc ore, iron ore, phosphate ore, and other non-ferrous and ferrous minerals.

The XCF/KYF flotation machine adopts an innovative air-inflatable flotation cell structure, combining efficient impeller agitation, optimized stator design, and external air supply. Compared with traditional flotation equipment, it offers better air dispersion, lower power consumption, and improved flotation efficiency.

The XCF flotation cell is mainly designed as a self-aspirated flotation machine, while the KYF flotation cell works as a forced-air flotation machine. In practical mineral processing plants, XCF and KYF flotation cells are often combined together to form a complete flotation circuit. The XCF cell can automatically draw slurry and air, while the KYF cell provides stable slurry circulation through external air supply, reducing the requirement for additional slurry pumps and lowering investment costs.

Application Areas of XCF/KYF Flotation Machine

The XCF/KYF Series Froth Flotation Cell is suitable for a wide range of mineral separation applications:

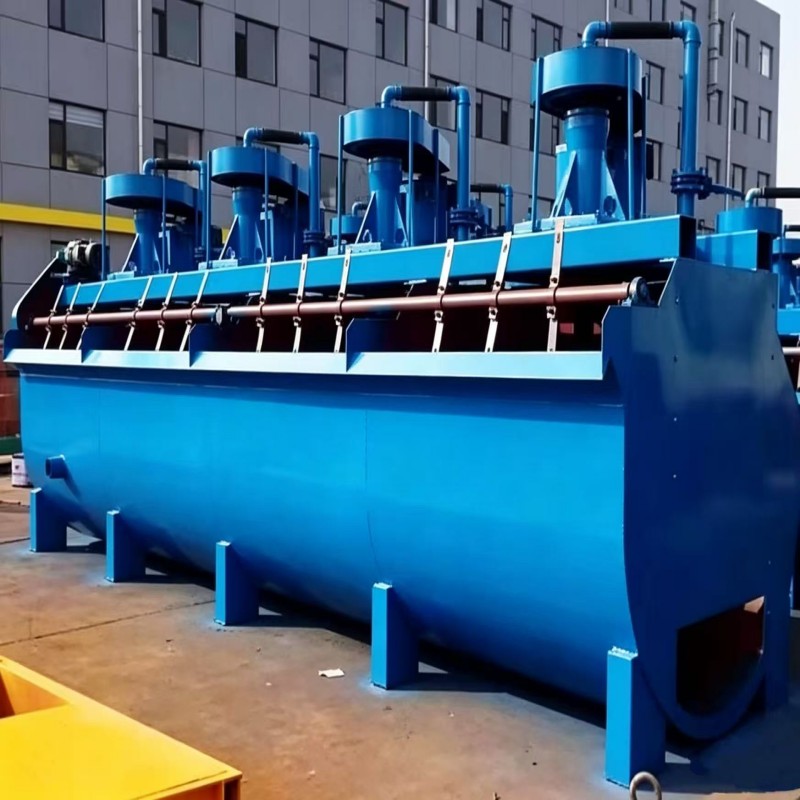

Copper Ore Flotation

For copper beneficiation plants, XCF/KYF flotation machines provide efficient recovery of copper sulfide minerals through selective froth flotation technology. The optimized impeller and stator system improve mineral particle suspension and enhance copper concentrate recovery.

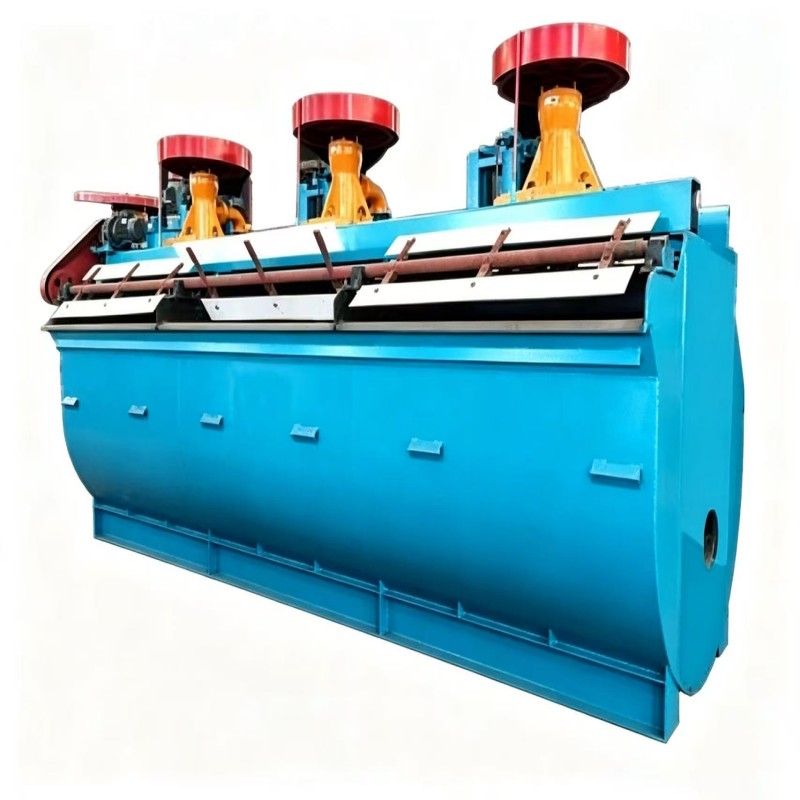

Gold Ore Flotation

Gold flotation is widely applied for recovering fine gold particles associated with sulfide minerals. The XCF/KYF flotation cell provides stable air bubbles and strong mineral-bubble contact, helping improve gold recovery rates in complex ore conditions.

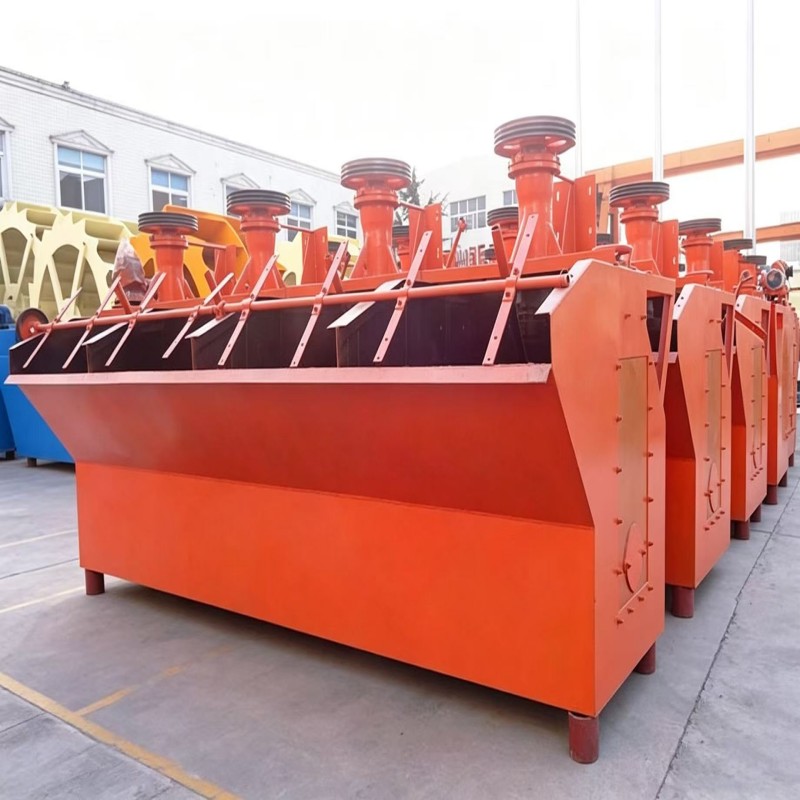

Lithium Ore Flotation

With the increasing demand for lithium battery materials, flotation technology has become an important method for lithium ore upgrading. XCF/KYF flotation equipment can be used in lithium spodumene and other lithium-bearing mineral processing plants, providing reliable separation performance.

Lead-Zinc and Polymetallic Ore Processing

The flotation machine is suitable for selective separation of lead, zinc, silver, and other valuable minerals. By adjusting flotation parameters, the equipment can achieve efficient mineral recovery and high-quality concentrate production.

Industrial Mineral Processing

XCF/KYF flotation cells are also used for processing phosphate, graphite, fluorite, and other industrial minerals requiring efficient separation technology.

Working Principle of XCF/KYF Flotation Cell

The working principle of the pneumatic flotation cell is based on the interaction between mineral particles, chemical reagents, and air bubbles.

During operation, slurry enters the flotation tank and is fully mixed by the rotating impeller. The impeller creates negative pressure or receives external air supply, generating large quantities of fine air bubbles. Valuable mineral particles attach to the air bubbles and rise to the surface, forming a mineralized froth layer.

The froth layer is collected as concentrate, while unwanted gangue minerals remain in the slurry and are discharged as tailings.

The specially designed impeller and stator structure ensure:

• Uniform slurry circulation
• Efficient air dispersion
• Stable froth formation
• Improved mineral recovery
• Reduced energy consumption

Key Advantages of XCF/KYF Flotation Machine

1. High-Efficiency Mineral Recovery

The optimized impeller and stator design improve slurry circulation and air-particle contact efficiency, resulting in higher recovery rates for valuable minerals.

2. Combination of XCF and KYF Flotation Cells

The combination of XCF and KYF flotation cells allows flexible flotation circuit design. XCF provides self-suction capability, while KYF offers forced-air operation, reducing the need for intermediate slurry pumps.

3. Low Energy Consumption Design

Compared with conventional flotation equipment, the KYF flotation machine features lower power consumption due to improved hydraulic performance and optimized impeller structure.

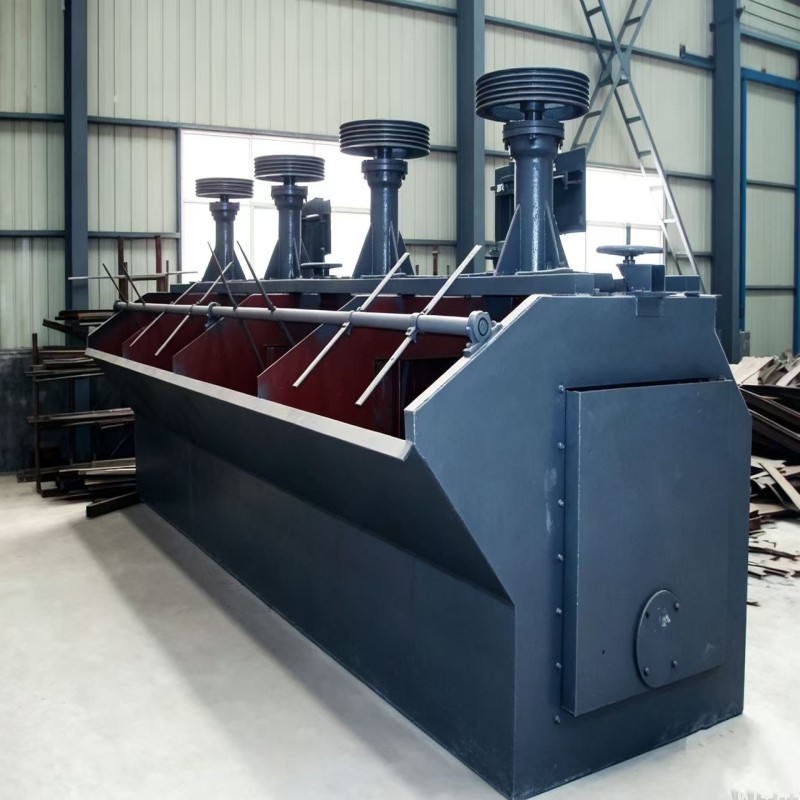

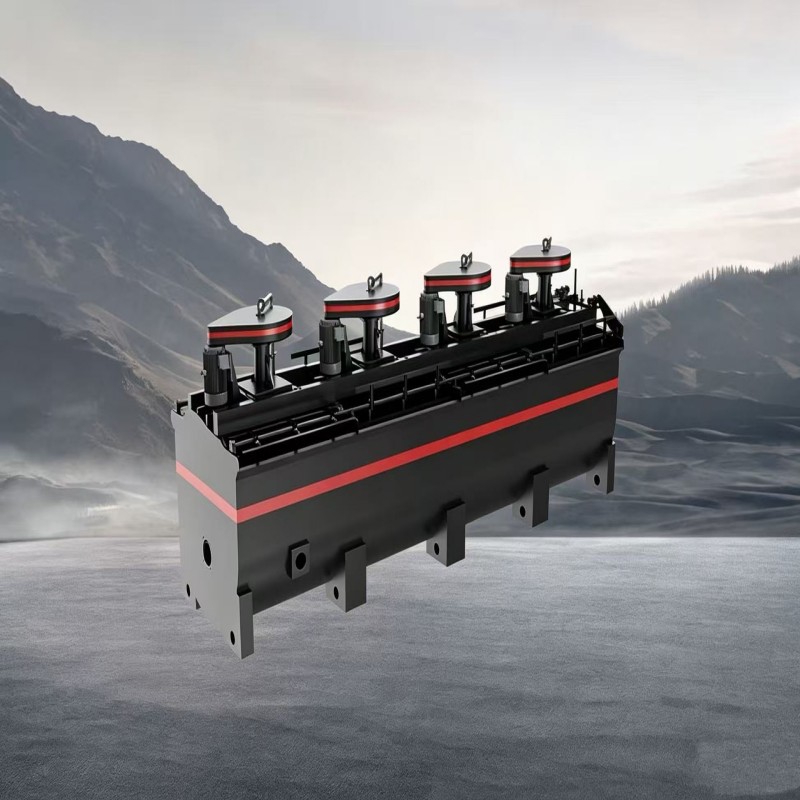

4. Large Volume Flotation Cell Available

Large-volume flotation cells are available for modern high-capacity mineral processing plants, reducing equipment quantity and simplifying plant layout.

5. Reliable Operation and Easy Maintenance

The flotation equipment uses wear-resistant components and a simple mechanical structure, ensuring long service life, convenient maintenance, and reduced operating costs.

Technical Specifications

(Specifications can be customized according to ore properties, processing capacity and flotation flowsheet.)

Why Choose Our XCF/KYF Flotation Cell?

As a professional flotation machine manufacturer and mineral processing equipment supplier, we provide complete solutions from equipment selection to flotation circuit optimization.

Our engineering team can customize flotation equipment according to:

• Ore type and mineral characteristics
• Required processing capacity
• Recovery target
• Existing flotation flowsheet
• Installation conditions

We provide technical support for gold, copper, lithium, lead-zinc, and other mineral processing projects worldwide.

RFQ / Inquiry

Looking for a reliable XCF/KYF Flotation Cell Manufacturer?

Please send us your requirements:

• Mineral type
• Processing capacity (TPD or T/H)
• Required flotation cell volume
• Existing flotation process
• Power supply requirements

Our engineers will recommend the suitable froth flotation machine solution and provide a competitive quotation.

Contact us today for XCF/KYF flotation equipment price, technical specifications, and customized flotation solutions.

Product Summary

XCF/KYF Series Air-Inflatable Flotation Cell is a high-performance mineral flotation separator designed for efficient recovery of gold, copper, lithium, and other valuable minerals. With low energy consumption, stable operation, and flexible circuit configuration, it is widely used in modern mineral processing plants worldwide.
