Woven Wire Mesh

Woven Wire Screen Mesh

for Mining, Quarrying & Aggregate Processing

Woven Wire Screen Mesh is one of the most widely used and cost-effective screening media in the mining, quarrying, aggregate, asphalt, and mineral processing industries. Designed for heavy-duty vibrating screens and screening equipment, it offers excellent wear resistance, accurate particle sizing, and high open area for efficient material separation.

Manufactured from high carbon spring steel (65Mn), high manganese steel (Mn14/Mn18Cr2), and stainless steel grades including 304, 316, and 316L, woven screen mesh is suitable for both dry and wet screening applications. Depending on the operating conditions, customers can select different wire diameters, aperture sizes, weaving patterns, and hook edge designs to achieve optimum screening performance and service life.

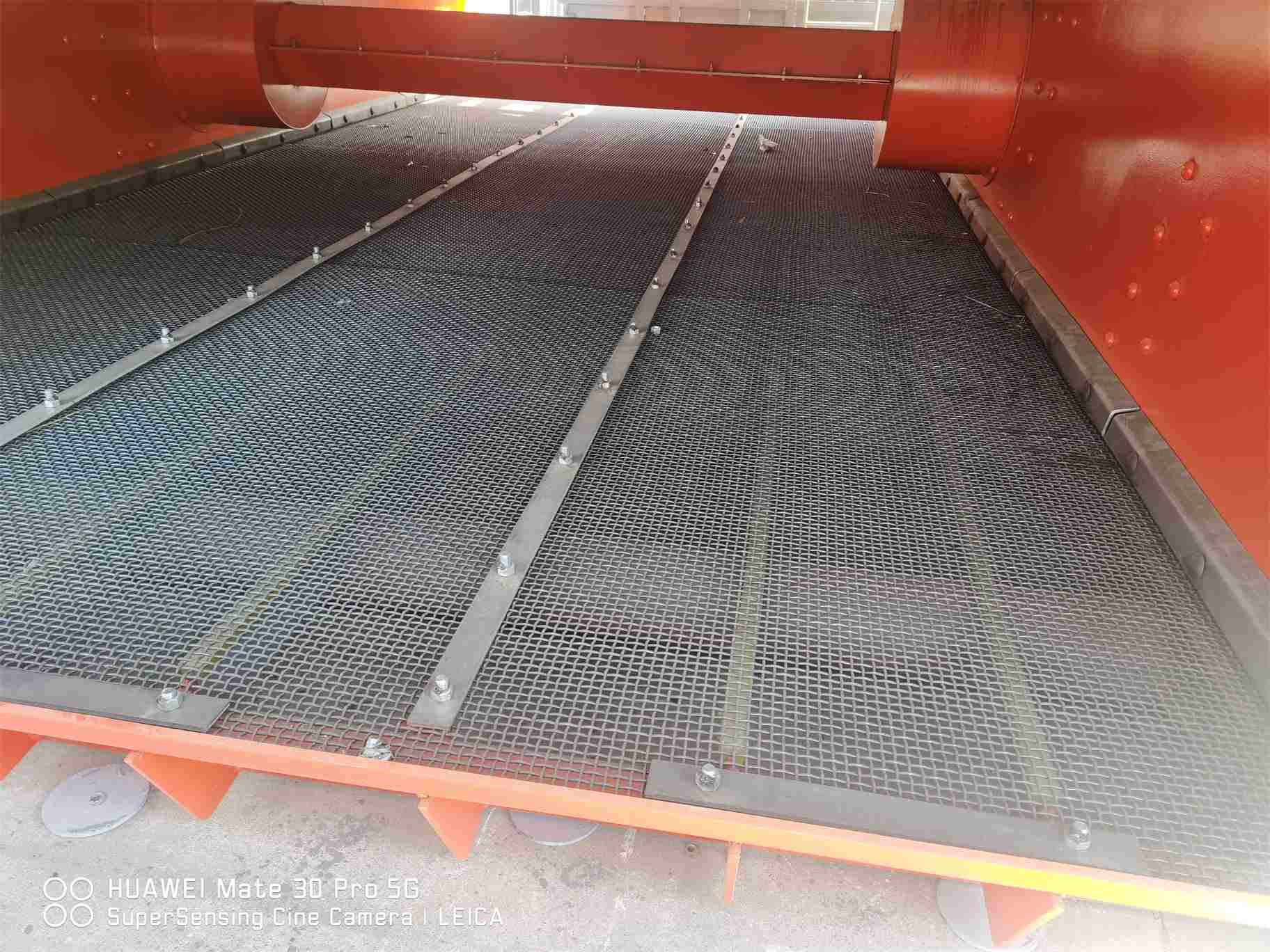

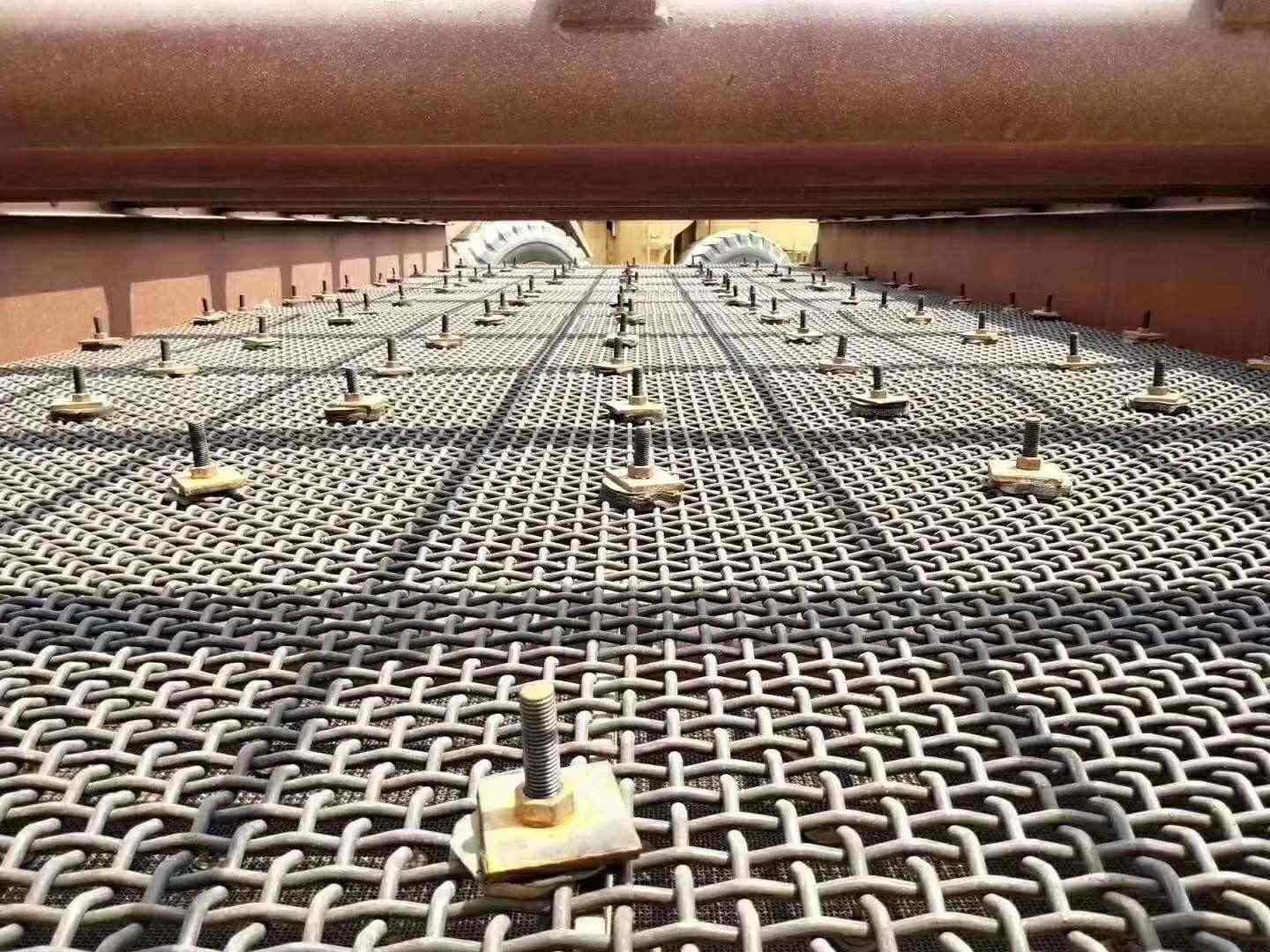

Our woven wire screen cloth is compatible with most vibrating screen machines used in mining and aggregate plants worldwide, including inclined screens, horizontal screens, circular vibrating screens, and tensioned screen systems.

Applications

Woven wire screen mesh is extensively used for:

• Mining and mineral processing plants

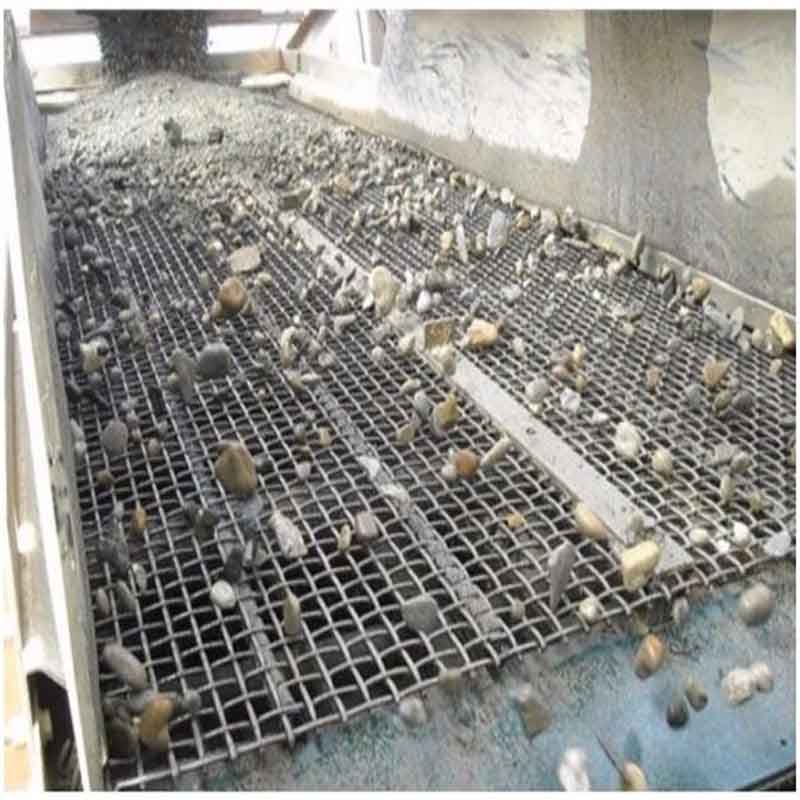

• Quarry and aggregate screening operations
• Coal washing plants
• Asphalt mixing plants
• Sand and gravel classification
• Construction material processing

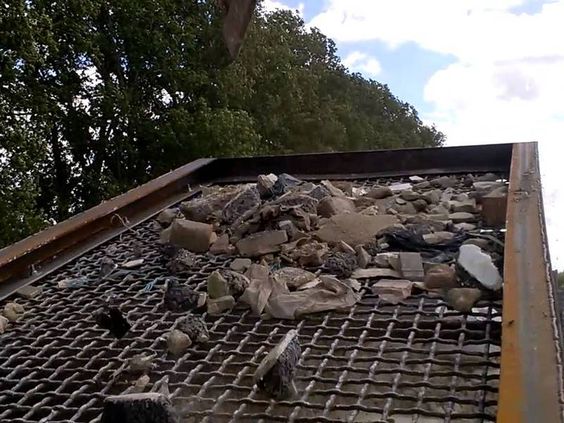

• Recycling and waste material screening
• Wet and dry screening applications
• Stone crushing plants
• Industrial material sizing and grading

Typical screened materials include:

• Iron ore
• Gold ore
• Copper ore
• Coal
• Limestone
• Granite
• Basalt
• Sand and gravel
• Asphalt aggregates
• Recycled construction materials

Material Options

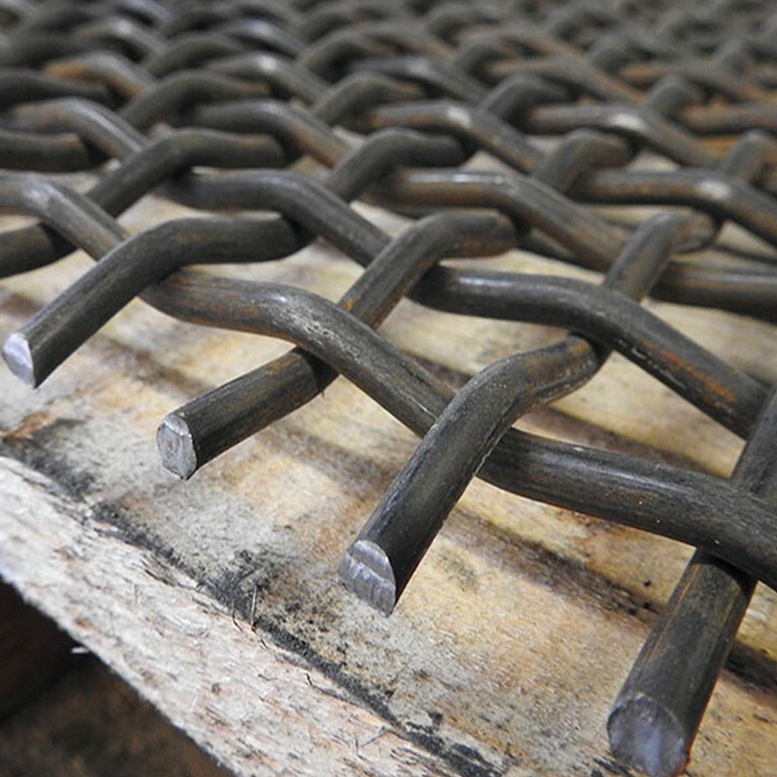

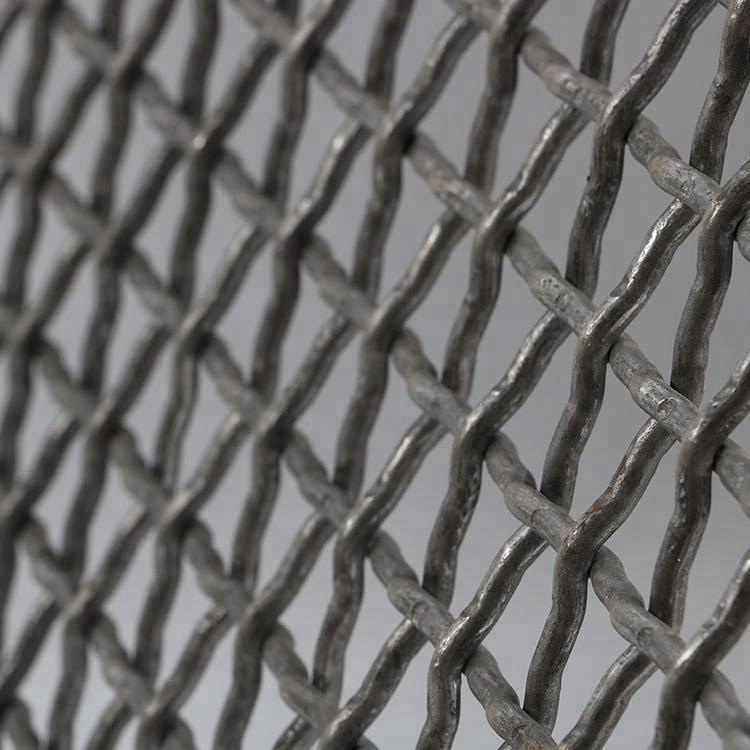

High Carbon Spring Steel (65Mn)

65Mn spring steel offers excellent tensile strength and wear resistance, making it one of the most popular materials for quarry and aggregate applications.

Features:

• High impact resistance
• Excellent fatigue strength
• Cost-effective solution
• Long service life

High Manganese Steel (Mn14 / Mn18Cr2)

High manganese steel is ideal for highly abrasive and impact-heavy screening environments.

Features:

• Superior abrasion resistance
• Outstanding toughness
• Suitable for large stone screening
• Extended wear life

Stainless Steel (304 / 316 / 316L)

Stainless steel wire mesh is recommended for corrosive or high-temperature environments.

Features:

• Corrosion resistance
• Heat resistance
• Hygienic and easy to clean
• Ideal for wet screening applications

Weaving Styles

Various weaving technologies are available to suit different applications:

• Double Crimped Wire Mesh
• Lock Crimped Screen Cloth
• Flat Top Crimped Wire Mesh
• Intermediate Crimped Wire Mesh
• Heavy-Duty Crimped Wire Mesh

Each weaving style offers different advantages in terms of open area, wear resistance, screening accuracy, and impact performance.

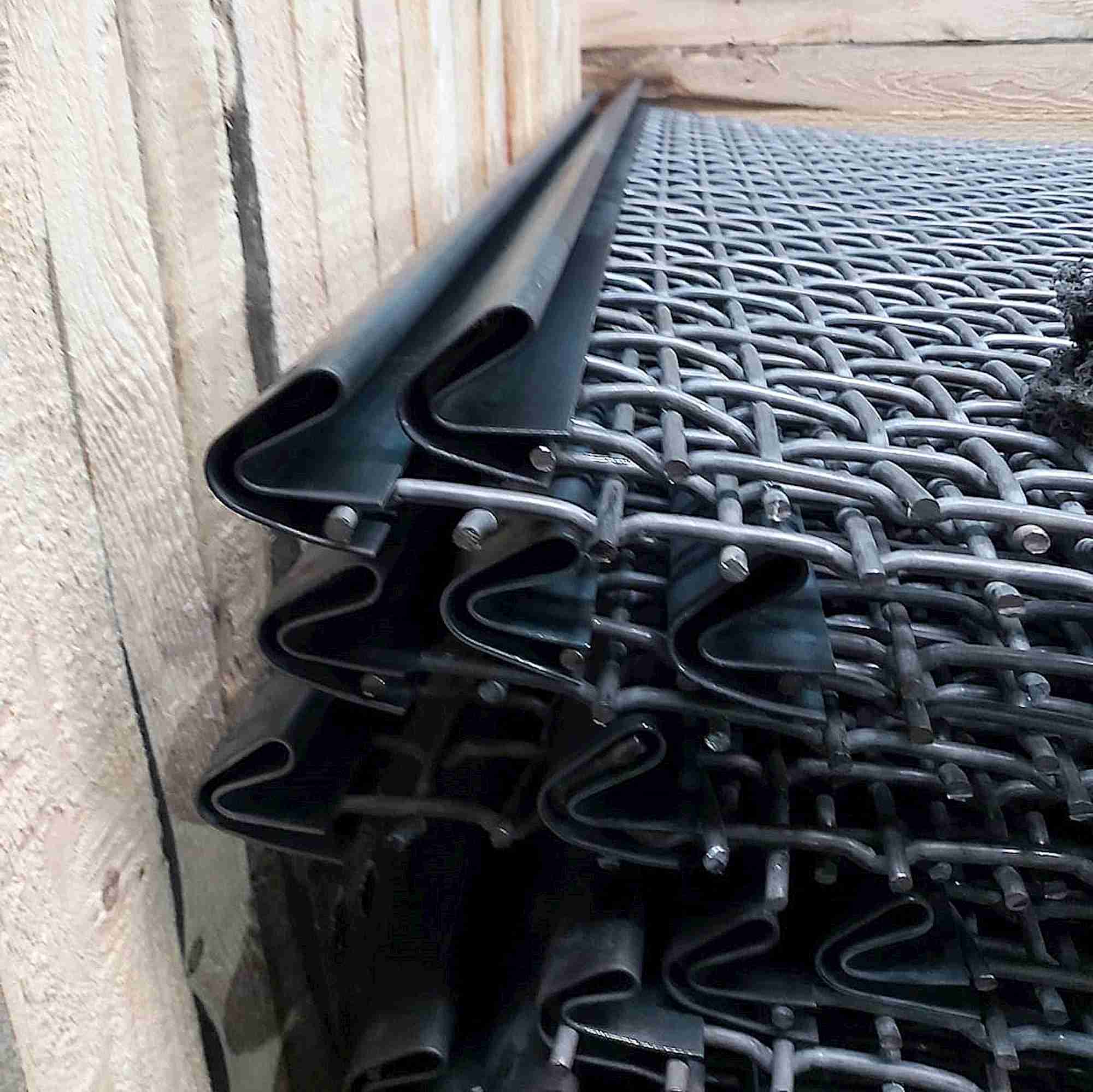

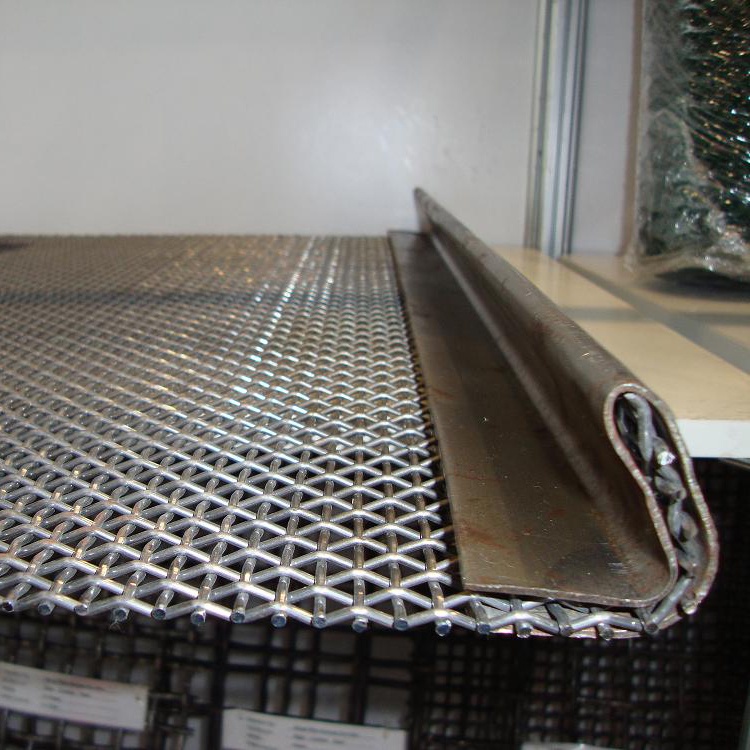

Hook Edge & Installation Options

Custom hook edge designs are available to fit different vibrating screen machines.

Available options include:

• Hook Edge Screen Cloth
• C Hook Screen Edge
• V Hook Screen Edge
• Galvanized Hook Strips
• Polyurethane Capped Hook Edge
• Stainless Steel Hook Edge
• Front-to-Back Installation
• Side-to-Side Installation

The hook edge design significantly improves installation efficiency and ensures proper screen tension during operation.

Advantages of Woven Wire Screen Mesh

• High open area for increased screening efficiency
• Excellent wear resistance for abrasive materials
• Accurate aperture sizing for consistent product quality
• Suitable for both wet and dry screening
• Custom-made dimensions available
• Multiple material grades for different applications
• Easy installation and replacement
• Reduced maintenance costs
• Long service life under heavy-duty conditions
• Compatible with most vibrating screen equipment worldwide

Technical Specifications

Custom Manufacturing Service

We provide fully customized woven wire screen solutions based on customers’ drawings and operating conditions.

Customization includes:

• Material selection
• Aperture size
• Wire diameter
• Hook edge design
• Mesh dimensions
• Screen machine compatibility
• Surface treatment requirements

OEM and replacement screen mesh services are available for major screening equipment manufacturers worldwide.
