Trommel Screen

Product Introduction

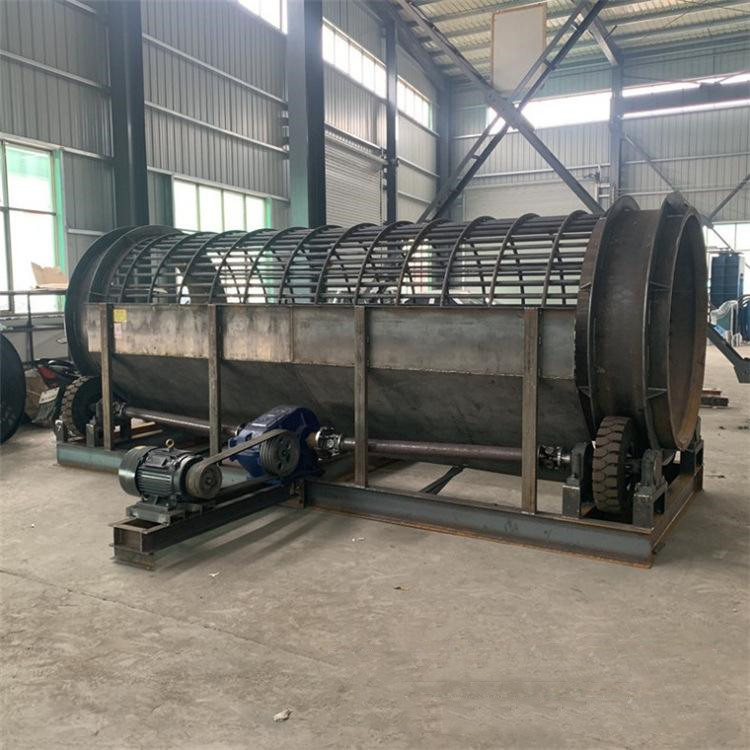

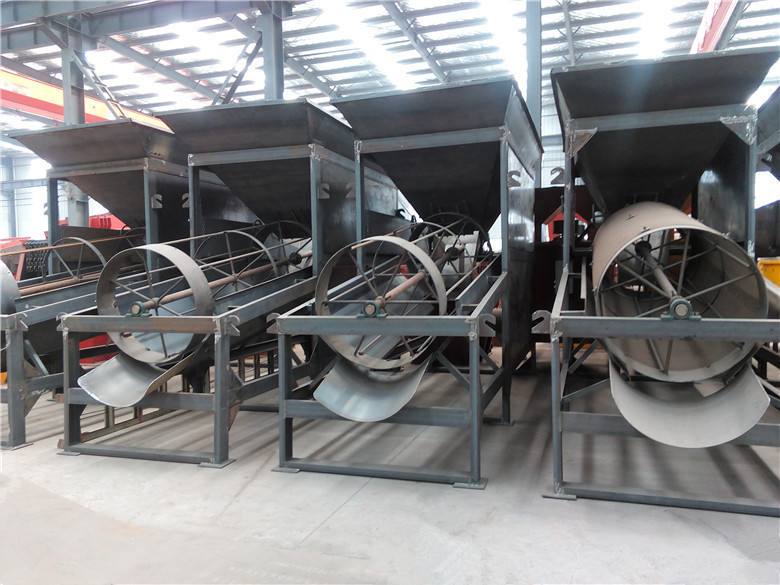

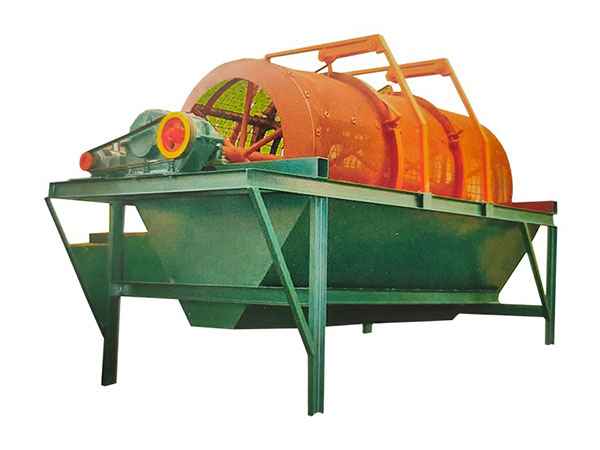

HUATAO Trommel Screen, also known as Rotary Trommel Screen, Rotary Drum Screen, or Trommel Screen Machine, is a highly efficient rotary screening solution designed for separating materials by particle size in mining, recycling, agriculture, and industrial processing applications.

Unlike traditional vibrating screens, the trommel screen uses a rotating cylindrical drum structure to continuously classify materials. As the drum rotates, smaller particles pass through the screen openings while oversized materials move toward the discharge end.

This simple but reliable screening principle makes trommel screens especially suitable for processing materials with high moisture, sticky characteristics, irregular shapes, or large volume flow.

HUATAO heavy-duty trommel screens are widely used in:

• Mineral processing plants
• Gold washing operations
• Compost production
• Waste recycling facilities
• Topsoil screening
• Biomass processing
• Sand and aggregate classification

Available configurations include:

• Mobile Trommel Screen
• Portable Trommel Screen
• Stationary Trommel Screen
• Trailer Mounted Trommel Screen
• Heavy Duty Industrial Trommel Screen

Efficient Rotary Drum Screening Technology

The working principle of a rotary trommel screen is based on continuous material rotation and separation.

Material enters the inclined rotating drum through the feed hopper. During operation, the drum rotates at a controlled speed, lifting and tumbling the material inside.

This process creates:

• Effective material stratification
• Continuous screening contact
• Reduced material blockage
• Stable screening performance

Different screen mesh sizes can be installed along the drum length to achieve multiple-stage classification.

For example:

• Fine particles pass through the first screening section
• Medium-size materials pass through the middle section
• Oversized materials discharge from the end

This flexible design allows one trommel screen machine to produce multiple product sizes in a single operation.

Applications of Trommel Screen Machine

1. Mining and Mineral Processing

Trommel screens are widely used in mining applications where reliable material separation is required.

Typical applications include:

• Gold mining trommel screen
• Alluvial gold washing
• Placer mining operations
• Sand and gravel classification
• Mineral ore screening

The gold trommel screen is especially popular in small and medium-scale gold recovery operations because it combines screening and washing functions in one system.

Benefits include:

• Efficient clay removal
• Improved gold recovery
• Continuous processing
• Easy operation in remote mining areas

2. Compost and Organic Waste Screening

The compost trommel screen is one of the most common applications in agriculture and environmental industries.

It is designed for separating:

• Finished compost
• Organic fertilizer
• Green waste
• Soil amendments
• Biomass materials

The rotary drum screening process removes oversized materials while producing uniform compost products.

Advantages:

• Handles wet organic materials
• Reduces manual sorting
• Improves final product quality
• Supports large-scale compost production

3. Waste Recycling and Solid Waste Processing

Modern recycling plants require reliable equipment to handle large volumes of mixed materials.

HUATAO waste recycling trommel screens are suitable for:

• Municipal solid waste (MSW)
• Construction and demolition waste (C&D)
• Industrial waste
• Refuse-derived fuel (RDF)
• Recycling sorting systems

The rotating drum design provides effective separation before further processing equipment.

Applications include:

• Waste classification
• Material recovery facilities
• Recycling plants
• Landfill screening operations

4. Topsoil and Aggregate Screening

For landscaping, construction, and quarry industries, trommel screens provide an efficient solution for soil and aggregate classification.

Applications include:

• Topsoil screening
• Sand screening
• Gravel classification
• Landscape material processing

The adjustable drum design allows operators to achieve different final product sizes according to market requirements.

Mobile and Stationary Trommel Screen Solutions

Mobile Trommel Screen

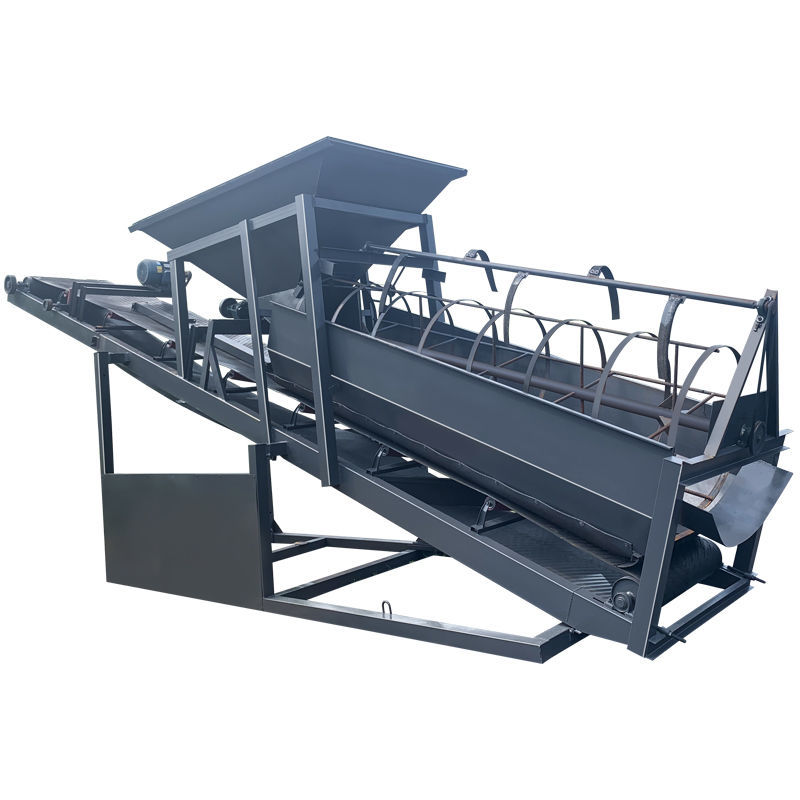

The mobile trommel screen is designed for customers requiring flexible operation at multiple working sites.

Features:

• Easy transportation
• Fast installation
• Independent operation
• Suitable for temporary projects

Common applications:

• Construction waste recycling
• Mining exploration
• Mobile gold washing
• Remote screening operations

Stationary Trommel Screen

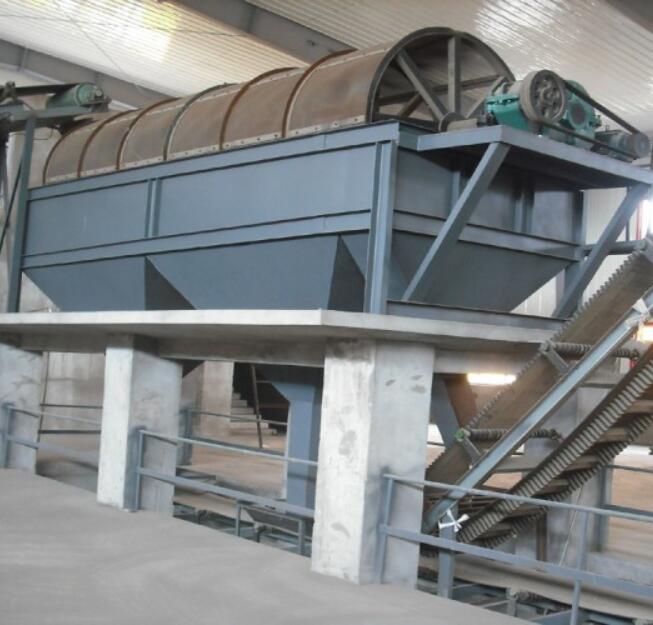

The stationary trommel screen is designed for permanent production facilities requiring continuous high-volume processing.

Advantages:

• Higher production capacity
• Integration with complete processing lines
• Stable long-term operation
• Lower operating cost

Suitable for:

• Mining plants
• Recycling facilities
• Compost production lines
• Aggregate plants

Key Advantages of HUATAO Trommel Screen

1. High Screening Efficiency

The rotating drum creates continuous material movement, increasing contact between materials and screen mesh.

Benefits:

• Better particle separation
• Stable screening accuracy
• Higher processing efficiency

2. Excellent Performance for Wet and Sticky Materials

Compared with traditional screens, rotary drum screens are less affected by moisture and sticky materials.

They are suitable for:

• Wet soil
• Compost
• Clay-containing materials
• Organic waste

3. Durable Trommel Screen Mesh Design

HUATAO provides high-quality trommel screen mesh solutions designed for different applications.

Available options:

• Perforated steel plate
• Woven wire mesh
• Polyurethane screen mesh
• Replaceable trommel drum panels

Benefits:

• Long service life
• Easy replacement
• Reduced maintenance cost

4. Flexible Capacity and Customization

Each trommel screen can be customized according to:

• Feed material
• Capacity requirement
• Separation size
• Installation conditions

Customization options include:

• Drum diameter
• Drum length
• Mesh opening
• Drive system
• Mobile chassis design

5. Heavy-Duty Structure for Industrial Applications

HUATAO industrial trommel screens are manufactured for demanding working environments.

Features:

• Robust steel structure
• Reliable drive system
• Wear-resistant components
• Continuous operation capability

Technical Specifications

Trommel Screen Mesh & Replacement Parts

HUATAO supplies complete trommel screen mesh and replacement components for different brands and applications.

Available products:

• Trommel drum replacement mesh
• Rotary screen panels
• Wear-resistant screen sections
• Customized screening cylinders

We provide replacement solutions according to:

• Existing drum dimensions
• Mesh opening requirements
• Material characteristics
• Operating conditions

Why Choose HUATAO Trommel Screen?

HUATAO provides professional screening solutions for mining, recycling, and industrial processing industries.

Our advantages include:

• Customized trommel screen design
• Complete screening media solutions
• Engineering support
• Competitive factory-direct supply
• Global export experience

Whether you need a mobile gold trommel screen, compost screening machine, or heavy-duty industrial rotary screen, HUATAO can provide a reliable and cost-effective solution.

RFQ / Request for Quote

To recommend the right trommel screen model, please provide:

1. Material type
2. Required capacity (tons/hour)
3. Feed particle size
4. Required screening size
5. Moisture content
6. Mobile or stationary requirement
7. Power supply conditions
8. Existing equipment information (if replacement)

Our engineers will provide a customized trommel screening solution, technical proposal, and competitive quotation.

Product Summary

HUATAO Heavy Duty Rotary Trommel Screen is a versatile screening machine designed for mining, waste recycling, compost, topsoil, and aggregate applications. With reliable rotary drum technology, durable screen mesh options, and flexible mobile or stationary configurations, it provides efficient material separation and long-term performance in demanding environments.
