Trommel screen panels

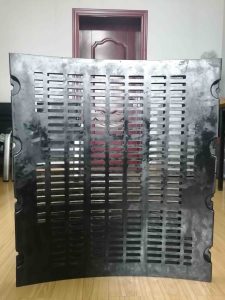

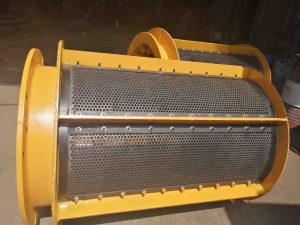

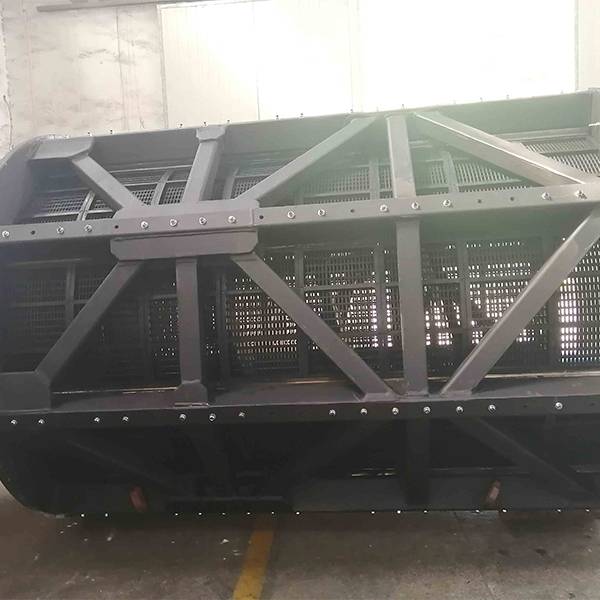

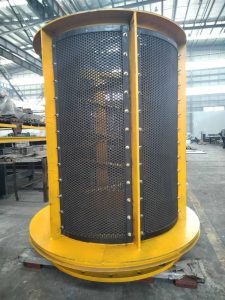

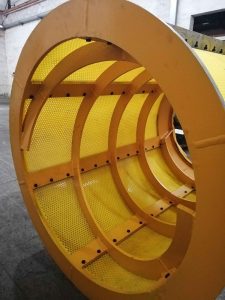

Trommel screen panels are specialized, replaceable screening surfaces that form the cylindrical drum of a trommel screen. As the trommel rotates, these panels efficiently separate materials by size through a tumbling action. Available in various materials including rubber, polyurethane, and woven wire, they feature different aperture sizes and configurations to meet specific operational needs across multiple industries.
-
Parameters
Huatao Trommel Screen Panels
Trommel screen panels are specialized, replaceable screening surfaces that form the cylindrical drum of a trommel screen. As the trommel rotates, these panels efficiently separate materials by size through a tumbling action. Available in various materials including rubber, polyurethane, and woven wire, they feature different aperture sizes and configurations to meet specific operational needs across multiple industries.
Function & Design Features
Separation Mechanism
- Size-Based Sorting: As the trommel rotates, material enters at one end, with smaller particles falling through the screen apertures due to gravity while larger particles travel to the discharge end.
Material Construction
- Durable Materials: Manufactured from wear-resistant rubber, long-lasting polyurethane (PU), or robust woven wire mesh
- Heavy-Duty Performance: Engineered to withstand abrasive materials and demanding operating conditions
Customization Options
- Aperture Variety: Available in square, round, or slotted openings
- Configuration Flexibility: Designed to meet specific process requirements and material characteristics
Installation Systems
- Secure Attachment: Compatible with bolt-on or pin-and-sleeve fastening systems for reliable connection to the trommel frame
Operational Versatility
- Modular Configuration: By combining different panel types, a single trommel screen can be adapted to produce multiple material size fractions
Application Areas
| Industry Sector | Primary Uses |
|---|---|
| Mining & Mineral Processing | Separating aggregates and heavy materials in milling circuits |
| Recycling Operations | Sorting C&D materials, waste streams, and auto shredder residue |
| Organics Processing | Screening compost, mulch, and other biodegradable materials |
Summary
Trommel screen panels serve as critical components in material separation systems, offering durability, customization, and operational flexibility. Whether in mining, recycling, or organic processing applications, their robust construction and adaptable design ensure efficient size-based sorting while withstanding the challenges of heavy-duty operations.
