Trommel Screen Panels & Trommel Liners

Trommel Screen Panels & Trommel Liners for SAG Mills, Ball Mills and Rotary Scrubbers

Trommel Screen Panels are critical wear components installed at the discharge end of SAG mills, ball mills, and rotary scrubbers. They are designed to withstand extreme impact loads, abrasive slurry, and continuous material flow while maintaining high screening efficiency and minimizing maintenance downtime.

Our modular and heavy-duty Trommel Screen Panels are manufactured from premium wear-resistant rubber, polyurethane, or composite materials, making them suitable for demanding mineral processing applications including gold, copper, iron ore, lithium, nickel, phosphate, coal, and aggregate industries.

Available in Rubber Trommel Panels, Polyurethane Trommel Screen Media, Composite Trommel Liners, and Custom Mill Discharge Trommel Panels, our products are engineered to deliver longer wear life, superior impact resistance, and excellent throughput performance.

Applications

Trommel Screen Panels are widely used in:

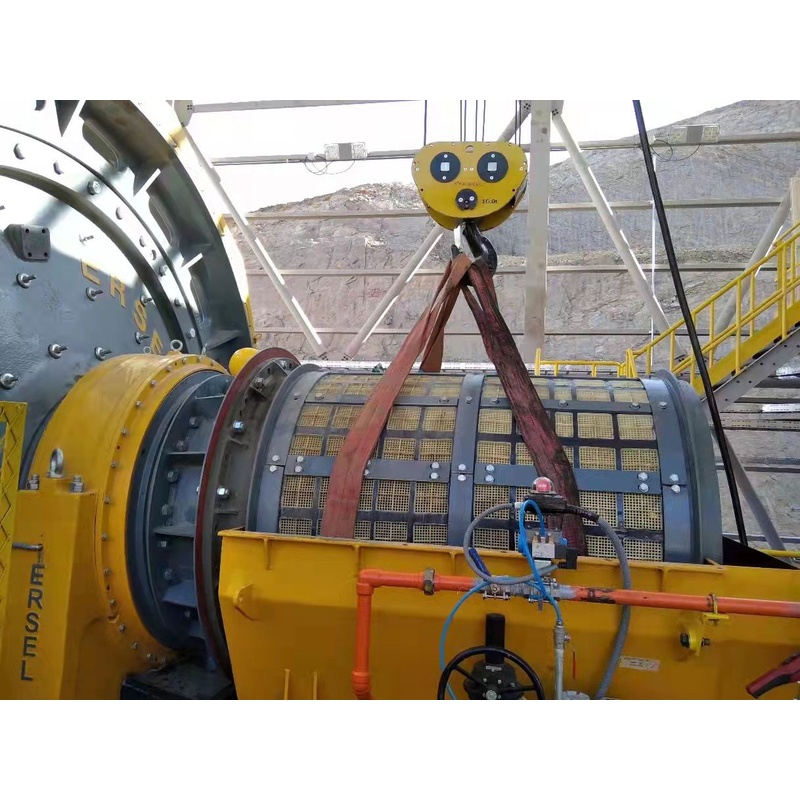

• SAG Mill Discharge Trommels

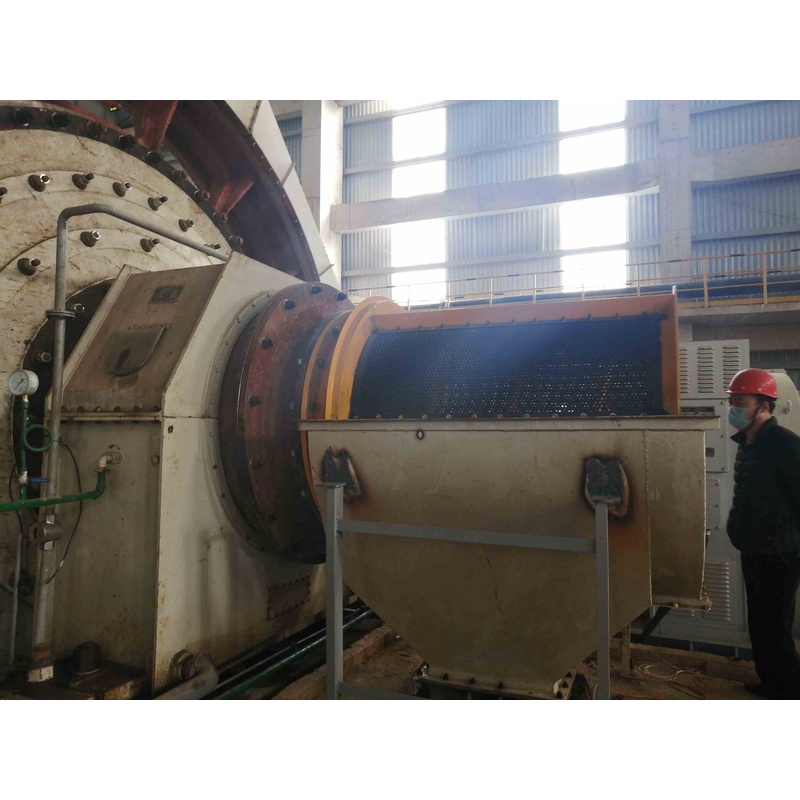

• Ball Mill Trommel Screens
• Rotary Scrubber Trommels
• Gold Processing Plants
• Copper Concentrators
• Iron Ore Beneficiation Plants
• Lithium Processing Plants
• Aggregate & Sand Washing Plants
• Quarry Screening Systems
• Mineral Processing Plants

They are specifically designed to handle large rock impact, abrasive slurry, and high-volume material flow in both wet and dry screening environments.

Product Types

We supply a complete range of Trommel Screen Media and wear components, including:

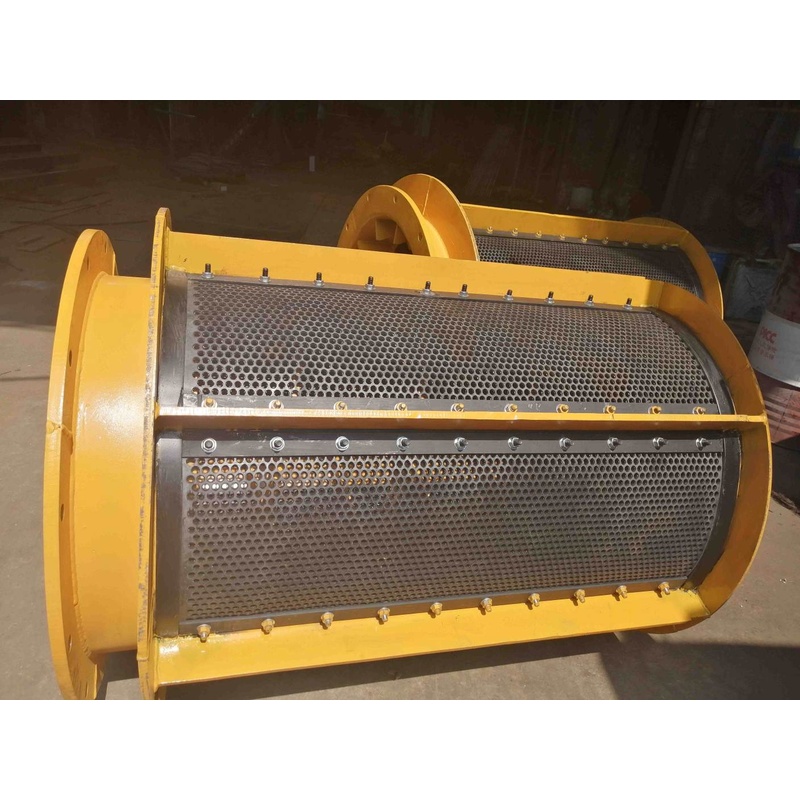

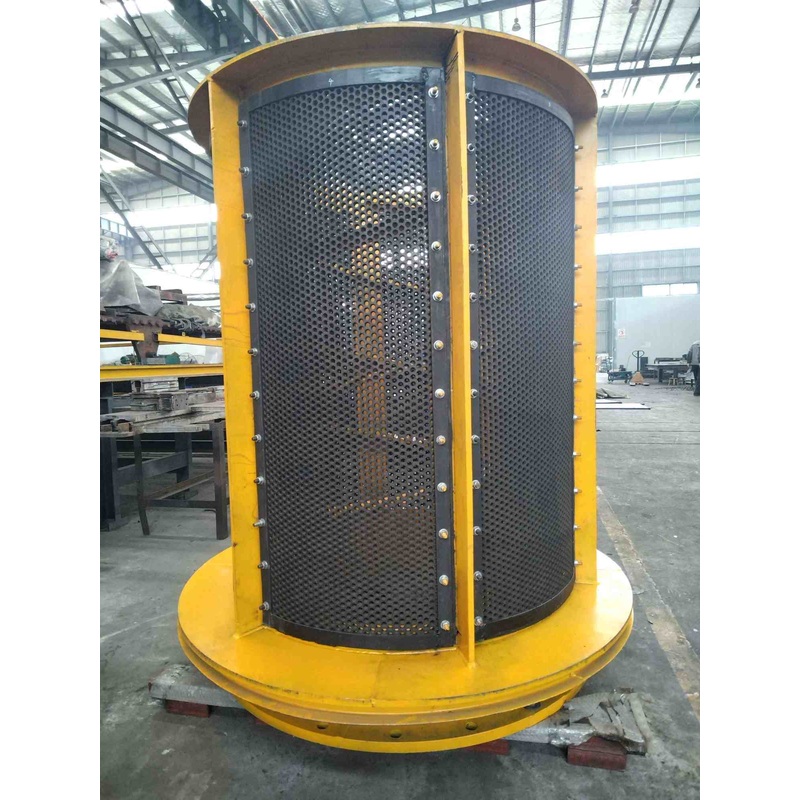

• Rubber Trommel Screen Panels

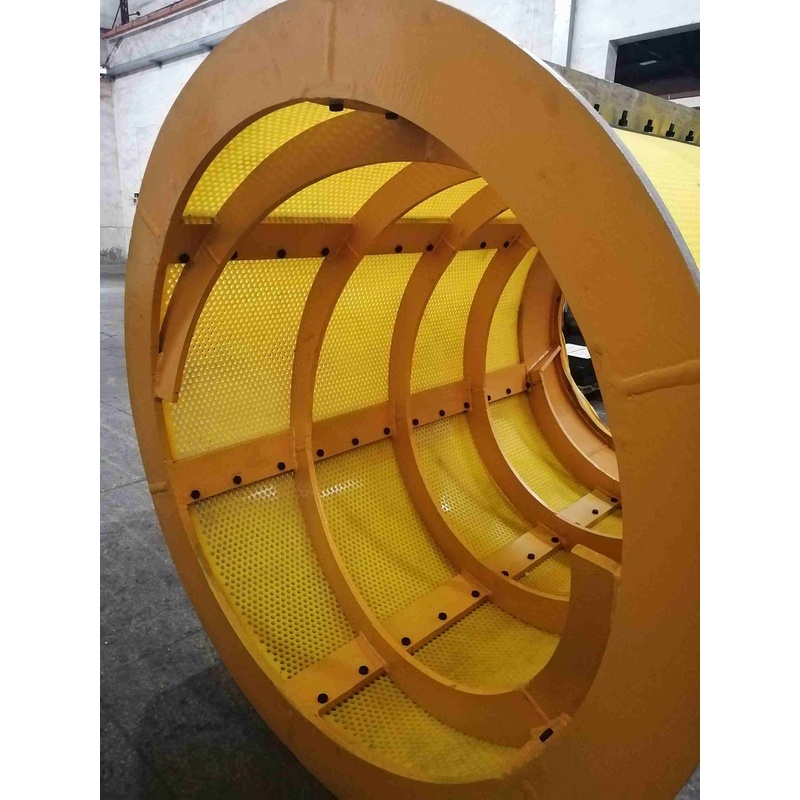

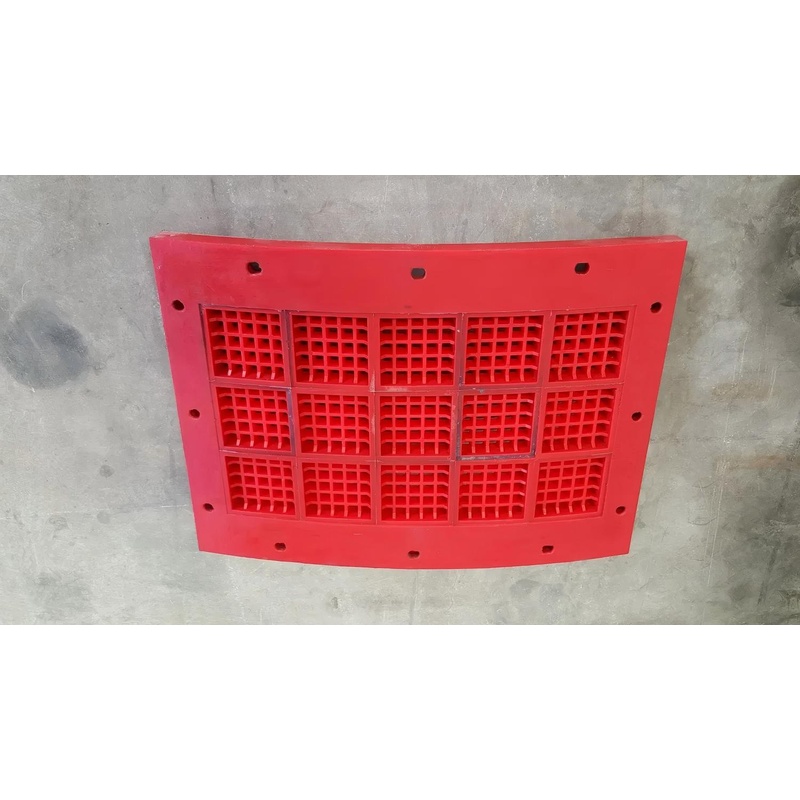

• Polyurethane Trommel Screen Panels
• Composite Rubber & PU Trommel Panels
• Mill Discharge Trommel Liners

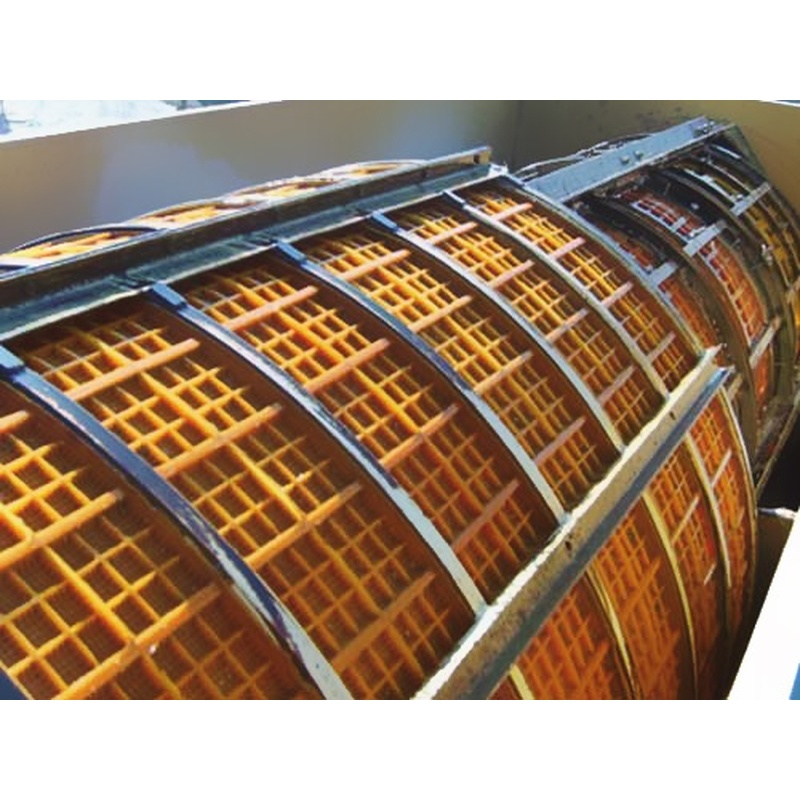

• Modular Trommel Screen Panels
• Bolt-Down Trommel Panels
• Pin & Sleeve Trommel Panels
• Rotary Scrubber Trommel Panels
• Trommel Internal Scrolls
• Trommel Spiral Liners
• Trommel Lifter Bars
• Trommel Dam Rings & Retaining Rings
• Custom Trommel Wear Parts

Material Options

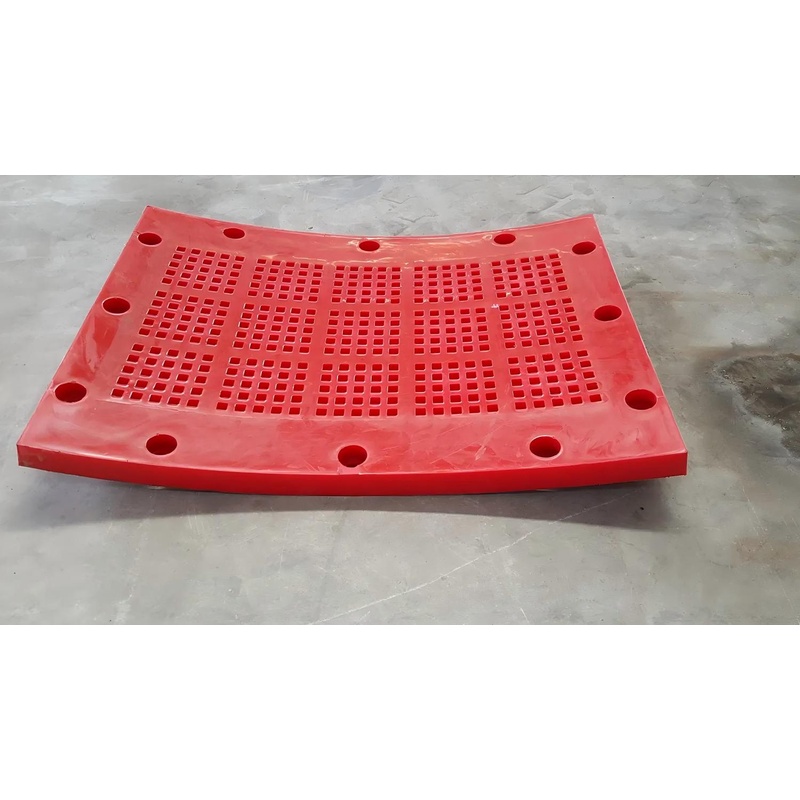

Polyurethane Trommel Panels

Recommended for:

• Ball Mill Trommels
• Fine Screening Applications
• High Wear Resistance Requirements

Advantages:

• Exceptional abrasion resistance
• Lightweight construction
• High open area design
• Reduced mechanical stress
• Excellent screening efficiency
• Corrosion resistant
• Available in square and slotted apertures

Rubber Trommel Panels

Recommended for:

• SAG Mill Discharge
• High Impact Applications
• Large Lump Ore Screening

Advantages:

• Superior impact resistance
• Excellent energy absorption
• Extended wear life
• Reduced noise levels
• Suitable for elevated temperatures
• Excellent resistance to hydrolysis

Composite Trommel Panels

Combining the advantages of both rubber and polyurethane, composite panels provide:

• Maximum impact resistance
• Improved wear life
• Lower operating costs
• Higher structural strength
• Longer maintenance intervals

Key Features

• Heavy-duty design for extreme mining environments
• High impact and abrasion resistance
• Modular construction for fast replacement
• Reduced maintenance downtime
• Excellent throughput performance
• Compatible with OEM trommel systems
• Custom aperture configurations available
• Improved safety during panel replacement
• Lower total cost of ownership
• Designed for aftermarket replacement applications

Available Aperture Shapes

• Square Apertures

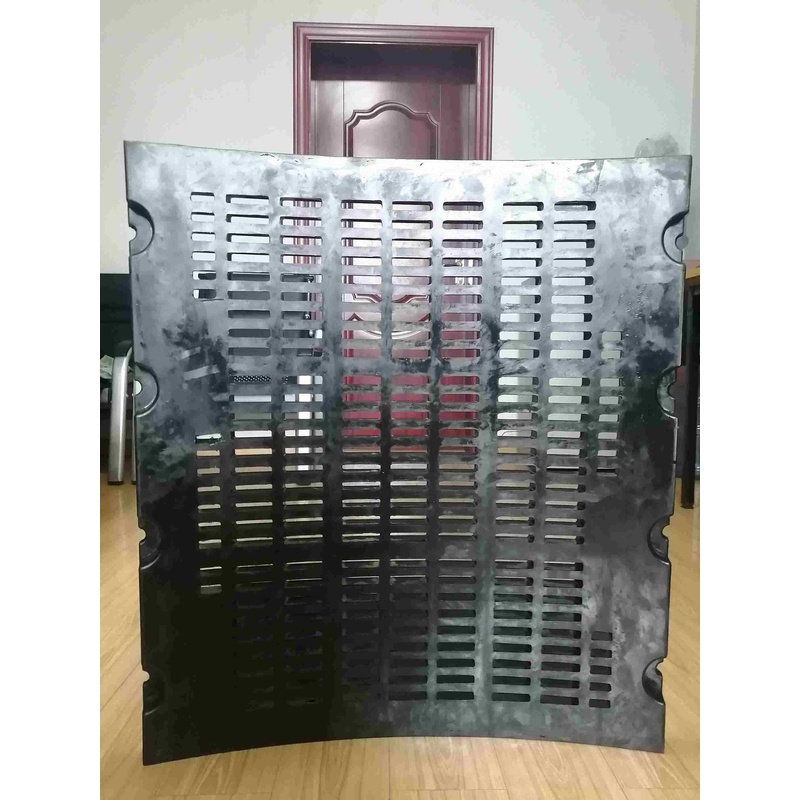

• Slotted Apertures
• Tapered Self-Relieving Apertures
• Custom Opening Designs

The tapered aperture design significantly reduces pegging and material blockage, improving screening efficiency and production capacity.

Installation Systems

We provide multiple fastening systems suitable for different trommel designs:

• Bolt-Down System
• Pin & Sleeve System
• Pinless Fastening System
• Steel-Backed Modular System
• Custom OEM Mounting Systems

The modular design allows quick installation and safer replacement procedures, significantly reducing shutdown time during maintenance.

Technical Specifications

Optional Trommel Components

Additional wear parts are available:

• Internal Scrolls
• Spiral Guide Vanes
• Rubber Spiral Liners
• Lifter Bars
• Weir Bars
• Dam Rings
• Steel Reinforcement Frames
• Feed End Liners
• Discharge End Liners

Advantages for Mining Plants

Compared with conventional steel screening media, our Trommel Panels offer:

• Longer service life
• Lower maintenance costs
• Improved plant availability
• Faster screen panel replacement
• Reduced downtime during shutdowns
• Better screening efficiency
• Lower noise levels
• Improved operational safety

RFQ Information Required

To provide an accurate quotation, please kindly provide:

1. Trommel diameter and length.
2. Equipment type (SAG Mill, Ball Mill or Rotary Scrubber).
3. Ore or material being processed.
4. Aperture size and shape.
5. Existing drawing or panel dimensions.
6. Installation method.
7. Required material (Rubber or PU).
8. Working capacity (TPH).
9. Photos of existing panels if available.
10. Annual consumption quantity.

Our engineering team can provide customized Trommel Screen Panel designs based on your application requirements.
