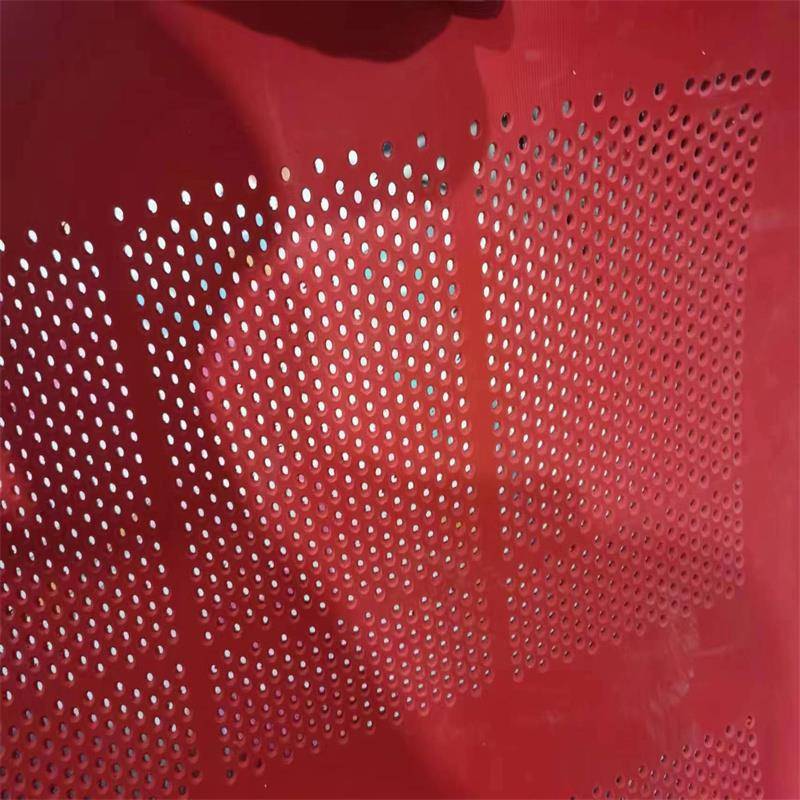

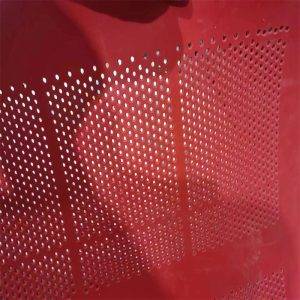

Rubber Self-Cleaning Screen

Rubber Self-Cleaning Screen is a high-performance screening media designed for mining and aggregate industries. Manufactured from premium imported Thai rubber, it offers excellent wear resistance, anti-clogging performance, and outstanding screening efficiency in dry applications. Compared with traditional wire mesh and polyurethane screens, it delivers significantly longer service life and improved screening performance while reducing maintenance and downtime.

01 Service life is 5-10 times longer than conventional metal wire mesh.
02 Imported Thai rubber provides excellent wear resistance and stability.
03 Superior anti-clogging performance for dry screening applications.
04 Compatible with various vibrating screen machines and hook installations.
05 Reduces maintenance costs and improves screening efficiency.

Chat Now Message Email

Rubber Self-Cleaning Screen Description

Description

The rubber self-cleaning screen uses rubber imported from Thailand. The composite rubber greatly improves wear resistance and stability. It can be applied to various Vibrating Screen machines, according to user feedback, the service life is 5-10 times that of metal mesh and more wear-resistant than Polyurethane Screen. And it has a better screening effect during the dry screening process.

Specification

Product Name	Rubber Self-Cleaning Screen
Screen Size	1, 1.25m width, the length could be customized
Thickness	Normally 6 mm, 8 mm could be customized
Aperture Shape	Normally round shape, the rectangle shape could be customized
Aperture Size	Normally 4-12 mm, the minimum could be made to 3 mm.
Raw Material	Rubber imported from Thailand

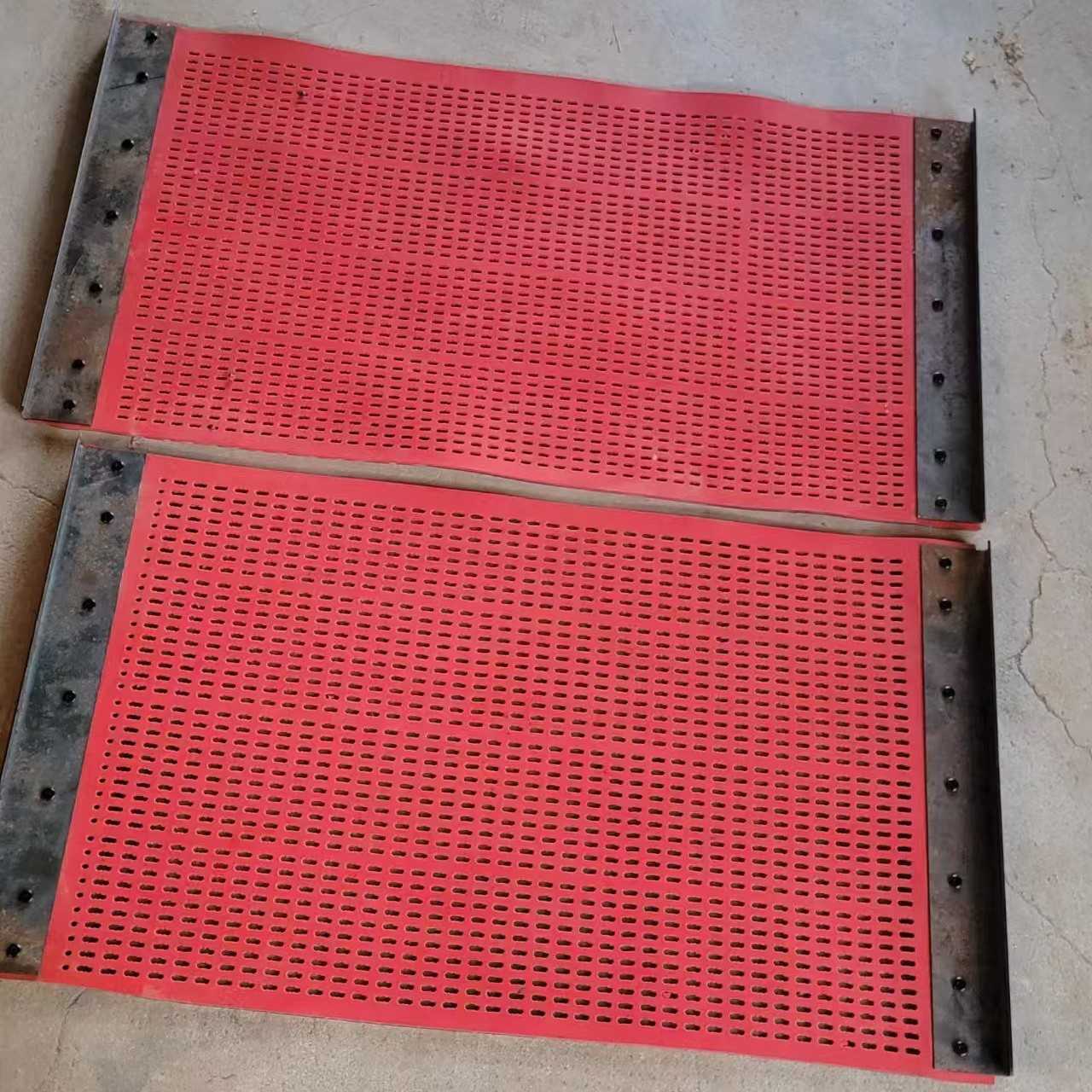

Installation Method	Hook installation

Advantages

1. Greatly improves wear resistance and stability.
2. The service life is 5-10 times that of metal mesh and more wear-resistant than PU Panel.
3. Better screening effect during the dry screening process.
4. Greatly improved the short life of blocking materials.

Application

Rubber self-cleaning screen is widely used in mining, industrial mineral processing, quarry, and other aggregate screening.

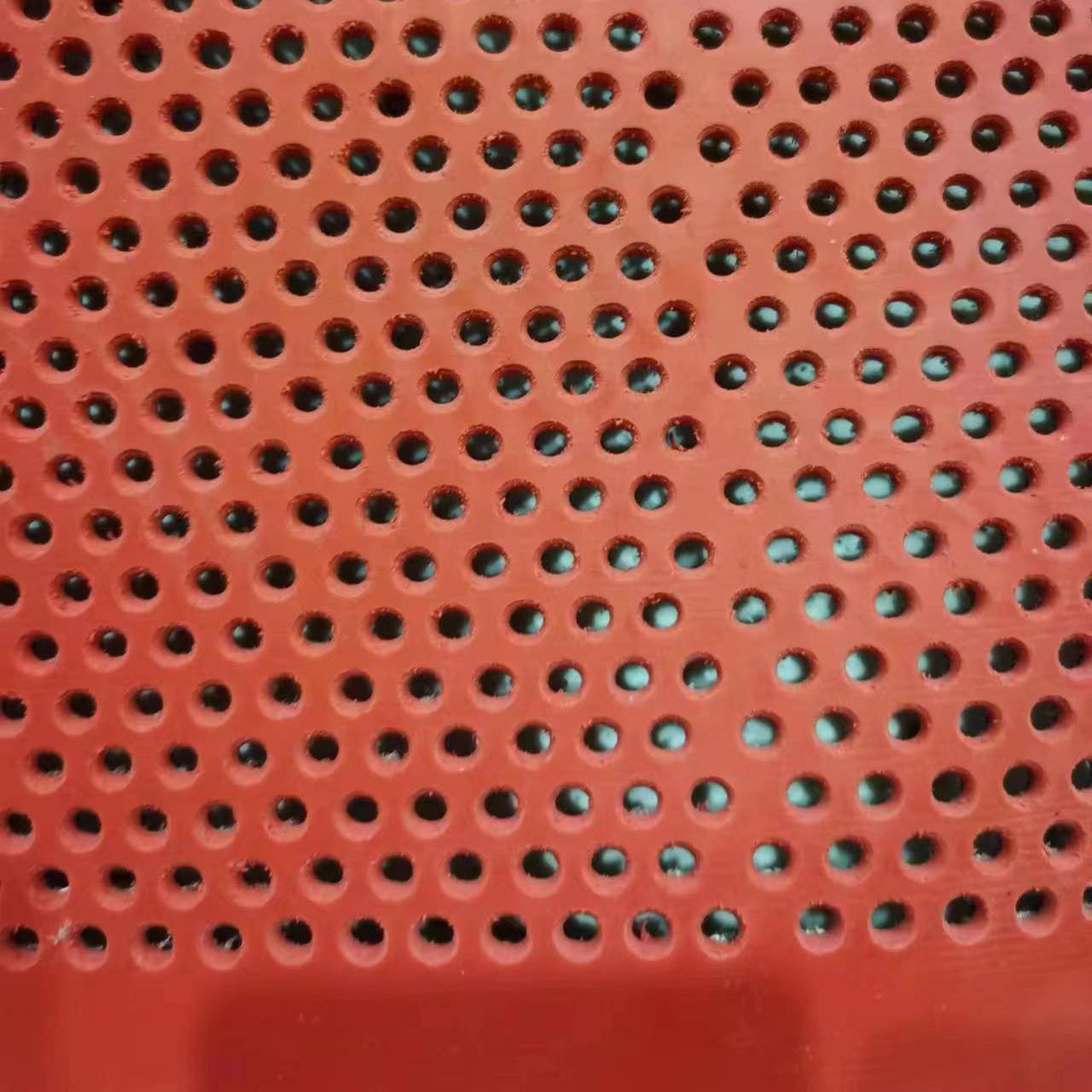

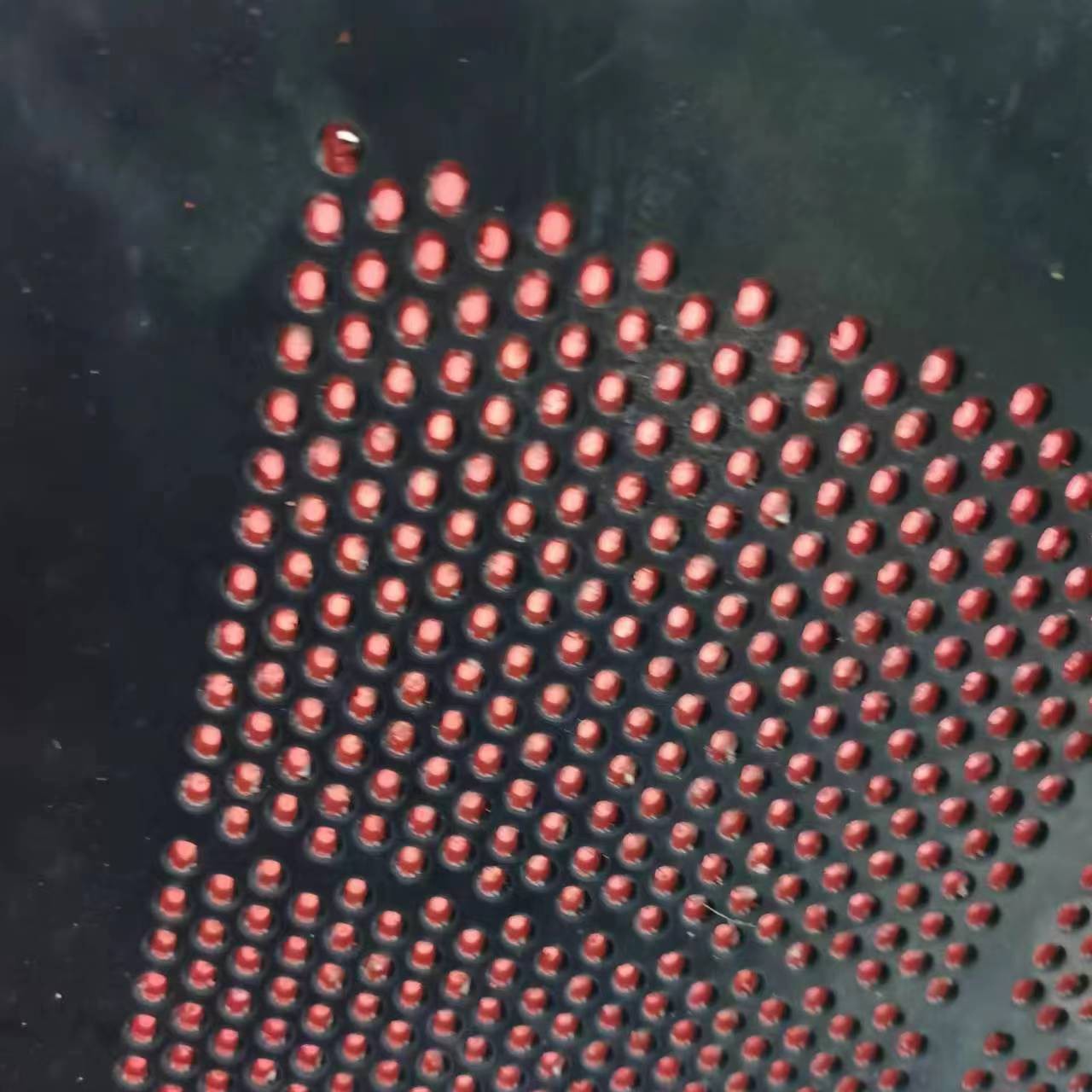

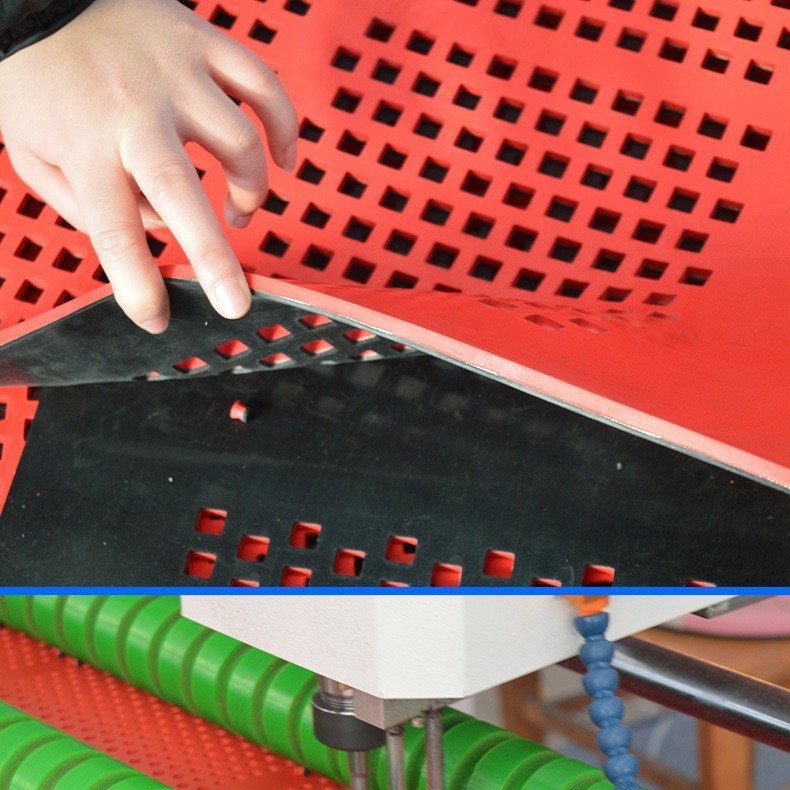

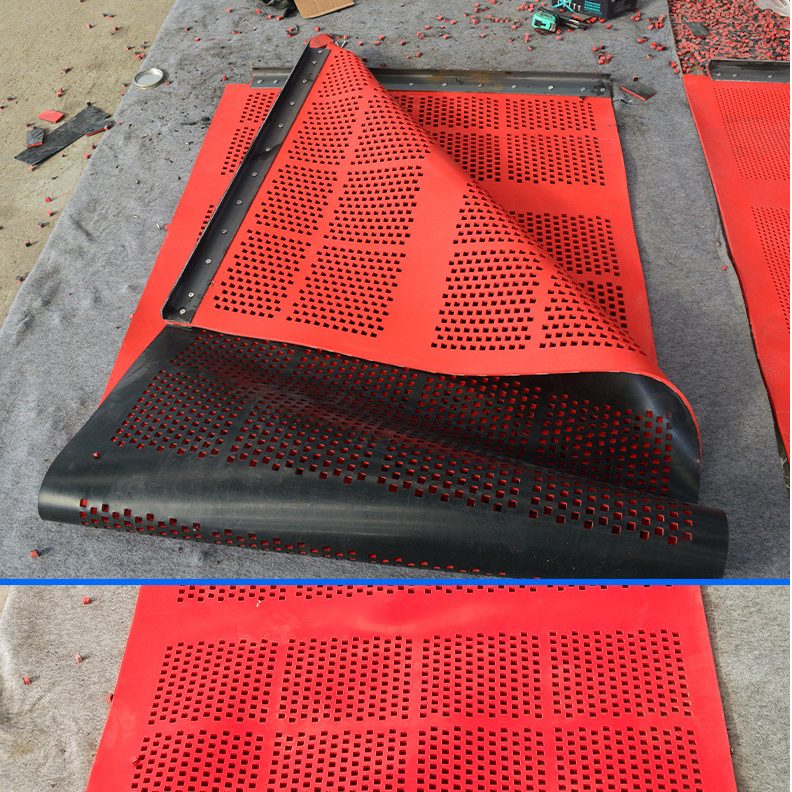

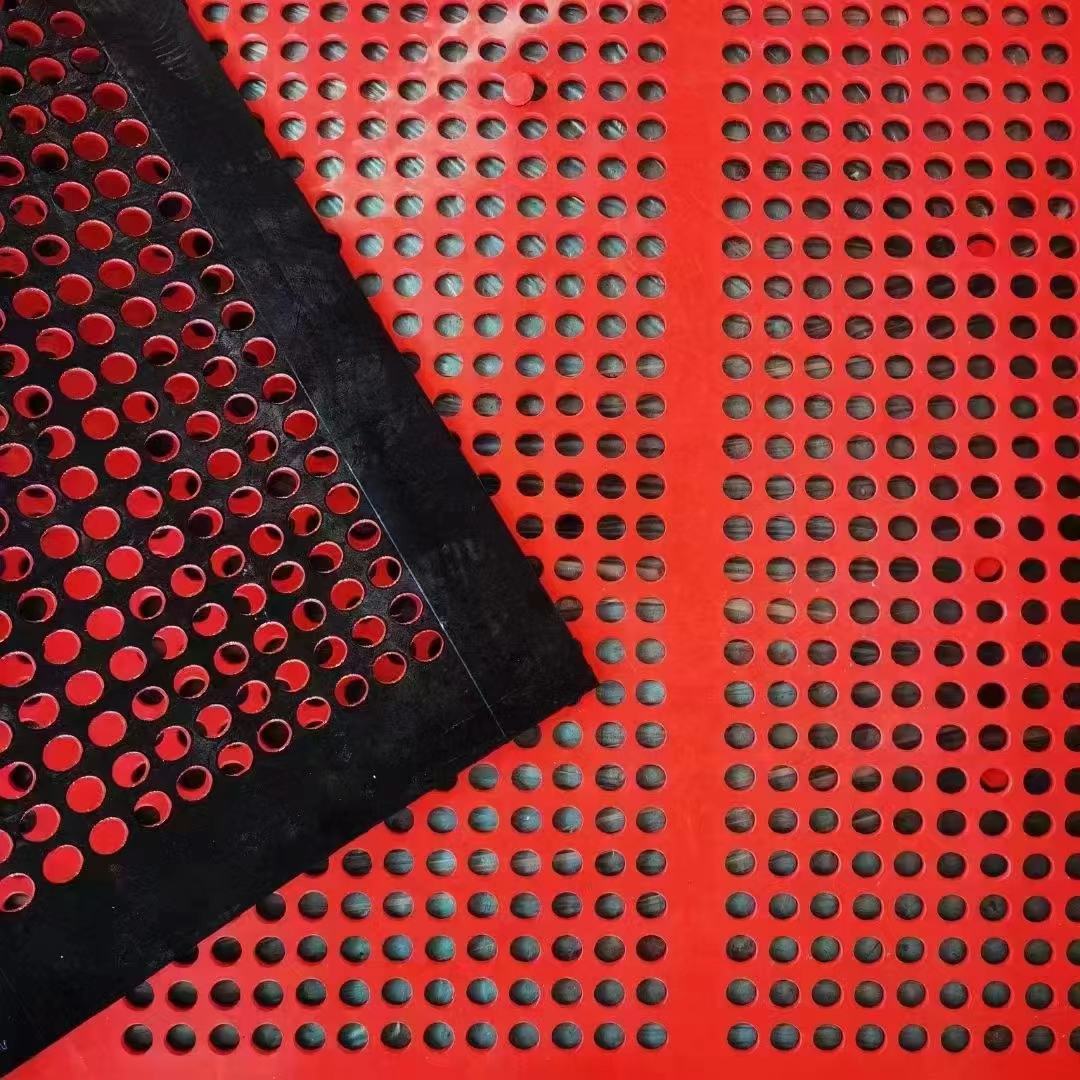

Gallery
