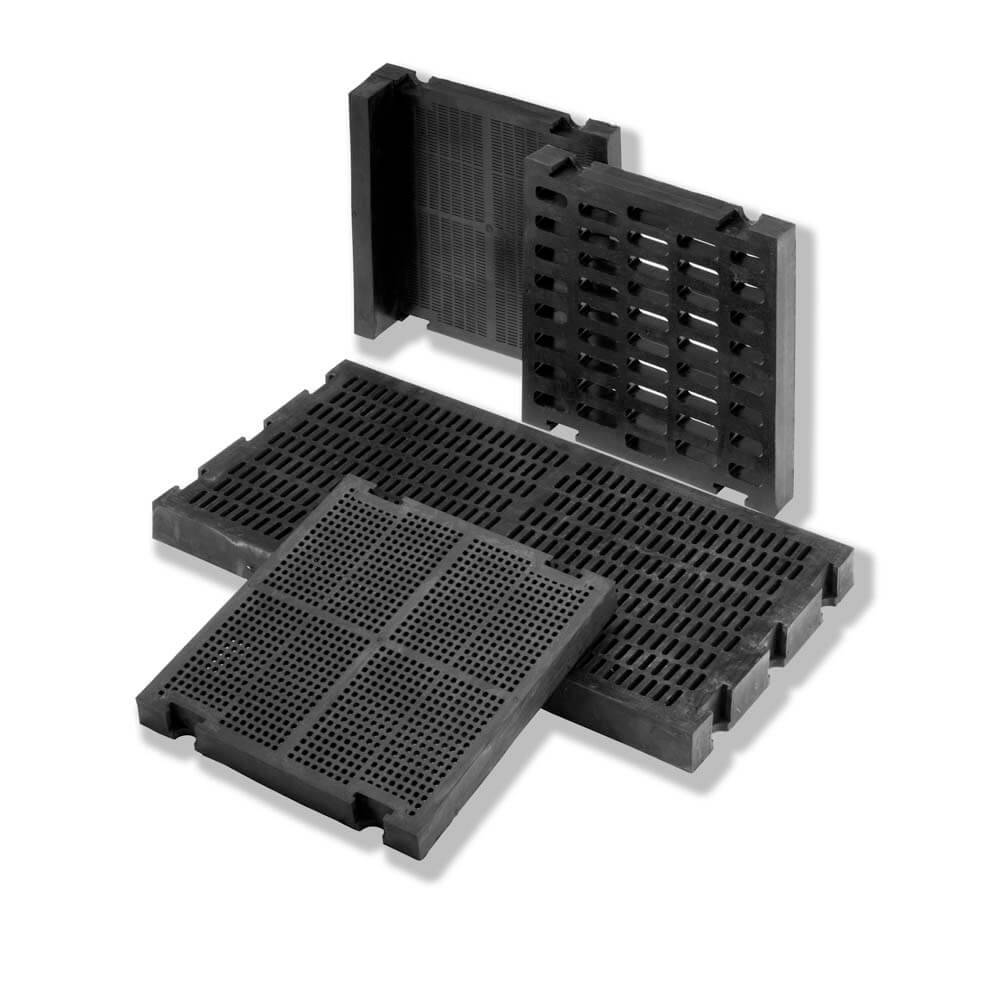

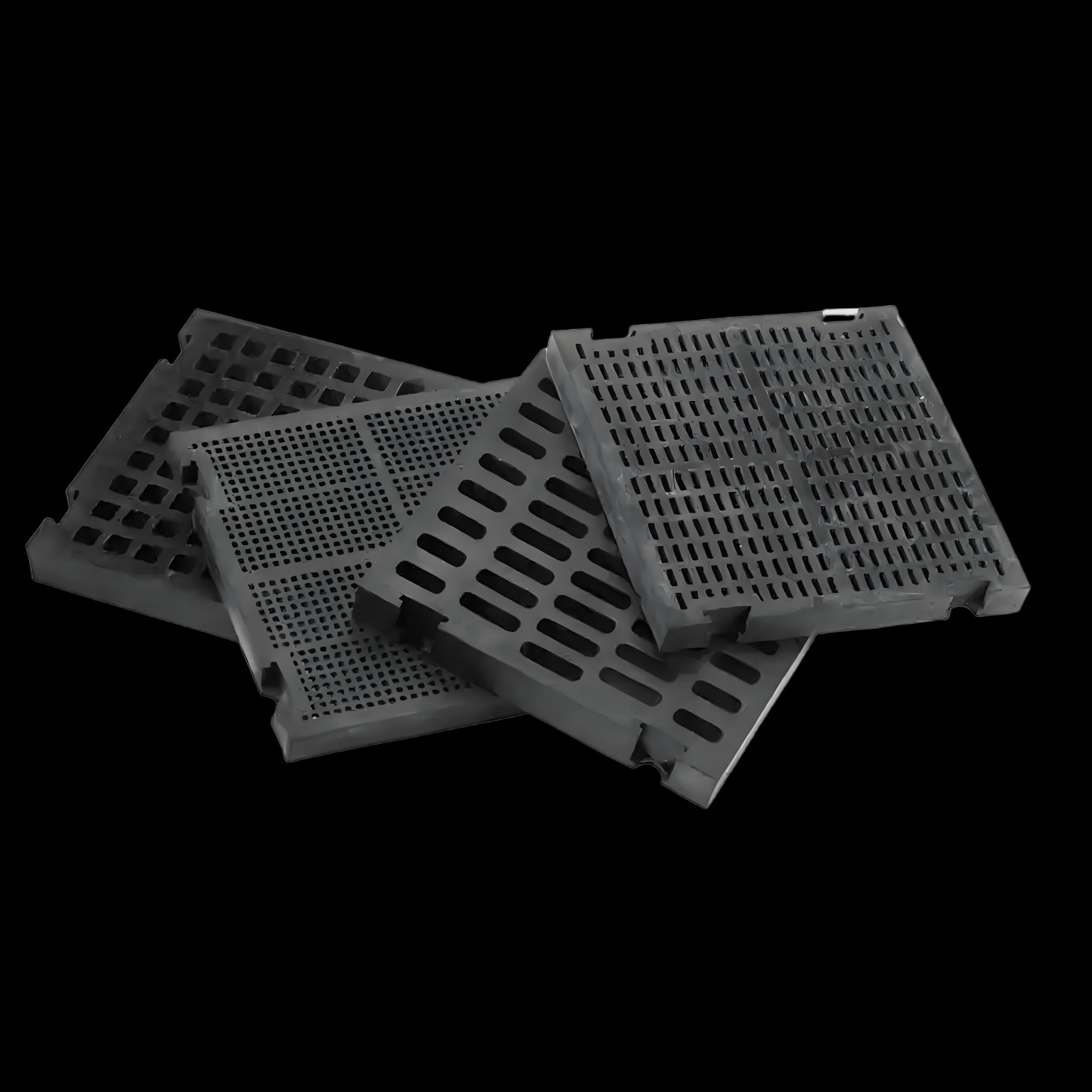

Rubber Screen Panel

Product Introduction

Heavy-Duty Rubber Screen Panels for Mining & Quarrying

Rubber Screen Panels, also known as Rubber Screen Media or Modular Rubber Screen Panels, are widely used in mining, mineral processing, coal washing, aggregates, and quarrying applications. Designed for high-impact and abrasive screening environments, rubber screening media offers superior wear resistance, impact absorption, noise reduction, and longer service life compared with traditional steel screen plates.

Modern mining operations increasingly demand screening solutions that minimize downtime, improve screening efficiency, and reduce maintenance costs. Rubber screen panels have become the preferred choice for many mineral processing plants because of their excellent performance in handling wet, sticky, abrasive, and heavy materials.

Our mining rubber screen media is available in modular, bolt-down, steel-backed, and custom-molded designs, making it compatible with most international screening systems and aftermarket replacement requirements.

Applications

Rubber screen panels are suitable for:

• Iron ore processing plants
• Gold mining operations
• Copper ore beneficiation plants
• Coal washing plants
• Aggregate and quarry screening
• Mineral sizing and classification
• Dewatering applications
• Primary and secondary crushing circuits
• Scalping and heavy-duty screening

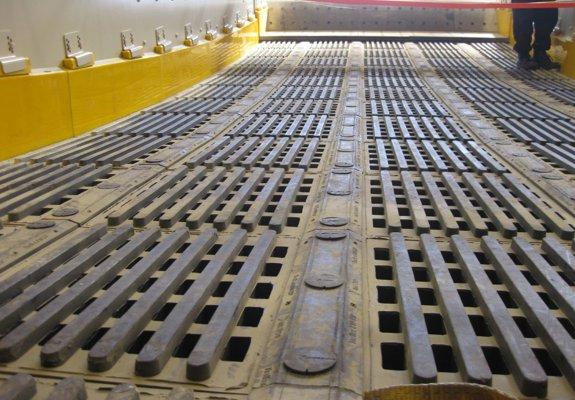

• Trommel screens and vibrating screens

They are widely used in:

• Primary Screening
• Secondary & Tertiary Screening
• Heavy-duty Scalping
• Fine Sizing Applications
• Dewatering Processes
• Slurry Screening Systems

Product Advantages

Superior Wear Resistance

Manufactured from premium natural rubber or synthetic rubber compounds, our rubber screen media provides exceptional abrasion resistance in highly abrasive mining applications, significantly extending service life.

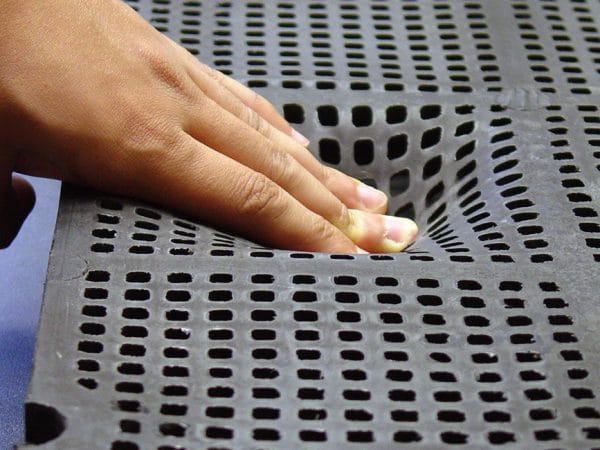

Excellent Impact Absorption

Rubber materials effectively absorb impact energy generated by large ore particles, protecting both the screen media and supporting structures from premature damage.

Reduced Noise Levels

Compared with steel screen plates, rubber screen panels substantially reduce operational noise, improving workplace safety and environmental compliance.

Anti-Blinding & Anti-Pegging Design

Special tapered apertures and flexible rubber structures help prevent material buildup and screen blinding, improving screening efficiency for wet and sticky materials.

Easy Installation & Replacement

Available in multiple fixing systems:

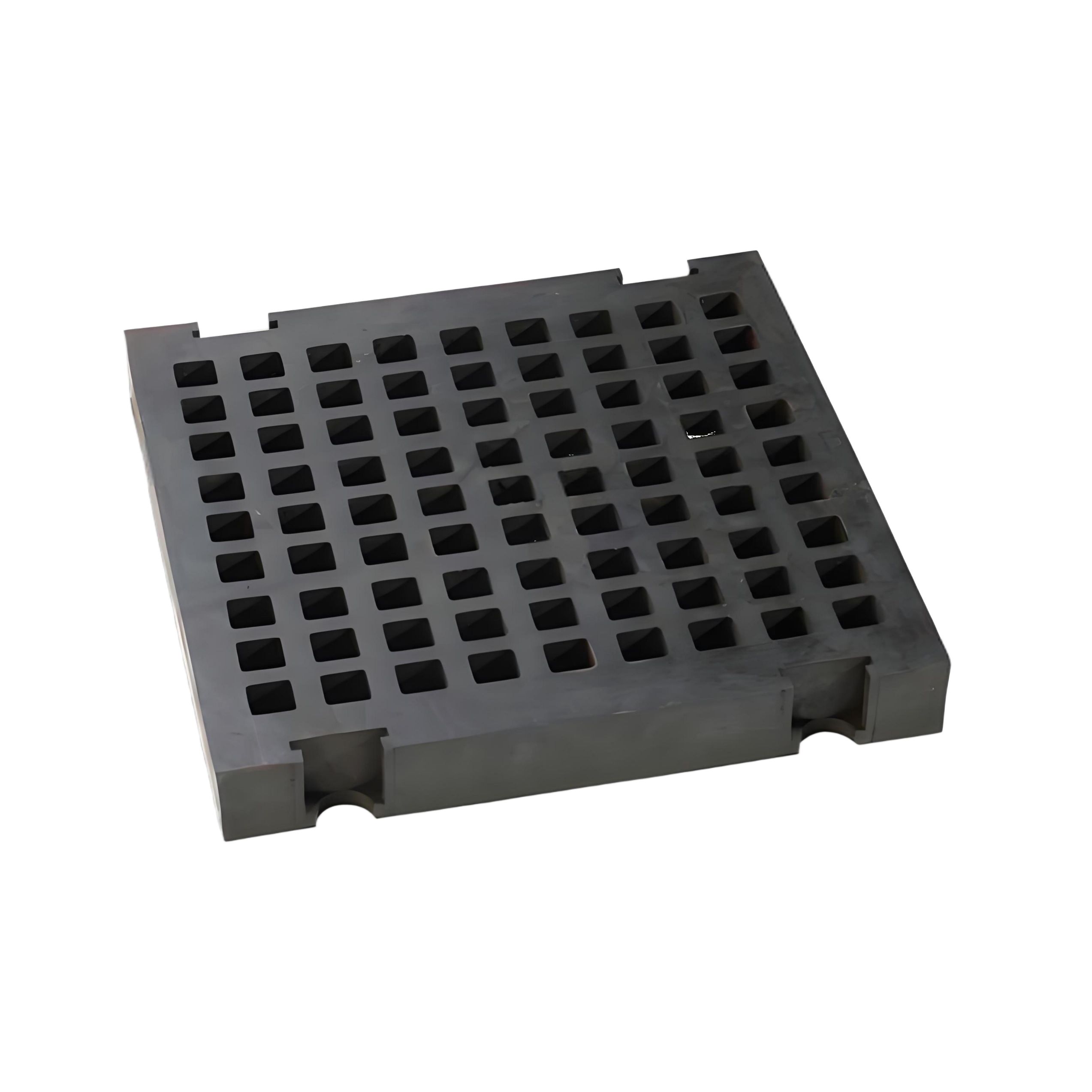

• Modular Rubber Screen Panels
• Pin & Sleeve System
• Push-In & Snap-In System
• Bolt-Down Rubber Panels
• Steel-Backed Rubber Panels
• Side Clamping Systems
• Rail Mounted Systems

These designs enable quick installation and reduced maintenance downtime.

Compatible Screen Systems

Our aftermarket rubber screen panels are designed to fit various international screening systems, including:

• Metso Trellex compatible screen panels
• Trellex LS compatible screen media
• Modular mining screen systems
• Multotec type rubber screen panels
• Trellstep compatible rubber panels
• Custom OEM replacement screen media

Custom molds and dimensions are available upon request.

Technical Specifications

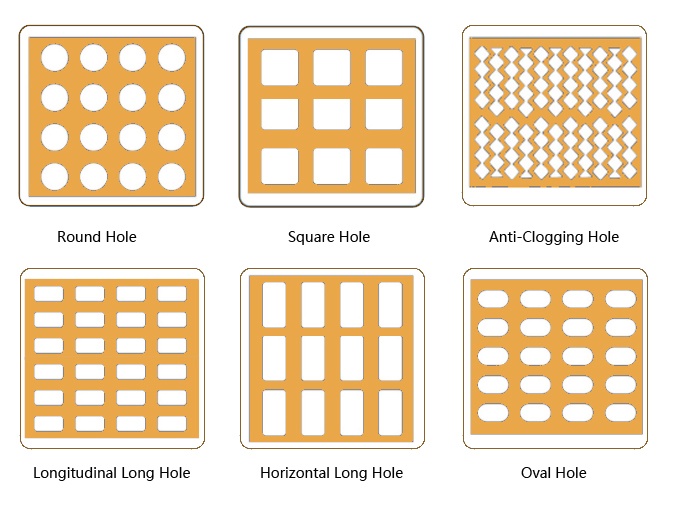

Available Aperture Designs

• Square Openings
• Slotted Openings
• Round Holes
• Tapered Self-Relieving Apertures
• Tear-Drop Openings
• Custom Aperture Patterns

Key Features

• High wear resistance for abrasive minerals
• Excellent impact absorption properties
• Reduced maintenance and downtime
• Superior anti-blinding performance
• Compatible with major screen systems worldwide

Typical Mining Applications

OEM & Custom Manufacturing

We provide:

• OEM Rubber Screen Panels
• Custom Mold Design
• Replacement Screen Media
• Steel Reinforced Rubber Panels
• Heavy-Duty Mining Screen Media
• Complete Screen Deck Solutions

Customized dimensions, hardness, aperture sizes, colors, and fixing systems are available according to your drawings or samples.

RFQ

What information should be provided before quotation?

Please provide:

1. Screen panel dimensions (Length × Width × Thickness)
2. Aperture size and opening pattern
3. Rubber hardness requirements
4. Material being screened
5. Feed size and screening capacity
6. Installation or fixing system
7. Existing screen machine model
8. Required quantity
9. Working conditions (wet or dry screening)
10. Drawings or photos if available

Can you manufacture compatible replacement panels?

Yes. We can manufacture aftermarket replacement rubber screen panels compatible with most international mining screen systems.

Do you provide OEM service?

Yes. OEM and customized manufacturing services are available.
