Solving Wet & Sticky Material Screening: HUATAO Polyurethane Flip-Flop Screen Boosts Efficiency by 30%
-
admin - 30 Jul, 2026
Innovative Materials & Dynamic Relaxation Technology Eliminate Screen Clogging
Screening wet and sticky materials—such as high-moisture coal and clay—poses a universal challenge for the global coal, metallurgy, and building materials industries. Traditional metal mesh screens, hindered by high surface energy and rigid structures, easily trap fine particles, leading to clogged holes, plummeting efficiency (by over 30%), and soaring energy and maintenance costs.
The Hidden Costs of Clogging
Statistics show 35% of coal screening projects suffer from clogging due to high material moisture. This creates a destructive cycle:
- Fine particles adhere to screens, blocking holes and reducing throughput.
- Frequent shutdowns for cleaning drive up maintenance expenses.
- Equipment operates harder to compensate, increasing energy use by 50% and lowering production capacity.

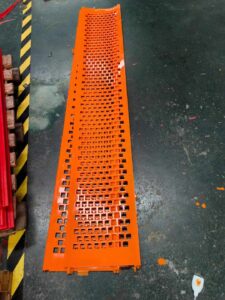

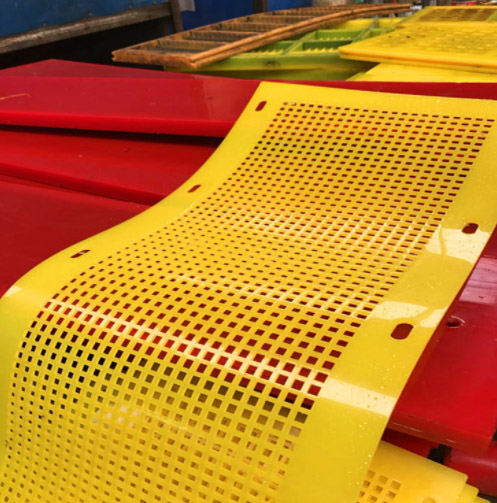

HUATAO’s Solution: Polyurethane Flip-Flop Screens
HUATAO Group’s polyurethane flip-flop screens address these issues through dual innovations in material and design:
1. Superhydrophobic Elastomer Material
Crafted from low-surface-energy polyurethane (surface energy <30mN/m) with a 110° water contact angle, the screens minimize fine particle adhesion at the source—critical for materials with moisture levels over 8%.
2. Dynamic Relaxation Screening
The flexible panel undergoes high-frequency micro-deformation (3–5.5mm amplitude) during vibration, preventing material from lodging in holes and reducing clogging by 90%.
3. Energy-Efficient Design
Adjustable elastic modulus (0.1–1GPa) adapts to diverse materials, cutting energy consumption by 20–40% while maintaining production levels.
Proven Results
Successfully deployed in high-moisture coal mines and clay screening projects worldwide, these screens deliver:
- Average screening efficiency of over 95%.
- 3–5 times longer maintenance cycles.
Technical Specifications
| Item | Details |
|---|---|
| Material | Polyurethane |
| Hole Shapes | Ellipses, circles, rectangles, squares |
| Minimum Aperture | 3mm |
| Thickness | 5–12mm |
| Width | 300–350mm |
| Length | 1000–3500mm |
Beyond the Screen: Full-Lifecycle Support
- After-Sales Service: 48-hour technical response via a global service network; free screening efficiency testing.
- Sustainability: Reduces water usage by 1,500 tons per production line yearly; recyclable polyurethane material.
Contact Us:
Annie Lu | Huatao Group
Email: annie.lu@huataogroup.com
Mobile: +86 18032422676 (WhatsApp/WeChat)
Website: www.tufflexscreen.com
Products: Polyurethane Fine Screen Panels | Tufflex Screens | Shale Shaker Screens
HUATAO Group – Your Trusted Supplier for High-Performance Screening Solutions.
