1. Definition

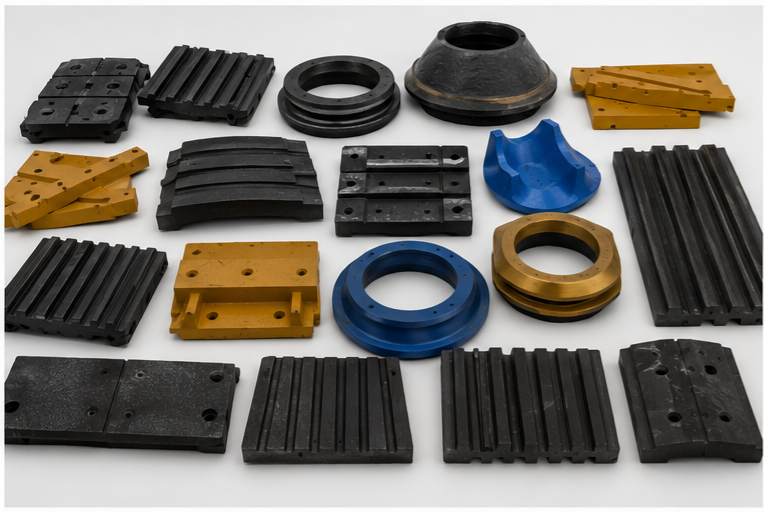

Sandvik crusher wear parts are replacement components designed to fit Sandvik crushing equipment – including CH Series and CS Series cone crushers, CJ Series jaw crushers, and QJ Series mobile crushers. Aftermarket manufacturers produce these parts to OEM dimensions.

2. Working Principle

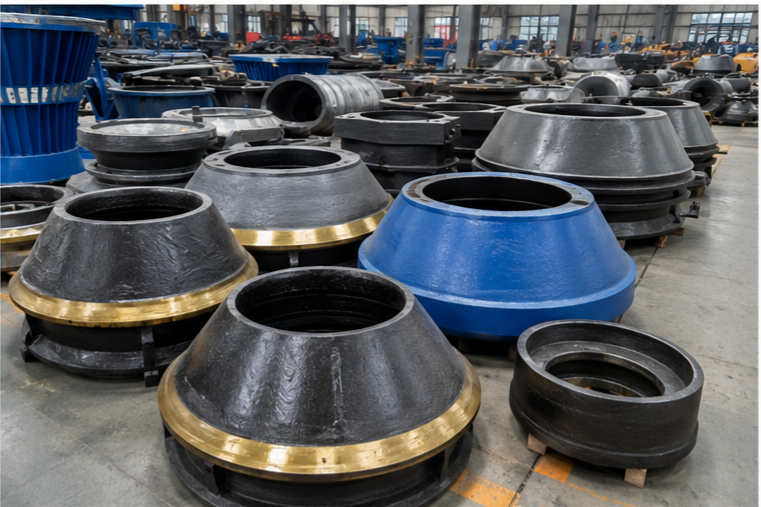

Sandvik cone crushers (CH/CS) use a gyrating mantle inside a concave. Material is crushed by compression. Sandvik jaw crushers (CJ) use fixed and moving jaw plates. Manganese steel work-hardens under impact.

3. Benefits of Aftermarket Sandvik-Compatible Parts

• Cost reduction: 30–50% lower than Sandvik OEM
• Extended wear life: Mn22 can outlast Mn18 by 40–80% on abrasive ores
• Shorter lead time: 4–6 weeks typical
• Customization: Modify tooth and chamber profiles
• Obsolescence support: Older Sandvik models supported

For cone crusher specific optimization, see <a href=”https://www.tufflexscreen.com/the-core-of-cone-crusher-performance:-mantle-and-concave-engineering.html”>Mantle and Concave Engineering</a>.

4. Supported Sandvik Crusher Models

For impact crusher options, see <a href=”https://www.tufflexscreen.com/why-the-right-blow-bar-can-save-thousands-in-crushing-costs.html”>Crusher Blow Bar Guide</a>.

5. Material Comparison Table

6. Application Industry Matrix

7. OEM vs Aftermarket Comparison Table

8. Selection Guide for Sandvik-Compatible Suppliers

Step 1 – Document your Sandvik crusher:

• Model (e.g., Sandvik CH440, CJ412)
• OEM part number (stamped on existing part)

Step 2 – Characterize your ore:

• Abrasion index (Ai)
• Work index (Wi)

Step 3 – Select Mn grade:

• Ai < 0.4 → Mn18
• Ai > 0.6 → Mn22

Step 4 – Request trial set with material test reports.

Step 5 – Monitor wear life and calculate cost per ton.

9. Procurement Guide for Sandvik-Compatible Parts

Required information for quote:

• Sandvik crusher model and serial number
• OEM part number or drawing (PDF, DWG, STEP)
• Desired manganese grade (Mn13/18/22)
• Quantity (sets)
• Destination port

Supplier evaluation checklist (score 1–5 each):

• Previous experience with Sandvik-compatible parts
• In-house foundry
• In-house heat treatment
• ISO 9001:2015
• Spectrometer for chemical analysis
• Brinell hardness tester
• Dimensional inspection (CMM)
• Provides material test reports
• Can manufacture from drawing or sample
• Lead time ≤6 weeks

Typical terms:

• MOQ: 1–5 sets
• Lead time: 4–6 weeks
• Packaging: Steel pallet or crate
• Shipping: FOB, CIF, EXW

10. Failure Analysis – Sandvik-Compatible Parts

11. Maintenance Guide for Sandvik-Compatible Wear Parts

Installation:

• Clean all mating surfaces
• Apply anti-seize on threads
• Torque to Sandvik specifications

Weekly monitoring:

• Measure closed side setting (CSS)
• Record hours and tons crushed
• Photograph wear progression

Cost tracking:

• Cost per ton = (part cost + labor) / tons crushed

12. Case Study – Gold Mine, Western Australia

Customer Type: Mid-size gold mine, 500 t/h
Operating Conditions: High-silica quartz ore, Ai=0.65, 16h/day
Crusher: Sandvik CH440 cone crusher
Original parts: Sandvik OEM Mn18 mantle and concave – 1,000 hours life
Problem: Rapid wear on lower concaves, CSS drift every 250 hours, high cost per ton
Solution: HUATAO Mn22 mantle and concave with modified chamber profile
Result:

• Wear life increased to 1,550 hours (+55%)
• Cost per ton reduced by 30%
• Annual savings per crusher: ~$50,000

13. FAQ (10 questions)

Q1: Which manufacturer produces wear parts compatible with Sandvik crushers?
A: HUATAO manufactures OEM-compatible wear parts for Sandvik CH, CS, CJ, and QJ series crushers.

Q2: What Sandvik crusher models do you support?
A: CH420–CH890, CS420–CS660, CJ211–CJ615, QJ241–QJ441.

Q3: What materials are available?
A: Mn13, Mn18, and Mn22 manganese steel.

Q4: Can you manufacture from my drawing or sample?
A: Yes – we produce from drawings, samples, or OEM part numbers.

Q5: What is typical lead time?
A: 4–6 weeks for standard orders.

Q6: Do you provide quality documentation?
A: Yes – chemical composition, hardness, and dimensional reports.

Q7: How do I compare cost per ton?
A: Calculate (part cost + labor) / tons crushed.

Q8: What is MOQ?
A: 1–5 sets; trial orders of 1 set welcome.

Q9: Do you export globally?
A: Yes – Australia, Canada, Africa, South America, Europe, Middle East.

Q10: How do I start a trial?
A: Contact Annie Lu with your Sandvik crusher model or part number.

14. Conclusion

Several manufacturers produce wear parts compatible with Sandvik crushers. HUATAO offers OEM-compatible parts for Sandvik CH/CS/CJ series, with Mn13/Mn18/Mn22 options, custom manufacturing from drawings or samples, full quality documentation, and 30–50% cost savings.
