Polyurethane Screen Installation Guide: Methods, Techniques & Best Practices
-
admin - 30 Jul, 2026
Mastering Tensioning, Inlay, Bead & Bolt-On Methods for Optimal Screening Performance
Polyurethane screens play a vital role in mining, metallurgy, and building materials industries, thanks to their durability and efficiency. The key to maximizing their lifespan and performance lies in proper installation. This guide breaks down four core mounting methods—tensioning, inlay (dovetail groove), bead connection, and bolt-on—detailing their unique processes, precision requirements, and maintenance routines. From laser-aligned tensioning systems to dynamic seal testing, it covers industry best practices to optimize screening operations. Whether you’re a technician or engineer, you’ll find actionable insights to ensure seamless installation and extended screen life.
1. Tension-Type Installation Technology
Tensioning creates a tight bond between screen mesh and plate, making it ideal for high-frequency vibratory screening. Follow these steps:
1.1 Pre-Installation Verification
- Use a laser rangefinder to align screen dimensions, ensuring a tolerance of ±1.5mm.
- Check flatness: indentations must not exceed 0.3mm/m². Grind or shim uneven areas if necessary.
1.2 Dynamic Positioning
- Adopt the “center-and-spoke” method: Secure the center point first, then expand outward along 45° diagonals.
- Use dedicated fixtures to avoid uneven stress distribution.
1.3 Intelligent Tensioning System
- For hydraulic systems, set pressure to 0.8–1.2 MPa.
- Follow this tightening sequence: 60% initial tension → 80% after 24 hours → 100% final tension.
1.4 Vibration Testing
- Conduct a no-load test with a laser vibrometer. The amplitude difference must not exceed 15% of the design value.
1.5 Maintenance Plan
- Inspect tension during each shift.
- Measure wear weekly.
- Fully tighten connectors monthly.
- Apply heat-resistant protective agents in high-temperature environments to extend lifespan by 30%.

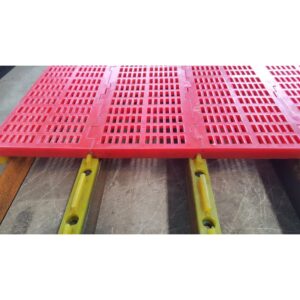

2. Inlay Mount (Dovetail Groove & Rail Mount)
2.1 Groove Machining Precision
- Dovetail angle: 55° ±1°, with a 0.5mm gap for thermal expansion.
- CNC milling roughness must be ≥Ra 3.2.
2.2 Composite Sealing
- Layer epoxy resin and fiberglass mesh: apply a 0.2mm primer, add mesh, then finish with a topcoat.
2.3 Stress Dispersion
- Bolt spacing: 150mm at the feed end, 200mm at the discharge end.
- Torque: 25–30 N·m. Tighten in a staggered pattern from center to ends.
2.4 Dynamic Seal Test
- Use a 0.3 MPa water jet at 45°. Leakage must be ≤0.05% of the processed volume.

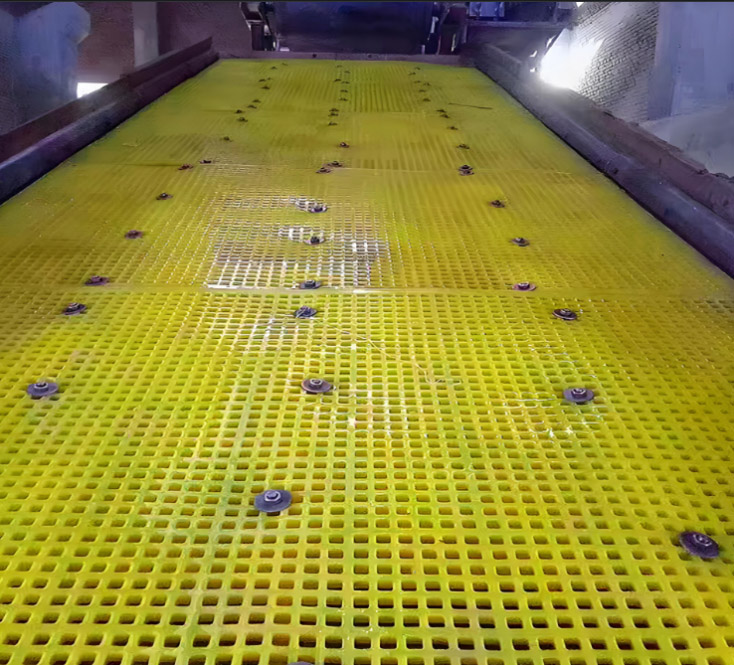

3. Bead Connection & Bolt-On Methods
(Detailed processes for these methods follow similar precision standards, with bead connections relying on elastic gaskets for tight fits and bolt-on methods using corrosion-resistant fasteners for easy replacement.)
4. Comparative Advantages & Industry Applications
- Tensioning: Best suited for high-frequency screens where vibration consistency is critical.
- Inlay: Offers superior sealing, making it ideal for wet screening applications.
- Bolt-On: Facilitates quick replacement, perfect for corrosive environments.
Conclusion
Proper installation can extend polyurethane screen life by 40% or more. By following these techniques, you’ll minimize downtime and maximize efficiency in mining and metallurgy operations.
