Polyurethane Flip-Flow Screens: The Ultimate Solution for Blinding-Proof Screening

When it comes to screening tricky, adhesive materials—such as high-moisture coal, coke, and fine ores—screening efficiency often drops sharply. Traditional screens suffer from frequent blinding and clogging, which leads to costly downtime and lost productivity. Polyurethane Flip-Flow Screens are specifically designed to tackle this exact challenge. By leveraging an elastic screen surface that stretches and relaxes at high frequencies, these screens generate powerful accelerations to throw materials off the surface and prevent particles from getting stuck in the apertures. Crafted from high-quality imported polyurethane, they offer unrivaled wear resistance, a large open area, and an extended service life—making them the top choice for tough screening tasks in the coal, power, metallurgy, and building materials industries. This article explores the features, benefits, and technological innovations of these advanced screening solutions.

Unlocking Peak Efficiency for Difficult Material Screening

Across industries like coal preparation and mineral processing, screening fine, sticky, and high-moisture materials remains a persistent headache. Traditional vibrating screens often fall short here: their rigid surfaces are prone to blinding, where particles get trapped in the mesh. This not only reduces efficiency but also increases maintenance demands. The game-changing solution to this problem is the Polyurethane Flip-Flow Screen.

What Are Polyurethane Flip-Flow Screens?

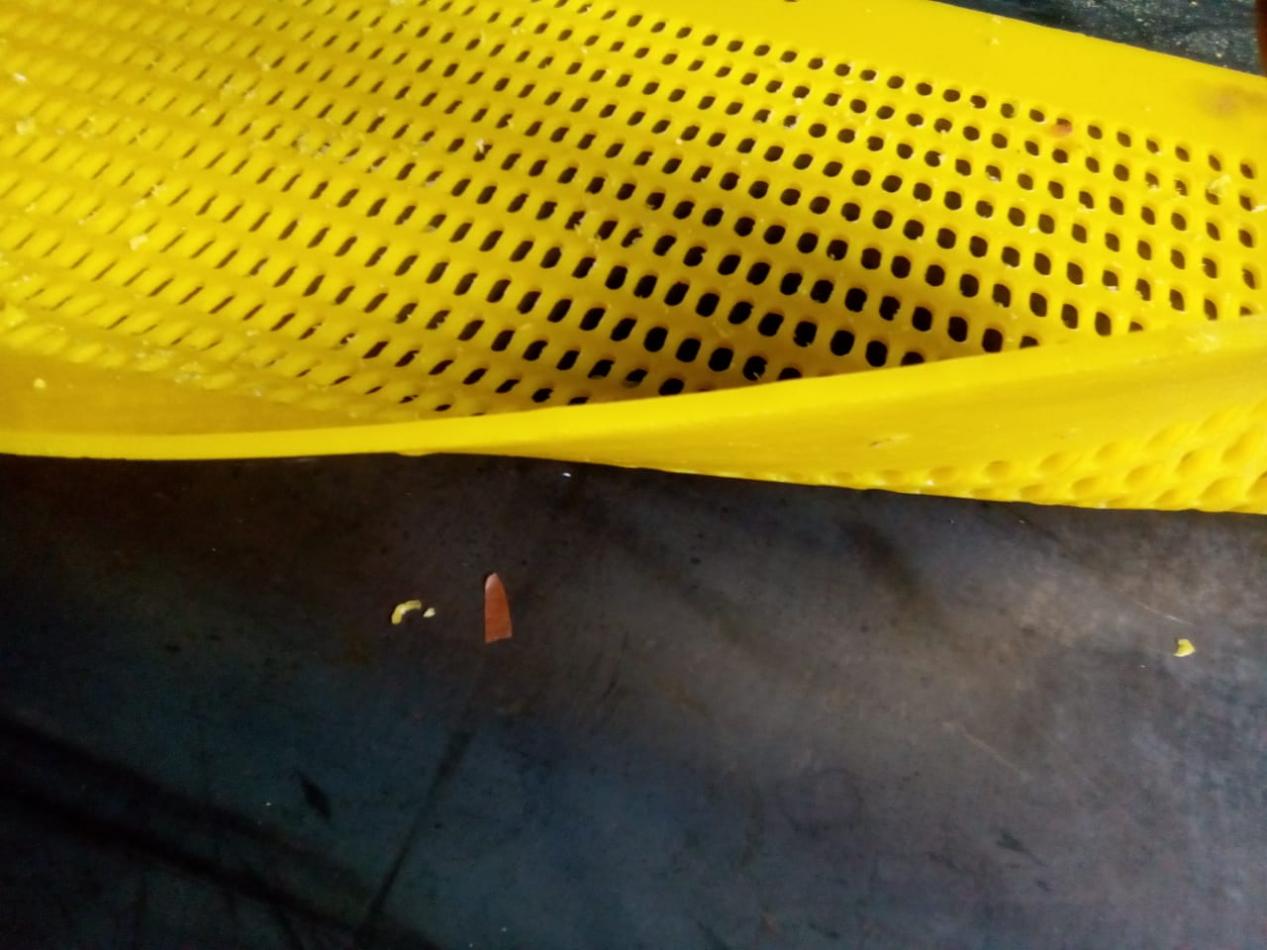

Polyurethane Flip-Flow Screens are advanced screening media, distinguished by their square or oblong apertures and construction from pure, imported polyurethane. Unlike conventional screens, the entire panel boasts high elasticity and is mounted on a specialized frame that creates a continuous “flip-flow” (or fluctuating) motion. This dynamic movement is the secret behind their clog-free performance, making them ideal for classifying medium and fine particles of hard-to-handle materials—such as viscous raw coal, coke, and damp ores.

Key Features and Unmatched Advantages

1. Superior Wear Resistance

Made from premium imported polyurethane, these screens offer exceptional abrasion resistance—outperforming both standard wire mesh and regular polyurethane screens. This durability translates to lower replacement costs and less frequent downtime for maintenance.

2. High Elasticity & Blinding-Proof Action

This is the core innovation of the screen. The surface expands and contracts at an extremely high frequency—around 800 times per minute. This rapid “breathing” motion generates intense accelerations (up to 50G), forcefully ejecting trapped particles and keeping the apertures clear for consistent, efficient screening.

3. Large Open Area & High Capacity

Despite their robustness, the screen panels are relatively thin. This design allows for a larger open area compared to thicker, rigid screens, maximizing throughput capacity and boosting screening efficiency without increasing the overall size of the screening equipment.

4. Lightweight & Energy-Efficient

The use of polyurethane makes the screens remarkably lightweight. This reduces the dynamic load on the screening machine, lowering energy consumption, cutting operational costs, and extending the lifespan of the entire equipment.

5. Optimized for Fine Screening

The combination of high porosity, large unit throughput, and precise, high-frequency motion makes flip-flow screens highly effective for grading and dewatering fine, sticky materials—substances that would blind almost any other type of screen.

Industry Applications

Polyurethane Flip-Flow Screens are versatile problem-solvers used across a range of heavy industries:

• Coal & Power: Classifying and dewatering raw coal, clean coal, and tailings—critical for coal washing plants and power stations.
• Coal Chemical: Screening feedstock and intermediate products in chemical production processes.
• Metallurgy & Mining: Grading fine ores, sinter feed, and other mineral concentrates.
• Building Materials: Separating and classifying sand, aggregates, and cement during production.

Their ability to simplify processes—often eliminating pre-treatment steps for wet materials—directly improves economic efficiency and accelerates return on investment.

Huatao’s Heavy-Duty Flip-Flop Screen: A Technological Breakthrough

Building on the flip-flow principle, Huatao’s Heavy-Duty Flip-Flop Screen represents a further innovation for the most demanding applications. Its unique design addresses the limitations of conventional screens with a revolutionary approach:

1. Dual-Vibration System

A single drive unit produces two independent vibrations: a base vibration from the exciter and fixed frame, plus an amplified vibration from a floating screen frame.

2. Floating Beam Mechanism

Rubber springs on both sides pull a floating beam back and forth. This beam connects to the elastic polyurethane screen panels, causing them to stretch and relax 700–800 times per minute.

3. Guaranteed Clog-Free Operation

This intense, high-acceleration motion dynamically changes the aperture diameter, making it physically impossible for particles to blind the screen. Even for high-viscosity, high-moisture materials, the screen delivers exceptional efficiency—often achieving better results with a smaller screening area than comparable equipment.

Why Choose Flip-Flow Screens Over Conventional Options?

When processing challenging materials, the choice is clear. Circular or linear vibrating screens struggle with their fixed, rigid surfaces, which easily clog with fine, sticky particles. In contrast, Polyurethane Flip-Flow Screens actively combat blinding. Their elastic, moving surface is not just a filter but an active part of the screening process, ensuring uninterrupted operation, superior product quality, and reduced operating costs.

Conclusion

For operations hindered by the screening of fine, wet, and adhesive materials, Polyurethane Flip-Flow Screens are more than an upgrade—they are a necessity. They turn a major processing bottleneck into a reliable, high-efficiency operation. Whether you choose a standard flip-flow screen or the advanced Huatao Heavy-Duty Flip-Flop Screen, you are investing in proven technology that delivers clog-free performance, reduced maintenance, and enhanced profitability for your business.
