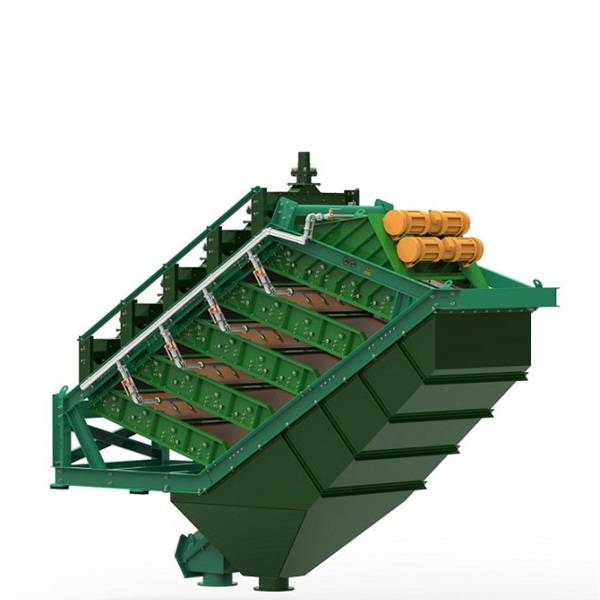

Multi-deck High Frequency Vibrating Screen Machine

Description of Multi-deck High Frequency Vibrating Screen Machine:

1. The main body of the Multi-deck High Frequency Vibrating Screen Machine is riveted with rivets, which ensures the reliability and stability of the long-term operation of the equipment, and reduces the number of maintenance and labor.
2. The surface of the Multi-deck High Frequency Vibrating Screen Machine is treated with polyurea spraying technology as a whole, which increases the wear resistance and corrosion resistance of the equipment and prolongs the service life of the equipment.
3. With the self-developed polyweb urethane screen panel  (minimum 0.043mm) , the screen is not easy to be blocked, and five channels are fed at the same time, with large processing capacity and high screening efficiency.

Advantage of Multi-deck High Frequency Vibrating Screen Machine:

1. Fine screen obtains larger screening capacity with smaller footprint
2. Greatly improve the mill capacity and greatly reduce the power consumption per unit of ore grinding
3. Minimize the over-powdering of useful minerals (mudification)
4. Improve metal recovery rate and reduce flotation reagent consumption
5. Successfully applied to the sorting of metallic and non-metallic minerals

Main technical parameters of Multi-deck High Frequency Vibrating Screen Machine :

Dimensions: Width 1500mmX Length 4892mmX4142mm
Machine weight: about 4 tons
Screening area: 7.3㎡
Screening inclination: 17.5°
Screening efficiency: 85~90%
Amplitude: 0.8~2mm
Maximum Capacity: 45T/h -120 T/h
Screen Panel Aperture: Minimum 0.043mm – 10mm
Decks : 1-deck, 2-deck, 3-deck , 4-deck, 5-deck
