Mist Pole

Engineered Dust Control for Mining & Bulk Material Handling

Mining, crushing, screening and bulk material handling can generate significant amounts of airborne dust at transfer points, crushers, conveyors, stockpiles and loading areas. An effective Mining Dust Suppression System needs to control dust at its source while avoiding excessive water addition, material carryback and unnecessary maintenance.

HUATAO provides customized Mining Spray Systems designed for dust prevention and airborne dust suppression in demanding mining and mineral processing environments. Depending on the application, the system can be configured with spray nozzles, spray bars, headers, piping, filters, valves, pumps and automatic controls to deliver targeted water or atomized mist exactly where dust is generated.

Rather than using the same spray configuration for every application, we select the spray pattern, droplet size, flow rate, pressure and nozzle arrangement according to the material, process conditions and installation environment.

Applications Across Mining Operations

HUATAO Mining Dust Suppression Spray Systems can be engineered for a wide range of dust-generating areas:

• Crusher Dust Suppression – Controls dust generated during primary, secondary and tertiary crushing.
• Vibrating Screen Dust Control – Targets dust around screening decks, feed points and discharge areas.
• Conveyor Dust Suppression – Applies controlled moisture to bulk materials and reduces dust released during conveying.
• Transfer Point Dust Suppression – Uses strategically positioned nozzles around chute and transfer areas where fugitive dust is commonly generated.
• Hopper & Bin Dust Control – Suppresses dust during truck unloading, hopper discharge and material feeding.

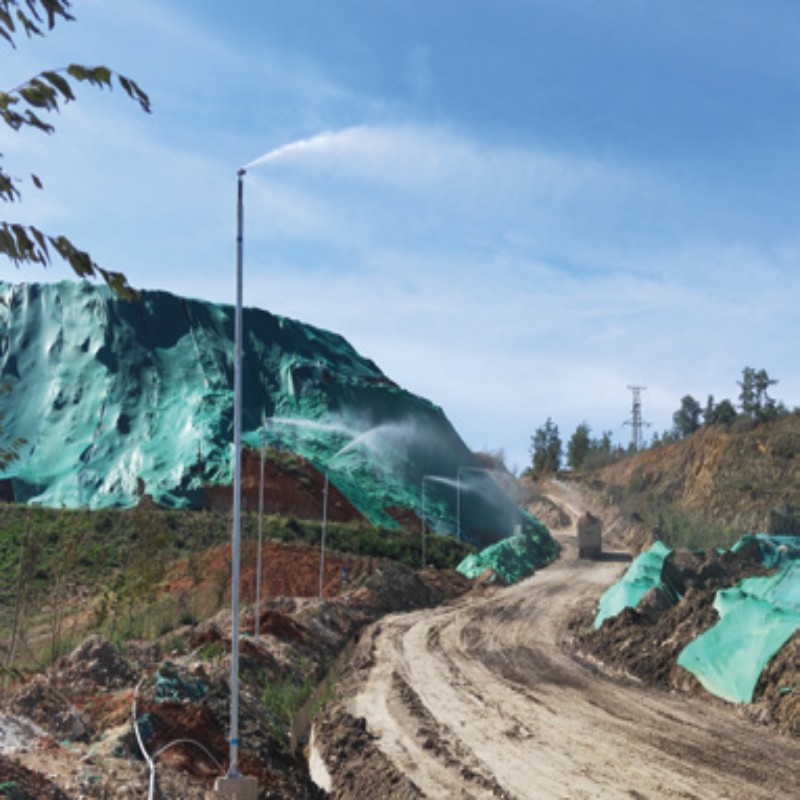

• Stockpile Dust Suppression – Provides localized or wide-area misting for exposed stockpiles and material storage areas.
• Loading & Unloading Areas – Helps control dust during truck, rail, ship and bulk-material loading operations.
• Open Pit Mining Dust Control – Can be integrated with larger-area misting or mobile dust suppression equipment.
• Underground Mining Applications – Customized spray arrangements can be designed where water availability, ventilation and installation space allow.

For transfer points and conveyors, spray placement is especially important. Sprays should be directed toward the material or dust source rather than unnecessarily wetting the belt or surrounding equipment. Excessive water can contribute to carryback, chute blockage or increased material moisture, while insufficient moisture may leave airborne dust uncontrolled.

Flexible Spray Technologies

Different dust sources require different spray technologies. HUATAO can configure the system around the required operating conditions.

Dust Suppression Nozzles

Mining Dust Suppression Nozzles are selected according to required flow rate, spray angle, pattern, pressure and droplet characteristics. Flat fan, hollow cone and other spray patterns can be considered according to whether the objective is material wetting, dust capture or localized suppression.

Spray Bars & Headers

Multiple nozzles can be mounted on a customized spray bar or spray header to provide consistent coverage across conveyors, crushers, screens, hoppers and transfer points. The structure can be adapted to the available mounting space and process layout.

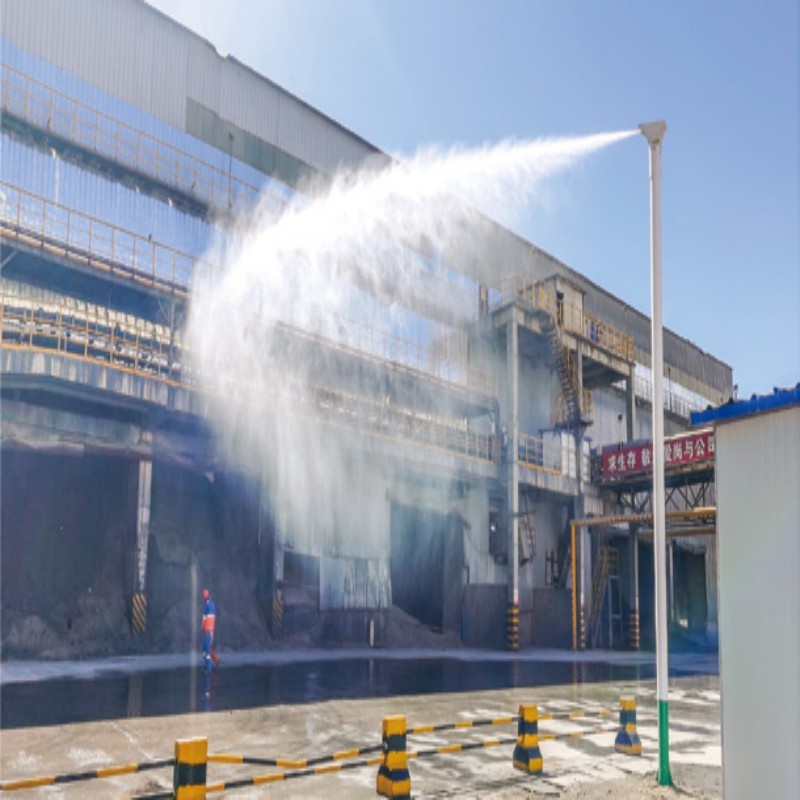

Atomized Water Mist

For airborne fine dust, an atomized water mist system can generate smaller droplets designed to interact with suspended dust particles. Droplet size should be matched to the dust characteristics to improve capture while limiting unnecessary water consumption.

High-Pressure Water Mist

Where finer atomization and controlled spray coverage are required, a high-pressure water mist configuration can be considered. Pump selection, nozzle orifice, operating pressure and water quality must be evaluated together during system design.

Dry Fog Dust Suppression

For selected crushing, screening and material-transfer applications, Dry Fog Dust Suppression Systems can be considered where very fine droplets and targeted dust capture are required. The final configuration depends on dust characteristics, plant layout and available utilities.

Automatic Spray Control

For plants requiring automated operation, the system can incorporate control valves, sensors, timers or PLC-based controls. Spraying can be synchronized with conveyors, crushers or material flow to reduce unnecessary water consumption and improve operating consistency.

Key System Design Parameters

A properly engineered Mining Dust Control System should be specified according to the actual operating environment rather than simply selecting a nozzle by appearance.

Typical parameters include:

Actual specifications can be customized according to the customer’s process conditions and site requirements.

Designed for Efficient Dust Suppression

The objective of a good spray system is not simply to use more water. The system should deliver the right amount of water to the right location at the right time.

HUATAO focuses on targeted spray coverage to help customers reduce airborne dust while minimizing over-wetting. Correct nozzle selection and positioning can improve dust capture, reduce unnecessary water consumption and help maintain stable material handling.

For conveyor and transfer-point applications, the spray arrangement can be designed to add controlled moisture to the material before or around the dust-generating point. For crushers and screens, localized spray coverage can be positioned close to the dust source. For stockpiles and open areas, wider-area misting solutions can be considered.

Where non-potable or recycled water is used, filtration and nozzle selection should be considered carefully to reduce the risk of nozzle blockage and maintain consistent spray performance.

Why Choose HUATAO?

Application-Oriented Engineering
We focus on the actual mining process rather than supplying a standard spray package for every site.

Customized Configuration
Nozzle quantity, spray pattern, pipe layout, mounting structure, pump capacity and control method can be customized according to project requirements.

Mining Industry Experience
Our solutions are developed for demanding applications involving crushing, screening, conveying and bulk material handling.

Complete System Support
HUATAO can coordinate key components including spray nozzles, spray headers, piping, filters, pumps, valves and control components.

Product Summary

HUATAO Mining Dust Suppression Spray Systems provide customized water spray and atomized mist solutions for crushers, screens, conveyors, transfer points, hoppers and stockpiles. The system is engineered around dust characteristics, material flow, water conditions and site layout to achieve targeted dust control with efficient water use.

OEM & Replacement Support
For existing plants, we can develop replacement or retrofit spray components according to existing equipment dimensions, nozzle arrangement and operating conditions.

Request a Customized Dust Control Solution

Every mine has different material characteristics, dust sources and operating conditions. To recommend a suitable Mining Dust Suppression System, please provide your application details, equipment type, material, capacity, available water pressure, water quality, existing spray arrangement and installation dimensions.

If drawings or photos are available, please send them together with your RFQ. HUATAO can review the application and recommend a suitable nozzle configuration, spray layout and system design.

Request a Quote / RFQ

Contact HUATAO for a customized Mining Spray System, Dust Suppression Nozzle, spray bar or complete mining dust control solution.
