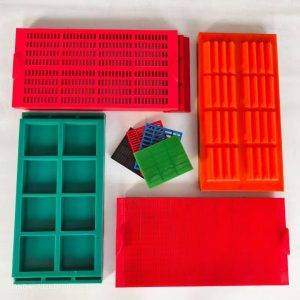

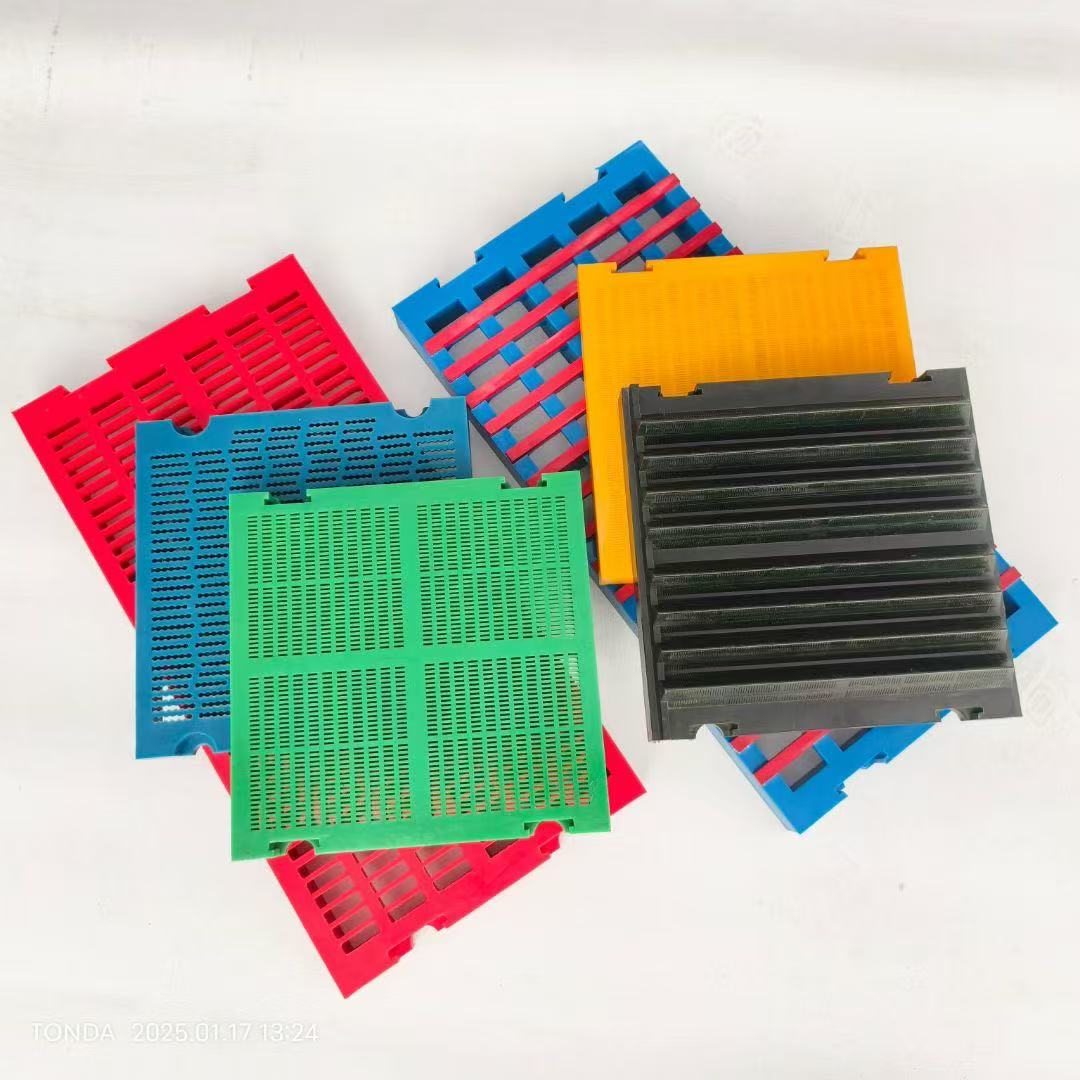

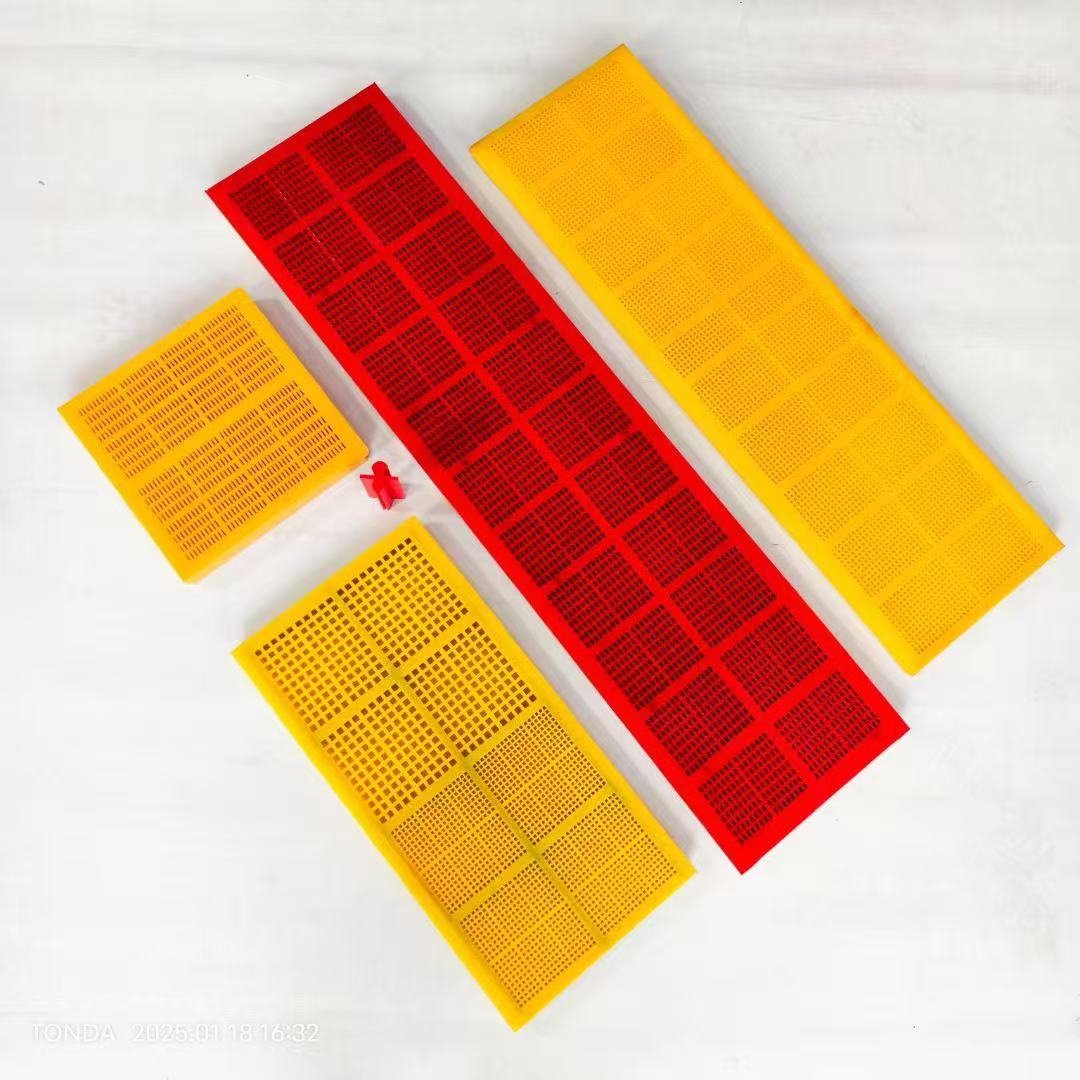

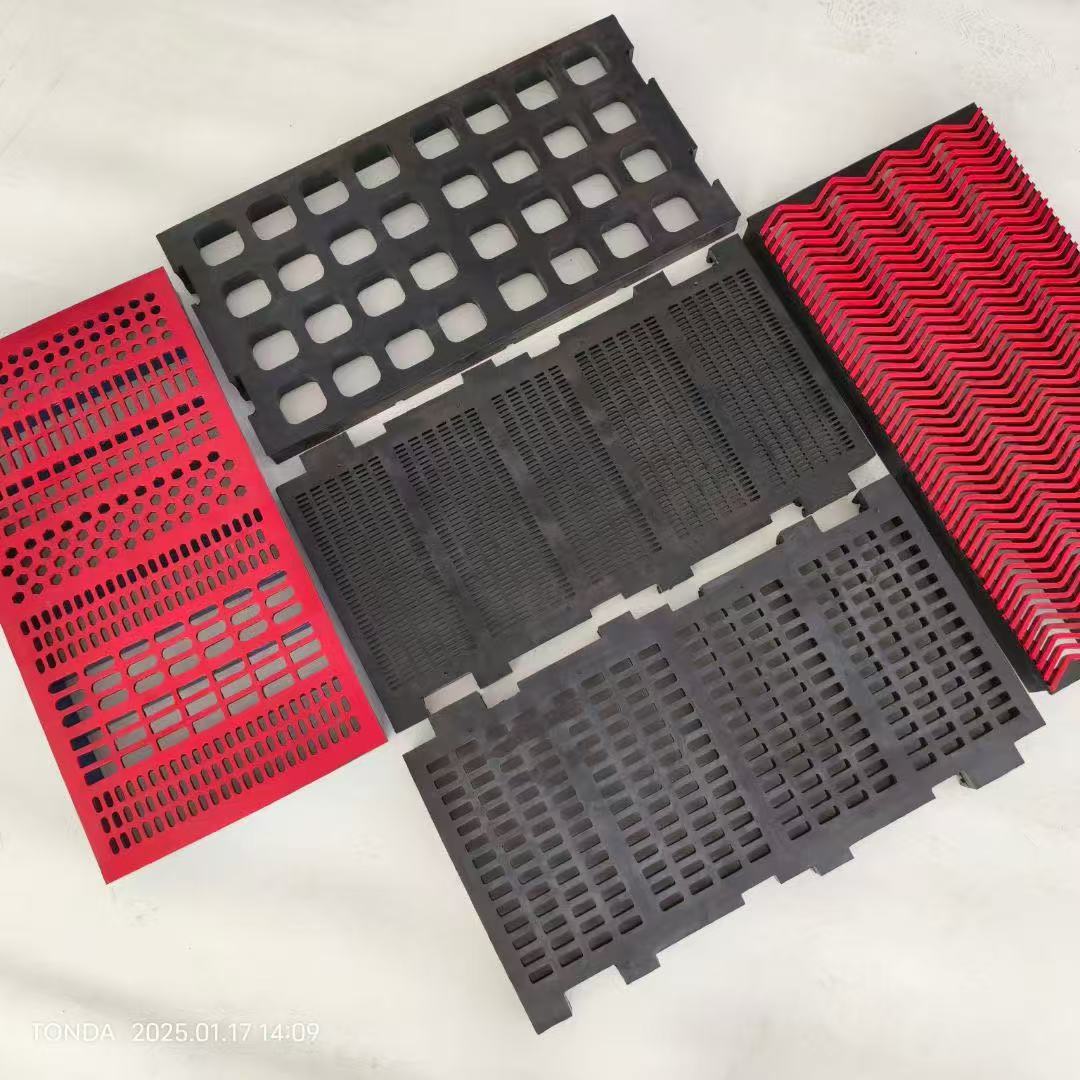

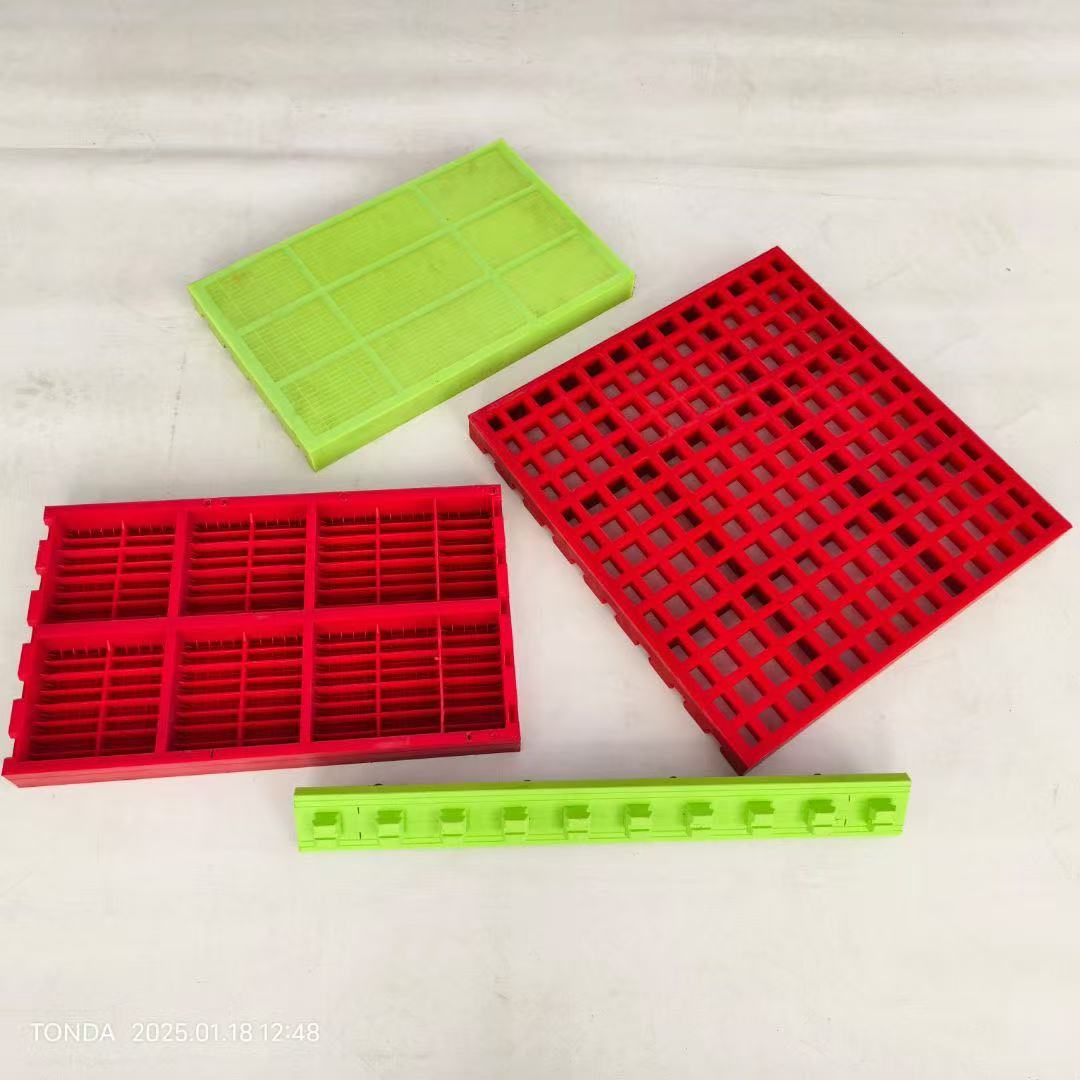

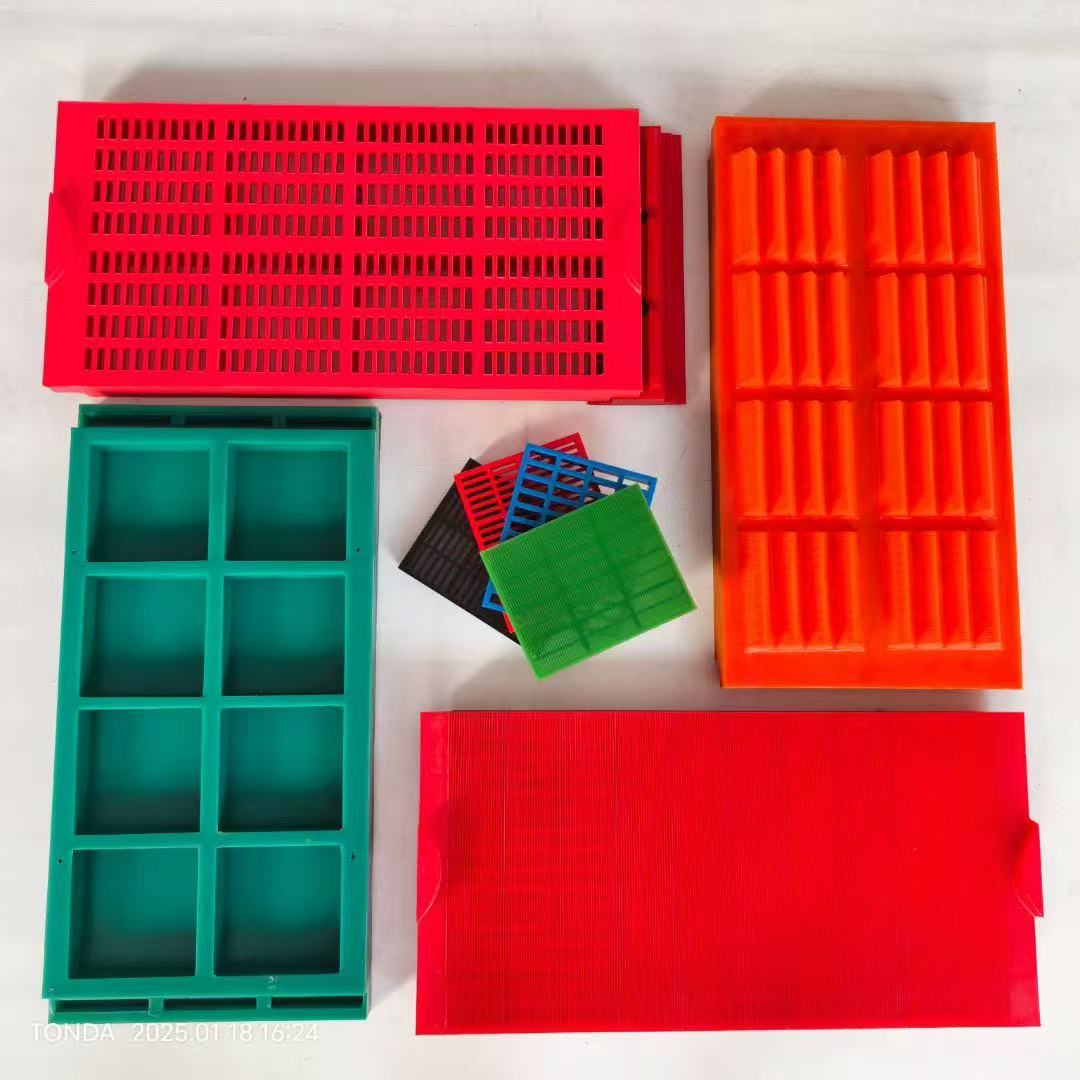

Mining Screening Media
Mining Screening Media are essential wear components used in vibrating screens for mineral processing and aggregate industries. Available in woven wire mesh, rubber, polyurethane, and wedge wire designs, they provide efficient material separation, improve screening accuracy, and extend equipment service life. Engineered for abrasive, wet, and difficult-to-screen materials, mining screen media help maximize throughput while minimizing downtime and maintenance costs.
- 01 Improves screening efficiency and material separation accuracy.
- 02 Available in steel wire, rubber, polyurethane, and wedge wire options.
- 03 Excellent wear and impact resistance for demanding mining applications.
- 04 Compatible with major vibrating screen brands and installation methods.
- 05 Reduces screen blinding, pegging, and maintenance downtime.
-
Mining Screening Media Description
What Are Mining Screening Media?
Mining screening media are the replaceable, perforated surfaces installed on vibrating screens, designed to separate raw materials by size.
They are critical components in processing plants, directly influencing screening efficiency, accuracy, and overall production throughput.
These media are manufactured from a variety of materials—including steel wire, rubber, and polyurethane—each selected based on the material being processed and specific operating conditions.
How Screening Media Works
- Separation Process:
As raw material is fed onto the vibrating screen, particles smaller than the screen’s openings (apertures) pass through, while larger particles are retained on the surface. - Oversize & Undersize:
The material that passes through is referred to as “undersize,” while the material remaining on top is the “oversize.” - Stratification Effect:
The vibration causes finer particles to settle downward and pass through the apertures, while coarser particles rise to the top—a key mechanism known as stratification.
Types of Screening Media
| Type | Material & Features | Common Applications |
|---|---|---|
| Woven Wire Mesh | High-tensile steel; durable and reliable | Sand, gravel, aggregates |
| Rubber & Polyurethane | Excellent impact resistance, flexibility; polyurethane offers extended wear life | Abrasive or heavy materials |
| Installation Method | WS85 Type,Hook Type,Bolt Type | |
| Match Brand | Mesto, Trelleborg, Sandvik, Schenck,Multotec,Aury,Landsky Eurocma | |

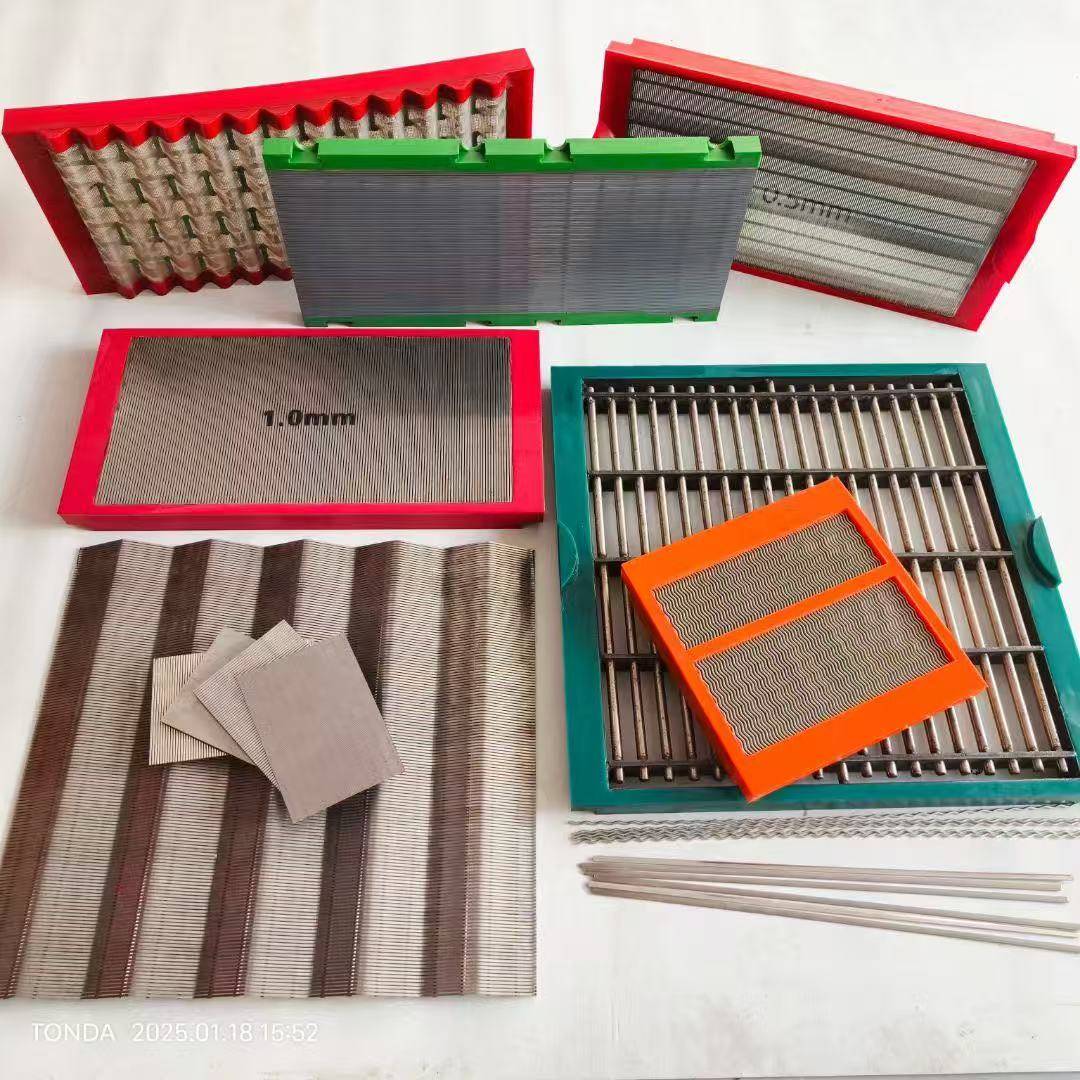

| Wedge Wire Screens | Unique profile design; enhances screening efficiency and resists clogging | Fine and difficult-to-screen materials |
Importance in Mining Operations
- Product Quality Control
Ensures final products meet precise size and quality specs for downstream processing or direct sale. - Enhanced Process Efficiency
Reduces issues like “blinding” (clogging) and “pegging,” which helps maximize throughput and minimize unplanned downtime. - Equipment Protection
Removes oversized or foreign materials early in the process, safeguarding downstream machinery from damage and wear.
Conclusion
Choosing the right screening media is essential for optimizing mineral processing performance. Whether you’re screening sand, gravel, or highly abrasive ores, selecting the appropriate type—wire, rubber, or polyurethane—can significantly impact productivity, cost, and operational reliability.
Let me know if you’d like help selecting the best screening media for your application!
