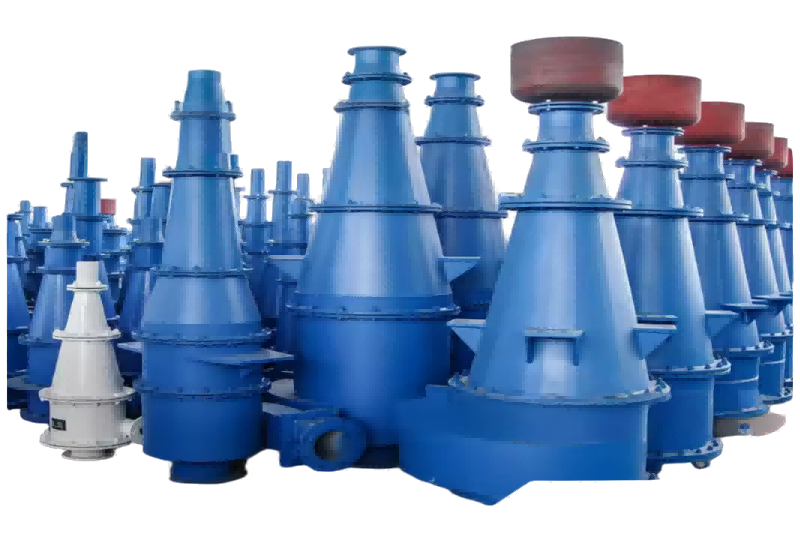

Mining Hydrocyclone

Professional Hydrocyclone Solutions for Mining and Mineral Processing

A hydrocyclone, also known as a mining hydrocyclone, slurry cyclone, or hydrocyclone separator, is a high-efficiency classification and separation device widely used in mineral processing plants, mining operations, and industrial applications.

By utilizing centrifugal force generated from high-speed slurry rotation, hydrocyclones separate particles according to their size, density, and specific gravity without any moving parts. They are essential equipment in grinding circuit classification, tailings management, mineral recovery, dewatering, and desliming processes.

Our mining hydrocyclone systems are engineered for demanding mineral processing environments, providing accurate particle separation, stable operation, high throughput capacity, and excellent wear resistance. They are suitable for applications including gold ore processing, copper ore beneficiation, iron ore concentration, silica sand classification, coal preparation, and tailings dewatering.

Advanced Classification Performance for Grinding Circuits

In modern mineral processing plants, hydrocyclones are mainly installed after ball mills or rod mills to create a closed-loop grinding circuit classification system.

The hydrocyclone separates fine qualified particles from coarse particles:

• Fine particles overflow through the vortex finder and proceed to flotation, leaching, or further processing.
• Coarse particles discharge through the apex and return to the grinding mill for additional size reduction.

Compared with traditional mechanical classifiers, mining hydrocyclones offer:

• Higher classification efficiency
• Smaller installation footprint
• Lower maintenance requirements
• Faster response to process changes
• Better control of particle size distribution

Our hydrocyclone separators can be supplied as individual units or complete cyclone clusters, including cyclone manifolds, support frames, valves, and pipelines according to customer requirements.

Wide Applications in Mineral Processing Industry

Grinding Circuit Classification Hydrocyclone

Grinding circuit classification is the most common application of hydrocyclones in mining.

They are widely used in:

• Gold ore processing plants
• Copper beneficiation plants
• Iron ore processing facilities
• Lead and zinc concentrators
• Lithium and battery mineral processing
• Rare earth mineral plants

The hydrocyclone controls the final grinding product size by accurately separating fine and coarse particles, improving downstream flotation and recovery efficiency.

Dewatering Hydrocyclone for Tailings Management

Dewatering hydrocyclones are designed to recover water and increase the solids concentration of mineral slurry.

Typical applications include:

• Tailings dewatering
• Sand recovery systems
• Backfill preparation
• Thickening and filtration preparation

By reducing water content in discharged materials, hydrocyclones help mining operations reduce water consumption and improve environmental performance.

Desliming Hydrocyclone

Fine clay and unwanted slime particles can negatively affect mineral recovery. Desliming hydrocyclones efficiently remove ultra-fine particles before flotation or gravity separation.

Common applications:

• Silica sand purification
• Kaolin processing
• Iron ore upgrading
• Industrial mineral classification

Heavy Medium Hydrocyclone / Dense Medium Cyclone

Dense medium cyclones (DMC) are widely used in coal preparation and high-density mineral separation.

They provide:

• High separation accuracy
• Large processing capacity
• Reliable operation under harsh mining conditions

Wear-Resistant Hydrocyclone Lining Technology

Hydrocyclones operate under continuous abrasive slurry conditions. The internal wear components directly determine service life and maintenance frequency.

Our hydrocyclones use advanced wear-resistant materials including:

Polyurethane Hydrocyclone Liner

Polyurethane liners provide excellent abrasion resistance, impact resistance, and flexibility.

Advantages:

• Long service life
• Reduced maintenance frequency
• Excellent resistance against fine abrasive slurry
• Suitable for medium and fine particle classification

Rubber Lined Hydrocyclone

Rubber lining is widely used in mining applications requiring impact resistance and cost-effective wear protection.

Features:

• High elasticity
• Good impact absorption
• Suitable for coarse slurry applications

Ceramic Lined Hydrocyclone

Ceramic lining provides extreme wear resistance for highly abrasive applications.

Recommended for:

• Quartz sand processing
• Heavy mineral separation
• High silica content slurry

Hydrocyclone Spare Parts and Replacement Components

We supply complete hydrocyclone spare parts to support mining plant maintenance and replacement requirements.

Main components include:

Vortex Finder

The vortex finder controls overflow discharge and directly affects classification efficiency and cut size.

Available materials:

• Polyurethane
• Rubber
• Ceramic

Apex Nozzle / Spigot / Apex Insert

The apex is one of the highest wear areas in a hydrocyclone.

Benefits:

• Optimized discharge pattern
• Extended service life
• Reduced blockage risk

Cyclone Liner

Replaceable cyclone liners protect the cyclone body from abrasive slurry wear.

Available options:

• PU liner
• Rubber liner
• Ceramic liner

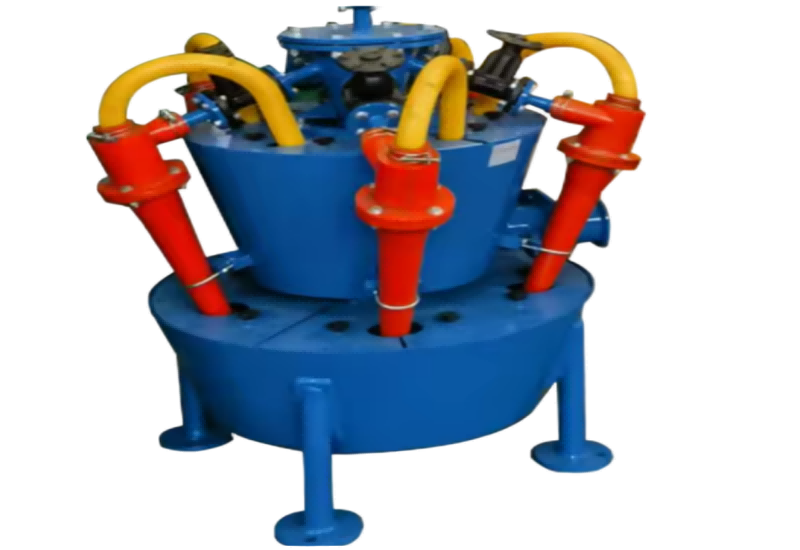

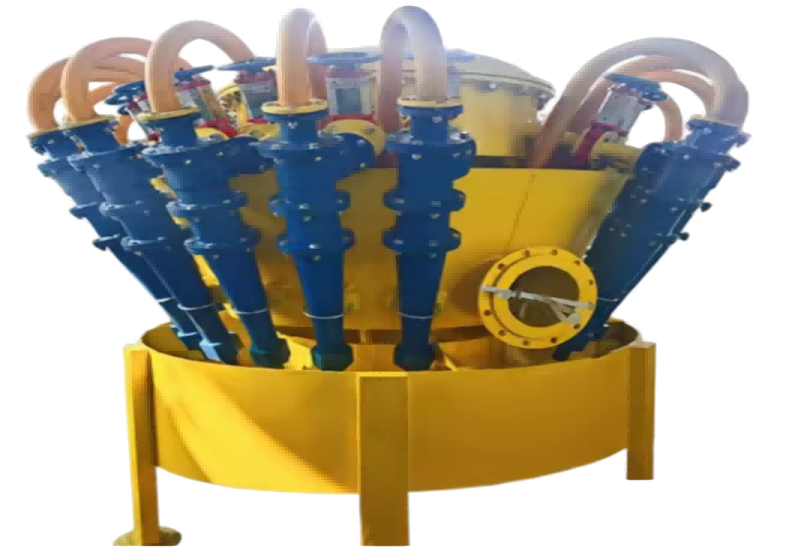

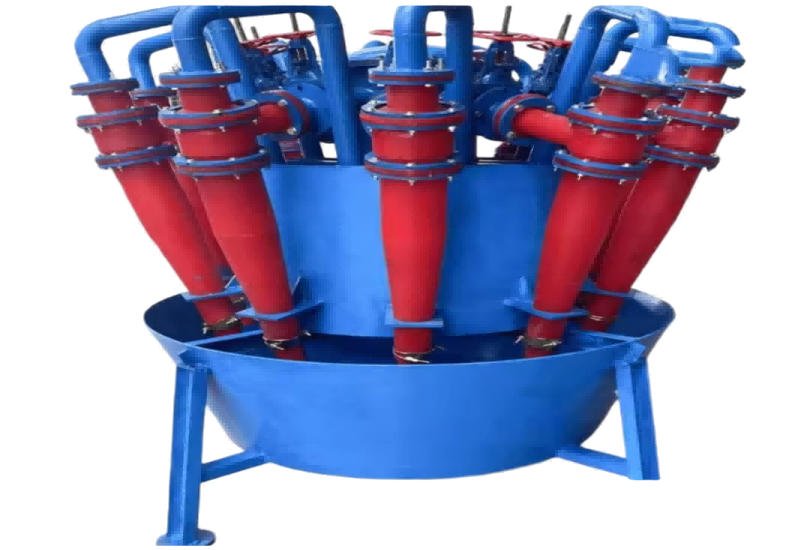

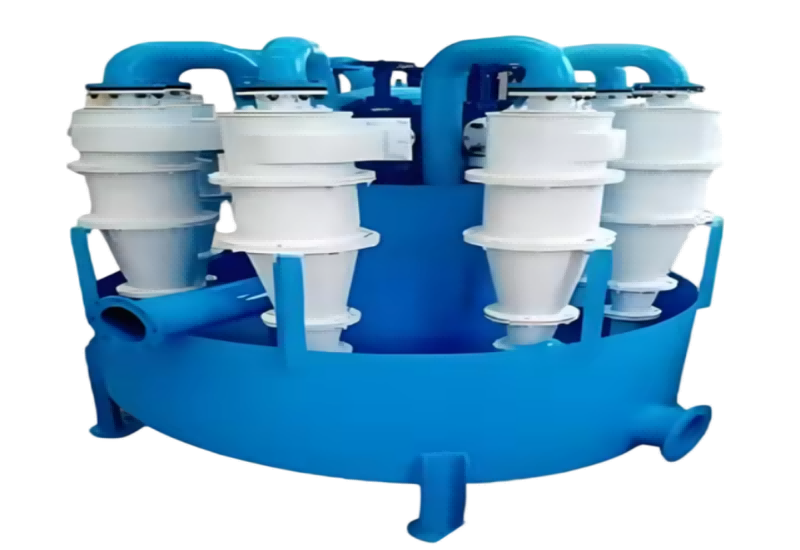

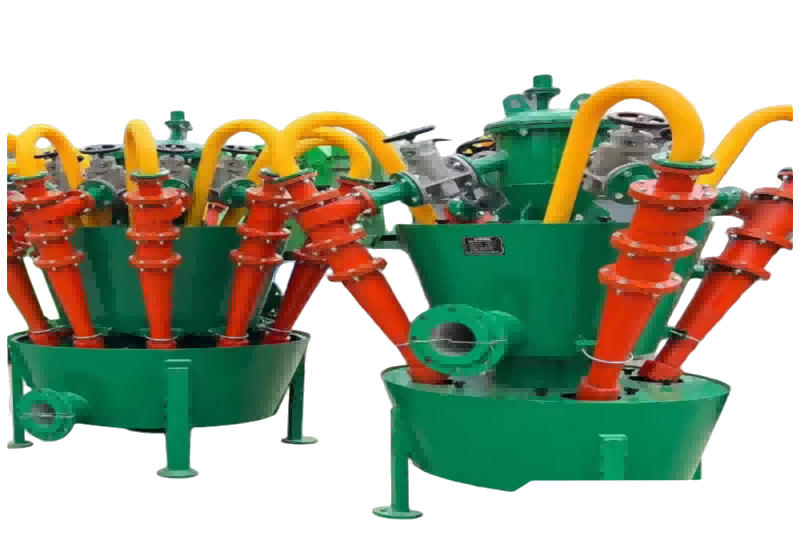

Distribution Manifold and Cyclone Cluster System

For large mineral processing plants, multiple hydrocyclones are installed together as cyclone clusters.

Customized cyclone clusters include:

• Cyclone manifolds
• Feed distributors
• Support structures
• Valves and pipelines
•

Key Advantages of Our Mining Hydrocyclones

1. High Classification Efficiency

Optimized cyclone geometry provides accurate particle separation and stable cut size control.

2. Excellent Wear Resistance

Premium polyurethane, rubber, and ceramic liners extend equipment service life in abrasive applications.

3. Customized Cyclone Solutions

Hydrocyclone diameter, liner material, vortex finder, apex size, and cyclone configuration can be customized.

4. Reliable Operation

No moving parts reduce maintenance requirements and improve operational reliability.

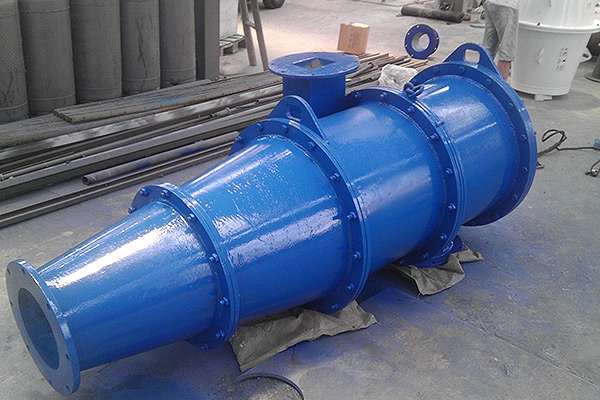

5. Replacement Compatibility

Compatible replacement hydrocyclone components are available for many standard mining cyclone systems.

Technical Specifications

Customized Hydrocyclone Manufacturer and Supplier

We provide complete hydrocyclone solutions for global mining and mineral processing customers.

Our engineering team can customize:

• Cyclone diameter
• Separation target size
• Feed pressure
• Capacity requirement
• Wear liner material
• Cyclone cluster arrangement

Whether you need a single hydrocyclone separator, replacement cyclone liners, or a complete mining cyclone cluster system, we can provide a reliable solution based on your process conditions.

Request a Quote (RFQ)

For quotation of mining hydrocyclones, please provide:

1. Mineral type and application
2. Slurry capacity (m³/h)
3. Feed particle size distribution
4. Required cut size (d50)
5. Feed pressure
6. Existing cyclone model (if replacement required)
7. Liner material preference

Contact us today for a customized hydrocyclone solution for your mineral processing operation.

Product Summary

Our mining hydrocyclones deliver efficient particle classification, separation, and dewatering performance for mineral processing applications. With durable wear-resistant liners, flexible customization options, and reliable operation, they provide an economical solution for global mining plants.
