Magnetic Drum

Heavy-Duty Permanent Magnetic Drum Separator & Magnetic Head Pulley for Mineral Processing

A Magnetic Drum Separator is a widely used magnetic separation equipment in mining, mineral processing and recycling industries for separating ferrous materials from non-magnetic materials. Designed for continuous operation under harsh industrial conditions, our permanent magnetic drum separators provide reliable performance for iron ore beneficiation, slag recovery, coal preparation, aggregate processing and metal recycling applications.

According to different installation methods and processing requirements, the equipment can be supplied as a stand-alone drum separator with housing or a magnetic head pulley integrated into conveyor systems. The magnetic head pulley replaces the conventional conveyor head pulley and performs continuous separation during material discharge, removing tramp iron and recovering valuable magnetic minerals without additional power consumption.

With optimized magnetic circuit design, high-quality permanent magnets and heavy-duty structural components, our mining magnetic drum separators deliver stable magnetic force, high separation efficiency and long service life in demanding mining environments.

Working Principle of Magnetic Drum Separator

The Permanent Magnetic Drum Separator works by using a fixed magnetic field generated by permanent magnets inside the rotating drum. When material enters the magnetic field area, magnetic particles are attracted and held onto the drum surface, while non-magnetic materials continue moving forward due to gravity and centrifugal force.

As the drum rotates, magnetic materials are transported to the discharge area and released separately from non-magnetic materials, achieving continuous automatic separation.

For conveyor applications, the Magnetic Head Pulley acts as the drive pulley at the end of the conveyor. When bulk materials pass over the pulley, magnetic minerals are attracted and remain attached to the belt surface, while non-magnetic materials follow their original trajectory and discharge separately.

This design is especially suitable for:

• Iron ore pre-concentration
• Waste rock rejection
• Removal of tramp iron from bulk materials
• Slag recycling
• Aggregate and quarry material purification

Applications of Magnetic Drum Separator in Mining Industry

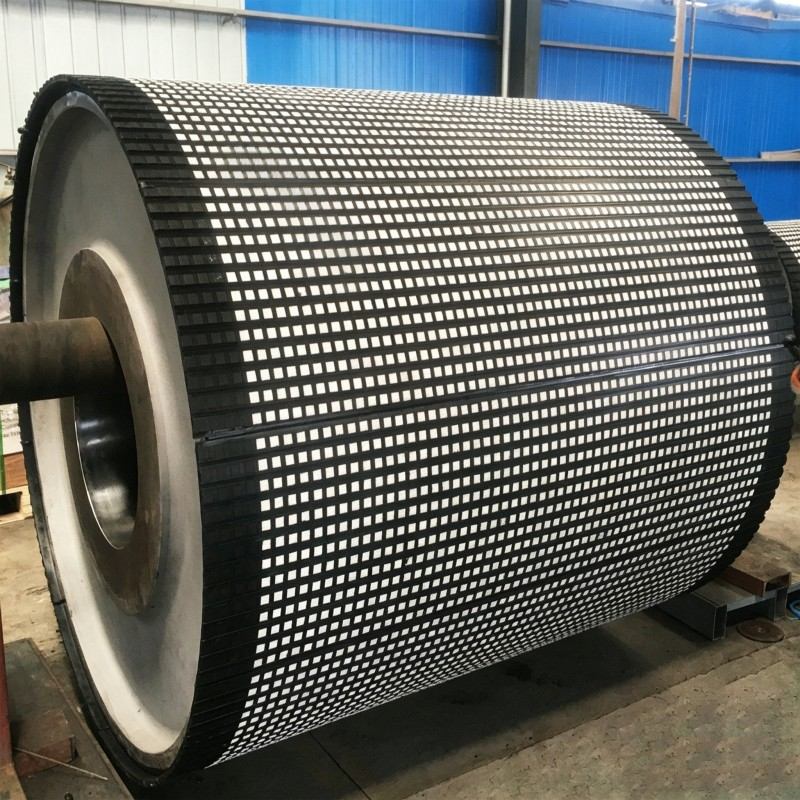

1. Iron Ore Pre-Concentration & Ore Cobbing

The Ore Cobbing Magnetic Drum is commonly used in the early stage of iron ore processing to remove low-grade waste rock and improve feed quality before grinding.

By upgrading iron ore through magnetic separation, mining operations can:

• Reduce grinding energy consumption
• Increase mill capacity
• Lower transportation costs
• Improve overall beneficiation efficiency

Dry drum magnetic separators are particularly suitable for coarse iron ore particles and pre-concentration applications.

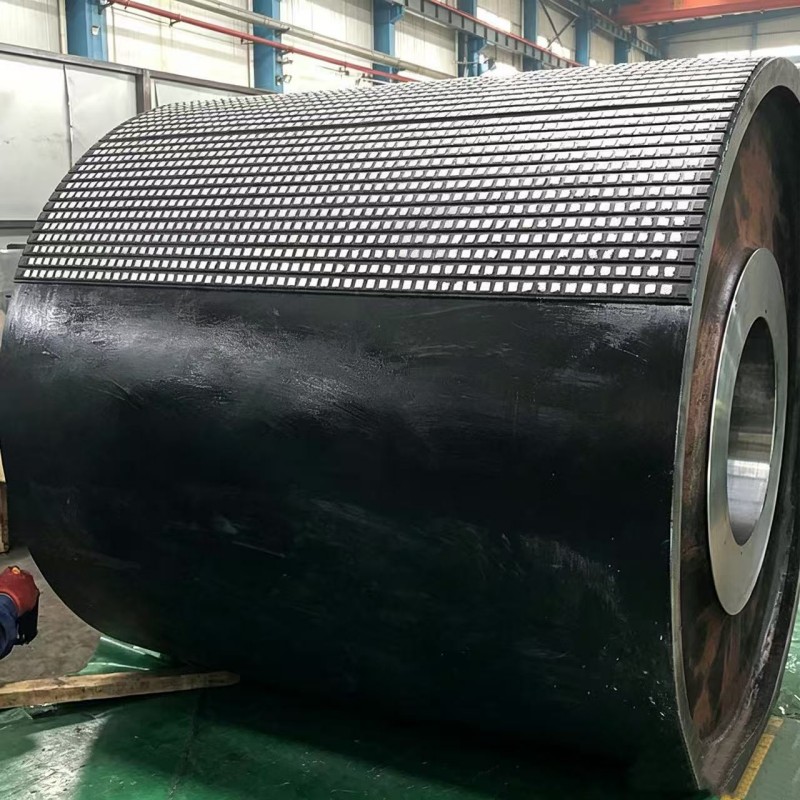

2. Mining Conveyor Magnetic Head Pulley

The Mining Magnetic Pulley is designed for installation on belt conveyors as a self-cleaning magnetic roller system.

Compared with traditional electromagnetic separators, permanent magnetic head pulleys offer:

• No external power supply
• Lower operating costs
• Continuous automatic separation
• Simple maintenance
• Long working life

They are widely used in:

• Iron ore mines
• Coal handling plants
• Quarry operations
• Aggregate production lines
• Recycling facilities

3. Wet Drum Magnetic Separator for Mineral Processing

The Wet Drum Magnetic Separator is mainly used for fine particle separation in mineral processing plants.

Typical applications include:

• Magnetite recovery
• Heavy media recovery
• Iron ore beneficiation
• Tailings recovery

The wet separation process improves recovery efficiency for fine magnetic particles and is widely applied in modern concentrators.

4. Metal Recovery & Recycling Applications

Our industrial magnetic drum separators are also suitable for recovering valuable ferrous metals from:

• Steel slag
• Municipal waste
• Industrial waste
• Foundry sand
• Construction materials

The equipment helps customers reduce material loss and improve resource utilization.

Key Advantages of Our Mining Magnetic Drum Separator

1. High-Efficiency Magnetic Separation

Advanced permanent magnetic circuits provide strong and stable magnetic fields for efficient recovery of magnetic minerals.

2. Heavy-Duty Mining Structure

Designed for harsh mining environments with wear-resistant shells, reinforced frames and reliable mechanical components.

3. Continuous Self-Cleaning Operation

The rotating drum automatically transports separated materials, reducing manual cleaning requirements.

4. Energy-Saving Permanent Magnetic System

Permanent magnets eliminate the need for continuous electrical excitation, reducing operating costs.

5. Customized Magnetic Solutions

Available with different drum diameters, magnetic intensities, installation structures and conveyor integration options.

Product Types Available

Dry Drum Magnetic Separator

Designed for dry processing of coarse and medium-sized magnetic ores.

Applications:

• Iron ore dry beneficiation
• Ore cobbing
• Waste rock separation

Wet Drum Magnetic Separator

Designed for slurry-based mineral separation.

Applications:

• Magnetite concentration
• Fine particle recovery
• Tailings treatment

Magnetic Head Pulley / Magnetic Conveyor Roller

Installed at conveyor discharge points for automatic iron removal and magnetic mineral recovery.

Applications:

• Mining conveyors
• Quarry plants
• Recycling systems

Technical Specifications

Why Choose Our Magnetic Drum Separator?

As a professional mining equipment supplier, we provide customized magnetic separation solutions according to different minerals, particle sizes and processing conditions.

Our engineering team can assist customers with:

• Magnetic intensity selection
• Drum size calculation
• Conveyor integration design
• Mineral processing optimization
• Customized OEM manufacturing

Whether you need a heavy-duty mining magnetic separator, a permanent magnetic drum, or a custom magnetic head pulley for mining conveyors, we provide reliable equipment solutions for global mineral processing industries.

RFQ Information Required

To recommend the suitable magnetic drum separator, please provide:

1. Material type (iron ore, magnetite, slag, etc.)
2. Material capacity (tons/hour)
3. Particle size distribution
4. Magnetic mineral content
5. Dry or wet processing requirement
6. Conveyor belt width (for magnetic head pulley)
7. Required magnetic intensity

Contact us for a customized quotation and technical proposal.

Product Summary

Our Magnetic Drum Separator provides efficient and reliable magnetic separation solutions for mining, mineral processing and recycling industries. Available as dry drum separators, wet drum separators and magnetic head pulleys, the equipment improves mineral recovery, removes unwanted iron contaminants and reduces operating costs in demanding industrial environments.
