Heavy duty jaw crusher for primary rock crushing

Mining jaw crusher machine for hard stone processing

Primary jaw crusher used in quarry crushing plant

Industrial jaw crusher for granite and basalt crushing

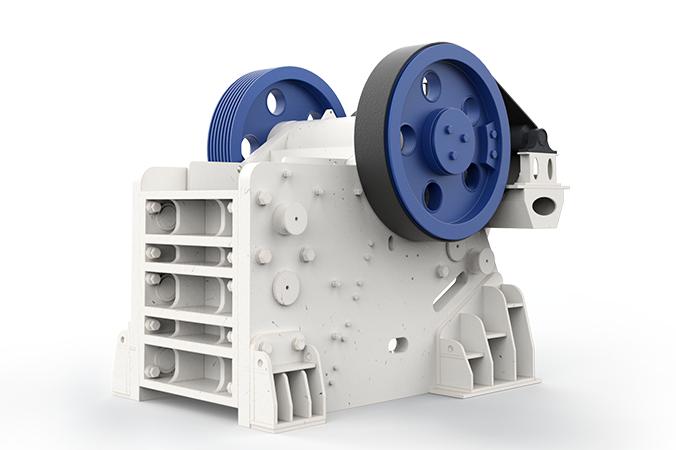

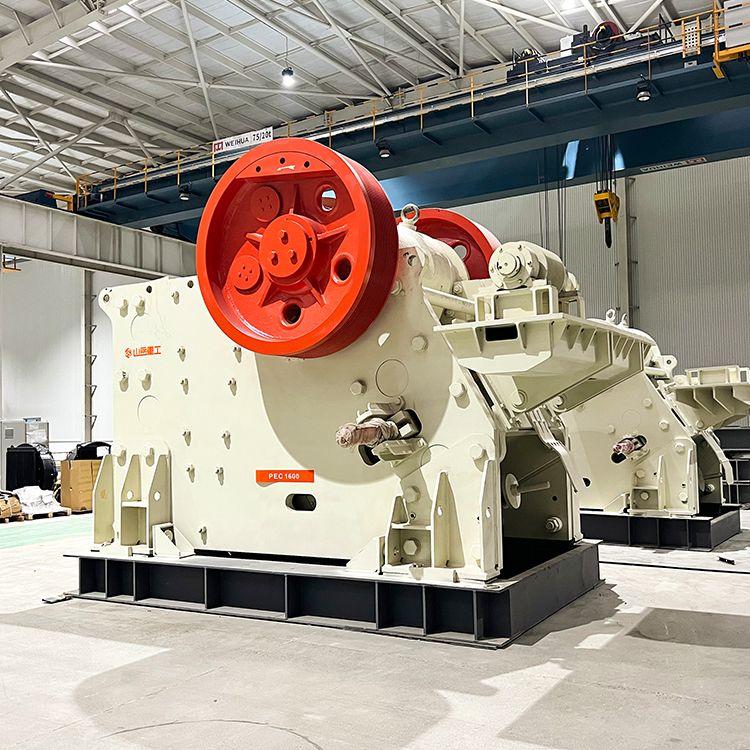

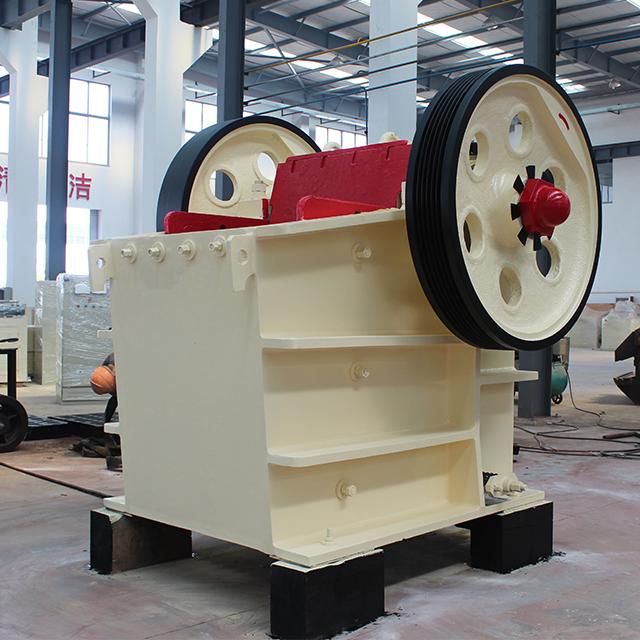

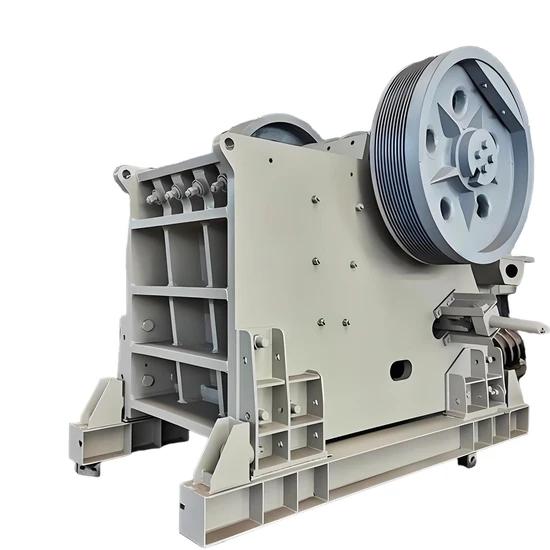

Jaw Crusher

The Heavy-Duty Jaw Crusher is designed for primary crushing applications in mining, quarrying, aggregate processing, and mineral beneficiation plants. It efficiently crushes hard and abrasive materials such as granite, basalt, iron ore, limestone, and river stone into manageable sizes for downstream processing. Featuring a robust structure, large feed opening, and high crushing efficiency, it delivers reliable performance under demanding operating conditions. Available in various models and configurations, including stationary and mobile solutions, our jaw crusher is an ideal choice for high-capacity crushing operations worldwide.

01 1. High Crushing Efficiency Optimized crushing chamber design ensures a high reduction ratio and stable throughput, making it ideal for primary hard rock crushing.
02 2. Heavy-Duty Construction Manufactured with high-strength steel components and wear-resistant parts to withstand harsh mining and quarry environments.
03 3. Wide Range of Applications Suitable for crushing granite, basalt, iron ore, gold ore, limestone, quartz, and other hard and abrasive materials across multiple industries.
04 4. Flexible Capacity Options Available in various models with capacities ranging from 5 TPH to 800 TPH, meeting the requirements of both small and large-scale crushing plants.
05 5. Easy Maintenance & Low Operating Cost The simple mechanical structure allows for quick wear part replacement and reduced downtime, helping lower maintenance and operational costs over the equipment's service life.

WhatsApp Message Email

Jaw Crusher Description

Product Introduction

What is a Jaw Crusher?

A Jaw Crusher is one of the most widely used primary crushing machines in the mining, quarrying, and aggregate industries. It is designed to crush large rocks and ores into smaller sizes for secondary or tertiary crushing processes.

The machine uses compressive force generated by a moving jaw and a fixed jaw to efficiently break hard and abrasive materials.

Jaw crushers are commonly used as primary crushers in:

Mining operations
Quarrying plants
Aggregate processing plants
Recycling applications
Construction material production
Mineral processing plants

Applications

Suitable Materials

Our Heavy-Duty Jaw Crusher is suitable for crushing:

Granite
Basalt
River Stone
Iron Ore
Gold Ore
Copper Ore
Limestone
Dolomite
Quartz
Construction Waste
Concrete Waste
Coal Gangue
Gravel

Industries

Widely used in:

Mining
Quarrying
Aggregate Production
Cement Industry
Recycling Industry
Sand & Gravel Plants
Mineral Processing Plants
Mobile Crushing Plants

Advantages

Why Choose Our Jaw Crusher?

High Crushing Ratio

Designed for primary crushing of hard and abrasive materials with excellent crushing performance.

Heavy-Duty Structure

Manufactured with high-strength steel frame and reinforced components for long service life.

Large Feed Opening

Suitable for large rock sizes and high-capacity operations.

Reliable Performance

Equipped with premium bearings and optimized eccentric shaft design for stable operation.

Easy Maintenance

Simple structure enables fast replacement of wear parts and reduced maintenance downtime.

Adjustable Discharge Size

Flexible discharge opening adjustment for different downstream processing requirements.

Low Operating Cost

Optimized crushing chamber design improves productivity while reducing energy consumption and wear costs.

Main Components

The Jaw Crusher mainly consists of:

Fixed Jaw Plate
Swing Jaw Plate
Flywheel
Eccentric Shaft
Toggle Plate
Bearings
Frame
Motor
V-Belts
Hydraulic Adjustment System (Optional)

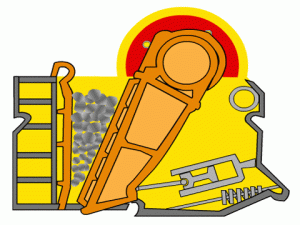

Working Principle

The movable jaw is driven by the eccentric shaft to perform periodic reciprocating movements.

Materials are compressed, crushed, and discharged through the crushing chamber until reaching the desired particle size.

The crushing action ensures:

High throughput
Uniform particle size
Excellent crushing efficiency
Stable operation under heavy loads

Technical Specifications

Model	Feed Opening	Max Feed Size	Capacity	Motor Power
PE250×400	250×400 mm	210 mm	5-20 TPH	15 KW
PE400×600	400×600 mm	340 mm	16-65 TPH	30 KW
PE500×750	500×750 mm	425 mm	45-100 TPH	55 KW
PE600×900	600×900 mm	500 mm	50-180 TPH	75 KW
PE750×1060	750×1060 mm	630 mm	110-320 TPH	110 KW
PE900×1200	900×1200 mm	750 mm	220-450 TPH	132 KW
PE1200×1500	1200×1500 mm	1020 mm	400-800 TPH	220 KW

Optional Configurations

Available options include:

Hydraulic Jaw Crusher
Mobile Jaw Crusher
Portable Jaw Crusher
Single Toggle Jaw Crusher
Heavy Duty Jaw Crusher
Diesel Engine Jaw Crusher
Tracked Mobile Crusher
Wheeled Mobile Crusher

Crusher Wear Parts Available

We also supply complete aftermarket crusher wear parts including:

Jaw Plates
Fixed Jaw Liners
Swing Jaw Liners
Side Plates
Toggle Plates
Bearings
Flywheel
Eccentric Shaft
Bolts and Fasteners

Compatible with major international brands.

Suitable for:

Metso Replacement Parts
Sandvik Replacement Parts
Terex Replacement Parts
McCloskey Replacement Parts
Kleemann Replacement Parts
Trio Replacement Parts

Installation Requirements

Recommended installation:

Item	Requirement
Foundation	Concrete
Feeding Equipment	Vibrating Feeder
Discharge Equipment	Conveyor Belt
Dust Control	Dust Collector
Secondary Crusher	Cone Crusher
Screening Equipment	Vibrating Screen

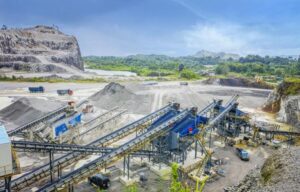

Recommended Crushing Plant

Typical configuration:

Raw Materials
↓
Vibrating Feeder
↓
Primary Jaw Crusher
↓
Cone Crusher
↓
VSI Crusher
↓
Vibrating Screen
↓
Finished Products

Suitable for:

Granite Crushing Plant
Iron Ore Processing Plant
Quarry Crushing Plant
Aggregate Production Line
Sand Making Plant

Packaging & Shipping

Available shipping methods:

Wooden Case
Steel Frame Packing
Container Loading
Knock-down Structure
Export Standard Packing

Container Options:

20GP
40GP
40HQ

RFQ

Frequently Asked Questions

Q1. What materials can your jaw crusher process?

Suitable for granite, basalt, iron ore, limestone, copper ore, quartz and other hard rock materials.

Q2. Is it suitable for primary crushing?

Yes. Jaw crushers are the most commonly used primary crushing equipment in mining and quarry applications.

Q3. What is the maximum feeding size?

Our standard models support feed sizes from 210 mm up to 1020 mm.

Q4. Can you provide mobile jaw crushers?

Yes. We provide both tracked and wheeled mobile crushing solutions.

Q5. Do you provide crusher wear parts?

Yes. Complete aftermarket crusher spare parts are available.

Q6. Can you customize the crushing plant?

Yes. We can provide complete crushing and screening plant solutions based on:

Capacity requirements
Material characteristics
Final product size
Site layout
Power supply conditions

Inquiry Form

Please Tell Us:

What material will be crushed?
Maximum feeding size?
Required output size?
Capacity requirement (TPH)?
Fixed or mobile crushing plant?
Voltage requirement?
Which country will the machine be used in?

Our engineers will recommend the most suitable crushing solution for you.
