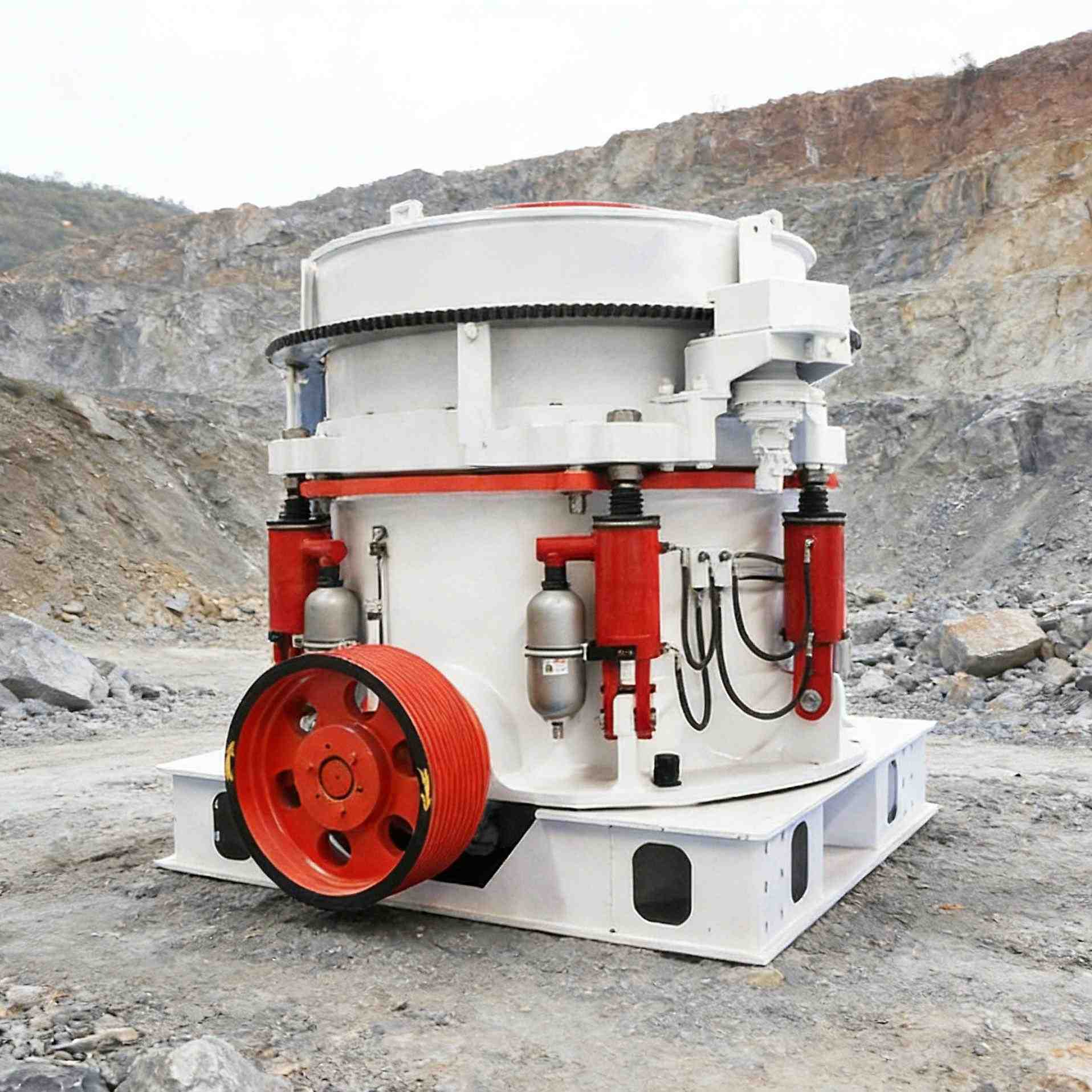

Multi cylinder cone crusher for mining applications

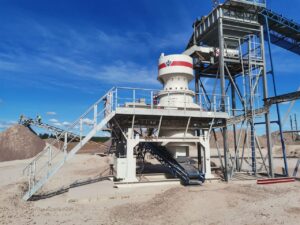

Cone crusher used in aggregate production plant

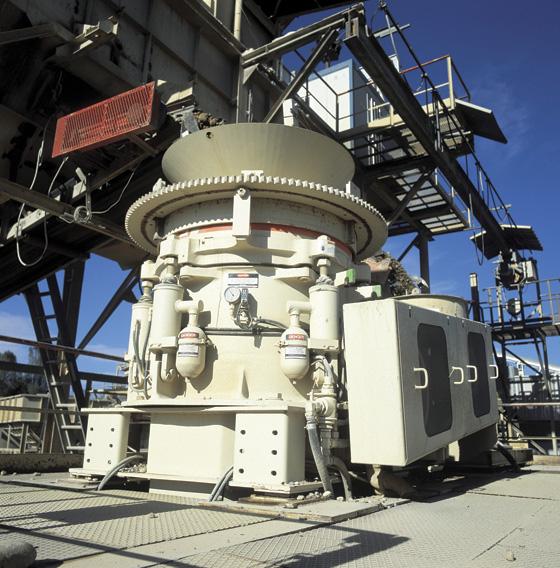

Secondary cone crusher for granite and basalt crushing

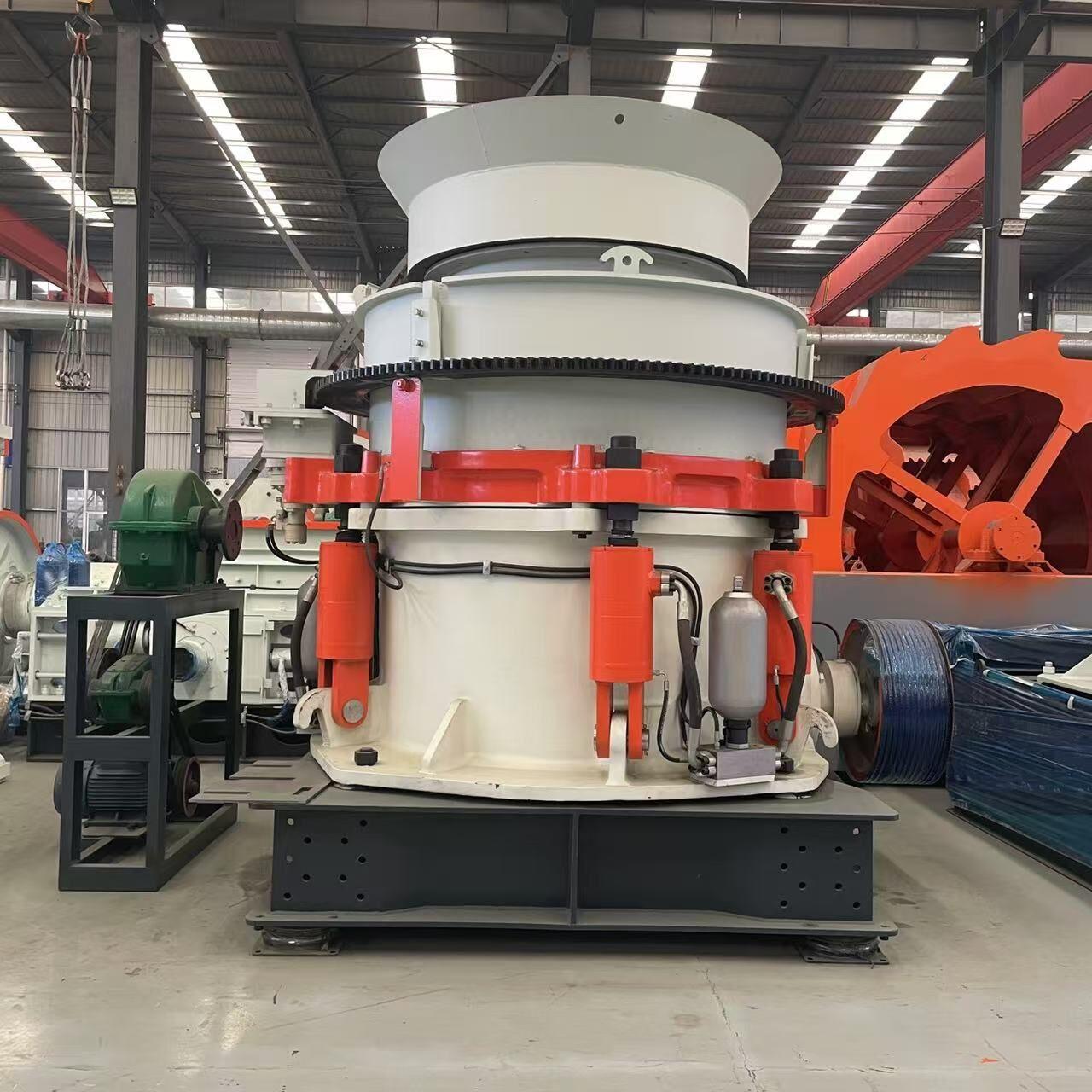

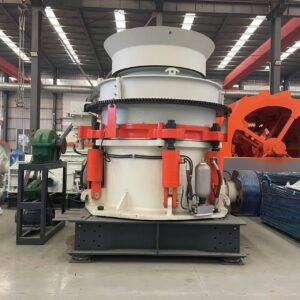

Cone Crusher

The Cone Crusher is a high-performance crushing machine designed for secondary and tertiary crushing in mining, quarrying, and aggregate processing applications. Engineered to handle medium-hard to extremely hard materials, it delivers high crushing efficiency, excellent particle shape, and stable production capacity. Available in hydraulic, multi-cylinder, single-cylinder, and mobile configurations, our cone crushers are widely used for processing granite, basalt, iron ore, copper ore, gold ore, and other abrasive materials. With intelligent hydraulic protection, easy maintenance, and low operating costs, it is an ideal solution for modern crushing and screening plants.

01 1. High Crushing Efficiency Optimized crushing chamber design delivers superior reduction ratios and maximizes throughput for secondary and tertiary crushing applications.
02 2. Excellent Particle Shape Produces uniformly shaped aggregates with improved cubicity, making it ideal for construction aggregates, sand production, and mineral processing.
03 3. Intelligent Hydraulic System Equipped with an advanced hydraulic adjustment and overload protection system for fast CSS adjustment, safer operation, and reduced downtime.
04 4. Heavy-Duty Wear-Resistant Components Manufactured with high-quality wear parts, including mantles and bowl liners, to ensure long service life and lower maintenance costs when processing hard and abrasive ores.
05 5. Flexible Crushing Solutions Available in hydraulic, multi-cylinder, single-cylinder, spring, and mobile cone crusher models to meet various capacity requirements and plant configurations from 50 TPH to over 2000 TPH.

Chat Now Message Email

Cone Crusher Description

Product Introduction

What is a Cone Crusher?

A Cone Crusher is a high-efficiency secondary or tertiary crushing machine widely used in mining, quarrying, aggregate production, and mineral processing industries.

It is specifically designed for crushing medium-hard to extremely hard materials while delivering excellent particle shape, high throughput, and low operating costs.

Compared with jaw crushers, cone crushers provide:

Higher reduction ratios
Better particle size distribution
Higher production capacity
Lower wear costs
Improved crushing efficiency

Applications

Suitable for crushing:

Granite
Basalt
Quartz
Iron Ore
Gold Ore
Copper Ore
Limestone
River Stone
Dolomite
Hard Rock
Construction Aggregates

Industries

Widely used in:

Mining Industry
Quarry Plants
Aggregate Production
Cement Plants
Sand Making Plants
Mineral Processing Plants
Crushing & Screening Plants

Advantages

Why Choose Our Cone Crusher?

High Crushing Efficiency

Optimized crushing chamber design significantly improves throughput and crushing performance.

Excellent Particle Shape

Produces uniform and cubical aggregates ideal for construction applications.

Hydraulic Adjustment System

Allows fast and accurate Closed Side Setting (CSS) adjustment.

High Capacity Production

Available from 50 TPH up to 2000 TPH for large-scale mining projects.

Intelligent Hydraulic Protection

Protects the crusher from overload and minimizes downtime.

Low Operating Cost

Reduces energy consumption and wear part replacement frequency.

Easy Maintenance

Hydraulic opening system makes liner replacement fast and convenient.

Working Principle

The cone crusher utilizes an eccentric rotating mantle inside a stationary bowl liner to compress and crush materials.

Materials are continuously crushed until reaching the required discharge size and then discharged through the bottom opening.

Suitable for:

Secondary Crushing
Fine Crushing
Aggregate Shaping

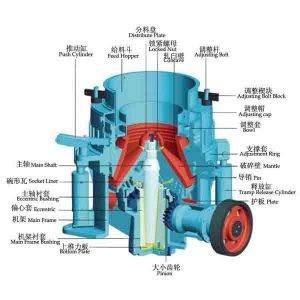

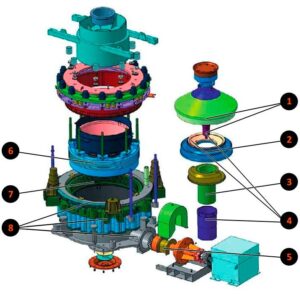

Main Components

Cone Crusher consists of:

Mantle
Bowl Liner
Main Shaft
Eccentric Bushing
Hydraulic Cylinder
Counter Shaft
Adjustment Ring
Frame
Motor
Lubrication System

Technical Specifications

Model	Feed Size	Capacity	Motor Power
HP100	120 mm	55-90 TPH	90 KW
HP200	185 mm	90-200 TPH	160 KW
HP300	210 mm	130-440 TPH	220 KW
HP400	295 mm	180-600 TPH	315 KW
HP500	330 mm	230-790 TPH	400 KW
HP800	353 mm	350-1200 TPH	630 KW

Available Types

We provide:

Hydraulic Cone Crusher

Multi-cylinder Cone Crusher

Single-cylinder Cone Crusher

Symons Cone Crusher

Spring Cone Crusher

Mobile Cone Crusher

Tracked Cone Crusher

Portable Cone Crusher

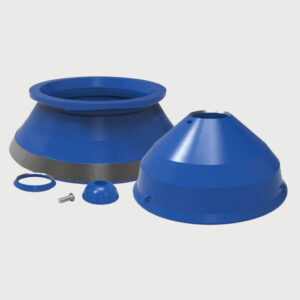

Crusher Wear Parts Available

We supply aftermarket crusher wear parts including:

Mantle
Bowl Liner
Concave
Main Shaft
Counter Shaft
Eccentric Bushing
Thrust Bearing
Socket Liner
Adjustment Ring
Feed Cone

Compatible Brands

Suitable replacement parts for:

Metso
Sandvik
Terex
McCloskey
Trio
Kleemann
Powerscreen
Telsmith
Symons

Recommended Crushing Plant

Typical Crushing Plant Layout:

Vibrating Feeder
↓
Primary Jaw Crusher
↓
Cone Crusher
↓
VSI Crusher
↓
Vibrating Screen
↓
Finished Products

Suitable for:

Granite Crushing Plant
Iron Ore Plant
Aggregate Plant
Copper Processing Plant
Quarry Crushing Plant

Packaging & Shipping

Available packing methods:

Steel Frame Packing
Wooden Case
Export Standard Packing
Container Loading

Container options:

20GP
40GP
40HQ

RFQ

Q1. What materials can your cone crusher process?

Suitable for hard and abrasive materials such as granite, basalt, quartz, iron ore, and copper ore.

Q2. Is it suitable for secondary crushing?

Yes. Cone crushers are widely used as secondary and tertiary crushing equipment.

Q3. What capacity do you provide?

From 50 TPH to over 2000 TPH depending on the model selected.

Q4. Can you provide complete crushing plants?

Yes. We offer complete crushing and screening plant solutions.

Q5. Do you provide replacement wear parts?

Yes. Complete aftermarket crusher wear parts are available.

Q6. Which brands are compatible?

We provide compatible wear parts for Metso, Sandvik, Symons, Terex, Trio, and many other international brands.

Inquiry Form

Please Tell Us:

What material will be crushed?
Maximum feed size?
Required output size?
Capacity requirement (TPH)?
Fixed or mobile crushing plant?
Which country will the machine be used in?
Do you need wear parts together?
Is this for secondary or tertiary crushing?

Our engineers will recommend the most suitable crushing solution for your project.
