Heavy Duty Conveyor Rollers & Idlers for Mining and Quarrying

Heavy Duty Conveyor Rollers & Idlers for Mining and Quarrying

Reliable Conveyor Rollers & Idlers are essential for maintaining stable belt movement, reducing conveyor resistance and supporting continuous bulk material transportation. Our Heavy Duty Mining Conveyor Rollers are engineered for demanding applications in mines, quarries, aggregate plants, crushing plants, cement facilities and other bulk material handling operations.

Mining conveyors frequently operate under severe conditions involving abrasive ore, heavy loads, impact, dust, moisture and material carryback. For these environments, ordinary light-duty rollers may suffer premature bearing, shell or sealing failure. Our Mining Conveyor Idlers are designed with robust roller shells, heavy-duty shafts, reliable bearings and effective sealing arrangements to provide dependable performance in continuous conveyor systems.

Complete rollers, idler sets and replacement components can be customized according to conveyor belt width, roller dimensions, loading conditions and existing equipment drawings.

Troughing Idlers for Loaded Conveyor Belts

Troughing Idlers / Troughing Rollers support the carrying side of the conveyor belt and form a stable trough for transporting bulk materials.

Three-roll troughing idler assemblies are commonly supplied with 20°, 30°, 35° and 45° trough angles. Different configurations can be selected according to belt width, conveying capacity and material characteristics.

These idlers are suitable for transporting:

• Iron ore and metal ores
• Coal and coke
• Limestone and cement raw materials
• Crushed stone and aggregates
• Sand and gravel
• Mineral concentrates and bulk solids

Heavy-duty troughing configurations provide reliable belt support for long-distance and high-capacity mining conveyor systems.

Impact Rollers for Loading and Transfer Zones

Conveyor loading points are among the most demanding areas of a belt conveyor. Falling rocks and bulk material can generate significant impact forces.

Impact Rollers / Impact Idlers use rubber rings or impact discs to absorb shock loads and reduce direct impact transmitted to the conveyor belt and supporting structure.

They are commonly installed:

• Under loading hoppers
• Below crusher discharge points
• At conveyor transfer stations
• Beneath material feed chutes

For mining and quarry applications handling large or abrasive material, impact idlers can help reduce belt damage and improve conveyor component service life.

Return, Cleaning and Training Idlers

Return Rollers / Flat Return Idlers support the empty belt on its return path. Steel return rollers provide a simple heavy-duty solution, while Rubber Disc Return Rollers are suitable where carryback and sticky material create buildup problems.

Spiral Cleaning Rollers can also be used where wet ore, clay, coal fines or other materials tend to adhere to the return belt.

For conveyors experiencing belt deviation, Self-Aligning Idlers / Training Idlers help guide the belt toward the correct operating position. Proper belt tracking helps reduce edge damage, spillage and unnecessary wear on the conveyor structure.

Roller Material Options

Our conveyor roller range includes:

Steel Conveyor Rollers – High mechanical strength for heavy-duty mining and quarry applications.

HDPE / Composite Conveyor Rollers – Lightweight and corrosion-resistant options for selected bulk handling environments.

Polyurethane Coated Rollers – Suitable for applications requiring enhanced surface wear resistance or protection.

Rubber Disc / Rubber Ring Rollers – Designed for impact absorption, belt support and material buildup control.

Typical Technical Specifications

Designed for Harsh Bulk Handling Conditions

Long roller life depends on the complete roller design rather than one individual component. Roller shell thickness, bearing quality, shaft strength, sealing performance, rotational resistance and manufacturing accuracy all affect conveyor reliability.

For dusty or wet mining environments, sealing configurations can be selected to help protect bearings against contamination. Roller dimensions and structural designs can also be adjusted according to conveyor load, belt speed and installation conditions.

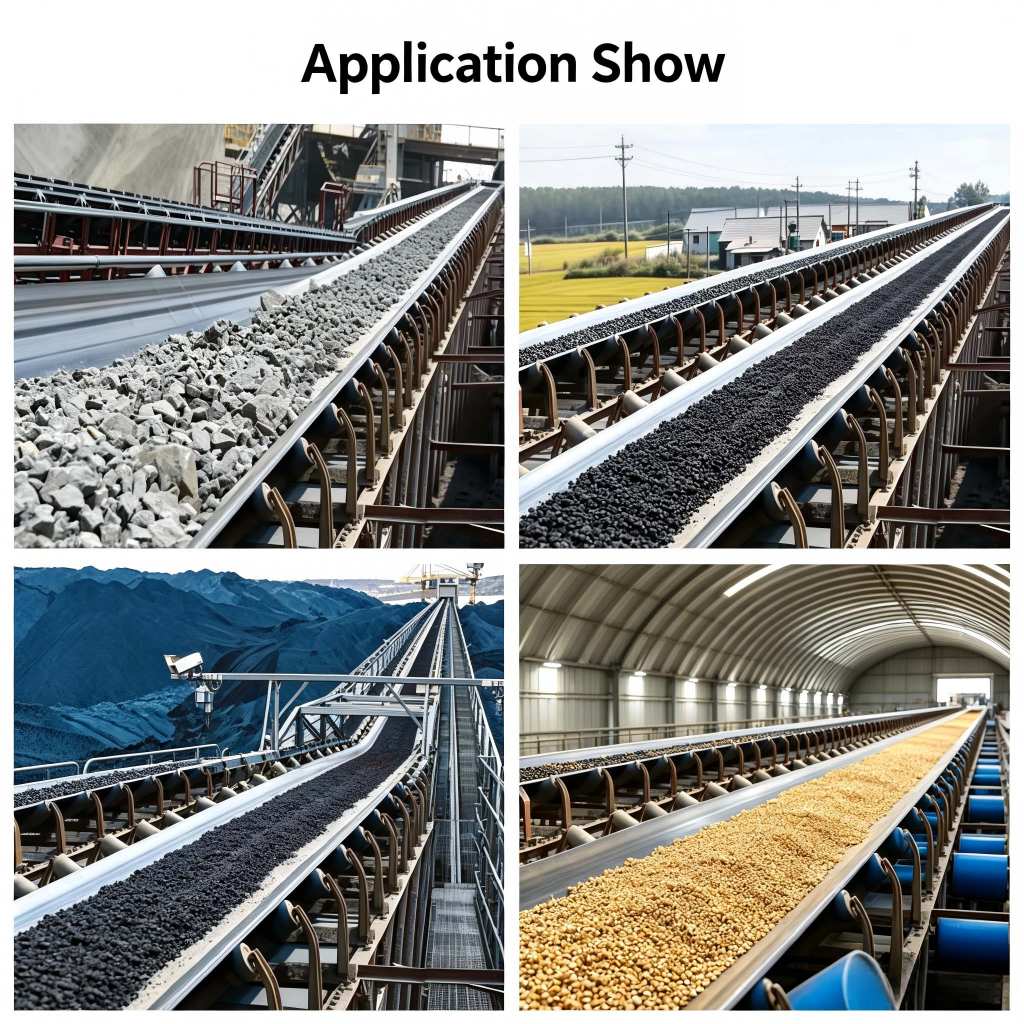

Typical Applications

Our Mining Conveyor Rollers & Idlers are widely used in:

Open-pit mining, underground mining, mineral processing plants, crushing and screening plants, aggregate quarries, coal handling systems, cement plants, limestone processing, ports, stockyards and long-distance overland conveyors.

Whether replacing one damaged roller or supplying complete idler assemblies for a conveyor project, we can manufacture according to existing dimensions, drawings and operating requirements.

RFQ – Information Required

For accurate selection and quotation, please provide:

1. Roller type and required quantity
2. Conveyor belt width
3. Roller diameter and face length
4. Shaft diameter and shaft-end dimensions
5. Trough angle and idler arrangement
6. Conveyed material and maximum lump size
7. Conveyor capacity and belt speed
8. Operating environment
9. Required CEMA, DIN or ISO standard
10. Existing drawings, photos or samples

Custom replacement rollers can be developed according to your existing conveyor system, helping simplify maintenance and replacement projects.
