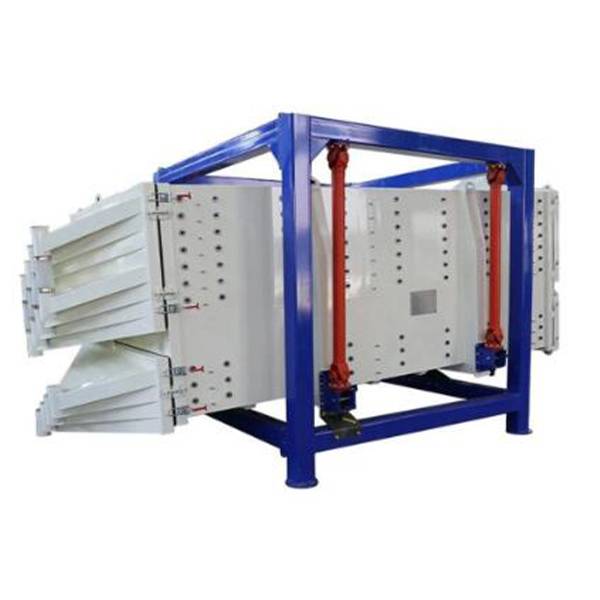

Gyratory Sifter
The screen mesh frame and the screen mesh installation method adopt a unique and innovative design, and the installation is very convenient. Usually 9-layer design, can be divided into 10 grades at one time, or 4 layers + 4 layers equivalent to 2 sets sieve machine, or 2 layers + 2 layers + 2 layers equivalent to 3 sets sieve machine Or designed as 1 layer +1 layer +1 layer +1 layer +1 layer is equivalent to 5 sets sieve machines.
-
Parameters
Description of GYRATORY SIFTER
Our Gyratory Sifter Machine meet the user’s large output and high precision requirements.
The screen mesh frame and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient.
The screen mesh frame and the screen mesh installation method adopt a unique and innovative design, and the installation is very convenient. Usually 9-layer design, can be divided into 10 grades at one time, or 4 layers + 4 layers equivalent to 2 sets sieve machine, or 2 layers + 2 layers + 2 layers equivalent to 3 sets sieve machine Or designed as 1 layer +1 layer +1 layer +1 layer +1 layer is equivalent to 5 sets sieve machines.
Advantage of Gyratory Sifter
- Fully enclosed structure, dust does not fly, the screen machine has small vibration and low noise, which meets the requirements of environmental protection.
- Flexible screening, the acceleration is 4-5 times lower than that of ordinary vibrating screens, and the service life is increased, thereby reducing maintenance costs.
- Large-scale electrostatic spraying process makes the equipment more beautiful, wear-resistant and rust-proof.
- Output up to 20TPH
- Screening accuracy 99.9%
Main technical parameters of Gyratory Sifter
| Model | Screen Size
(m) |
Sieve Area（m2)） | Angle(°） | Layer | Power (kw) | Number of turns | Screen box stroke（mm） |
| HT-1536 | 1.5m x 3.6m | 5.4m2 | 5.43±3 | 1-10 layers | 5.5 | 180-260 | 60-25 |
| HT2040 | 2m x 4m | 8m2 | 5.43±3 | 1-10 layers | 7.5 | 180-260 | 60-25 |
Application of Gyratory Sifter
It is widely used in oil fracturing sand, mechanism quartz sand, foundry sand, glass yarn, colored sand,mullite sand,cat litter, perlite, edible salt, etc.
