Gold Sluice Box

HUATAO Gold Sluice Box is a gravity-based gold recovery solution designed for separating gold and other high-density minerals from sand, gravel and alluvial deposits. It can be used as an independent placer gold sluice for prospecting and small-scale mining, or integrated into a gold wash plant, trommel, highbanker, dredge or other gold recovery equipment for continuous processing.

The basic principle is simple: as gold-bearing material passes through the sluice under a controlled water flow, lighter sand and gravel are carried downstream while heavier gold particles settle into the recovery area. The effectiveness of the system depends on the combination of water velocity, sluice angle, feed rate, material size, riffle configuration and recovery matting.

For this reason, HUATAO focuses not only on the metal sluice box itself, but also on the complete recovery section, including rubber sluice mat, sluice carpet, expanded metal riffles, rubber riffles and customized recovery configurations.

Designed for Different Gold Recovery Applications

HUATAO Gold Sluice Boxes can be configured according to the scale and operating conditions of the project.

For individual prospectors, the Portable Gold Sluice Box provides a lightweight and practical solution for exploring rivers, streams and placer deposits. Its compact structure makes transportation, setup and cleanup easier, especially in remote mining areas where equipment mobility is important.

For small-scale gold mining operations, the sluice can be combined with a hopper, classifier, spray bar or pump to create a High Banker Sluice Kit. A suitable hopper and feed distribution system helps provide a more consistent feed while the recovery section captures gold from the processed material.

For dredging applications, the sluice box can be designed as a Dredge-Mounted Sluice Box and connected with the dredge’s suction and water-flow system. The recovery section can be configured according to the expected feed size and gold particle distribution.

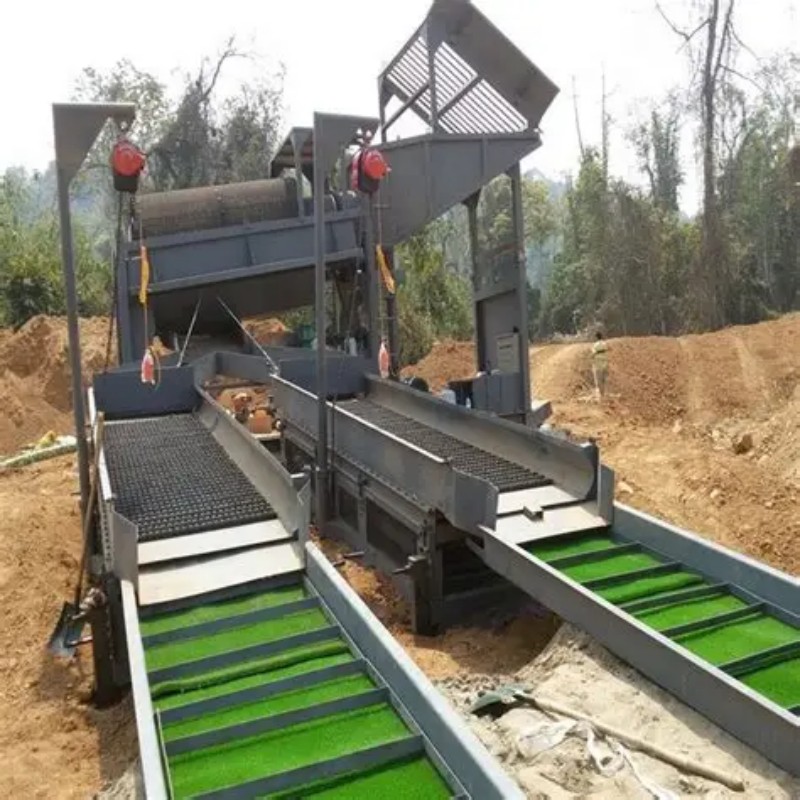

For commercial operations, HUATAO sluice boxes can also be incorporated into an Alluvial Gold Washing Plant. They can receive classified material from trommel screens, vibrating screens or scrubbers and provide a gravity recovery stage before tailings discharge or further concentration.

Fine Gold Recovery and Recovery Matting

Fine gold recovery is one of the most important considerations when selecting a gold sluice. A sluice that catches coarse gold but loses fine particles may not deliver the desired overall recovery performance.

HUATAO therefore offers different recovery-area configurations according to the application. Rubber Sluice Mat, Sluice Carpet, Expanded Metal Riffles and Rubber Riffles can be combined to create different trapping zones.

The upper section can be designed to handle higher-energy flow and larger particles, while downstream sections can use a more controlled recovery surface for smaller gold particles. This staged approach helps balance material flow, concentrate retention and cleanup requirements.

The actual recovery performance is influenced by many operating variables, including feed characteristics, water flow, sluice pitch, particle size distribution and gold liberation. Therefore, the recommended configuration should be selected according to the specific mining conditions rather than using one fixed design for every deposit.

Optimized Water Flow and Riffle Configuration

Water management is critical to sluice operation. The objective is not simply to create a fast water flow, but to maintain suitable turbulence and settling conditions so that high-density gold particles can be retained while lighter materials continue downstream.

The sluice structure, flare design, riffle arrangement and matting pattern can be adjusted according to the application. Operators can fine-tune the sluice angle, water flow and feed rate during operation to achieve a stable recovery condition.

For deposits containing a mixture of coarse gold and fine gold, a multi-stage recovery configuration can be used. A more aggressive trapping area can handle the initial feed, followed by a finer recovery section downstream.

This concept is particularly useful when processing variable alluvial material, where river gravel, black sand, clay and fine sediment may occur together.

Modular and Customizable Sluice Systems

Different mining projects require different equipment configurations. HUATAO can supply the sluice box as a basic recovery unit or develop a more complete Modular Sluice System according to the customer’s equipment layout.

Available configurations may include:

• Basic sluice box
• Portable sluice box with support legs
• Sluice box with hopper and spray bar
• Highbanker sluice system
• Dredge-ready sluice configuration
• Multi-stage sluice recovery system
• Trommel or scrubber discharge sluice
• Alluvial gold wash plant sluice
• Customized sluice box for specific site conditions

The dimensions, recovery length, width, support structure, feed arrangement and recovery media can be customized according to the customer’s required throughput and installation space.

Suitable for Alluvial and Placer Gold

Gold sluice boxes are widely used in placer gold mining because they can recover gold using gravity and water without relying on complex chemical processes.

Typical feed materials include river gravel, alluvial sand, weathered material, black sand and other unconsolidated deposits containing free gold.

The equipment can be used in:

• River and stream placer gold mining
• Alluvial gold recovery
• Small-scale gold mining
• Artisanal and small-scale mining operations
• Gold prospecting
• Remote exploration projects
• Dredging operations
• Highbanker systems
• Trommel wash plants
• Gold wash plants
• Gold recovery test plants

For clay-bound or highly compacted deposits, the sluice is normally used after appropriate screening, scrubbing or washing. This helps liberate gold particles before they enter the recovery section.

Simple Operation and Easy Cleanup

One of the major advantages of a sluice box is its relatively simple operating principle. Compared with more complex concentration equipment, a properly configured sluice can provide continuous gravity separation with comparatively straightforward operation.

The recovery section can also be designed for convenient cleaning. Depending on the configuration, mats, riffles and other recovery components can be removed or replaced without replacing the complete sluice box.

This makes the system practical for remote locations where maintenance resources, power supply and transportation capacity may be limited.

Specifications

HUATAO can manufacture gold sluice boxes in different dimensions and configurations. Typical specification items include:

For commercial projects, HUATAO recommends confirming the following information before quotation: required capacity, feed size, material type, gold particle size, expected gold recovery target, available water flow, installation method and upstream equipment.

Why Choose HUATAO Gold Sluice Box?

HUATAO supplies mining and mineral-processing equipment and wear solutions for customers in different countries and operating environments. Our advantage is not simply supplying a standard sluice box, but helping customers select a practical configuration according to the actual application.

We can provide customized sluice dimensions, recovery media and installation configurations for different placer gold projects.

Before production, technical drawings can be provided for customer confirmation when customization is required. For projects involving trommels, highbankers, dredges or complete wash plants, the sluice can also be designed around the existing equipment layout.

For customers who are not sure which sluice configuration is suitable, please send us your material information, required capacity, feed size, gold particle size and equipment layout. Our team can recommend a suitable recovery configuration and quotation.

Request a Quote

Looking for a Gold Sluice Box, Fine Gold Recovery Sluice, Portable Gold Sluice or customized placer gold recovery system?

Send HUATAO your project requirements, including:

• Material to be processed
• Required capacity
• Feed particle size
• Gold particle size or expected gold distribution
• Water availability
• Sluice dimensions, if already specified
• Upstream equipment such as trommel, scrubber or dredge
• Installation location and operating conditions

We can then recommend the appropriate sluice box size, recovery matting, riffle configuration and supporting equipment for your application.
