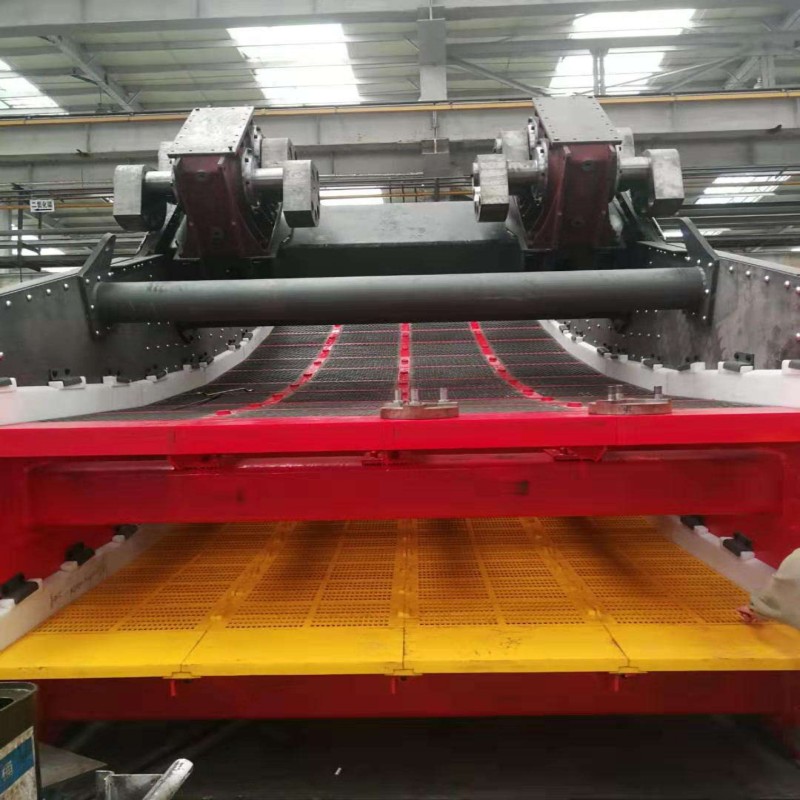

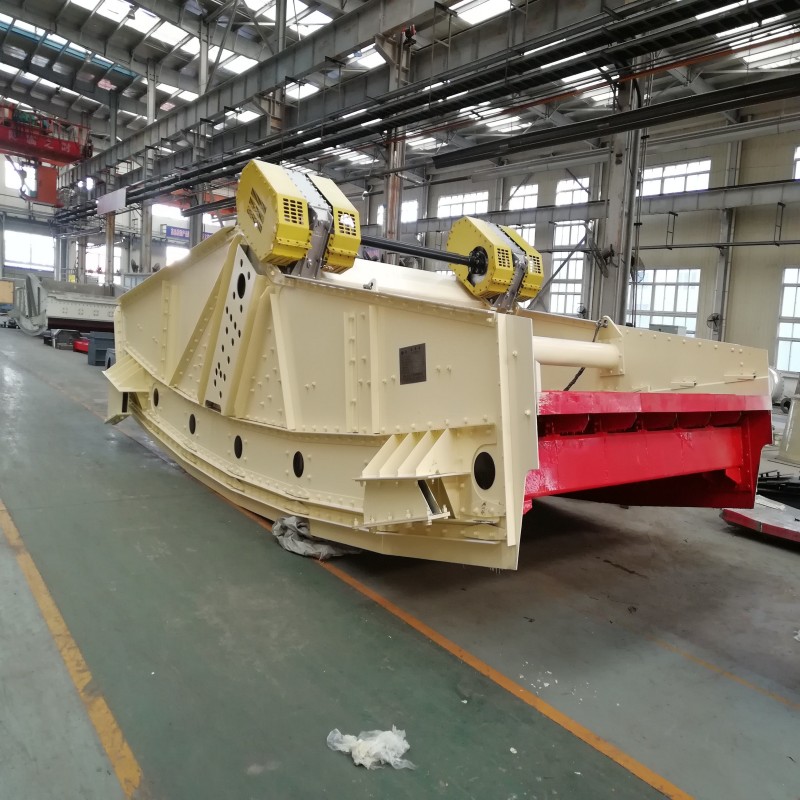

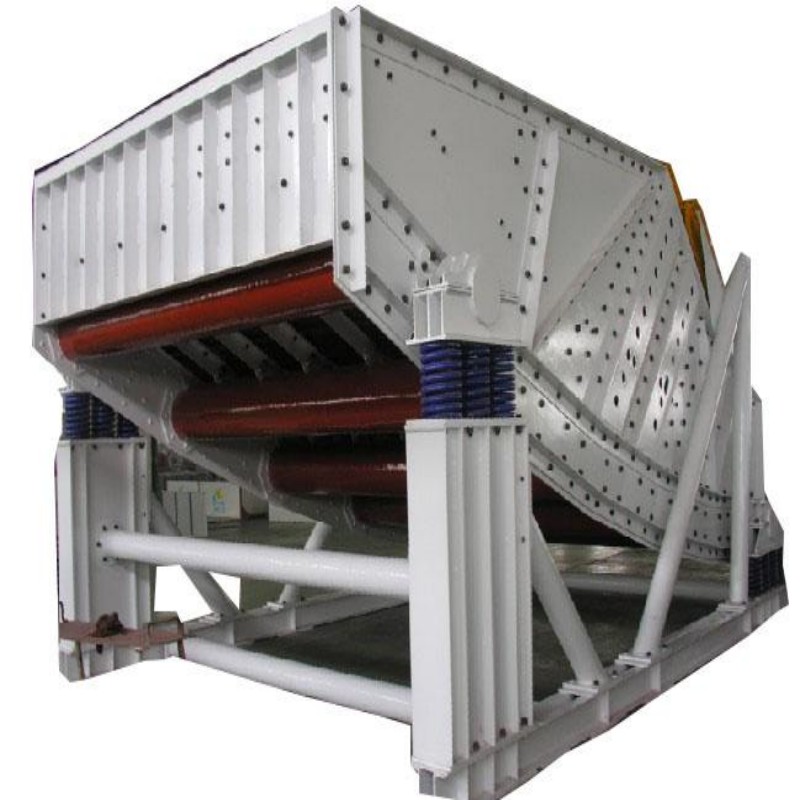

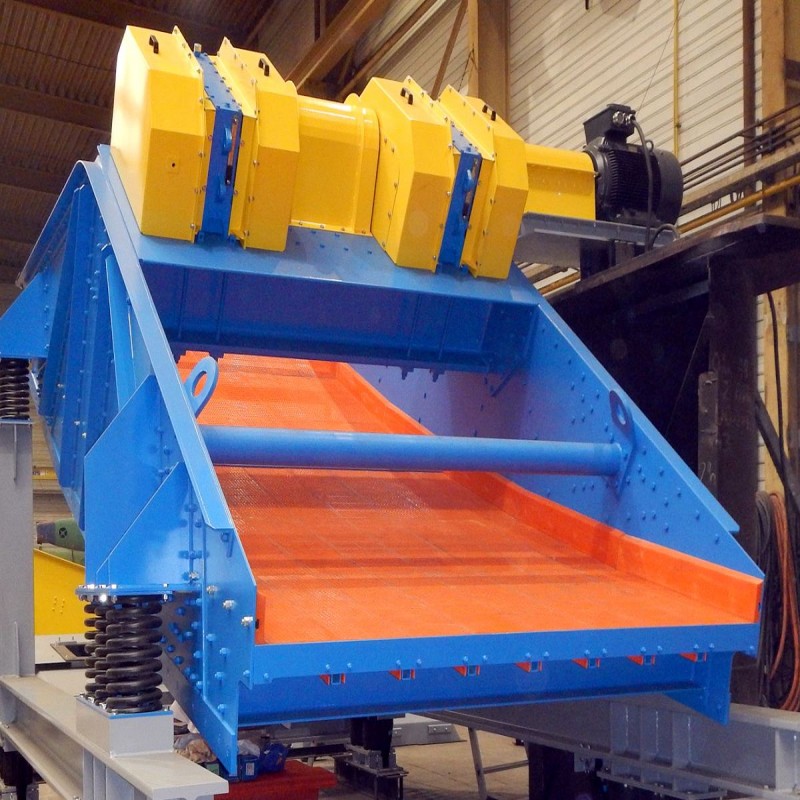

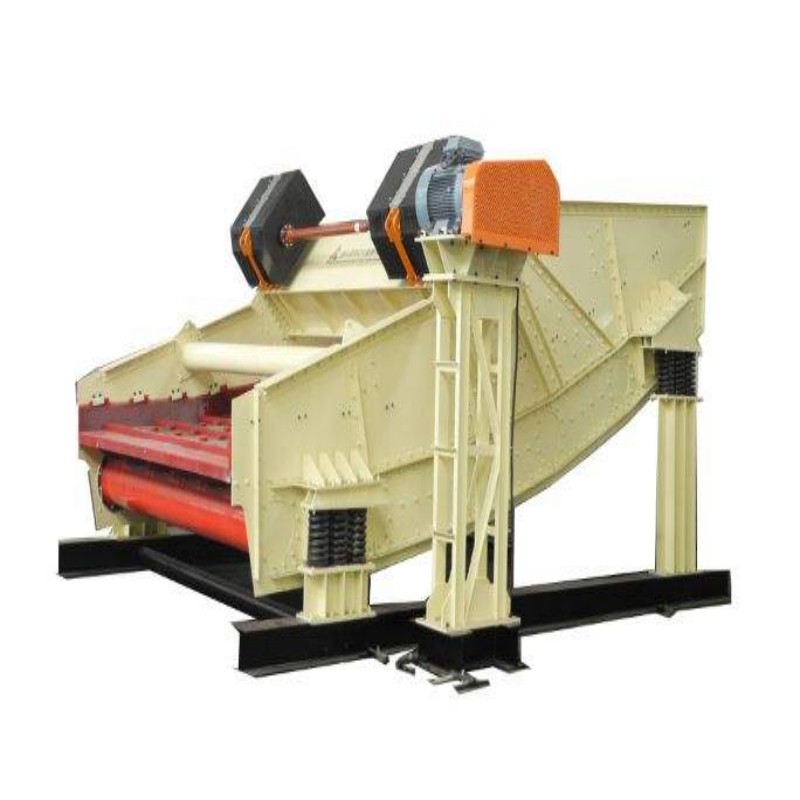

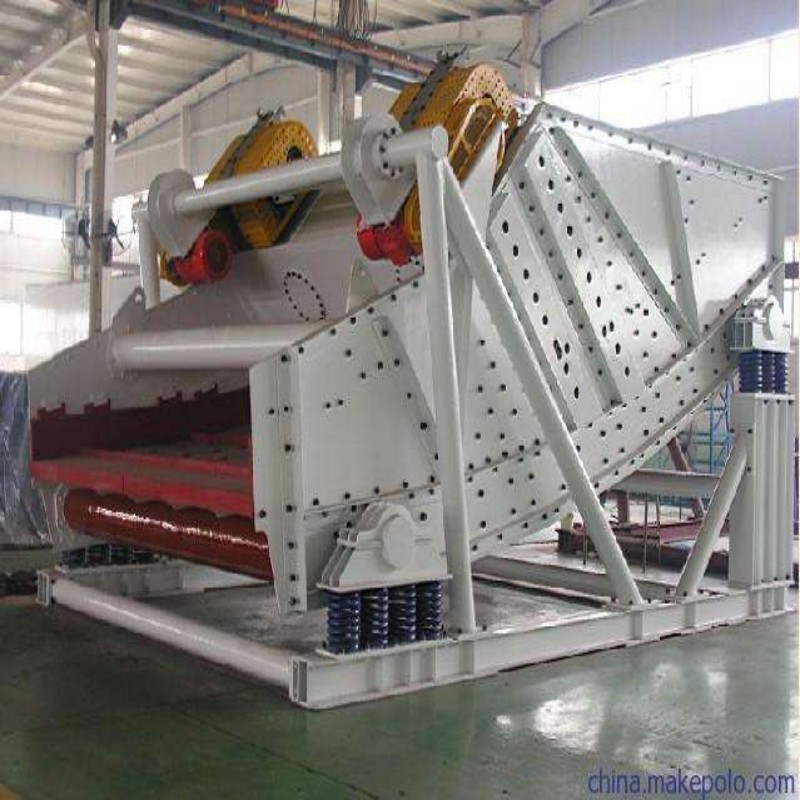

Banana Screen

Product Introduction

HUATAO Banana Screen, also known as Banana Vibrating Screen or Multi-Slope Vibrating Screen, is a high-performance screening solution specially designed for large-capacity mineral processing, coal preparation, and aggregate production applications.

Unlike conventional flat vibrating screens, the banana screen adopts a unique multi-inclination deck design with different screening angles along the material flow direction. This optimized geometry allows high-speed material transportation at the feed end while providing accurate separation at the discharge end.

The multi-slope structure significantly increases screening capacity without increasing the overall equipment footprint, making it an ideal choice for modern mining operations requiring high throughput, reliable performance, and reduced operating costs.

HUATAO heavy-duty banana screens are widely used for:

• Iron ore screening
• Coal classification
• Mineral processing
• Quarry and aggregate production
• Sand and gravel processing
• Crushing and screening plants

Advanced Multi-Slope Screening Technology

The key advantage of a banana vibrating screen is its variable inclination deck design.

The screen surface is divided into multiple sections with different angles:

• Steeper inclination at the feed end for rapid material movement
• Reduced inclination in the middle section for effective stratification
• Lower angle at the discharge end for accurate final separation

This multi-slope structure creates a balanced combination of:

• High material velocity
• Maximum screening efficiency
• Large processing capacity
• Improved particle stratification

Compared with traditional horizontal vibrating screens, banana screens can process significantly higher volumes of material with the same screening area.

The optimized deck profile allows more particles to contact the screen surface, improving fine particle separation while maintaining high throughput.

High-Capacity Screening Solution for Mining Applications

Iron Ore Screening

In iron ore beneficiation plants, efficient size classification is critical for improving downstream processing performance.

HUATAO banana screens are suitable for:

• Iron ore lump screening
• Fine ore classification
• Crusher circuit screening
• Concentrate preparation

The high-capacity multi-slope design helps mining operators handle large material volumes while maintaining stable separation efficiency.

Coal Banana Screen for Coal Preparation Plants

Coal processing requires reliable screening equipment capable of handling large quantities of wet and dry coal.

Banana vibrating screens are widely used for:

• Raw coal classification
• Clean coal screening
• Coal sizing
• Moist coal processing

The high acceleration vibration improves material stratification and reduces the risk of screen blinding when processing fine or damp coal.

Aggregate and Quarry Screening

For quarry and aggregate operations, production efficiency depends on continuous high-volume screening.

The banana screen provides excellent performance for:

• Crushed stone classification
• Sand and gravel screening
• Manufactured sand production
• Secondary and tertiary screening applications

Its high-capacity design allows producers to increase output while maintaining product quality.

Key Advantages of HUATAO Banana Screen

1. High Capacity Multi-Slope Design

The multi-slope deck increases material flow speed at the beginning of the screen while maintaining effective separation in later sections.

Benefits include:

• Higher throughput
• Reduced equipment footprint
• Improved screening efficiency
• Lower investment per ton of production

2. Efficient Linear Motion Screening

HUATAO banana vibrating screens use optimized linear vibration motion to achieve stable material transportation and effective particle separation.

The controlled vibration movement provides:

• Uniform material distribution
• Better screening accuracy
• Reduced material accumulation
• Reliable long-term operation

3. High G-Force Screening Performance

The high acceleration vibration system improves particle stratification and allows efficient screening of difficult materials.

High-G force operation helps:

• Increase screening efficiency
• Reduce plugging problems
• Improve fine particle recovery

4. Heavy-Duty Structure for Mining Conditions

Designed for demanding mining environments, HUATAO banana screens feature robust construction and wear-resistant components.

Features include:

• Reinforced screen frame
• Heavy-duty vibration system
• Modular screen media
• Easy maintenance design

The equipment is suitable for continuous operation in harsh industrial environments.

5. Flexible Screen Media Options

HUATAO provides customized screening media solutions according to different materials and applications.

Available options include:

• Polyurethane screen panels
• Rubber screen panels
• Woven wire mesh
• Anti-blinding screen media

Different aperture sizes can be selected according to required product specifications.

Technical Specifications

Multi-Deck Banana Screen Configuration

HUATAO banana screens can be customized with different deck configurations:

Single Deck Banana Screen

Suitable for basic classification applications requiring high capacity.

Double Deck Banana Screen

Provides two-stage separation and improves product sizing accuracy.

Triple Deck Banana Screen

Designed for complex classification requirements with multiple final products.

The modular design allows customers to select the most suitable configuration according to production requirements.

Why Choose HUATAO Banana Screen?

HUATAO provides professional screening solutions for global mining, quarry, and mineral processing industries.

Our advantages include:

• Customized equipment design
• Professional screening technology support
• Complete screen media solutions
• Wear-resistant component supply
• Application-based engineering recommendations

Whether for new screening plants or replacement of existing international brand equipment, HUATAO can provide reliable and cost-effective banana screen solutions.

RFQ / Request for Quote

To recommend the suitable banana vibrating screen model, please provide:

1. Material type and characteristics
2. Required capacity (tons/hour)
3. Feed particle size
4. Required screening sizes
5. Material moisture condition
6. Number of decks required
7. Existing equipment information (for replacement projects)
8. Installation dimensions

Our engineers will provide a customized screening solution, technical specifications, and competitive quotation.

Product Summary

HUATAO High Capacity Banana Screen is an advanced multi-slope vibrating screening machine designed for large-scale mining, coal, and aggregate applications. With optimized multi-inclination deck technology, high acceleration vibration, and flexible screen media options, it delivers higher throughput, accurate separation, and reliable performance under demanding industrial conditions.
