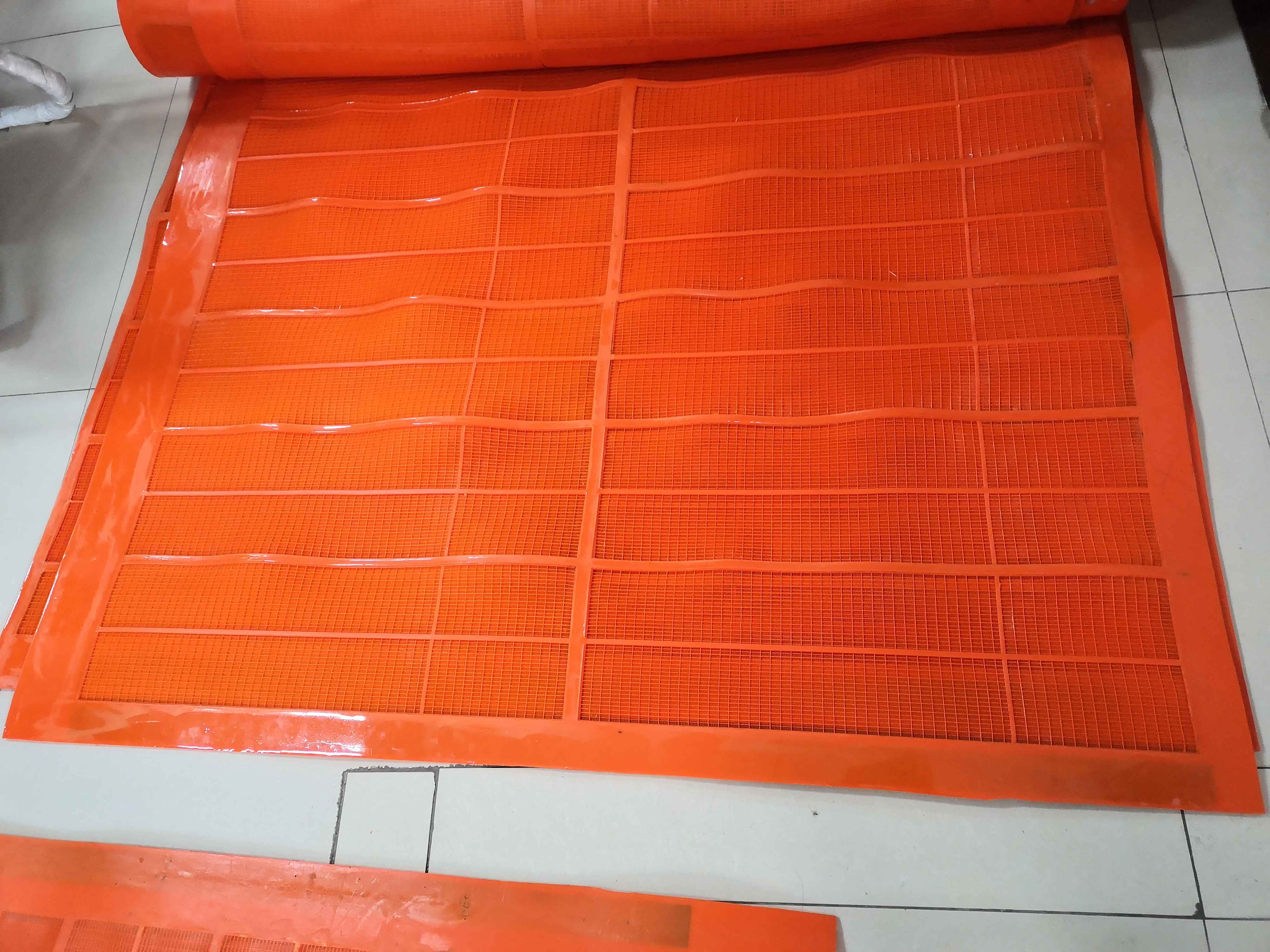

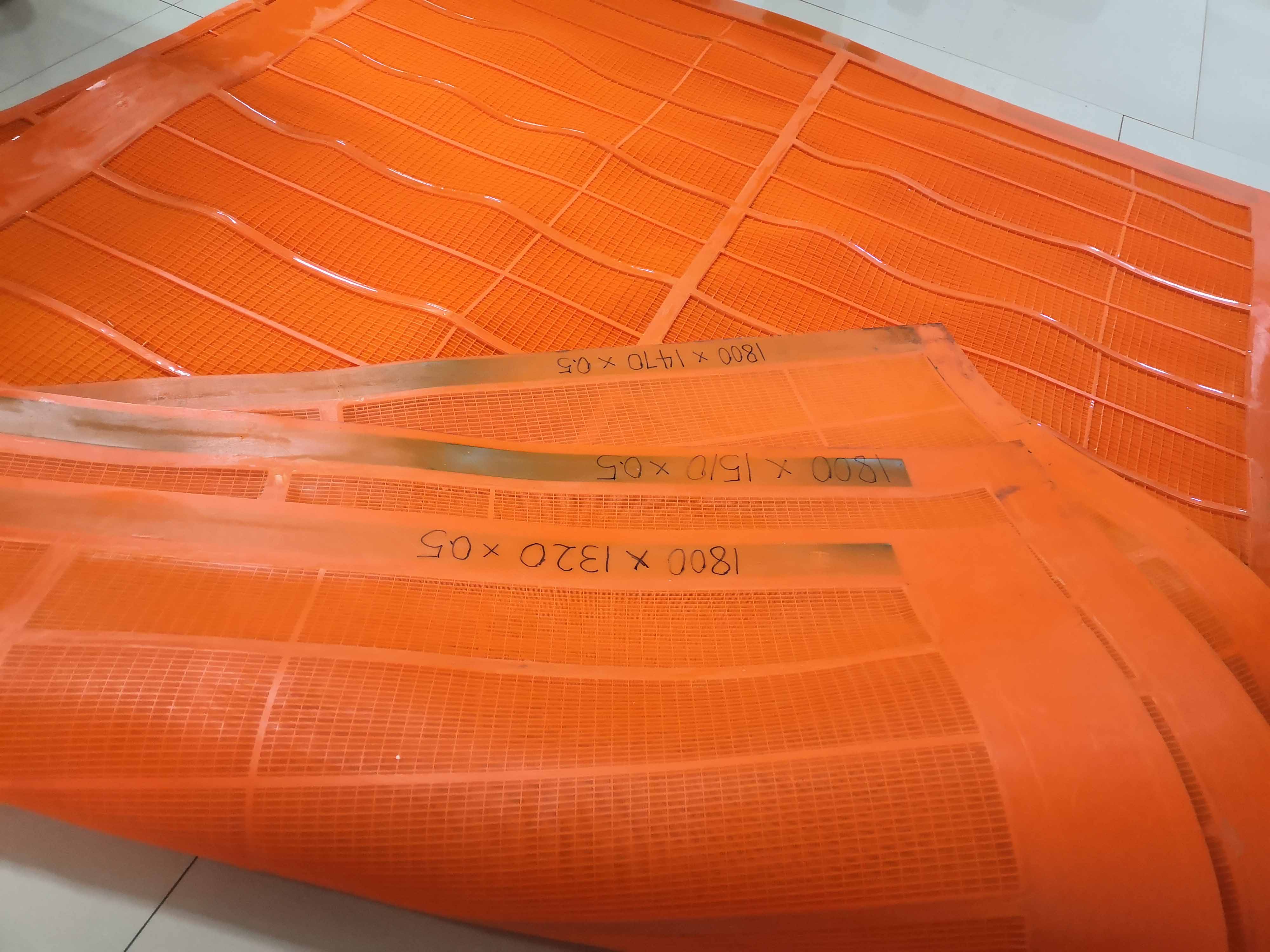

What Is a Polyurethane Fine Screen Mat?
A Polyurethane Fine Screen Mat is a high-performance screening media designed for high-frequency mineral processing applications. It offers superior wear resistance, self-cleaning properties, and a long service life, providing a cost-effective alternative to expensive OEM fine screen panels.
✔ Reduce procurement costs by up to 50% compared to OEM panels
✔ Increase screening efficiency by approximately 35%
✔ Achieve a working life of over 6 months with excellent wear resistance
✔ Suitable for high-frequency screening machines with aperture ranges from 0.045 mm to 8.0 mm
✔ Available as a direct OEM replacement with full customization options
| Item | Description |
|---|---|
| Function | Fine screening of minerals in high-frequency applications |
| Material | Premium Polyurethane |
| Aperture Range | 0.045 mm – 8.0 mm |
| Open Area | 30–40% |
| Service Life | > 6 months under normal operating conditions |
| Benefits | Cost-effective, high wear resistance, self-cleaning, reduced blinding, customizable |
In mineral processing, every hour of downtime and every unnecessary screen replacement directly impacts production costs. Many equipment manufacturers and mine operators continue to rely on expensive OEM fine screen panels, believing they are the only reliable option. However, high prices, limited customization, and long lead times often become major challenges.
We've seen this situation repeatedly. Customers want the same or even better screening performance while reducing operating costs and gaining more flexibility in supply. POLYURETHANE SCREEN PANELS are specifically engineered to meet these demands, offering a superior alternative to traditional OEM parts.
Polyurethane Fine Screen Mats are specifically designed for high-frequency screening applications where precision, durability, and continuous operation are critical. They are typically installed on HIGH-FREQUENCY VIBRATING SCREEN MACHINES to achieve fine separations.
Compared with conventional fine screening media, polyurethane offers excellent wear resistance, high elasticity, and outstanding self-cleaning performance. These characteristics significantly reduce pegging and blinding, helping maintain a stable open area throughout the screening process. This ensures consistent product quality and maximizes the efficiency of downstream processes like flotation.
OEM Replacement Available: Compatible with leading high-frequency screening equipment while supporting fully customized production. This includes precise replacements for critical components in your classification circuit, such as the VORTEX FINDER .
No Plugging Holes: The elastic polyurethane structure effectively reduces blinding and improves screening continuity, even when processing challenging materials like COAL .
Long Service Life: Superior wear resistance delivers over six months of reliable operation, reducing replacement frequency and maintenance costs. This durability is a key factor in the POLYURETHANE SCREEN PANELS VS RUBBER SCREEN PANELS comparison, where polyurethane often excels in fine screening applications.
Significant Cost Reduction: Save up to 50% on procurement costs without sacrificing performance.
Beyond protecting your investment, the right screen media also improves production stability and reduces unexpected shutdowns.
Polyurethane Fine Screen Mats are ideal for a wide range of mineral processing applications, including:
Iron Ore Beneficiation: For fine screening of magnetite and hematite.
Coal Preparation: For dewatering and fine coal recovery.
Copper Ore Processing: For classification and separation.
Silica Sand Screening: For producing high-purity glass sand.
Gold Ore Processing: For fine gold recovery.
They are a critical component in ensuring the efficiency of your entire processing plant, from primary crushing to final dewatering with specialized POLYURETHANE DEWATERING SCREEN PANEL solutions.
| Property | Polyurethane | Rubber | Steel/Wire Mesh |
|---|---|---|---|
| Wear Resistance | Excellent | Good | Moderate |
| Self-Cleaning | Excellent (reduces blinding) | Very Good | Poor (prone to blinding) |
| Elasticity | High | Very High | Low |
| Abrasion Resistance | Superior | Good | Moderate |
| Cost | Moderate (Low TCO) | Low-Moderate | Low (High TCO) |
| Best Application | Fine screening, high-frequency | Coarse screening, impact | Large aperture, non-abrasive |
| Application | Polyurethane Fine Screen Mat | Traditional Wire Mesh | Rubber Screen Panel |
|---|---|---|---|
| Fine Screening (<1mm) | Excellent | Poor (Blinding) | Moderate |
| High-Frequency | Excellent | Poor | Moderate |
| Wet Screening | Excellent | Poor (Blinding) | Good |
| Abrasive Ores | Excellent | Moderate | Good |
| Cost-Effectiveness | High (Long Life) | Low (Short Life) | High |
| Industry/Ore Type | Recommended Product | Key Benefit |
|---|---|---|
| Iron Ore | Fine Screen Mat | High abrasion resistance |
| Coal | Fine Screen Mat | Self-cleaning, reduces blinding |
| Copper Ore | Fine Screen Mat | Precision screening, long life |
| Silica Sand | Fine Screen Mat | Maintains open area, high purity |
| Gold Ore | Fine Screen Mat | Fine recovery, consistent cut point |
Choosing the right Polyurethane Fine Screen Mat depends on several factors:
Aperture Size: Determine the required cut point for your application (0.045 mm – 8.0 mm).
Equipment Compatibility: Ensure the mat is compatible with your high-frequency screening machine.
Ore Characteristics: Consider the abrasiveness and moisture content of your feed.
Production Targets: Select a mat that can handle your required throughput.
Supplier Capability: Choose a supplier like HUATAO that offers engineering support and customization.
Our team can help you match the right product to your specific needs, whether it's a direct replacement or a fully customized solution. We also offer expertise in related areas, such as optimizing your grinding circuit with the right BALL MILL LINER .
When procuring Polyurethane Fine Screen Mats, consider the following:
Required Information:
Screen panel dimensions (length, width, thickness)
Aperture size and shape (square, round, slotted)
Equipment make and model
Feed material characteristics
Drawings Needed:
Panel layout drawing
Installation details
Frame design
OEM Part Numbers:
Original OEM part numbers for cross-referencing
Material Selection:
Polyurethane type (MDI or TDI based) and hardness
Supplier Evaluation Checklist:
Can the supplier manufacture according to drawings?
Can the supplier provide material reports?
Can the supplier support OEM replacement?
Does the supplier have export experience?
Can the supplier provide wear-life recommendations?
Key Procurement Questions:
Can the supplier provide a detailed material report?
What is the lead time for customized panels?
What is the MOQ?
What packaging and shipping methods are used?
What quality inspection standards are followed?
HUATAO's extensive experience as a MINING WEAR PARTS SUPPLIER ensures we can meet all these criteria.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Premature Wear | Abrasive feed, incorrect material | Switch to higher-grade polyurethane, adjust panel design |
| Blinding/Pegging | Wet/sticky feed, incorrect aperture | Use self-cleaning design, adjust aperture shape (e.g., slotted) |
| Low Efficiency | Blinding, improper installation, worn panels | Clean or replace panels, ensure proper tensioning, inspect for wear |
| Excessive Downtime | Frequent replacements, difficult maintenance | Upgrade to longer-life polyurethane panels, optimize maintenance schedule |
| Panel Cracking | Impact loading, improper handling | Improve feed distribution, implement proper handling procedures |
| Poor Fitment | Incorrect dimensions, manufacturing defects | Verify measurements with drawings, inspect panels before installation |
Proper maintenance is crucial for maximizing the service life of your Polyurethane Fine Screen Mats.
Daily Inspection:
Check for visible damage or wear.
Monitor for blinding or pegging.
Ensure panels are properly secured.
Weekly Inspection:
Measure open area to assess wear.
Inspect tensioning system.
Tighten any loose bolts or fasteners.
Monthly Inspection:
Conduct a detailed wear pattern analysis.
Rotate panels if possible to ensure even wear.
Review screening efficiency data.
Replacement Timing:
Replace panels when open area drops below 20%.
Replace panels when efficiency falls below target.
Plan replacements during scheduled shutdowns.
Spare Parts Inventory:
Maintain a stock of critical panel sizes.
Keep a supply of tensioning bolts and fasteners.
By following these guidelines, you can significantly reduce downtime and extend the life of your screening media. Our experts are also available to help you optimize related systems, such as your CONVEYOR BELT CLEANERS to reduce carryback.
Customer Type: Equipment Manufacturer
Ore Type: N/A (Supplying parts to mining operations)
Operating Conditions: High-frequency screening of various minerals
Problem: The customer was paying premium prices for OEM fine screen panels, facing high costs, limited customization, and long lead times that delayed projects.
Solution: HUATAO recommended Polyurethane Fine Screen Mats with customized aperture sizes and panel dimensions. The polyurethane formulation and manufacturing process were optimized to ensure compatibility with their high-frequency screening machines.
Result:
Procurement cost reduced by nearly 50%
Screening efficiency increased by approximately 35%
Customized production for multiple machine models
Stable performance with significantly fewer maintenance interruptions
1. Question: What is a Polyurethane Fine Screen Mat?
Answer: It is a high-performance screening media for high-frequency mineral processing. Made from premium polyurethane, it offers excellent wear resistance, self-cleaning properties, and a long service life, serving as a cost-effective alternative to expensive OEM fine screen panels. It is designed to maintain open area and reduce blinding.
Recommendation: For high-frequency applications, polyurethane is the preferred choice.
2. Question: What is the typical service life of these mats?
Answer: Under normal operating conditions, you can expect a service life of more than 6 months. This superior wear resistance reduces replacement frequency and overall maintenance costs, providing a significant return on investment.
Recommendation: Ensure you are using the correct polyurethane formulation for your specific ore type.
3. Question: Are these mats compatible with my existing equipment?
Answer: Yes, they are designed as direct OEM replacements for leading high-frequency screening equipment. We also support fully customized production based on your drawings to ensure a perfect fit for your machinery.
Recommendation: Contact our engineering team with your equipment details for a compatibility check.
4. Question: Can the aperture size and panel dimensions be customized?
Answer: Absolutely. We offer full customization services. Our engineering team can work with you to determine the optimal aperture size (0.045 mm – 8.0 mm) and panel dimensions to meet your specific screening targets and process conditions.
Recommendation: Provide us with your screening requirements for a tailored solution.
5. Question: How does a Polyurethane Fine Screen Mat reduce blinding?
Answer: The high elasticity of polyurethane causes the screen panel to vibrate and flex, which actively helps to dislodge lodged particles. This self-cleaning effect significantly reduces blinding and pegging, maintaining a stable open area and consistent screening efficiency.
Recommendation: This is particularly beneficial for wet or sticky materials.
6. Question: What are the main benefits of choosing polyurethane over wire mesh?
Answer: Polyurethane offers excellent wear resistance, a much longer service life, and superior self-cleaning properties. Unlike wire mesh, it does not corrode or rust, maintains its open area, and requires less frequent replacement, leading to lower total cost of ownership.
Recommendation: For fine screening, polyurethane is almost always the better investment.
7. Question: Can HUATAO provide samples for testing?
Answer: Yes, we can provide samples for testing to ensure the panels meet your performance expectations. This allows you to validate the product's performance in your specific application before committing to a full order.
Recommendation: Contact our sales team to arrange for a sample.
8. Question: How do I choose the right polyurethane screen supplier?
Answer: Look for a supplier with extensive manufacturing experience, engineering support, and a proven track record in the mining industry. A reliable supplier should offer OEM replacement, customization, and export experience.
Recommendation: Evaluate suppliers based on their ability to provide material reports, customization, and technical assistance, similar to a trusted FLOTATION WEAR PARTS supplier.
9. Question: What is the MOQ for customized panels?
Answer: MOQ can vary depending on the complexity of the design and the order quantity. Contact our sales team for a specific quote based on your needs.
Recommendation: Discuss your production schedule with our team to optimize the MOQ and lead time.
10. Question: Does HUATAO offer technical support after purchase?
Answer: Yes, we provide professional engineering support and reliable after-sales technical assistance. Our team is available to help with installation, troubleshooting, and wear-life optimization to ensure you get the most out of your investment.
Recommendation: We are committed to long-term partnerships and your operational success.
Switching to high-performance Polyurethane Fine Screen Mats is a strategic move for any mineral processing operation looking to reduce costs and improve efficiency. With up to 50% cost savings, a 35% increase in screening efficiency, and a long service life, these mats offer a superior alternative to expensive OEM panels. HUATAO's commitment to quality, customization, and engineering support makes us the ideal partner for your wear solution needs.
Ready to Reduce Your Screening Costs?
If you're looking for a high-performance alternative to expensive OEM fine screen panels, we'd be happy to help. Our engineering team can recommend the most suitable polyurethane screen for your application.
Contact Us
Annie Lu
Email: annie.lu@huataogroup.com
WhatsApp: +86 180 3242 2676
Website: www.tufflexscreen.com
Request a free consultation or sample today and discover how HUATAO can help improve your screening efficiency while lowering your operating costs.
