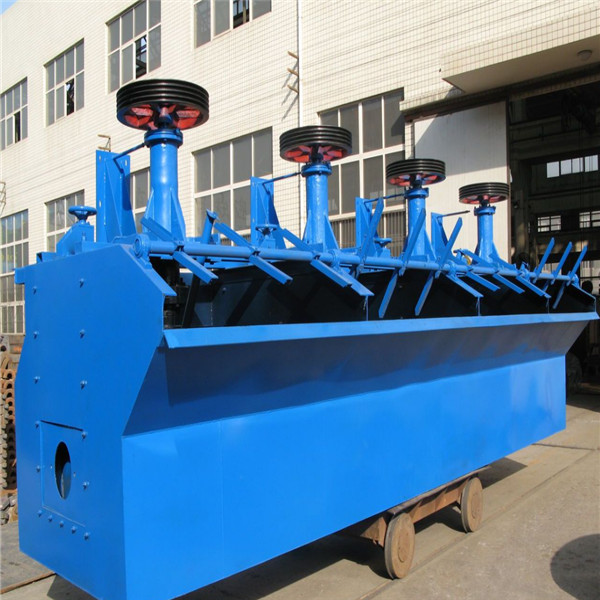

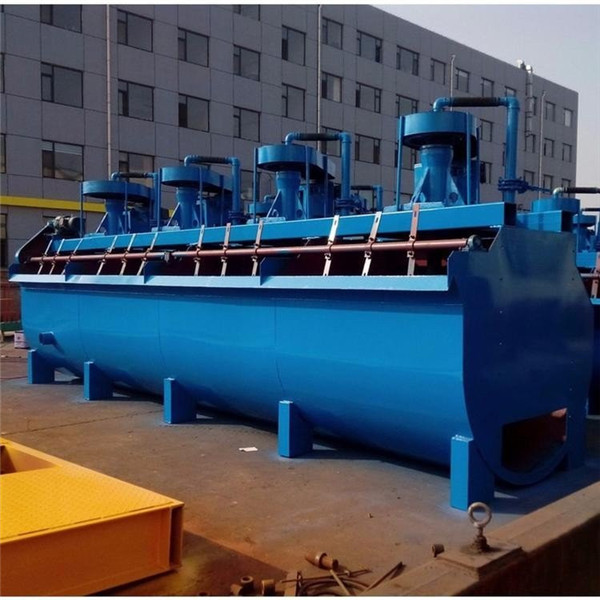

Rod Flotation Machine

When the rod flotation machine drives the inclined rod wheel installed at the lower part of the hollow shaft to rotate at high speed by means of the motor and the pulley, a negative pressure is generated in the flotation wheel, and the air is sucked in by the hollow main shaft and divided by the flotation wheel, and dispersed into tiny bubble.

Due to the strong stirring and projecting action of the flotation wheel, the pulp and air are fully mixed. Under the action of the oblique rod of the flotation wheel, the slurry-air mixture first advances forward, and then leans against the boss (gland) and the curved plate. The diversion effect of the flow stabilizer makes it continuously and evenly distributed in the tank, and finally, under the reflection effect of the bottom of the tank and the tank wall and the steady flow of the arc plate, it rises from the stirring area to the ore liquid surface through the sorting area. The flow trajectory of the slurry-air mixture, viewed from the longitudinal section of the tank, is "W" shaped. This flow characteristic makes the range of the stirring zone relatively enlarged, and the range of the sorting zone is relatively reduced, coupled with the shallow groove, the range is even narrower. The former increases the chance of contact between the ore particles and the air bubbles, which is beneficial to the mineralization of the foam. The mineralized foam rises to the foam area and is scraped out by the scraper to become a foam product. The working principle of the suction tank is the same as that of the vertical sand pump, that is, with the help of the rotating lifting wheel, the pressure head is generated, and the slurry is sucked from the guide pipe at the bottom of the tank and lifted to the required height.
Features
The characteristics of the rod flotation machine are the use of rod wheel stirring, shallow groove flotation, and pump wheel suction; large air volume, strong stirring force, high bubble dispersion, and the slurry flow trajectory is "W" shape, good adaptability, suitable for It is suitable for flotation with large specific gravity, coarse particle size and high concentration. However, the rod wheel of the rod flotation machine wears quickly, and the structure of the suction tank is more complicated. Due to the different structures of the suction tank and the flotation tank, it is more troublesome to change the production process.

Parameter
Scraper speed 60r/min
Delivery time 60 days
Impeller diameter 600mm
Rotation of impeller 150r/min
Processing capacity 300m3/h
Effective volume 0.4m3
Motor power 7.5kw
Motor speed 290r/min
Feeding particle size 0.074~mm
