Best Alternative to Metso Crusher Wear Parts – Complete Engineering & Procurement Guide

What is the best alternative to Metso crusher wear parts?
The best alternative is an OEM-compatible aftermarket part manufactured with proper metallurgy (Mn18 or Mn22), precise heat treatment, and dimensional accuracy. Suppliers like HUATAO offer 30–50% cost savings, shorter lead times (4–6 weeks), and custom manufacturing from drawings or samples – often with longer wear life than original Mn13 parts.

Key Takeaways

✔ Cost savings – 30–50% lower than Metso OEM
✔ Better wear life – Mn22 can outlast standard Mn13/18 significantly
✔ Shorter lead time – 4–6 weeks vs 8–12 weeks
✔ Custom capability – Manufacture from drawing or sample
✔ Quality documentation – Chemical & hardness reports included

Summary Table

1. Definition

An alternative to Metso crusher wear parts is an aftermarket component designed to fit Metso crushers (Nordberg jaw, HP/GP cone, LT impact, gyratory) with matching dimensions and performance, typically at lower cost than original OEM parts.

2. Working Principle

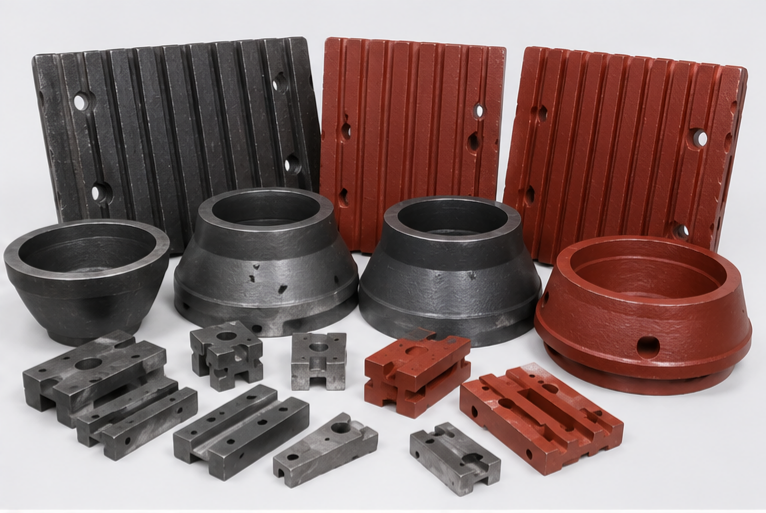

Metso crushers use compressive or impact forces. Wear parts – jaw plates, mantles, concaves, blow bars – directly contact ore. Manganese steel work-hardens: surface hardness increases from ~200 BHN to 500+ BHN under impact, providing wear resistance while maintaining toughness.

3. Benefits of Aftermarket Alternatives to Metso

• Cost reduction: 30–50% lower purchase price

• Potential wear life increase: Mn22 can outperform Mn18 by 40–80% on abrasive ores

• Shorter lead time: 4–6 weeks typical

• Customization: Modify tooth profiles for specific ore characteristics

• Obsolescence support: Older Metso models supported

4. Applications by Metso Crusher Type

5. Material Comparison Table

6. Application Industry Matrix

7. OEM vs Aftermarket Comparison Table

8. Selection Guide for Metso Alternative Suppliers

Step 1 – Identify your Metso crusher model and OEM part number.
Step 2 – Define ore abrasion (Ai) and impact level.
Step 3 – Select Mn grade:

• Ai < 0.4 → Mn18

• Ai > 0.6 → Mn22
  Step 4 – Request trial set from supplier with material test reports.
  Step 5 – Monitor wear life and calculate cost per ton.

9. Procurement Guide for Metso-Compatible Parts

Required information for quote:

• Metso crusher model (e.g., Metso C106, HP400)

• OEM part number (stamped on existing part)

• Drawing (PDF, DWG, STEP) or physical sample

• Desired manganese grade (Mn13/18/22)

• Quantity (sets)

• Destination port

Supplier evaluation checklist (score 1–5 each):

• Previous experience manufacturing Metso-compatible parts

• In-house foundry

• In-house heat treatment

• ISO 9001:2015

• Spectrometer for chemical analysis

• Brinell hardness tester

• Dimensional inspection (CMM)

• Provides material test reports

• Can manufacture from drawing or sample

• Lead time ≤6 weeks

Minimum 40/50 points recommended.

Typical terms:

• MOQ: 1–5 sets

• Lead time: 4–6 weeks

• Packaging: Steel pallet or crate

• Shipping: FOB, CIF, EXW

10. Failure Analysis – Metso-Compatible Parts

11. Maintenance Guide for Metso-Compatible Wear Parts

Installation:

• Clean seat areas thoroughly

• Apply anti-seize on threads

• Torque to Metso specifications

Weekly monitoring:

• Measure closed side setting (CSS)

• Record hours and tons crushed

• Photograph wear progression

Cost tracking:

• Cost per ton = (part cost + labor) / tons crushed

• Compare against previous OEM performance

12. Case Study – Copper Mine, Chile

Customer Type: Mid-size copper mine, 2,000 t/d.
Operating Conditions: Porphyry copper, high abrasion, 16h/day.
Crusher: Metso HP400 cone crusher.
Original parts: OEM Mn18 concave and mantle – 950 hours life.
Problem: Frequent liner changes causing downtime; high cost per ton.
Solution: HUATAO Mn22 concave and mantle with modified chamber profile, manufactured from OEM part number.
Result:

• Wear life increased to 1,450 hours (+52%)

• Cost per ton reduced by 32%

• Annual savings per crusher: ~$62,000

• Customer now uses HUATAO for all Metso cone crushers

13. FAQ (10 questions)

Q1: What is the best alternative to Metso crusher wear parts?
A: The best alternative is a high-quality aftermarket part with proper metallurgy (Mn18/Mn22), exact fit, and custom capability – such as HUATAO.

Q2: Are aftermarket Metso-compatible parts reliable?
A: Yes – when sourced from a supplier with in-house foundry, heat treatment, and quality documentation.

Q3: Can I get longer wear life than Metso OEM?
A: Yes – Mn22 on high-abrasion ores often outlasts Metso’s standard Mn13/18 significantly.

Q4: Does HUATAO make parts for Metso HP series cone crushers?
A: Yes – mantles, concaves, bowl liners for HP200 to HP800.

Q5: Can you manufacture from my Metso part number?
A: Yes – provide OEM part number or drawing, and we will produce exact-fit parts.

Q6: What is typical lead time for Metso-compatible parts?
A: 4–6 weeks for standard orders; 6–8 weeks for custom patterns.

Q7: Do you provide material test reports?
A: Yes – chemical composition, hardness, and dimensional reports.

Q8: How do I compare cost per ton between OEM and aftermarket?
A: Track wear life and calculate (part cost + labor) / tons crushed. Longer life reduces cost per ton.

Q9: What is MOQ for Metso-compatible parts?
A: Typically 1–5 sets; trial orders of 1 set are welcome.

Q10: How do I start a trial with HUATAO?
A: Contact Annie Lu with your Metso crusher model or part number.

14. Conclusion

The best alternative to Metso crusher wear parts combines OEM-compatible fit, superior metallurgy (Mn18/Mn22), shorter lead times, and custom manufacturing capability. HUATAO provides all of these – serving gold, copper, iron ore, and lithium mining operations worldwide with cost-effective, high-performance alternatives to expensive Metso OEM parts.
