Ultrasonic Vibrating Screen for ultrafine powder screening, prevent mesh blinding and blocking with ultrasonic system

Mesh Size: 10-635

Capacity:1-20t/h

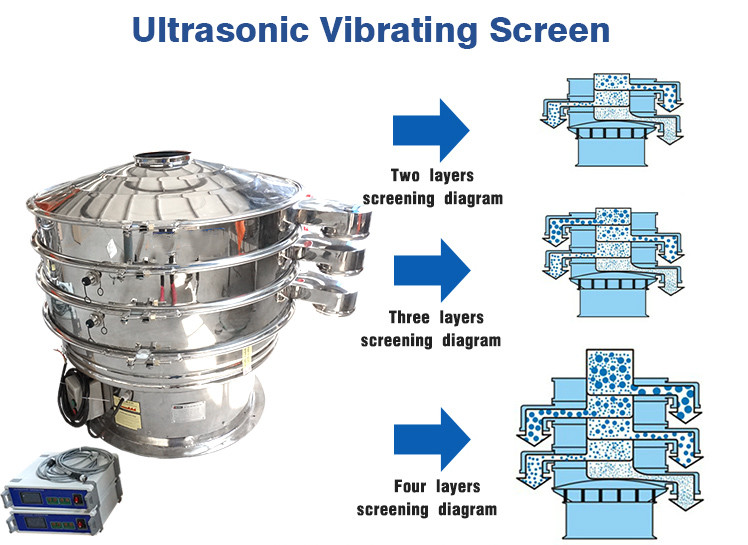

Layer:1~5 layers

Material: Stainless steel 304,316L,or Carbon Steel

Voltage: 3 phase, 220V/ 380V/ 415V, 50HZ/60HZ(Customized is available)

Application:Strong adsorption, adhesion, sticky, high static, high density, ultrafine powder, etc.

Customizable: external type/built-in type, gate type, gas protection type

Commitment:5 Days Delivery/30-Day Returns/Support Customization

Click directly to send a message via WhatsApp

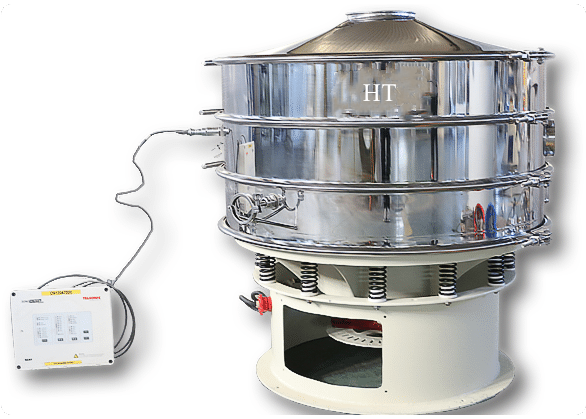

Introduction of Ultrasonic Vibrating Screen

Ultrasonic vibrating screen is an additional ultrasonic system on the basis of ordinary vibrating screen，it consists of consisting of a generator and a probe that applies an ultrasonic frequency to a mesh screen,it has been designed to allow for difficult powders to be easily screened on sieve meshes. Not only does this increase the capacity of the product that is sieved but allows for accurate separation down to 20µm (#635mesh)。Screening accuracy can be increased more than 80%, capacity increased by 2 to 5 times.

Sometimes will also named it as Ultrasonic Sieve; ultrasonic vibro sifter; ultra-sonic vibrating separator and so on.

Note: Our ultrasonic vibrating screen adopts a gate design, and the operator can decide the material screening time by himself.

Function of Ultrasonic Vibrating Screen

1. Ultrafine powder screening: Really solve the screening problems of the characteristics material of strong adsorption, adhesion, sticky, high static, high density, ultrafine powder, etc.

2. Solve the network blockage: convert 220V, 50Hz electric energy into 38KHz high frequency electric energy, input the ultrasonic transducer, and turn it into 38KHz mechanical vibration, so as to achieve the purpose of screening and cleaning the network, making it easy to screen fine powder Increasing the penetration rate and reducing the clogging of the screen.

3. Reduced costs: eliminates mesh damage normally associated with mechanical cleaning devices, increasing mesh life



Benefits of Ultrasonic Vibrating Screen

1.Suitable for Ultra-fine Powder

Solved the problem of the sieving of strong adsorption, free huddle, strong stickiness, high static, high density, ultrafine powder, etc.



2.Not Clog the Mesh

The vibration frequency of the ultrasonic vibrating screen is 360,000 times/minute, which effectively prevents the screen from clogging, and the materials that are difficult to screen hardly block the mesh.



3.Improve Efficiency

The accuracy of the sieve can be increased by more than 80% and the output is increased by 2-5 times.



4.Lower Cost

There is no need to add a screen cleaning device, except for the damage of the mesh usually associated with mechanical cleaning equipment, and increase the service life of the mesh.

Technical Data of Ultrasonic Vibrating Screen

Model	Effective screening diameter	Screen mesh size range	No of layers	Power
HC-400	340	80-600MESH	1-3 LAYERS	0.18KW
HC-600	540	80-600MESH	1-3 LAYERS	0.25KW
HC-800	730	80-600MESH	1-3 LAYERS	0.55KW
HC-1000	900	80-600MESH	1-3 LAYERS	0.75KW
HC-1200	1100	80-600MESH	1-3 LAYERS	1.1KW
HC-1500	1400	80-600MESH	1-3 LAYERS	1.5KW
HC-1800	1700	80-600MESH	1-3 LAYERS	2.2KW

Working Principle of Ultrasonic Vibrating Screen

Ultrasonic vibrating screen can input 220V, 50Hz or 110V, 60Hz electric energy into the ultrasonic transducer, and turn it into 36KHz mechanical vibration. Ultrasonic vibrating screen can input 220V, 50Hz or 110V, 60Hz electric energy into the ultrasonic transducer, and turn it into 36KHz mechanical vibration. The generated ultrasonic wave makes the screen mesh vibrate at a high frequency. The materials on the screen surface are superimposed with ultrasonic vibration while performing low-frequency rotational vibration, which can not only prevent mesh clogging, but also improve the output and product quality of the screening machine, making the ultrasonic vibrating screen easy to screen ultrafine powder.

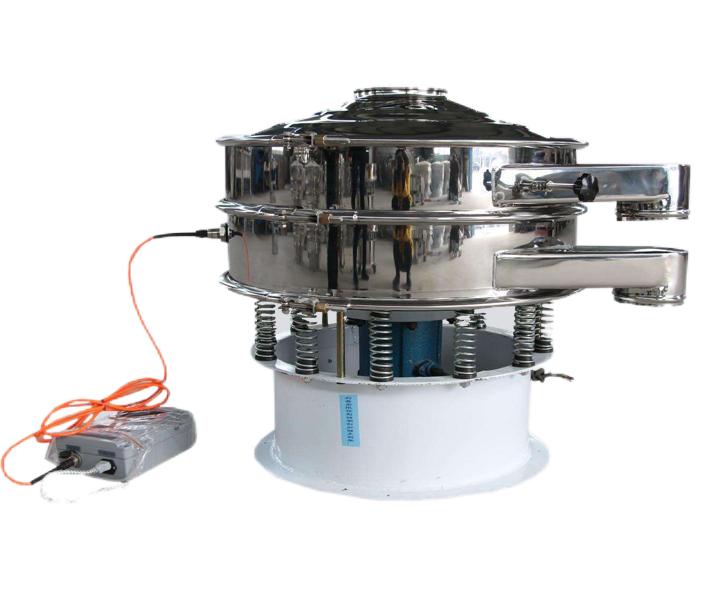

Parts of the Ultrasonic Vibrating Screen

1、Ultrasonic resonance power supply: 38KHz high-frequency high-power ultrasonic resonance power supply. The built-in microcomputer chip can automatically track the whole digital frequency according to the different states of the ultrasound, without manual adjustment, and the operation is simple and convenient. Long-time working oscillator has low heat output and stable working condition.

2、High-frequency connection line: The ultrasonic oscillator and the ultrasonic resonant power supply are connected by a cable.

3、Connector: Aviation connection plug-in.

4、Oscillator: High-performance ultrasonic conversion device.

5、Ultrasonic grid: It is composed of an outer grid and a resonance ring.

6、Ultrasonic vibrating screen: suitable for 10 mesh to 635 mesh.



Application Range of Ultrasonic Vibrating Screen

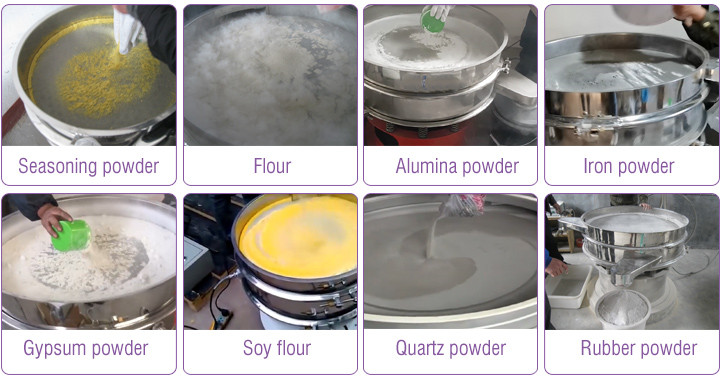

Ultrasonic vibrating screen is suitable for powdered sugar, starch, salt, soybean milk powder, API intermediates, silicon carbide, brown corundum, white corundum, molybdenum powder, tungsten powder, nickel powder, cobalt powder, stainless steel powder, alloy powder, powder coating, Quartz powder, emery, electromagnetic powder, laser powder, aluminum powder, electrolytic copper powder, grinding powder, refractory material, luminous powder, glass microbeads, rubber additives, etc.

1.Size classification:separation of particles into groups of comparable size from the materials.

2.Gravity filtering:removal of solids from liquids and slurries.

3.Product reclamation:removal of the solids from waste product or clarification of waste liquor for further use.

4.Screening:separation of a few oversize particles from a quantity of materials.
