Square Swing Screen

Description Inquire

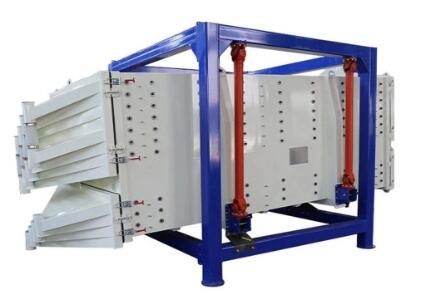

Description of Square Swing Screen

Our Square Swing Screen Machine meet the user’s large output and high precision requirements.

The screen mesh frame and bouncing balls installation method adopt quick open design and easy to install, so the installation is very convenient.

The screen mesh frame and the screen mesh installation method adopt a unique and innovative design, and the installation is very convenient. Usually 9-layer design, can be divided into 10 grades at one time, or 4 layers + 4 layers equivalent to 2 sets sieve machine, or 2 layers + 2 layers + 2 layers equivalent to 3 sets sieve machine Or designed as 1 layer +1 layer +1 layer +1 layer +1 layer is equivalent to 5 sets sieve machines.

Advantage of Square Swing Screen

Fully enclosed structure, dust does not fly, the screen machine has small vibration and low noise, which meets the requirements of environmental protection.
Flexible screening, the acceleration is 4-5 times lower than that of ordinary vibrating screens, and the service life is increased, thereby reducing maintenance costs.
Large-scale electrostatic spraying process makes the equipment more beautiful, wear-resistant and rust-proof.
Output up to 20TPH
Screening accuracy 99.9%

Main technical parameters of Square Swing Screen

Model

Screen Size

(m)

Sieve Area（m2)）

Angle(°）

Layer

Power (kw)

Number of turns

Screen box stroke（mm）

HT-1536

1.5m x 3.6m

5.4m2

5.43±3

1-10 layers

5.5

180-260

60-25

HT2040

2m x 4m

8m2

5.43±3

1-10 layers

7.5

180-260

60-25

Application of Square Swing Screen

It is widely used in oil fracturing sand, mechanism quartz sand, foundry sand, glass yarn, colored sand,mullite sand,cat litter, perlite, edible salt, etc.
